A modified approach for high-quality RNA extraction of spore-forming Bacillus subtilis at varied physiological stages

  • Original Article
  • Published:
Molecular Biology Reports Aims and scope Submit manuscript

Abstract

Background

High quality RNA is required for the molecular study. Sample preparation of the spore-forming, Gram-positive bacteria like Bacillus sp., remains challenging although several methods have been proposed. Those techniques were simply developed using cell samples at certain growth stages despite some molecular studies like transcriptomic analyses require RNA samples from different physiological stages.

Methods and results

We developed the rapid, simple yet effective cell-lysis technique with limit use of harsh reagents by modifying the kit-based protocols. Appropriate lysozyme loading (20 mg/mL), incubation time (30 min), and temperature (37 °C) enabled cell lysis and enhanced RNA extraction from both vegetative cells and endospores of Bacillus subtilis TL7-3. High RNA Integrity Numbers and ratios of A260/A280 and A260/A230 of all RNA products collected during the batch cultivation confirmed that invert mixing with absolute ethanol prevented RNA damage during protein denaturation. With the process modification of the major steps in cell lysis and RNA extraction compared with the kit-based protocols that are typically used in laboratory work, interestingly, our modified protocol, simple-yet-effective, yielded higher concentration, purity, and integrity of RNA products from all cell samples collected at different physiological stages. While the kit-based protocols either failed to provide high RNA concentration or RNA purity and integrity for all cell samples particularly during the late-log, stationary, or sporulation.

Conclusions

Therefore, we can claim the significance of this modified protocol to be applicable for RNA extraction to those spore-forming Gram-positive bacteria not limited to B. subtilis growing at varied physiological stages.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

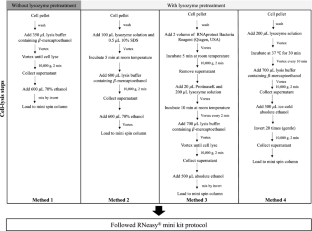

Fig. 1

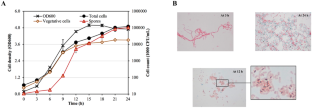

Fig. 2

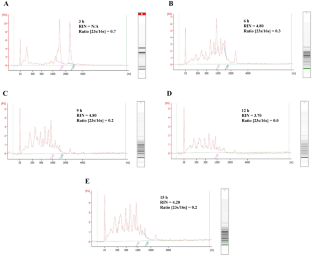

Fig. 3

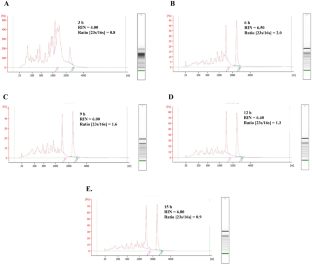

Fig. 4

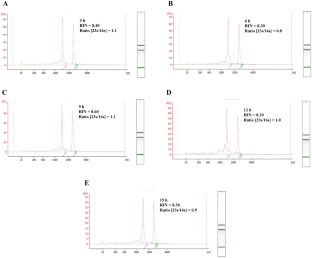

Fig. 5

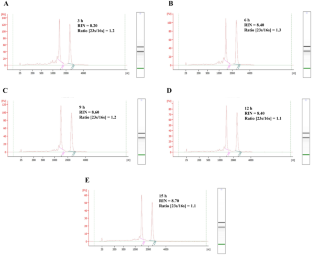

Fig. 6

Similar content being viewed by others

Data availability

The 16S rRNA gene sequence of B. subtilis TL7-3 has been submitted to NCBI with accession number MW820294.

References

  1. Egan AJF, Cleverley RM, Peters K, Lewis RJ, Vollmer W (2017) Regulation of bacterial cell wall growth. FEBS J 284(6):851–867. https://doi.org/10.1111/febs.13959

    Article  CAS  PubMed  Google Scholar

  2. Tan IS, Ramamurthi KS (2014) Spore formation in Bacillus subtilis. Environ Microbiol Rep 6(3):212–225. https://doi.org/10.1111/1758-2229.12130

    Article  CAS  PubMed  Google Scholar

  3. Meador-Parton J, Popham DL (2000) Structural analysis of Bacillus subtilis spore peptidoglycan during sporulation. J Bacteriol 182(16):4491–4499. https://doi.org/10.1128/jb.182.16.4491-4499.2000

    Article  CAS  PubMed  PubMed Central  Google Scholar

  4. Vollmer W, Blanot D, De Pedro MA (2008) Peptidoglycan structure and architecture. FEMS Microbiol Rev 32(2):149–167. https://doi.org/10.1111/j.1574-6976.2007.00094.x

    Article  CAS  PubMed  Google Scholar

  5. Primo ED, Otero LH, Ruiz F, Klinke S, Giordano W (2018) The disruptive effect of lysozyme on the bacterial cell wall explored by an in-silico structural outlook. Biochem Mol Biol Educ 46(1):83–90. https://doi.org/10.1002/bmb.21092

    Article  CAS  PubMed  Google Scholar

  6. Hwang KY, Kwon SH, Jung SO, Lim HK, Jung WJ, Park CS et al (2011) Miniaturized bead-beating device to automate full DNA sample preparation processes for gram-positive bacteria. Lab Chip 11(21):3649–3655. https://doi.org/10.1039/c1lc20692c

    Article  CAS  PubMed  Google Scholar

  7. Muchová K, Wilkinson AJ, Barák I (2011) Changes of lipid domains in Bacillus subtilis cells with disrupted cell wall peptidoglycan. FEMS Microbiol Lett 325(1):92–98. https://doi.org/10.1111/j.1574-6968.2011.02417.x

    Article  CAS  PubMed  Google Scholar

  8. Choi Y, Moody IS, Sims PC, Hunt SR, Corso BL, Seitz DE et al (2012) Single-molecule dynamics of lysozyme processing distinguishes linear and cross-linked peptidoglycan substrates. J Am Chem Soc 134(4):2032–2035. https://doi.org/10.1021/ja211540z

    Article  CAS  PubMed  PubMed Central  Google Scholar

  9. Villa-Rodríguez E, Ibarra-Gámez C, de Los S-V (2018) Extraction of high-quality RNA from Bacillus subtilis with a lysozyme pre-treatment followed by the Trizol method. J Microbiol Methods 147:14–16. https://doi.org/10.1016/j.mimet.2018.02.011

    Article  CAS  PubMed  Google Scholar

  10. Rantakokko-Jalava K, Jalava J (2020) Optimal DNA isolation method for detection of bacteria in clinical specimens by broad-range PCR. J Clin Microbiol 40(11):4211–4217. https://doi.org/10.1128/jcm.40.11.4211-4217.2002

    Article  Google Scholar

  11. Fregel R, González A, Cabrera VM (2010) Improved ethanol precipitation of DNA. Electrophoresis 31(8):1350–1352. https://doi.org/10.1002/elps.200900721

    Article  CAS  PubMed  Google Scholar

  12. Weidenmaier C, Peschel A (2008) Teichoic acids and related cell-wall glycopolymers in Gram-positive physiology and host interactions. Nat Rev Microbiol 6(4):276–287. https://doi.org/10.1038/nrmicro1861

    Article  CAS  PubMed  Google Scholar

  13. Hussain M, Zahoor T, Anjum FM, Shahid M, Saeed F (2015) Isolation and characterization of buffalo milk lysozyme. Int J Food Prop 18(6):1288–1297. https://doi.org/10.1080/10942912.2013.809540

    Article  CAS  Google Scholar

  14. Bilgin DD, DeLucia EH, Clough SJ (2009) A robust plant RNA isolation method suitable for Affymetrix GeneChip analysis and quantitative real-time RT-PCR. Nat Protoc 4(3):333–340. https://doi.org/10.1038/nprot.2008.249

    Article  CAS  PubMed  Google Scholar

  15. Lucena-Aguilar G, Sánchez-López AM, Barberán-Aceituno C, Carrillo-Ávila JA, López-Guerrero JA, Aguilar-Quesada R (2016) DNA source selection for downstream applications based on DNA quality indicators analysis. Biopreserv Biobank 14(4):264–270. https://doi.org/10.1089/bio.2015.0064

    Article  CAS  PubMed  PubMed Central  Google Scholar

  16. Miranda RN, Silva CM, Porto ACM, Pereira WA (2019) Protocol adjustment improves the extraction of high-quality total RNA from common bean stems infected by Sclerotinia sclerotiorum. Ciênc Agrotec 43:1–16. https://doi.org/10.1590/1413-7054201943024618

    Article  CAS  Google Scholar

  17. Rezadoost MH, Kordrostami M, Kumleh HH (2016) An efficient protocol for isolation of inhibitor-free nucleic acids even from recalcitrant plants. 3 Biotech 6(61):1–7. https://doi.org/10.1007/s13205-016-0375-0

    Article  Google Scholar

  18. Hampton-Marcell JT, Moormann SM, Owens SM, Gilbert JA (2013) Preparation and metatranscriptomic analyses of host-microbe systems. Methods Enzymol 531:169–185. https://doi.org/10.1016/b978-0-12-407863-5.00009-5

    Article  CAS  PubMed  Google Scholar

  19. Hitzemann R, Darakjian P, Walter N, Iancu OD, Searles R, McWeeney S (2014) Introduction to sequencing the brain transcriptome. Int Rev Neurobiol 116:1–19. https://doi.org/10.1016/b978-0-12-801105-8.00001-1

    Article  PubMed  PubMed Central  Google Scholar

  20. He J, Du S, Tan X, Arefin A, Han CS (2016) Improved lysis of single bacterial cells by a modified alkaline-thermal shock procedure. Biotechniques 60(3):129–135. https://doi.org/10.2144/000114389

    Article  CAS  PubMed  Google Scholar

  21. Vingataramin L, Frost EH (2015) A single protocol for extraction of gDNA from bacteria and yeast. Biotechniques 58(3):120–125. https://doi.org/10.2144/000114263

    Article  CAS  PubMed  Google Scholar

  22. Shehadul Islam M, Aryasomayajula A, Selvaganapathy PR (2017) A review on macroscale and microscale cell lysis methods. Micromachines 8(3):83. https://doi.org/10.3390/mi8030083

    Article  PubMed Central  Google Scholar

  23. Kim J, Johnson M, Hill P, Gale BK (2009) Microfluidic sample preparation: cell lysis and nucleic acid purification. Integr Biol 1(10):574–586. https://doi.org/10.1039/b905844c

    Article  CAS  Google Scholar

  24. Ho CW, Tan WS, Yap WB, Ling TC, Tey BT (2008) Comparative evaluation of different cell disruption methods for the release of recombinant hepatitis B core antigen from Escherichia coli. Biotechnol Bioprocess Eng 13(5):577–583. https://doi.org/10.1007/s12257-008-0020-9

    Article  CAS  Google Scholar

Download references

Acknowledgements

P. Jaiaue is the recipient of the Development and Promotion of Science and Technology Talents Project (DPST) provided by Thailand Research Fund. The authors would like to acknowledge National Security and Dual-Use Technology Center, National Science and Technology Development Agency (NSTDA), for supporting our study.

Funding

This study was partially funded by National Research Council of Thailand; Research Chair Professor Grant provided by National Science and Technology Development Agency (NSTDA); and Thailand Research Fund [Grant No. RTA6280014].

Author information

Authors and Affiliations

  1. Program in Biotechnology, Faculty of Science, Chulalongkorn University, Bangkok, Thailand

    Phetcharat Jaiaue

  2. Research Unit in Bioconversion and Bioseparation for Value-Added Chemical Production, Institute of Biotechnology and Genetic Engineering, Chulalongkorn University, Bangkok, Thailand

    Piroonporn Srimongkol, Sitanan Thitiprasert & Nuttha Thongchul

  3. Research Unit in Bioconversion and Bioseparation for Value-Added Chemical Production, Department of Biochemistry and Microbiology, Faculty of Pharmaceutical Sciences, Chulalongkorn University, Bangkok, Thailand

    Somboon Tanasupawat

  4. Department of Industrial Biotechnology, Faculty of Agro-Industry, Prince of Songkla University, Songkla, Thailand

    Benjamas Cheirsilp

  5. Department of Chemical Engineering, Faculty of Engineering, Chulalongkorn University, Bangkok, Thailand

    Suttichai Assabumrungrat

Authors
  1. Phetcharat Jaiaue
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Piroonporn Srimongkol
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Sitanan Thitiprasert
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Somboon Tanasupawat
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Benjamas Cheirsilp
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Suttichai Assabumrungrat
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Nuttha Thongchul
    View author publications

    You can also search for this author in PubMed Google Scholar

Contributions

PJ performed the experiments and statistical analysis. PS, ST, and NT conceived the research idea, designed the methodology, and scrutinized the experimental data. ST provided the strain in this study and visualized the experimental data. BC, SA, and NT provided research funding and supervised the research work. PJ and NT wrote and edited the manuscript.

Corresponding authors

Correspondence to Sitanan Thitiprasert or Nuttha Thongchul.

Ethics declarations

Conflict of interest

The authors declare that they have no conflict of interest.

Consent for publication

All authors agreed to submit this work for publication in Molecular Biology Reports.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

This manuscript has been submitted as the preprint and can be accessed via the following link: https://www.researchsquare.com/article/rs-429777/v1.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Jaiaue, P., Srimongkol, P., Thitiprasert, S. et al. A modified approach for high-quality RNA extraction of spore-forming Bacillus subtilis at varied physiological stages. Mol Biol Rep 48, 6757–6768 (2021). https://doi.org/10.1007/s11033-021-06673-7

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s11033-021-06673-7
