A Pitzer Model for Lead Oxide Solubilities in the Presence of Borate to High Ionic Strength

Journal of Solution Chemistry Aims and scope Submit manuscript

Abstract

In this study, a hydrolysis model for lead, applicable to high ionic strength, is developed based on lead oxide solubilities as a function of ionic strength. Solubility measurements on lead oxide, α-PbO (tetragonal, red), mineral name litharge, as a function of ionic strength were conducted in NaClO4 solutions up to I = 0.45 mol·kg−1, in NaCl solutions up to I = 5.0 mol·kg−1, and in Na2SO4 solutions up to I = 5.4 mol·kg−1, at room temperature (22.5 ± 0.5 °C). The lead hydroxyl species considered in this work include the following,

$$ {\text{PbO}}\left( {\text{cr}} \right) \, + {\text{ 2H}}^{ + } \rightleftharpoons {\text{Pb}}^{ 2+ } + {\text{ H}}_{ 2} {\text{O}}\left( {\text{l}} \right) $$
(1)
$$ {\text{Pb}}^{ 2+ } + {\text{ H}}_{ 2} {\text{O}}\left( {\text{l}} \right) \rightleftharpoons {\text{PbOH}}^{ + } + {\text{ H}}^{ + } $$
(2)
$$ {\text{Pb}}^{ 2+ } + {\text{ 2H}}_{ 2} {\text{O}}\left( {\text{l}} \right) \rightleftharpoons {\text{Pb}}\left( {\text{OH}} \right)_{ 2} \left( {\text{aq}} \right) \, + {\text{ 2H}}^{ + } $$
(3)
$$ {\text{Pb}}^{ 2+ } + {\text{ 3H}}_{ 2} {\text{O}}\left( {\text{l}} \right) \rightleftharpoons {\text{Pb(OH}})_{3}^{ - } + 3{\text{H}}^{ + } $$
(4)

The equilibrium constants for Reactions (1) and (2) were taken from literature. The equilibrium constants in base 10 logarithmic units for Reactions (3) and (4) are determined in this study as − 17.05 ± 0.10 (2σ) and − 27.99 ± 0.15 (2σ), respectively, with a set of Pitzer parameters describing the interactions with Na+, Cl−, and \( {\text{SO}}_{4}^{2 - } .\) In combination with the parameters from literature including those that have already been published by our group, the solution chemistry of lead in a number of media including NaCl, MgCl2, NaHCO3, Na2CO3, Na2SO4, NaClO4, and their mixtures, can be accurately described in a wide range of ionic strengths.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price includes VAT (Finland)

Instant access to the full article PDF.

Institutional subscriptions

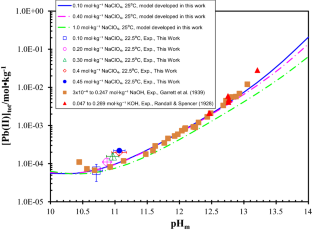

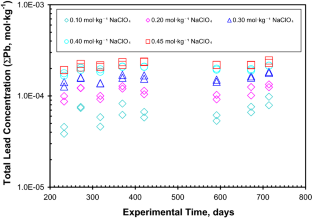

Fig. 1

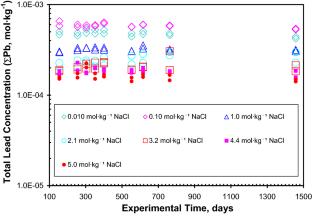

Fig. 2

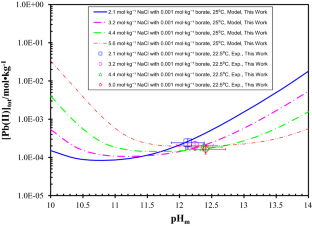

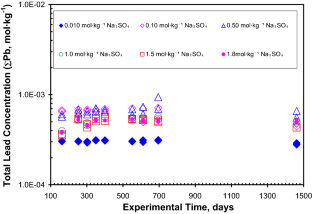

Fig. 3
Fig. 4

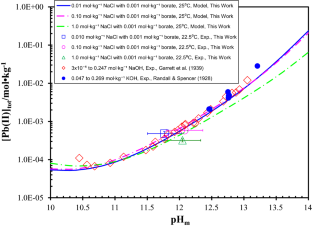

Fig. 5
Fig. 6

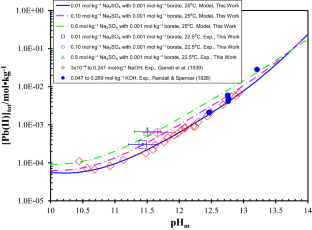

Fig. 7
