Abstract
A novel active thermal nondestructive testing (TNDT) technique using sequential heating and cooling is proposed. Properly chosen parameters of a heating/cooling technique may result in a sample excess temperature that is close to the sample’s initial temperature, which causes zero excess temperature when hidden defects still produce noticeable temperature signals. In this case, the running temperature contrast may increase, which improves detection reliability. This is due to the fact that the effect of emissivity variations on the surface of a test sample are minimized if the sample temperature is close to the ambient temperature.

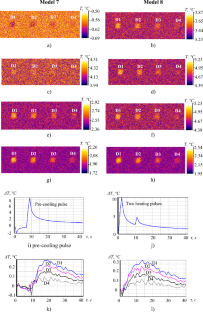

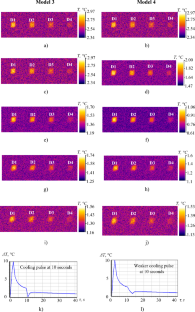

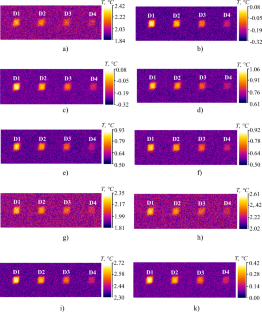

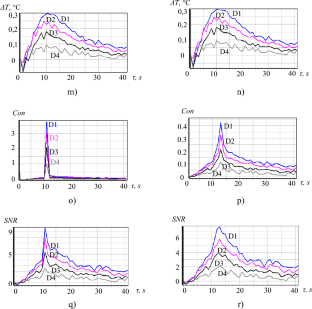

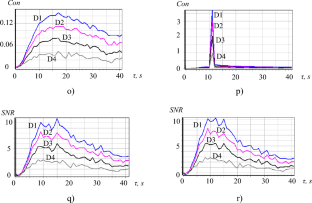

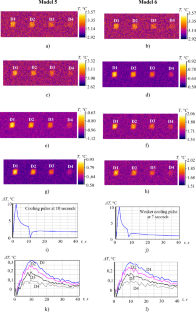

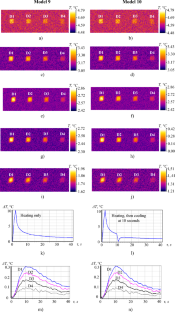

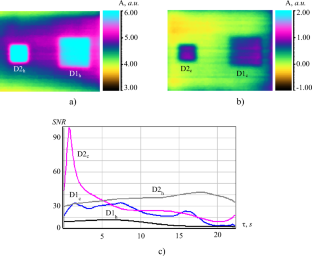

The proposed technique was numerically modeled, and experiments were performed using a line-scanning TNDT procedure.
This is a preview of subscription content, log in via an institution to check access.
Similar content being viewed by others
Abbreviations
- d :
-
Defect thickness, μm
- l :
-
Defect depth, mm
- \(K\) :
-
Thermal conductivity, W.m−1.K−1
- \({K}_{x}, {K}_{y}, {K}_{z}\) :
-
Thermal conductivities by \(x, y, z\) coordinates, W.m−1.K−1
- C :
-
Heat capacity, J.kg−1.K−1
- \(\rho \) :
-
Density, kg.m−3
- \(T\) :
-
Temperature, °C
- \({T}_{nd}\) :
-
Temperature in a non-defect area, °C
- \({T}_{d}\) :
-
Temperature in a defect area, °C
- \(\Delta T={T}_{d}-{T}_{nd}\) :
-
Temperature signal in a defect area, °C
- C on = \(\Delta T/{T}_{nd}\) :
-
Running temperature contrast in a defect area
- Q h :
-
Heating power, kW.m−2
- Q c :
-
Cooling power, kW.m−2
- \(\tau \) :
-
Time, s
- \(\tau \) h :
-
Heating time, s
- \(\tau \) c :
-
Cooling time, s
- \(\tau \) ht :
-
Heating turn-on time, s
- \(\tau \) ct :
-
Cooling turn-on time, s
References
Burleigh, D.: Thermal NDT Application: Inspection of a Large Graphite Epoxy Tool, ASNT Fall Conference, Seattle, October 9, 1990, Proceedings, pp. 96–98
Lei, L., Ferrarini, G., Bortolin, A., Cadelano, G., Bison, P., Maldague, X.: Liquid nitrogen cooling in IR thermography applied to steel specimen. Proc. SPIE “Thermosense-XXXIX”. 10214, 102140T (2017). https://doi.org/10.1117/12.2262208
Burleigh, D., Kuhns, D., Cowell, S., Engel, J.: Thermographic nondestructive testing of honeycomb composite structural parts of Atlas space launch vehicle. Proc. SPIE “Thermosense-XVI”. 2245, 132–138 (1994)
Montinaro, N., Cerniglia, D., Pittaresi, G.: Evaluation of interlaminar delaminations in titanium-graphite fiber metal laminates by infrared NDT techniques. NDT E. Int. 98, 134–146 (2018). https://doi.org/10.1016/j.ndteint.2018.05.004
Barus, M., Welemane, H., Nassiet, V., Pastor, M.L., Cantarel, A., Collombet, F., Crouzeix, L., Grunewald, Y.H.: NDT-based design of joint material for the detection of bonding defects by infrared thermography. NDT E. Int. 93, 157–163 (2018). https://doi.org/10.1016/j.ndteint.2017.10.005
Vavilov, V.P., Chulkov, A.O., Shiryaev, V.V: Practical limits of pulsed thermal NDT: The concept of additive/multiplicative noise. NDT & E. Intern. 130(Sept. 2022). Article No. 102677. On-line version 30 May 2022. https://doi.org/10.1016/j.ndteint.2022.102677
Vavilov, V.P., Burleigh, D.: Infrared Thermography and Thermal Nondestructive Testing. Springer Nature, Switzerland (2020), 598 p
Vollmer, M., Möllmann, K.-P.: Infrared Thermal Imaging: Fundamentals, Research and Applications. Wiley-VCH, Germany (2010)
Maldague, X. Theory and Practice of Infrared Technology for Nondestructive Testing, Wiley Series in Microwave and Optical Engineering, Wiley, New York (2001), 682 p
Chulkov, A.O., Tuschl, C., Nesteruk, D.A., Oswald-Tranta, B., Vavilov, V.P., Kuimova, M.A.: The detection and characterization of defects in metal/non-metal sandwich structures by Thermal NDT, and a comparison of areal heating and scanned linear heating by optical and inductive methods. J. Nondestruct. Eval. 40, 44 (2021). https://doi.org/10.1007/s10921-021-00772-y
