The Use of Stepper Motor-Controlled Proportional Valve for Fio₂ Calculation in the Ventilator and its Control with Fuzzy Logic

Abstract

This article proposes the employment of a proportional valve that can calculate the amount of oxygen in the air to be given to patient in accordance with the amount of FiO₂ which is set from the control menu of the ventilation device. To actualize this, a stepper motor-controlled proportional valve was used. Two counts of valves were employed in order to control the gases with 2 bar pressure that came from both the oxygen and medical air tanks. Oxygen and medical air manometers alongside the pressure regulators were utilized to perform this task. It is a fuzzy-logic-based controller which calculates at what rate the proportional valves will be opened and closed for FiO₂ calculation. Fluidity and pressure of air given by the ventilation device were tested with a FlowMeter while the oxygen level was tested using the electronic lung model. The obtained results from the study revealed that stepper motor controlled proportional valve could be safely used in ventilation devices. In this article, it was indicated that fluidity and pressure control could be carried out with just two counts of proportional valve, which could be done with many solenoid valves, so this reduces the cost of ventilator, electrical power consumed by the ventilator, and the dimension of ventilator.

Introduction

FiO₂, which is the oxygen concentration during mechanical ventilation, can take in the ventilator a value between %21 and %100 [1]. In this study, proportional valve was used in order to adjust the oxygen level provided to patient. Many research groups, whose aims were the accomplishment of ventilation, oxygenation, elimination of CO₂ and control of temperature, proposed various ventilator prototypes. Volume controlled ventilation is the most commonly recommended type. However, the pressure also must be kept within certain limits for safety in the volume controlled ventilators. This is because high inspiratory pressure may cause barotrauma and excessive negative expiratory pressure may lead to impairment in airways. Numerical modelling (evaluation of gas transfer occasions) is essential for designing respiratory support devices and optimize their performances [2]. Fluidity, oxygen concentration and pressure control can be conducted in such a way that will not give a chance to any extreme case by means of a proportional valve used in the prototype which was prepared for this study.

Since no mathematical model is needed in the fuzzy logic control that is thought to be as an alternative to PID control method and that is also effective in the control of nonlinear systems, this control method was started to be used in industrial applications [3]. The proportional valve used for this study is a DC stepper motor controlled valve. It is the readily-prepared fuzzy logic based controller which determines at what rate this valve will be opened and closed.

According to Dalton’s law, the pressure of a mixture of non-reacting gases (such as air) is the sum of individual pressures of its each component (partial pressure) and the contribution of every component to total pressure equals to volumetric proportion of that component. If this law is applied to the air, the latter volumetrically contains 78 % nitrogen (N2), 21 % oxygen (O2), and 0.03 % carbondioxide (CO2).

The gas given to patient for respiration has a mixture of medical air and O₂. FiO₂ calculation in this study was conducted in accordance with Dalton’s law and Amagat’s law of partial volumes. The rest of this work organized as the following: electronic circuit design is explained in Section 2, the designed fuzzy-logic based controller and rule base are explained in Section 3, results and discussion are explained in Section 4, and finally the conclusion is given in Section 5.

The designed ventilator

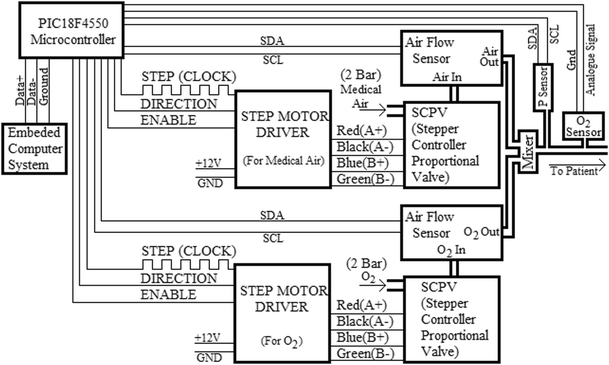

The block diagram of ventilator designed for this study is shown in Fig. 1. Sensors, valves, microcontroller, etc., used in the design of ventilator device, were indicated individually in the block diagram, connection types were shown and these were explained in detail between Section 2.1 and Section 2.7.

Fig. 1

Block diagram of the designed ventilator

Stepper controller proportional valve

A proportional valve was used to adjust the fluidity control of gases that come from the oxygen and medical air tanks, the volume and pressure of air to be given to patient from the ventilator and the FiO₂ proportion. Two counts of SCPV-1-3 valve, produced by the Clippard Company, were employed for this purpose. As shown in Fig. 1, a DC stepper motor driver was used to turn these valves on or off position. DC motors were the first practical device to convert electrical energy into mechanical energy [4]. The fuzzy-logic-based controller calculates at what rate the valves will be opened and closed. The amount of oxygen and medical air passing through the valves is adjusted by switching the valves on or off position step by step. Technical specifications of this valve are given in Table 1 [5].

Table 1 Technical specifications of SCPV-1-3 valve

The valve has an input and an output port. According to Table 1, a maximum of 7 bar pressure can be applied to input port. This valve can be used in hospitals where the pressure of oxygen and medical air given to the input of ventilator is a maximum of 6 bars [5]. The values of lung volume and lung capacities are shown in Fig. 2 [6, 7].

Fig. 2

Lung volume capacities. (Tidal Volume-TV = 500 mL, Inspiratory Reserve Volume-tRV = 3000 mL, Expiratory Reserve Volume-ERV = 1100 mL, Residual Volume-RV = 1200 mL, Inspiratory Capacity-IC = 3500 mL, Functional Residual Capacity-FRC = 2300 mL, Vital Capacity-VC = 4600 mL, Total Lung Capacity-TLC = 5800 mL)

Inspiratory Capacity (IC) refers to the maximum amount of air that can be taken into the lungs, starting from a normal expiration level. This value can mount to a maximum of 3500 ml [6, 7]. Technical specifications given in Table 1 shows that SCPV valve makes it possible to have a control of air flow up to 300 l per minute. According to these data, maximum respiration rate that can be taken by this valve can be calculated as 300 L/3,5 L ≈ 85. Average respiratory rate of a healthy person ranges from 10 to 20 per minute. Respiratory rate may increase in cases such as coronary failure, pneumonia, ARDS (Acute Respiratory Distress Syndrome) [8]. Van Kaam AH et al. observed the respiratory rate as 41 ± 14 breaths/min on HFV(High-frequency ventilation) ventilator which coupled in the newborn intensive care units [9]. When the data sheets of present ventilators are examined, it is seen that the respiratory rate is 2-80 bpm in terms of breath/min. Respiratory rates by age group are provided in Table 2. Considering these values, it can also be said that SCVP valve is suitable for respiration rate. As it is also obviously seen in Table 2, it becomes more of an issue regarding patients’ health to carry out respiration control with an adjustable system. In this study, it was provided with a stepper motor controlled microcontroller-based proportional valve control where patients were given oxygen at more accurate rates.

Table 2 Range of respiration rates [10, 11]

Table 3 shows the values read from the AirFlow sensor in every step of SCVP valve. When these values are analyzed, it turns out that valve sensitivity (0,001”per step) is very convenient for respiratoy settings, too. These values were taken into consideration while identifying the membership functions of fuzzy-logic-based controller.

Table 3 The values read from AirFlow sensor in every step of SCVP

Embedded computer system

The software prepared for the ventilator and the fuzzy-logic-based controller, and software prepared for the control of proportional valves run inside the embedded computer. These softwares were prepared with Java programing language. The results produced by the fuzzy- logic-based controller are transmitted to PIC18F4550 microcontroller via USB port and the valves are switched on and off in line with the calculated values. The values which microcontroller reads from the oxygen, pressure and airflow sensors are also transmitted to the embedded computer system via USB port and these values are used by the ventilator software.

PIC18F4550 microcontroller

It is a microcontroller that is produced by the Microchip Technology Company and makes use of RISC (Reduced Instruction Set Computer) architecture and has a USB support. USB is one of the most commonly used communication modes. Data transmission via USB is carried out through 4 lines. The red wire carries 5 V signals, black wire 0 V, green wire data and the white wire carries CLK (Clock) signals. USB communication uses syncronous serial communication protocol [12]. The communication between the embedded computer system and PIC18F4550 microcontroller is conducted via USB port.

PIC18F4550 microcontroller sends signals to DC stepper motor drivers according to values calculated by the fuzzy-logic-based controller inside the embedded system and thus valves are switched opened and closed at the desired rate. So, the gas of oxygen and medical air mixture is given to patient in accordance with the amount of FiO₂ adjusted from the ventilator.

Microcontroller also reads data from the oxygen, pressure and AirFlow sensors. The oxygen sensor used for this study produces analog signal. ADC specification of the microcontroller was utilized to read data from the oxygen sensor. On the other hand, pressure and AirFlow sensors produce digital signal. I2C communication protocol was used in order to read data from these sensors with microcontroller. Hence, the connection between the microcontroller and these sensors are indicated with SDA and SCL lines in Fig. 1.

Microcontrollers require some simple peripheral circuits when they are used for circuit designs. For example, power supply is used to supply required energy for both microcontroller and its neighboring circuits [13–16]. Power supplies must be isolated from mains and have a limited current and voltage output in order to protect the patient. Switch mode power supply provides further advantages for the isolation between the mains and human body [16, 17].

Oxygen sensor

Oxygen sensor measures the percentage of oxygen in the air which is given to the patient. KE-25 series oxygen sensor, produced by Figaro Company, was used in this study. Technical information related to this sensor is provided in Table 4 [18].

Table 4 Figaro KE-25 oxygen sensor technical information [18]

This sensor generates an analogue outcome between 0 V and 63 mV as an output. This data were firstly given to INA122 instrumentation amplifier and then amplified to a voltage between 0 V and 5 V. The structure of this integrated circuit is shown in Fig. 3 [18, 19].

Fig. 3

Structure of INA122 [19 INA122]

In order to amplify the voltage level from 63 mV to 5 V, the the gain should be;

$$ \mathrm{G}=5\ \mathrm{V}/63\ \mathrm{mV}=79.37 $$

R_G resistor in Fig. 3 is calculated as;

$$ {\mathrm{R}}_{\mathrm{G}}=200\ \mathrm{K}/\left(79.37-5\right)=2.69\mathrm{KOhm}. $$

Data cables came from the oxygen sensor were connected to 2nd and 3rd pins of INA122 in Fig. 3. The output voltage (V₀) on the 6th pin was connected to the 2nd pin of PIC18F4550 microcontroller. This pin is the 0th analog convertor (AN0) of the microcontroller and the 0th pin of Port A [20]. The software in order to read data from the microcontroller and oxygen sensor was written in the language of Proton Basic and its flow diagram is given in Fig. 4.

Fig. 4

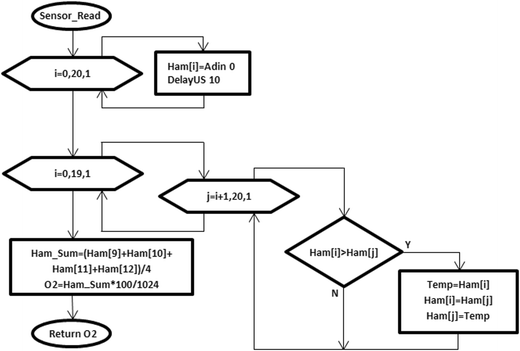

Flowchart of the developed software to read data from the O2 sensor with microcontroller

As it also appears in the flow diagram in Figs. 4, 21 counts of data are consecutively read by the microcontroller from the oxygen sensor and saved to “Ham” sequence variable. A digital filter is applied for these data with the subsequent nested i and j loops. For the digital filter, data read through the “Selection Sort” algorithm are sorted in ascending order. Arithmetic mean of 9th, 10th, 11th and 12th elements of this sorted sequence is calculated and the values being read are made consistent. Oxygen percentage of air given to patient is calculated with the command of O2 = Ham_Sum * 100/1024. Being calculated, the amount of O2 is again feedback to the main program. The main program of microcontroller sends the resultant value to the embedded computer system via USB port.

Digital air flow sensor

Air flow sensor was used to measure the volume of the air given to patient. A total of 3 counts of these sensors were used; one for the outlet of oxygen valve, the other for the outlet of medical air valve and another one for that of the expiration valve. The fuzzy-logic-based controller adjusts the oxygen rate in the air being delivered to the patient. It firstly processes the data conveyed from the AirFlow sensors and then computes at what rate the SCVP valves needs to be turned on or off. No change is done in the SCVP valves if the value read in the AirFlow sensor is a target value. AirFlow sensors used in this study can measure the flow of air and oxygen up to 200 l per minute. This sensor converts the measured values into a 2 bytes digital outcome.

Digital pressure sensor

A pressure sensor was used to measure the pressure of air given to patient. When the air reaches the value adjusted from the ventilator, the inspiration is terminated. The pressure sensors used in this study can measure the gas pressure up to 15PSI = 1054.60cmH₂O. This sensor also measures the temperature of air that is given to patient. This sensor converts the measured values into a 4 bytes digital outcome. 2 bytes data is for pressure and the other 2 bytes is for temperature.

Pressure regulator

Before it is given to the ventilator, high pressure gas that comes from the oxygen and air tanks is reduced by the manometer to a pressure between 4.5 and 6 bar in the hospitals. In order to obtain more sensitive results, the pressure of gases that came from the tanks was lowered to 2 bar by the pressure regulator used in the ventilator. Thus, the pressure applied to the inlet of the ventilator was made fixed and more sensitive results were observed in the outlet of proportional valves.

Designed fuzzy-logic-based controller

Fuzzy logic works well in order to define the uncertainties in the process variable. In addition to this, fuzzy logic control can be designed without mathematical modeling. It can overcome local optima to reach global optima. Fuzzy logic theory is a general mathematical approach that allows partial memberships. Several studies have shown fuzzy logic control to be an appropriate method for the control of complex processes [16, 21–23].

Hardware

The fuzzy-logic-based controller designed for this study steps in during the inspiration and opens the SCVP valves at desired rate. The fuzzy controller calculates according to values adjusted from the ventilator how many steps the valves must be opened to carry out the inspiration and then valves are opened in line with these values. If the valves had been opened step by step without using the fuzzy controller, the microcontroller would have read data from the oxygen, pressure and airflow sensors in every step of the valves and the USB would have communicated with the embedded system. Thus, it would have prevented the inspiration process from occurring at desired rate and sensitivity. A block diagram of implemented AirFlow feedback fuzzy-logic-based controller is shown in Fig. 5. This controller is used to manage SCPV valves that adjust the flow of both the medical air and O₂. Valves are simultaneously switched on and off in order for the mixture to be homogenous.

Fig. 5

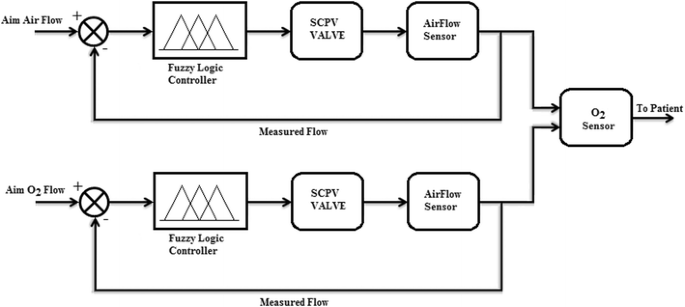

Fuzzy controller block diagram

Fuzzy membership function

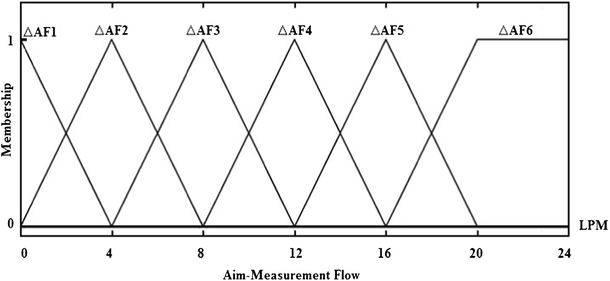

Input membership function of fuzzy-logic control system is shown in Fig. 6. Input membership function ranges between 0 LPM and 24 LPM and was identified as the difference between the intended and measured fluidity. The fuzzy-logic-based controller uses this input membership function so as to determine how many steps the proportional valve must be opened. This input membership function was used to control the flow of both the Medical Air and O_2. The measured fluidity equals to the amount of Medical air or O₂ read from the AirFlow sensors in terms of Liter/Minute. The intended fluidity is the amount of O₂ or Medical air in terms of Liter/Minute which is calculated to make up the mixture of the air to be given to patient.

Fig. 6

Input membership function (LPM-Liter Per Minute)

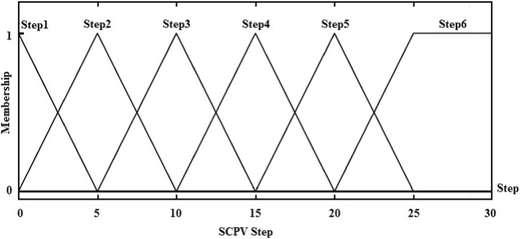

Figure 7 displays the output membership function prepared for the fuzzy controller. The output membership function includes the step information for SCVP between 0 and 30. This function is utilized to determine how many steps SCPV valve, used for both O₂ and Medical air inspiration, will be opened. After the inspiration process is over, SCVP valves are closed till the end. Then the expiration solenoid valve is switched on so that the patient can discharge his/her breath.

Fig. 7

Output membership function

A rule base was made up with the IF-THEN fuzzy rule for the fuzzy-logic-based controller. These rules were used, just as in the input and output membership functions, to control both the Medical Air SCVP valve and O₂ SCPV valve.

• 1st Rule: If (Aim-MeasurementFlow is ΔAF1) then (SCPV Step is Step1)

• 2nd Rule: If (Aim-MeasurementFlow is ΔAF2) then (SCPV Step is Step2)

• 3rd Rule: If (Aim-MeasurementFlow is ΔAF3) then (SCPV Step is Step3)

• 4th Rule: If (Aim-MeasurementFlow is ΔAF4) then (SCPV Step is Step4)

• 5th Rule: If (Aim-MeasurementFlow is ΔAF5) then (SCPV Step is Step5)

• 6th Rule: If (Aim-MeasurementFlow is ΔAF6) then (SCPV Step is Step6)

Calculation of gas mixture for O₂ and medical air

Amagat’s law of partial volumes can be defined as, “partial volume of an individual gas in a gas mixture equals to the sum of its volume and multiplication of mole fraction of that gas; and the total volume is equal to the sum of partial volumes of individual gases”. Ideal mixture molar volume is the result of well-known Amagat’s law of additive volumes [24].

Accordingly, the mixture formula in the eq. 1 was utilized to calculate the oxygen level (FiO₂) in the air given to patient.

$$ \frac{FiO_2}{100}=\frac{\frac{\left(\mathrm{PeakFlow}-{\mathrm{O}}_2\mathrm{Flow}\right).21}{100}+{\mathrm{O}}_2\mathrm{Flow}}{\mathrm{PeakFlow}} $$

(1)

The term 21/100 in Equation (1) refers to the level of O₂ within the Medical air.

• FiO₂: It is the oxygen percentage of air to be given to patient and doctors determine the desired rate from the control panel of ventilator. This is a value between 0 % and 100 %.

• PeakFlow: It is the inspiration peak flow in terms of Liter/Minute (LPM) that needs to be given to patient. Doctors determine this value from the control panel of the ventilator. PeakFlow is the sum of mixture of Medical Air and O₂ that is given to patient.

• O₂Flow: It is the amount of O₂ in terms of Liter/Minute that needs to be given to patient according to FiO₂ and PeakFlow values adjusted from the control panel of the ventilator. In order to calculate this value, Equation (1) was edited as in that of Equation (2).

$$ {\mathrm{O}}_2\mathrm{Flow}=\frac{\mathrm{PeakFlow}.\left({FiO}_2-21\right)}{79} $$

(2)

After O₂Flow was calculated, the amount of Medical Air and O₂ that needs to be given to patient was calculated using the formula in Equation (3).

$$ \mathrm{AirFlow}=\mathrm{PeakFlow}-{\mathrm{O}}_2\mathrm{Flow} $$

(3)

Using the values calculated with the formulas 2 and 3, the fuzzy logic controller calculates how many steps SCVP valve, used for Medical Air and O2, needs to be opened during the inspiration.

Inference mechanism and purification

In fuzzy-logic-based controllers, input functions and rule base were processed with Mamdani Inference Mechanism and fuzzy results for step SCPV was produced. For defuzzification, in other words the conversion of these fuzzy results into numerical results, COG (center of gravity) approach was used because our output function, step SCPV value is to be numerical results rather than fuzzy results as they will be used to regulate the ventilator.

Results and discussion

Results

It has become more diffficult to test medical devices as the complexity of hardware and software has increased. Digital models are more comprehensive testing methods in comparison to physical models. The advantage of a digital model is that it is flexible enough to obtain wide ranges of peripheral scripts, which isn’t always possible when a physical model is used [25]. The lung model, which had a FlowMeter and an oxygen sensor, AirFlow and a Pressure sensor, was used in order to test the study conducted.

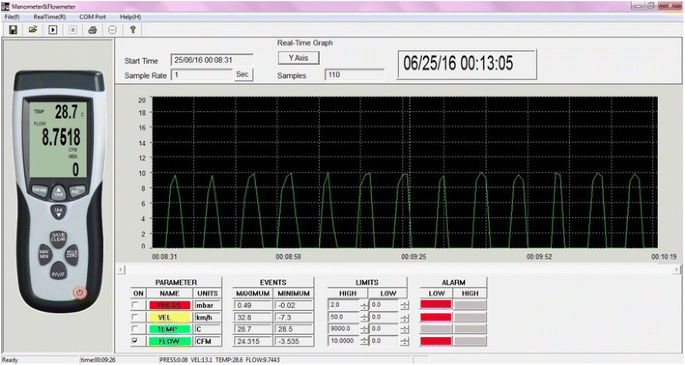

The flow and pressure of air given to patient was measured with FlowMeter. The FlowMeter used for this testing process and a computer connection is shown in Fig. 8. Oxygen amount of air given to patient was measured with the oxygen sensor. PIC18F4550 microcontroller was used to read data from the oxygen sensor as in the ventilatotion device in Fig. 1. Data read from the sensors by the microcontroller was transmitted to computer and then results were observed.

Fig. 8

Testing Process with FlowMeter

An example is given concerning the eqs. 1 and 2.

Sample ventilator settings: When it is FiO₂ = 50 ve PeakFlow = 30LPM;

O₂Flow is calculated as O₂Flow = 30.(50–21)/79 = 11,013 LPM.

Results obtained from the lung model are given in Table 5. It also provides data read by the flow sensors and oxygen sensor that were used for the ventilation device.

Table 5 Fluctuating FiO2 Values and O2Flow, AirFlow, PeakFlow and O2 Values Calculated and Measured According to PeakFlow Settings

Discussion

The values given in the conclusion part are the results that were read from the designed Electronic Lung Model and monitor of the ventilation device. The designed device will be tested on real patients after the requisite certificates for medical device clinic research (e.g CE certification) and research ethics committe approval are obtained. Results obtained from the pre-established lung simulation appear to be quite successful. Many solenoid valves with different orifice widths are used in the present ventilation devices to control the fluidity of air to be given to patient. Out of the solenoid valves generally having orifice widths of 5LPM, 6LPM, 15LPM and 40LPM, more than one solenoid valve is used for the control of both the medical air and oxygen. In some ventilation devices, fluidity of air to be given to patient is adjusted by continuously swithching on/off the solenoid valve, which both increases the cost and leads the ventilator to consume more energy.

As can also be seen in Table 1, the proportional valve is triggered by a power of 385 mA. Now that solenoid valves are usually turned on/off with a power of 2A, it turns out that the proportional valve used is very advantageous with respect to energy. The job that is done by all these solenoid valves was carried out with two counts of proportional valve in the designed ventilation device. This method enabled to more sensitively calculate the values of air given to patient.

Conclusion

Using a stepper motor controlled proportional valve, a new ventilation device was put forward in this study to adjust the level of FiO₂ and fluidity of air to be given to patient. A mechanical ventilation device was designed in line with this purpose. The fuzzy logic controller calculates how many steps the proportional valves must be opened for the mixture of medical air and oxygen that will be given to patient according to FiO₂ and PeakFlow settings adjusted from the ventilation device. The results calculated by the fuzzy controller are transmitted to microcontroller via USB port and the Microcontroller turns the proportional valves on or off through the stepper motor driver. Digital Flowmeter ve Digital Lung model were utilized to test the study conducted. The results of the conducted tests were saved and given in Table 5. These results have indicated the usability of the designed system.
