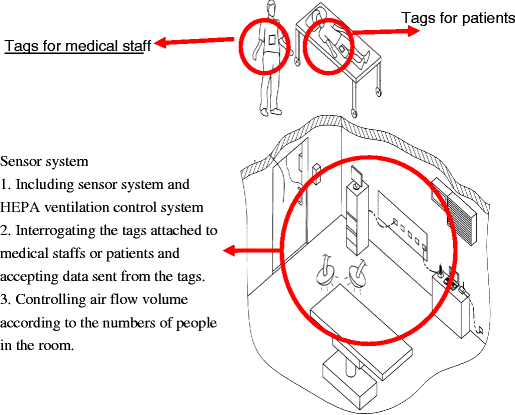

A pilot program took effect from Jan to Aug 2010. The whole system was installed in an operation room of a medical center with 1,500 beds located in central Taiwan. An active RFID reader (Model type: ARUnew01, see Table 1) was installed at the entrance of the room.0 About 20 medical staffs were requested to wear the active RFID tag (Model type: ACUnew01-Passlt, see Table 2) when they were on duty and patients had to wear the tag if a surgery was needed.
Table 1 reader specification
Table 2 Tag specification
The frequency we use for active RFID is 433 Mhz. RF chips, which use DSSS method and FSK Modulation to design RFID reader and tag, are low power. In order to increase the distance between read and write, the reader in active RFID matters. The directivity of the antenna can be enhanced to promote the antenna effects, the emissive power can be improved, and sensitivity of the reader can also be advanced. However, the cost of the reader is increased at the same time. The optimized receive sensitivity supports read range up to 30 ft and RFID tag read rate of 400 tags/sec.
Reader architecture. Figure 4 shows the block diagram of the 433-MHz reader. The characteristics of the 433-MHz reader are listed in Table 1. The reader can be connected with two data transmission interfaces: RJ-45 and RS-232. It provides three different socket modes which are available: transmission control protocol (TCP), dynamic host configuration protocol (DHCP), and user datagram protocol (UDP) mode.
Tag architecture. The 433-MHz tag includes a micro controller unit (MCU), an 8-Bit analog-to-digital convertor (ADC), an 8-bit digital-to-analog converter (DAC), a motion sensor, a temperature sensor, two CR2303 batteries; the tag can support motion detection, and temperature sensing. The operating frequency is 433-MHz tag. The Modulation is FSK and the Power consumption is 3.0 mA and Transmission power is 10 dBm, Receiver sensitivity is −103 dBm. The characteristics of the 433-MHz tag are listed in the Table 2.

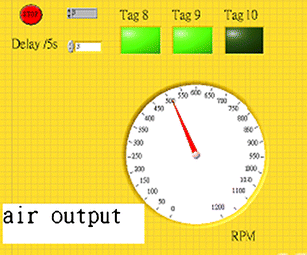

In this program, two kinds of control mechanisms were developed and adopted. One is time control mechanism in which the system will keep the airflow volume at the minimum level to avoid the deadweight loss of energy during the off hours, such as after 11:00 pm and weekends. The other one is RFID control mechanism (see Fig. 2); the system will monitor the numbers of people in a room and regulate the airflow volume of HEPA ventilation system accordingly.
For example, an emergency case happened during the off hours and thus an operation room was requested for surgery. When the first medical staff entered the room to make a preparation, the attached tag will be interrogated by the RFID sensor system and responding by sending back its data. The sensor system will send information and instruction to HEPA ventilation control system to trigger the airflow volume into median level. And, when the patients and other medical staff entered into the room later, the airflow volume will be regulated to the optimum level. In this way, the indoor air quality of the operation room will be clean and ready for surgery.
In the first stage of this study, only one reader was installed in one OR, and we found the correct read rate for this one reader system was only 88% to 92%. Sometimes the signal was not received by the reader. Therefore, we installed two readers in one OR, and the correct read rate can reach to 98% to 99% in the end.
Since the RFID signals are floating, the reader may receive other tag signals. Though the correct rate can reach 98% to 99%, some signals are still missing during the test or the mistaken results may occur. The reviewers are experienced to address the issue for us to modify our system. Usually we will design an RFID Locator to enhance the stability in the system, such as RFID Locator plus IR.
