Atypical Inflammatory Syndrome Triggered by SARS-CoV-2 in Infants with Down Syndrome

Abstract

While adults with Down syndrome (DS) are at increased risk of severe COVID-19 pneumonia, little is known about COVID-19 in children with DS. In children without DS, SARS-CoV-2 can rarely cause severe COVID-19 pneumonia, or an even rarer and more typically pediatric condition, multisystem inflammatory syndrome in children (MIS-C). Although the underlying mechanisms are still unknown, MIS-C is thought to be primarily immune-mediated. Here, we describe an atypical, severe form of MIS-C in two infant girls with DS who were hospitalized for over 4 months. Immunological evaluation revealed pronounced neutrophilia, B cell depletion, increased circulating IL-6 and IL-8, and elevated markers of immune activation ICAM1 and FcɣRI. Importantly, uninfected children with DS presented with similar but less stark immune features at steady state, possibly explaining risk of further uncontrolled inflammation following SARS-CoV-2 infection. Overall, a severe, atypical form of MIS-C may occur in children with DS.

Introduction

While adults have suffered the highest rates of morbidity and mortality from COVID-19 pneumonia, children are relatively spared from this manifestation of SARS-CoV-2 infection and account for < 1.5% of hospitalizations [1]. From the age of 5 years onward, the risk of severe COVID-19 doubles about every 5 years [2, 3]. A small subset of children develops multisystem inflammatory syndrome in children (MIS-C) around a month after exposure to SARS-CoV-2 [4,5,6].The prevalence of MIS-C is unknown but estimated to be less than 1 in 50,000 [7]. This severe inflammatory condition is primarily characterized by fever, rash, shock, and cardiac, respiratory, and/or gastrointestinal involvement. MIS-C affects children with a median age of 8.3 years and usually has favorable outcomes after a median hospital stay of 7 days [4, 8, 9]. Risk factors predisposing children to develop MIS-C include being Black and Hispanic [4, 7]. MIS-C pathogenesis is thought to be primarily immune-mediated. Children with MIS-C have evidence of broad immune cell activation (phospho-STAT signaling, upregulation of ICAM1, FcγRI), elevated circulating cytokines (including IL-6, IL-8, and IL-18, among others), and the presence of autoantibodies both against known antigens and novel candidates [6, 10,11,12].

Individuals with Down syndrome (DS), or trisomy 21, show signs of immune dysregulation, including a higher incidence of autoimmune and autoinflammatory diseases such as autoimmune thyroid disease, autoimmune skin conditions, celiac disease, and type I diabetes [13, 14]. At the molecular level, they have elevated inflammatory markers and an exacerbated response to type I interferon [15, 16]. Somewhat paradoxically, they are also more susceptible to viral infections, as documented for respiratory syncytial virus and influenza virus [17, 18]. While epidemiologic studies of COVID-19 hospitalization in DS suggest increased rate, morbidity, and mortality in this population [19], MIS-C has not yet been reported in individuals with DS. Herein, we present cases of two unrelated infant girls with DS who developed a clinical course characterized by symptomatic COVID-19 followed by atypical MIS-C illness requiring hospitalization of over 4 months.

Patient 1

A 6-month-old North African girl with DS and congenital heart disease had mild COVID-19 manifestations including fever, fatigue, and cough after her father had contracted COVID-19. She received a positive RT-PCR test in March 2020. Ten days later, she was admitted to the pediatric intensive care unit (PICU) due to heart dysfunction and distributive shock. She tested negative by RT-PCR at this time. During her stay, the patient had a generalized maculopapular erythematous rash with peripheral desquamation, edematous hands, vomiting, persistent fever, and eventually coronary dilatation. She received lopinavir/ritonavir, hydroxychloroquine, high-dose intravenous immunoglobulin (IVIG), corticosteroids, and azithromycin. She was diagnosed with MIS-C with myocarditis signs and coronary dilatation. Despite requiring a 4-month hospitalization in the PICU complicated by multiple catheter-related bloodstream infections, the final outcome was favorable. Blood samples were obtained in July 2020, while the patient was afebrile but still in the PICU.

Patient 2

An 8-month-old Hispanic girl with DS, atrioventricular canal defect status post repair, pulmonary hypertension with chronic oxygen dependence, and nasogastric tube feed dependence was admitted to the PICU for respiratory failure secondary to RT-PCR positive COVID-19 pneumonia in October 2020. She was treated with remdesivir, COVID-19 convalescent plasma, and corticosteroids and had waxing and waning respiratory distress and afebrile episodes that lasted up to 5 days. Two weeks after initial onset of COVID-19 symptoms, her fever returned accompanied by elevated inflammatory markers, anemia, thrombocytopenia, elevated ferritin, hypertriglyceridemia, low fibrinogen, and elevated liver function tests. Her respiratory condition worsened, and she developed a diffuse blanching erythematous rash. A second RT-PCR test in December 2020 was negative. At this time, she was IgG positive. Hemophagocytic lymphohistiocytosis (HLH) was initially considered as the patient had elevated IL-2 receptor and low natural killer cell function, but she had normal perforin/granzyme B and her bone marrow aspiration did not show hemophagocytosis. She was treated with IVIG, higher dose corticosteroids, and Anakinra with no improvement in symptoms. She became critical with a prolonged hospitalization complicated by multiple infections, multi-organ failure, and distributive shock requiring vasopressor support. Repeat bone marrow aspiration revealed hemophagocytosis, so she was started on etoposide. With no improvement on etoposide, emapalumab and ruxolitinib were trialed. The patient died in April 2021 after succumbing to gram negative sepsis. Blood samples were obtained in January 2021 while the patient was in the PICU in critical condition on corticosteroids.

Results

Whole blood immune phenotyping by mass cytometry revealed neutrophilia and a profound decrease in total B cells in both patients compared to uninfected age-matched children with DS (p = 0.008) (who already had a decrease in total B cells compared to uninfected without DS, p = 0.002) (Fig. 1A,B). Within total B cells, memory and plasma B cell subsets were decreased in both patients compared to controls, while naïve B cells were relatively increased (Fig. 1C). These findings in patients with DS months after onset of disease differed from patients without DS with acute MIS-C which were reported previously, who had normal B cell counts [6, 11]. We also found a depletion of activated (CD38⁺HLADR⁺) CD4 T cells in our patients, likely suggesting extravasation to the affected tissues (Fig. 1D). Interestingly, we found that activated (CD38⁺HLADR⁺) CD8 T cells were also depleted in P1, while they were elevated in P2 (Fig. 1E). Previous studies of non-DS patients with MIS-C report either unchanged or elevated activated T cells [6, 11]. Importantly, we confirm that the immune state of uninfected children with DS is significantly altered [20], including already decreased B cells, increased NK cells, and slightly elevated myeloid dendritic cells (Fig. 1B). It remains unknown if these altered subsets contributed to susceptibility to severe disease after SARS-CoV-2 infection.

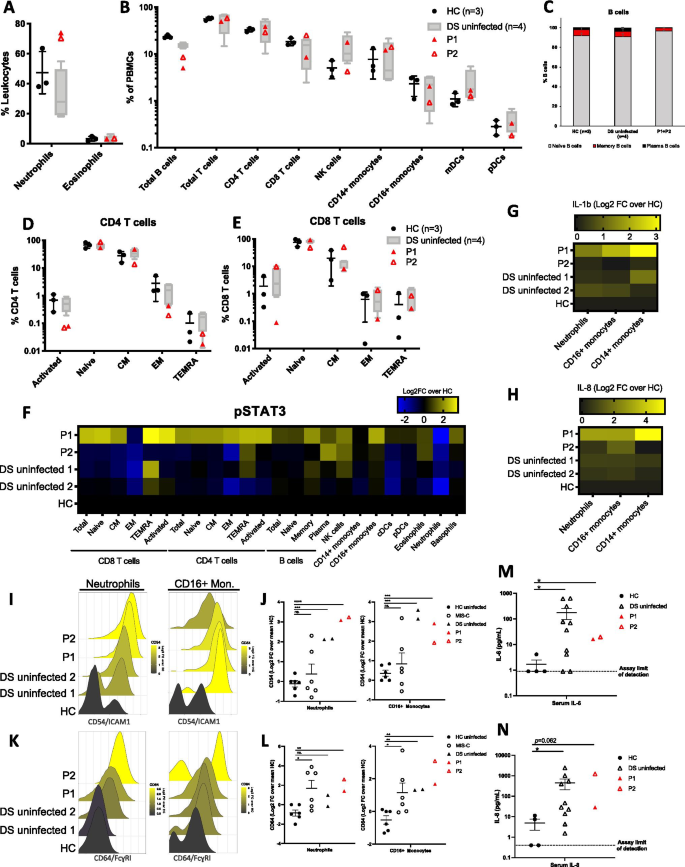

Fig. 1

Immune phenotyping by mass cytometry of peripheral blood from P1 and P2 and age-matched controls with or without DS. A Granulocyte cell type frequencies as percent of CD45 + cells (leukocytes). B Major cell type frequencies as percent of CD66b- cells (nongranulocytes). C B cell, D CD4, and E CD8 T cell frequencies. F STAT3 phosphorylation across immune cell subtypes. G,H Intracellular IL-8, IL-1β, cytokine staining and I–L extracellular CD54, and CD64 expression in neutrophils and monocyte subsets, color-coded by the mean log2 transformed signal intensity. Differences between groups were assessed in unpaired t tests. *p ≤ 0.05; **p ≤ 0.005; ***p ≤ 0.0005; ****p ≤ 0.00005. M,N IL-6 and IL-8 levels in patient serum. Differences between groups were assessed in unpaired t tests of log10 values

We then surveyed markers of inflammation and detected increased STAT3 phosphorylation in most immune subsets in P1 and in CD4⁺ TEMRA, NK cells, CD16⁺ monocytes, and eosinophils in P2, compared with uninfected controls with or without DS (Fig. 1F). This was similar to augmented phospho-STAT3 in patients with acute MIS-C without DS [6]. Furthermore, intracellular interleukin-8 (IL-8) and interleukin-1β (IL-1β), two pro-inflammatory mediators that enhance neutrophil recruitment and cytokine release, respectively, were elevated in P1’s neutrophils and CD16⁺ and CD14⁺ monocytes even after clinical signs of MIS-C had resolved (Fig. 1G,H) but not in P2. Discrepancies in inflammatory markers between P1 and P2 may be due to the fact that P2 was on high-dose steroids at the time of sampling. Additionally, clinical laboratory inflammatory markers including CRP, ferritin, procalcitonin, and LDH were highly elevated in both patients (Table 1). Together, these data indicate a broad, nonspecific, immune activation in these two patients with DS after SARS-CoV-2 infection compared with age-matched uninfected individuals with or without DS.

Table 1 Clinical characteristics of P1, P2, and children with MIS-C or DS

Interestingly, other markers of immune activation such as ICAM1/CD54 and FcɣRI/CD64 were found to be elevated in myeloid cells not only in P1 and P2, but also in uninfected children with DS (Fig. 1I–L). This elevation was comparable to that in non-DS children with MIS-C. These markers were not detected in children without DS or MIS-C. ICAM1 mediates immune cell extravasation into tissues, and FcɣRI can trigger potent inflammation upon antibody binding. Furthermore, the two broad-acting pro-inflammatory cytokines interleukin-6 (IL-6) and IL-8 were elevated in the serum of P1 and P2, as well as in uninfected children with DS (Fig. 1M,N). This confirms cytokine dysregulation previously reported at baseline in children with DS [15, 23]. Collectively, these findings suggest that children with DS are in a state of immune activation, even in the absence of a pathogen.

Conclusion

We show that severe, atypical MIS-C can occur in children with DS. These two patients fulfilled the clinical criteria for MIS-C diagnosis [9], and their immunological profile resembled that of previously described children with MIS-C without DS, including neutrophilia, lymphopenia, elevated phospho-STAT3, ICAM-1, FcγRI, and circulating cytokines. By contrast, their significant B cell depletion, as well as their young age, prolonged hospital stay, and refractoriness to treatment in P2, set them apart from children with MIS-C without DS. Of note, the patients’ samples were collected months after initial onset while children with MIS-C were sampled within weeks of onset. This study and a recent case report also describing severe disease after SARS-CoV-2 infection in two other children [24] emphasize the notion that children with DS are at unique risk of atypical disease presentation. Further research is needed to elucidate mechanisms underlying disease progression and tailored treatment protocols in this patient population. This report suggests that vaccination should be considered in children with DS for prevention of SARS-CoV-2 infection.

Importantly, uninfected children with DS already had elevated markers of immune activation at baseline, including ICAM1, FcγRI, and serums IL-6 and IL-8. Together with previously reported defects in immune activation in DS [16, 20, 22], our report highlights that DS should be considered an inborn error of immunity, in the broad sense of the term, not restricted to monogenic disorders. Although no clear mechanistic or epidemiologic links between DS and the predisposition to MIS-C have been reported yet, we describe a pre-existing inflammatory state in pediatric DS patients that could have contributed to the severe course of MIS-C in our two patients. As these first reports of severe autoinflammation brought on by SARS-CoV-2 in DS may indicate a larger looming problem with novel syndromic features, we suggest particular care should be taken to children with DS during the COVID-19 pandemic.

Methods

Sample Collection

The study was approved under the protocols Mount Sinai Health System (MSHS) IRB-18-00,638 and Vall d’Hebron Research Institute, Barcelona, Spain, PR(AG)198/2014. All patient data were de-identified. Written informed consent for all individuals in this study was provided in compliance with an institutional review board protocol. All uninfected patient samples were drawn in the context of an outpatient routine visit, and patients exhibited no signs of infection (fever, runny nose, cough, sore throat). From each patient, blood was drawn into a cell preparation tube with sodium heparin (BD Vacutainer). Plasma was isolated from using Ficoll separation and stored at – 80 °C until use. Whole blood was fixed using Proteomic Stabilizer PROT1 (SmartTube) and frozen at – 80 °C. Controls range from 7 months to 6 years old in immune phenotyping studies (Fig. 1A–E), from 19 months to 2 years in inflammatory marker expression analyses (Fig. 1F–I,K), and from 7 months to 19 years old in Luminex analyses (Fig. 1M,N).

Mass Cytometry

Frozen stabilized blood samples were thawed according to the manufacturer’s recommended protocol and then washed with barcode permeabilization buffer (Fluidigm). Samples were uniquely barcoded with Cell-ID 20-Plex Pd Barcoding Kit (Fluidigm) and washed and pooled together. An Fc-block and a heparin-block were then performed to prevent non-specific binding. Cells were then incubated with an antibody cocktail for surface markers to identify major immune populations. All antibodies were purchased with pre-conjugated or conjugated in-house with X8 MaxPar conjugation kits (Fluidigm). After surface staining, the samples were methanol-permeabilized, washed, heparin-blocked, and stained with a cocktail of antibodies against intracellular targets, including markers of phosphorylation and signaling. After washing, cells were then incubated in freshly diluted 2.4% formaldehyde containing 125 nM Ir Intercalator (Fluidigm), 0.02% saponin and 30 nM OsO4 (ACROS Organics) for 30 min at room temperature. Samples were then washed and acquired immediately.

For acquisition, samples were washed with PBS + 0.2% BSA, PBS, and then CAS buffer (Fluidigm). The final solution in CAS buffer consisted of 1 million cells per mL and a 1/20 dilution of EQ beads (Fluidigm). Following routine instrument optimization, samples were acquired at a rate of < 300 events per second on a Helios mass cytometer (Fluidigm) with a modified wide-bore injector (Fluidigm).

FCS files of acquired events were normalized and concatenated with Fluidigm acquisition software and deconvoluted with a MATLAB-based debarcoding application, and resulting files were analyzed using Cytobank. Cell events were identified as Ir191/193-positive and Ce140-negative events. Doublets were excluded on the basis of Mahalanobis distance and barcode separation and with the Gaussian parameters calculated by Helios CyTOF software. Downstream data analysis was performed on Cytobank, by biaxial gating of immune populations according to the gating scheme outlined in Supplemental Fig. 1. All data points represent a single patient. For samples processed at different time points (batch 1, HC01, DS01, DS02, P1; batch 2, HC01, DS01, P2), a batch correction strategy was applied by normalizing relevant markers (p-STAT3, IL-1b, IL-8, CD54, CD64) to a common control (HC01).

Multiplex Cytokine Analysis

Plasma collected by Ficoll isolation from heparinized whole blood was clarified by centrifugation. Circulating cytokine levels were determined for P1, P2, pediatric controls without DS (n = 4), and pediatric uninfected controls with DS (n = 10). Magnetic Luminex assays with the MILLIPLEX MAP Human Cytokine/Chemokine Magnetic Bead Panel (MilliporeSigma HCYTMAG-60 K-PX30) were run according to the manufacturer’s protocol. Samples were quantified on a MAGPIX xMAP Instrument (Luminex).

Statistics

Unpaired t tests were used to assess the significance of differences in quantitative variables between two groups.
