Synthesis and Crystal Structures of the Mixed Ligand Coordination Polymers [Co2(N3)2(BZA)4(H2O)]·EtOH, Cu(N3)(BZA)2(H2O), and Cu(N3)(SUCC)(H2O)2 (N3 = 1,4-bis(3-pyridyl)-2,3-diaza-1,3-butadiene, BZA = benzoate, and SUCC = succinate)

Journal of Chemical Crystallography Aims and scope Submit manuscript

Abstract

The coordination polymers [Co2(N3)2(BZA)4(H2O)]·EtOH (1) and Cu(N3)(BZA)2(H2O) (2) were synthesized via room temperature diffusion layering using 1,4-bis(3-pyridyl)-2,3-diaza-1,3-butadiene (N3), cobalt nitrate, copper acetate, and sodium benzoate (NaBZA). Compound 1 crystallizes in the monoclinic C2/c space group with unit cell dimensions of a = 15.8952(6) Å, b = 13.9127(6) Å, c = 24.2984(10) Å, and β = 100.595(1)°. Compound 2 crystallizes in the orthorhombic Pna21 space group with unit cell dimensions of a = 22.211(3) Å, b = 5.9543(7) Å, and c = 18.038(2) Å. The coordination polymer Cu(N3)(SUCC)(H2O)2 (3) was synthesized via room temperature diffusion layering using 1,4-bis(3-pyridyl)-2,3-diaza-1,3-butadiene (N3), copper acetate, and sodium succinate (NaSUCC). Compound 3 crystallizes in the monoclinic P21/n space group with unit cell dimensions of a = 8.8148(7) Å, b = 8.7643(7) Å, c = 11.7758(9) Å, and β = 102.6990(10)°.

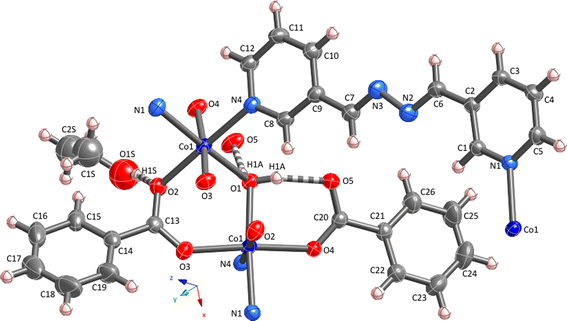

Graphical Abstract

Three mixed ligand coordination polymers, [Co2(N3)2(BZA)4(H2O)]·EtOH (1), Cu(N3)(BZA)2(H2O) (2), and Cu(N3)(SUCC)(H2O)2 (3) were synthesized via room temperature diffusion layering using 1,4-bis(3-pyridyl)-2,3-diaza-1,3-butadiene (3).

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price includes VAT (France)

Instant access to the full article PDF.

Institutional subscriptions

Scheme 1
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
