Synthesis and Structural Characterization of a Dimolybdenum Complex Bridged by the Hydroxymethylphenylphosphinate Ligand

Journal of Chemical Crystallography volume 41, pages 1317–1322 (2011)Cite this article

Abstract

Hydroxymethylphenylphosphinic acid, 1 was synthesized and structurally characterized by single crystal X-ray diffraction. Ligand 1 crystallized in the monoclinic P21 space group with two molecules comprising the unit cell and cell dimensions a = 7.5587(13) Å, b = 5.9019(8) Å, c = 8.808(3) Å and β = 90.90(2)°. Molecules were linked up by hydrogen bonding involving all three oxygen atoms of 1 resulting in 2-dimensional sheets. Reacting 1 with MoO2Cl2 in a mixture of ethanol and dichloromethane afforded the dinuclear molybdenum complex Mo2O4Cl2[(HOCH2)PhPOO]2, 2 where the two molybdenum atoms were bridged by the phosphinate ligand. Complex 2 crystallized in the P21/C space group as a dietherate with a = 9.208(3) Å, b = 14.353(4) Å, c = 12.805(4) Å and β = 98.64(3)° and contained terminal O and Cl atom disorder. The two crystallographically identical molybdenum centers are in distorted octahedral environments. Complexes were analyzed by IR, 31P NMR and X-ray crystallography.

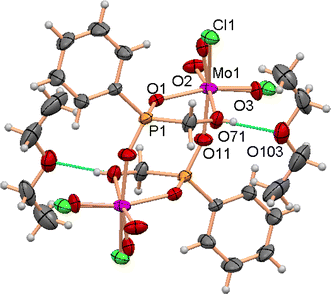

Graphical Abstract

The reaction of hydroxymethylphenylphosphinic acid with MoO2Cl2 in a mixture of ethanol and dichloromethane afforded the dinuclear molybdenum complex Mo2O4Cl2[(HOCH2)PhPOO]2, 2 where the two molybdenum atoms were bridged by the phosphinate ligand.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

39,95 €

Price includes VAT (Finland)

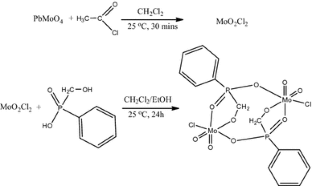

Scheme 1

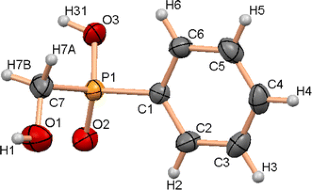

Fig. 1

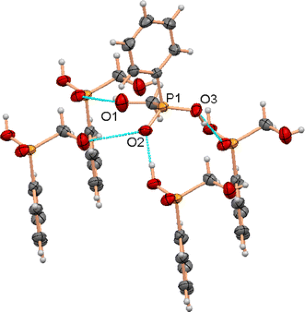

Fig. 2

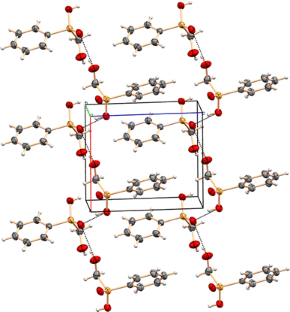

Fig. 3
Fig. 4

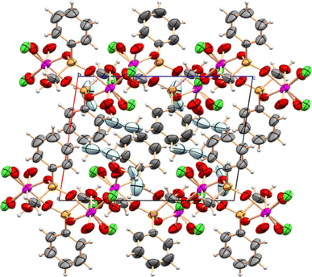

Fig. 5

References

  1. Barnes CM, Bohle DS, Dinnebier RE, Madsen SK, Stephens PW (1997) Inorg Chem 36:5793

    Article  CAS  Google Scholar

  2. Jimtaisong A, Feng L, Sreehari S, Bayse CA, Luck RL (2008) J Clust Sci 19:181

    Article  CAS  Google Scholar

  3. Lindner E, Trad S, Hoehne S, Oetjen H-H (1979) Z Naturforsch B Chem Sci 34:1203

    Google Scholar

  4. Balakrishna MS, George PP, Mobin SM (2005) Polyhedron 24:475

    Article  CAS  Google Scholar

  5. Beckmann J, Dakternieks D, Duthie A, Mitchell C, Ribot F, d’Espinose de la Caillerie JB, Revel B (2004) Appl Organomet Chem 18:353

    Article  CAS  Google Scholar

  6. Bino A, Sissman L (1987) Inorg Chim Acta 128:L21

    Article  CAS  Google Scholar

  7. Chakov NE, Abboud KA, Zakharov LN, Rheingold AL, Hendrickson DN, Christou G (2003) Polyhedron 22:1759

    Article  CAS  Google Scholar

  8. Chakraborty D, Chandrasekhar V, Bhattacharjee M, Kratzner R, Roesky HW, Noltemeyer M, Schmidt H-G (2000) Inorg Chem 39:23

    Article  CAS  Google Scholar

  9. Il’in EG, Kovalev VV, Aleksandrov GG (2005) Dokl Akad Nauk SSSR (Russ) (Proc Nat Acad Sci USSR) 405:73

    Google Scholar

  10. Kawasaki S, Koikawa M, Tokii T (2002) Mol Cryst Liq Cryst Sci Technol A 376:365

    Article  CAS  Google Scholar

  11. Oetjen H-H, Lindner E, Strahle J (1978) Chem Ber 111:2067

    Article  CAS  Google Scholar

  12. Varga RA, Drake JE, Silvestru C (2003) J Organomet Chem 675:48

    Article  CAS  Google Scholar

  13. Seo JS, Hynes RC, Williams D, Chin J, Sung N-D (1998) J Am Chem Soc 120:9943

    Article  CAS  Google Scholar

  14. Wang X, Xiang S-C, Sheng T-L, Fu R-B, Li Y-M, Wu X-T, Huaxue J (2006) Chin J Struct Chem 25:459

    Google Scholar

  15. Wilkes CE, Jacobson RA (1965) Inorg Chem 4:99

    Article  CAS  Google Scholar

  16. Holmes RR, Swarmy KCK, Schmid CG, Day RO (1988) J Am Chem Soc 110:7060

    Article  CAS  Google Scholar

  17. Koga K, Ohtsubo M, Yamada Y, Koikawa M, Tokii T (2004) Chem Lett 33:1606

    Article  CAS  Google Scholar

  18. Wu J-Z, Sellitto E, Yap GPA, Sheats J, Dismukes GC (2004) Inorg Chem 43:5795

    Article  CAS  Google Scholar

  19. Wu J-Z, Angelis FD, Carrell TG, Yap GPA, Sheats J, Car R, Dismukes GC (2006) Inorg Chem 45:189

    Article  CAS  Google Scholar

  20. Glowiak T, Sawka-Dobrowolska W (1977) Acta Crystallogr B Struct Crystallogr Cryst Chem 33:2648

    Article  Google Scholar

  21. Sawka-Dobrowolska W, Glowiak T (1983) Acta Crystallogr Sect C Cryst Struct Commun 39:345

    Article  Google Scholar

  22. Guo X-Z, Wang L-S (2010) J Chem Eng Data 55:4709

    Article  CAS  Google Scholar

  23. Landoni G, Neri C (1992) Flame-resistant polyolefin fibers and films

  24. Wang L, Wu J, Kang H, Li M, Li X, Wang Z, Yang M (2006) Method for preparing hydroxymethyl alkylphosphinic acid and its esters

  25. Wang L-S, Kang H-B, Wang S-B, Liu Y, Wang R (2007) Fluid Phase Equilib 258:99

    Article  CAS  Google Scholar

  26. Jimtaisong A, Luck RL (2005) J Clust Sci 16:167

    Article  CAS  Google Scholar

  27. Feng L, Urnezius E, Luck RL (2008) J Organomet Chem 693:1564

    Article  CAS  Google Scholar

  28. Fronczek FR, Luck RL, Wang G (2003) Inorg Chim Acta 342:247

    Article  CAS  Google Scholar

  29. Jimtaisong A, Luck RL (2006) Inorg Chem 45:10391

    Article  CAS  Google Scholar

  30. Wang G, Jimtaisong A, Luck RL (2005) Inorg Chim Acta 358:933

    Article  CAS  Google Scholar

  31. Song S-S, Duan H-D, Zhao W, Wang Z-W (2010) Chengde Shiyou Gaodeng Zhuanke Xuexiao Xuebao 12:35

    CAS  Google Scholar

  32. Maier L (1979) J Organomet Chem 178:157

    Article  CAS  Google Scholar

  33. Butcher RJ, Gunz HP, Maclagan RGAR, Powell HKJ, Wilkins CJ, Hian YS (1975) J Chem Soc Dalton Trans 1223

  34. Krauss HL, Huber W (1958) Z Naturforsch 13b:820

    CAS  Google Scholar

  35. Krauss HL, Huber W (1961) Chem Ber 94:2864

    Article  CAS  Google Scholar

  36. Altomare A, Burla MC, Camalli M, Cascarano GL, Giacovazzo C, Guagliardi A, Moliterni AGG, Polidori G, Spagna R (1999) J Appl Crystallogr 32:115

    Article  CAS  Google Scholar

  37. Farrugia LJ (1999) J Appl Crystallogr 32:837

    Article  CAS  Google Scholar

  38. Sheldrick GM, Schneider TR, Carter CharlesW, Jr RMS (1997) SHELXL: high-resolution refinement. Methods in enzymology. Academic Press, London, p 319

    Google Scholar

  39. Buchweitz M, Luck RL, Sreehari S, Beganskiene A, Urnezius E (2010) Inorg Chim Acta 363:1818

    Article  CAS  Google Scholar

  40. Macrae CF, Bruno IJ, Chisholm JA, Edgington PR, McCabe P, Pidcock E, Rodriguez-Monge L, Taylor R, van de Streek J, Wood PA (2008) J Appl Crystallogr 41:466

    Article  CAS  Google Scholar

  41. Druyan ME, Reis AH Jr, Gebert E, Peterson SW, Mason GW, Peppard DF (1976) J Am Chem Soc 98:4801

    Article  CAS  Google Scholar

  42. Sachleben RA, Burns JH, Brown GM (1988) Inorg Chem 27:1787

    Article  CAS  Google Scholar

  43. Beckmann J, Duthie A, Ruettinger R, Schwich T (2008) Z Anorg Allg Chem 634:2785

    Article  CAS  Google Scholar

  44. Pantenburg I, Thoesen C, Hoge B (2002) Z Anorg Allg Chem 628:1785

    Article  CAS  Google Scholar

  45. Caruso U, Centore R, Panunzi B, Roviello A, Tuzi A (2005) Eur J Inorg Chem 2005:2747

    Article  Google Scholar

  46. Mayer JM (1988) Inorg Chem 27:3899

    Article  CAS  Google Scholar

  47. Cotton FA, Kohli M, Luck RL, Silverton JV (1993) Inorg Chem 32:1868

    Article  CAS  Google Scholar
