Synthesis and X-ray crystal structure of a complex formed by reaction of 1,2-bis(2′-pyridylethynyl)benzene and mercury(II) chloride

Journal of Chemical Crystallography volume 36, pages 563–566 (2006)Cite this article



The X-ray crystal structure of the complex formed between 1,2-bis(2′-pyridylethynyl) benzene and mercuric(II) chloride is described. The complex (C40H24Cl6Hg3N4) crystallized in the triclinic space group P-1 with a=9.0414(6), b=9.4631(7), c=12.1134(9) Å, α=97.4680(10), β=94.8130(10), γ=105.4700(10)°. The structure reveals that the ligand is distorted from planarity to accommodate the mercury cation and a third mercuric chloride moiety is held between two ligand-mercury coordination complexes. The central mercury cation has octahedral coordination geometry surrounded by six chlorides while the other two mercury cations have distorted tetrahedral geometry each coordinated by two pyridyl nitrogen atoms and two chlorides.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

USD 39.95

Price includes VAT (Canada)

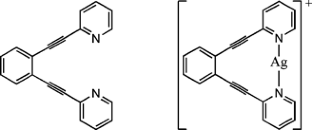

Fig. 1.

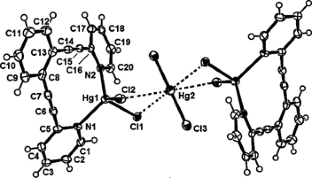

Fig. 2.

References

  1. Bosch, E.; Barnes, C.L. Inorg. Chem. 2001, 40, 3097.

  2. Bosch, E.; Barnes, C.L. J. Coord. Chem. 2003, 56, 329.

    Article  CAS  Google Scholar

  3. Fiscus, E.J.; Shotwell, S.; Layland, R.C.; Smith, M.D.; zur Loye, H.-C.; Bunz, U.H.F. Chem. Commun. 2001, 2674.

  4. Hu, Y.Z.; Chamchoumis, C.; Grebowicz, J.S.; Thummel, R.P. Inorg. Chem. 2002, 41, 2296.

    Article  CAS  Google Scholar

  5. Shotwell, S.; Winscheif, P.M., Smith, M.D.; Bunz, U.H.F. Org. Lett. 2004, 6, 4151.

    Article  CAS  Google Scholar

  6. Sheldrick, G.M. SHELXS-97, Crystal Structure Solution; University of Göttingen: Germany, 1997.

    Google Scholar

  7. Sheldrick, G.M. SHELXL-97, Crystal Structure Refinement; University of Göttingen: Germany, 1997.

    Google Scholar

  8. (a) Burnett, M.N.; Johnson, C.K. ORTEP-III: Oak Ridge Thermal Ellipsoid Plot Program for Crystal Structure Illustrations, Oak Ridge National Laboratory Report ORNL-6895, 1996. (b) Farrugia, L.L. J. Appl. Cryst. 1997, 30, 565.

  9. We used ConQuest Version 1.8 available from the Cambridge Crystallographic Data Centre.

  10. Allen, F.H. Acta Cryst. 2002, B58, 380.

    CAS  Google Scholar

Download references

Acknowledgments

We thank the Petroleum Research Fund administered by the ACS (Grant # 37506-B3) and the Graduate College at Missouri State University for partial funding of this research.

Author information

Authors and Affiliations

  1. Department of Chemistry, University of Missouri, Columbia, MO, 65211, USA

    Charles L. Barnes

  2. Department of Chemistry, Missouri State University, Springfield, MO, 65897, USA

    Eric Bosch

Authors
  1. Charles L. Barnes
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Eric Bosch
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Eric Bosch.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Barnes, C.L., Bosch, E. Synthesis and X-ray crystal structure of a complex formed by reaction of 1,2-bis(2′-pyridylethynyl)benzene and mercury(II) chloride. J Chem Crystallogr 36, 563–566 (2006). https://doi.org/10.1007/s10870-006-9100-x

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s10870-006-9100-x

KEY WORDS:

  • Coordination complex
  • mercuric(II) chloride
  • 1,2-bis(2′-pyridylethynyl)benzene
