Preparation and crystal structure of a quadruply bonded dimolybdenum complex with trans-crotonate ligands

Journal of Chemical Crystallography volume 36, pages 205–210 (2006)Cite this article

A quadruply bonded dimolybdenum complex with trans-crotonate ligands, Mo2(O2CC3H5)4, was synthesized and characterized by UV–VIS, IR, and NMR spectra. The crystal structure was determined by an X-ray single crystal diffraction analysis. The title complex (C16H20O8Mo2, M w = 532.2) crystallized in the triclinic space group P-1 with the following crystallographic parameters: a = 10.236(2) Å, b = 10.393(2) Å, c = 10.524(2) Å, α = 89.59(1)°, β = 73.34(1)°, γ = 70.78(2)°, V = 1008.1(3) Å3, Z = 2, D c = 1.753 Mg m−3, μ(Mo Kα = 0.71073 Å, F(000) = 528, and final R 1 = 0.041, wR 2 = 0.114 for observed reflections 2889 (I > 2σ(I)). The Mo2 4+ unit was surrounded by four trans-crotonate ligands resulting in a paddle wheel structure with one disordered trans-crotonate ligand. Molecules are bonded together by means of interactions consisting of the donation of lone pairs of electron on carboxylate O atoms on one molecule to the Mo atom on an adjacent complex. A new pattern of intermolecular bonding is observed.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

39,95 €

Price includes VAT (Finland)

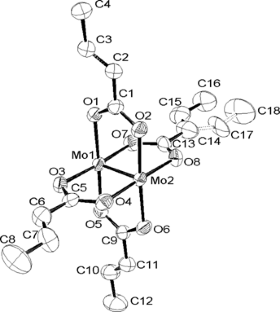

Fig. 1.

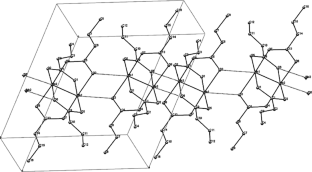

Fig. 2.

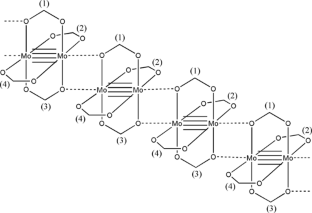

Fig. 3.

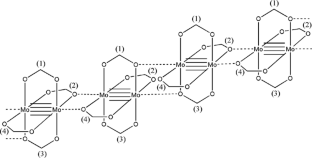

Fig. 4.

References

  1. Cotton, F.A.; Walton, R.A. Multiple Bonded Between Metal Atoms ; 2nd ed., Oxford: New York, 1993; pp 139–257.

  2. Cotton, F.A.; Lin, C.; Murillo, C.A. Inorg. Chem. 2001, 40, 478.

    Article  PubMed  CAS  Google Scholar

  3. Cotton, F.A.; Lei, P., Lin, C.; Murillo; C.A.; Wang, X.; Yu, S.-Y.; Zhang, Z.-X. J. Am. Chem. Soc. 2004, 126, 1518.

    Article  PubMed  CAS  Google Scholar

  4. Liwporncharoenvong, T.; Luck, R.L. J. Am. Chem. Soc. 2001, 123, 3615.

    Article  PubMed  CAS  Google Scholar

  5. Cotton, F.A.; Donahue, J.P.; Murillo, C.A. J. Am. Chem. Soc. 2003, 125, 5436.

    Article  PubMed  CAS  Google Scholar

  6. Brencic, J.V.; Cotton, F.A. Inorg. Chem. 1970, 9, 351.

    Article  CAS  Google Scholar

  7. Enraf-Nonius. CAD4 Express Software ; Enraf-Nonius: Delft, The Netherlands, 1994.

    Google Scholar

  8. North, A.C.T.; Phillips, D.C.; Mathews, F.S. Appl. Cryst. 1968, A24, 351.

    Article  Google Scholar

  9. Altomare, A.; Burla, M.C.; Camalli, M.; Cascarano, G.L.; Giacovazzo, C.; Gugliardi, A.; Moliterni, A.G.G.; Polidori, G.; Spagna, R.J. Appl. Cryst. 1999, 32, 115.

    Article  CAS  Google Scholar

  10. Farrugia, L.J. Appl. Cryst. 1999, 32, 837.

    Article  Google Scholar

  11. Sheldrick, G.M. SHELXL97, Program for crystal structure refinement ; University of Göttingen: Germany, 1997.

    Google Scholar

  12. Farrugia, LT. J. Appl. Crystallogr. 1997, 30, 565.

    Article  CAS  Google Scholar

  13. Allen, F.H. Acta Cryst. 2002, B58, 380.

    CAS  Google Scholar

  14. Bruno, I.J.; Cole, J.C.; Edhington, P.R.; Kessler, M.; Macrae, C.F.; MaCabe, P.; Pearson, J.; Taylor, R. Acta Cryst. 2002, B58, 389.

    CAS  Google Scholar

  15. Cotton, F.A.; Norman Jr., J.G. J. Coord. Chem. 1971, 1, 161.

    Article  Google Scholar

  16. Cotton, F.A.; Norman Jr., J.G., BStults, B.R.; Webb, T.R. J. Coord. Chem. 1976, 5, 217.

    Article  CAS  Google Scholar

  17. Cotton, F.A.; Extine, M.; Gage, L.D. Inorg. Chem. 1978, 17, 172.

    Article  CAS  Google Scholar

  18. Cotton, F.A.; Falvello, L.R.; Murillo, C.A. Inorg. Chem. 1983, 22, 382.

    Article  CAS  Google Scholar

  19. Cotton, F.A.; de Silva, D.O. Inorg. Chim. Acta. 1996, 249, 54.

    Google Scholar

  20. Chisholm, M.H.; Wilson, P.J.; Woodward, P.M. Chem. Commun. 2002, 566.

  21. Bursten, B.E.; Chisholm, M.H.; Clark, R.J.H.; Firth, S.; Hadad, C.M.; Wilson, P.J.; Woodward, P.M.; Zaleski, J.M. J. Am. Chem. Soc. 2002, 124, 12244.

    Article  PubMed  CAS  Google Scholar

  22. Liwporncharoenvong, T., Luck, R.L. Acta. Cryst. 2005, E61.

Download references

Acknowledgments

We thank Michigan Technological University and Thailand Research Fund, TRF (For TL) for generous support.

Author information

Authors and Affiliations

  1. Department of chemistry, Faculty of Science, Srinakharinwirot University, 114 Sukhumvit 23, Bangkok, 10110, Thailand

    Teerayuth Liwporncharoenvong

  2. Department of Chemistry, Michigan Technolgical University, 1400 Townsend Drive, Houghton, Michigan, 49931, USA

    Rudy L. Luck

Authors
  1. Teerayuth Liwporncharoenvong
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Rudy L. Luck
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Rudy L. Luck.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Liwporncharoenvong, T., Luck, R.L. Preparation and crystal structure of a quadruply bonded dimolybdenum complex with trans-crotonate ligands. J Chem Crystallogr 36, 205–210 (2006). https://doi.org/10.1007/s10870-005-9048-2

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s10870-005-9048-2

KEY WORDS:

  • quadruply bonded dimolybdenum complex
  • trans-crotonic acid
  • synthesis
  • crystal structure
