Improved accuracy of 15N–1H scalar and residual dipolar couplings from gradient-enhanced IPAP-HSQC experiments on protonated proteins

Journal of Biomolecular NMR volume 43, pages 161–170 (2009)Cite this article

Abstract

The presence of dipole-dipole cross-correlated relaxation as well as unresolved E.COSY effects adversely impacts the accuracy of 1 J NH splittings measured from gradient-enhanced IPAP-HSQC spectra. For isotropic samples, the size of the systematic errors caused by these effects depends on the values of 2 J NHα , 3 J NHβ and 3 J HNHα . Insertion of band-selective 1H decoupling pulses in the IPAP-HSQC experiment eliminates these systematic errors and for the protein GB3 yields 1 J NH splittings that agree to within a root-mean-square difference of 0.04 Hz with values measured for perdeuterated GB3. Accuracy of the method is also highlighted by a good fit to the GB3 structure of the 1H-15N RDCs extracted from the minute differences in 1JNH splitting measured at 500 and 750 MHz 1H frequencies, resulting from magnetic susceptibility anisotropy. A nearly complete set of 2 J NHα couplings was measured in GB3 in order to evaluate whether the impact of cross-correlated relaxation is dominated by the 15N–1Hα or 15N–1Hβ dipolar interaction. As expected, we find that 2 J NHα  ≤ 2 Hz, with values in the α-helix (0.86 ± 0.52 Hz) slightly larger than in β-sheet (0.66 ± 0.26 Hz). Results indicate that under isotropic conditions, N–HN/N–Hβ cross-correlated relaxation often dominates. Unresolved E.COSY effects under isotropic conditions involve 3 J HNHα and J NHα , but when weakly aligned any aliphatic proton proximate to both N and HN can contribute.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

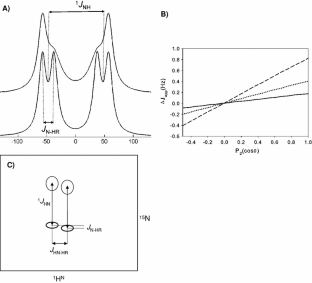

Fig. 1

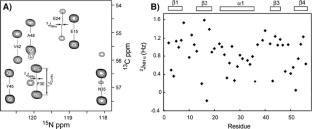

Fig. 2

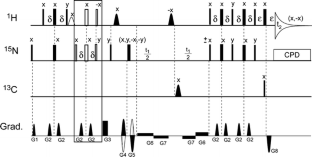

Fig. 3

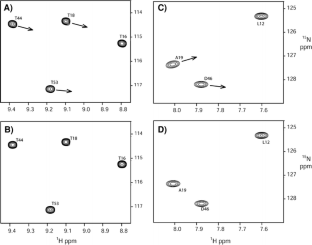

Fig. 4
