Synthesis of Ag/rGO composite materials with antibacterial activities using facile and rapid microwave-assisted green route

Journal of Materials Science: Materials in Medicine volume 29, Article number: 69 (2018) Cite this article

Abstract

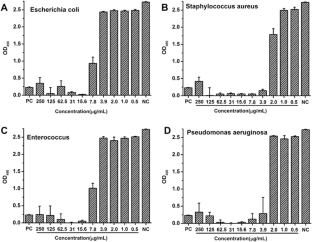

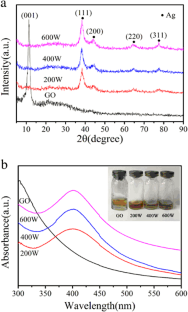

The present paper represents a facile and rapid synthesis of silver-reduced graphene oxide Ag/rGO (Ag/reduced graphite oxides) composites with the help of microwave irradiation. This is a rapid green route requiring power microwave irradiation only 400 W(30 s) and 200 W (60 s) for the uniform Ag nanoparticles with average diameter of ~10 nm embedded on rGO sheets. In the microwave irradiation process, rGO samples absorb electromagnetic energy to be heated rapidly due to their intrinsic dielectric and conductive losses. Local hot sheets appear in aqueous solution, facilitating homogeneous nucleation, as well as the grain growth of Ag crystallites throughout the rGO sheets. The obtained Ag/rGO composites exhibited significant antibacterial property towards Gram-negative bacteria (E. coli and P. aeruginosa), Gram-positive bacteria (S. aureus and Enterococcus), and white rot fungus. The minimum bactericidal concentration of the Ag /rGO nanocomposite against E. coli was about 1 μg/mL. Strong interaction between Ag/rGO composites and bacteria contributed to the totally non-activity of bacteria.

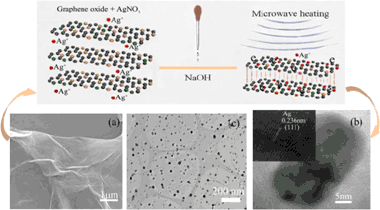

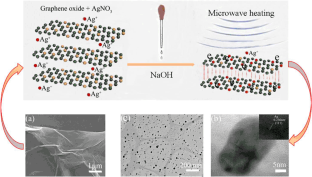

We designed Ag/rGO nanocomposite with excellent antibacterial activities by facile andrapid microwave-assisted green route. In Ag/rGO nanocomposite, the morphology and size distributions of Ag particles anchored on the rGO sheets can controlled via the microwave irradiation power and time. The results suggested that in the microwave field, GO reduced into unique rGO sheets and uniform AgNPs with average size of 12 nm can be decorated on rGO sheets at 30 s and at 200 W, respectively. we successfully demonstrated small silver particles anchored on graphene displayed great antibacterial activities against Gram-negative bacteria (E. coli and P. aeruginosa), Gram-positive bacteria (S. aureus and Enterococcus) and white rot fungus. Ag/rGO nanocomposites may have potential applications as antibacterial agent for daily life.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7

References

  1. Gu D,Chang X,Zhai X,Sun S,Li Z,Liu T, et al. Efficient synthesis of silver-reduced graphene oxide composites with prolonged antibacterial effects. Ceram Int. 2016;42:9769–78. https://doi.org/10.1016/j.ceramint.2016.03.069.

    CAS  Article  Google Scholar

  2. Pant B, Pokharel P, Tiwari AP, Saud PS, Park M, Ghouri ZK, et al. Characterization and antibacterial properties of aminophenol grafted and Ag NPs decorated graphene nanocomposites. Ceram Int. 2015;41:5656–62. https://doi.org/10.1016/j.ceramint.2014.12.150.

    CAS  Article  Google Scholar

  3. Yun H, Ahmed MS, Lee K, Jeon S, Lee CW. Potential enhancement of antibacterial activity of graphene oxide-silver nanocomposite by introducing C2 carbon chain linkage. Appl Surf Sci. 2016;360:915–20. https://doi.org/10.1016/j.apsusc.2015.11.084.

    CAS  Article  Google Scholar

  4. Turcheniuk K, Hage C-H, Spadavecchia J, Serrano AY, Larroulet I, Pesquera A, et al. Plasmonic photothermal destruction of uropathogenic E. coli with reduced graphene oxide and core/shell nanocomposites of gold nanorods/reduced graphene oxide. J Mater Chem B. 2015;3:375–86. https://doi.org/10.1039/C4TB01760A.

    CAS  Article  Google Scholar

  5. Deng C-H, Gong J-L, Zhang P,Zeng G-M, Song B, Liu H-Y, Preparation of melamine sponge decorated with silver nanoparticles-modified graphene for water disinfection. J Colloid Interface Sci. 2017;488(Suppl. C):26–38. https://doi.org/10.1016/j.jcis.2016.10.078.

    CAS  Article  Google Scholar

  6. Alsharaeh Edreese AS, Ahmed F, Arshi N, Al-Hindawi M, Kim Sing G. Green synthesis of silver nanoparticles and their reduced graphene oxide nanocomposites as antibacterial agents: a bio-inspired approach. Acta Metall Sin. 2017;30:45–52. https://doi.org/10.1007/s40195-016-0485-z.

    Article  Google Scholar

  7. Liu Chong-Chong XH, Wang L, Qin X. Facile One-Pot Green Synthesis and Antibacterial Activities of GO/Ag Nanocomposites. Acta Metall Sin. 2017;30:36–44. https://doi.org/10.1007/s40195-016-0517-8.

    Article  Google Scholar

  8. Pulit J,Banach M,Kowalski K, Chemical Reduction as the Main Method for Obtaining Nanosilver. J Comput Theor Nanos. 2013;10(2):276–284. https://doi.org/10.1166/jctn.2013.2691.

    CAS  Article  Google Scholar

  9. Banach M, Pulit-Prociak J, Proecological method for the preparation of metal nanoparticles. J Clean Prod. 2017;141(Suppl. C):1030–9. https://doi.org/10.1016/j.jclepro.2016.09.180.

    CAS  Article  Google Scholar

  10. Li Y, Cao Y, Xie J, Jia D, Qin H, Liang Z, Facile solid-state synthesis of Ag/graphene oxide nanocomposites as highly active and stable catalyst for the reduction of -nitrophenol. Catal Commun. 2015;58(Suppl. C):21–5. https://doi.org/10.1016/j.catcom.2014.08.022.

    CAS  Article  Google Scholar

  11. Oliver Kappe C. Microwave dielectric heating in synthetic organic chemistry. Chem Soc Rev. 2008;37:1127–39. https://doi.org/10.1039/B803001B.

    CAS  Article  Google Scholar

  12. Bilecka I, Niederberger M. Microwave chemistry for inorganic nanomaterials synthesis. Nanoscale. 2010;2:1358–74. https://doi.org/10.1039/B9NR00377K.

    CAS  Article  Google Scholar

  13. Wang C, Guo R, Lan J, Jiang S, Zhang Z. Microwave-assisted synthesis of silver/reduced graphene oxide on cotton fabric. Cellulose. 2017;24:4045–55. https://doi.org/10.1007/s10570-017-1392-9.

    CAS  Article  Google Scholar

  14. Chook SW, Chia CH, Zakaria S, Ayob MK, Chee KL, Huang NM, et al. Antibacterial performance of Ag nanoparticles and AgGO nanocomposites prepared via rapid microwave-assisted synthesis method. Nanoscale Res Lett. 2012;7:541 https://doi.org/10.1186/1556-276X-7-541.

    Article  Google Scholar

  15. Long T, Hu L, Dai H, Tang Y. Facile synthesis of Ag-reduced graphene oxide hybrids and their application in electromagnetic interference shielding. Appl Phys A. 2014;116:25–32. https://doi.org/10.1007/s00339-014-8517-x.

    CAS  Article  Google Scholar

  16. Kou J, Bennett-Stamper C, Varma RS. Green synthesis of noble nanometals (Au, Pt, Pd) using glycerol under microwave irradiation conditions. ACS Sustain Chem Eng. 2013;1:810–6. https://doi.org/10.1021/sc400007p.

    CAS  Article  Google Scholar

  17. Fan B,Guo H,Zhang R,Jia Y,Shi C, Structural evolution during the oxidation process of graphite. Chin Phys Lett. 2014;31:201–4.

    Article  Google Scholar

  18. Compton OC, Nguyen ST. Graphene oxide, highly reduced graphene oxide, and graphene: versatile building blocks for carbon-based materials. Small. 2010;6:711–23. https://doi.org/10.1002/smll.200901934.

    CAS  Article  Google Scholar

  19. Ghilane J, Fan F-RF, Bard AJ, Dunwoody N. Facile electrochemical characterization of core/shell nanoparticles. Ag core/Ag2O shell structures. Nano Lett. 2007;7:1406–12. https://doi.org/10.1021/nl070268p.

    CAS  Article  Google Scholar

  20. Li Y, Song Q, Fan B, Zhang R. Effects of reducing agents on the synthesis of Ag/rGO nanocomposites. Mater Res Express. 2017;4:015014.

    Article  Google Scholar

  21. Shao W, Liu X, Min H, Dong G, Feng Q, Zuo S. Preparation, characterization, and antibacterial activity of silver nanoparticle-decorated graphene oxide nanocomposite. ACS Appl Mater Interfaces. 2015;7:6966–73. https://doi.org/10.1021/acsami.5b00937.

    CAS  Article  Google Scholar

  22. Wang T, Wan Y, Liu Z. Fabrication of hierarchical micro/nanotopography on bio-titanium alloy surface for cytocompatibility improvement. J Mater Sci. 2016;51:9551–61. https://doi.org/10.1007/s10853-016-0219-7.

    CAS  Article  Google Scholar

  23. Pilati F, Degli Esposti M, Bondi M, Iseppi R, Toselli M. Designing of antibacterial plastics: thymol release from photocured thymol-doped acrylic resins. J Mater Sci. 2013;48:4378–86. https://doi.org/10.1007/s10853-013-7253-5.

    CAS  Article  Google Scholar

  24. Andrews JM, Determination of minimum inhibitory concentrations. J Antimicrob Chemother.2001;48(Suppl. 1):5–16. https://doi.org/10.1093/jac/48.suppl_1.5.

    CAS  Article  Google Scholar

  25. Zhou H, Liu Y, Chi W, Yu C, Yu Y, Preparation and antibacterial properties of Ag@polydopamine/graphene oxide sheet nanocomposite. Appl Surf Sci. 2013;282(Suppl. C):181–5. https://doi.org/10.1016/j.apsusc.2013.05.099.

    CAS  Article  Google Scholar

  26. Herrero MA, Kremsner JM, Kappe CO. Nonthermal microwave effects revisited: on the importance of internal temperature monitoring and agitation in microwave chemistry. J Org Chem. 2008;73:36–47. https://doi.org/10.1021/jo7022697.

    CAS  Article  Google Scholar

  27. Liu X, Yu L, Liu F, Sheng L, An K, Chen H, et al. Preparation of Ag–Fe-decorated single-walled carbon nanotubes by arc discharge and their antibacterial effect. J Mater Sci. 2012;47:6086–94. https://doi.org/10.1007/s10853-012-6523-y.

    CAS  Article  Google Scholar

Download references

Acknowledgements

This work was financially supported by the National Natural Science Foundation of China (Grants 51602287, 21504082 and 51172113), the Henan Provincial Department of Science and Technology Research Project (17A430006).
