Treating orthopedic prosthesis with diamond-like carbon: minimizing debris in Ti6Al4V

Journal of Materials Science: Materials in Medicine volume 25, pages 2347–2355 (2014)Cite this article

Abstract

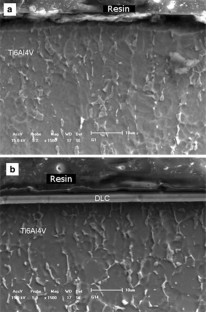

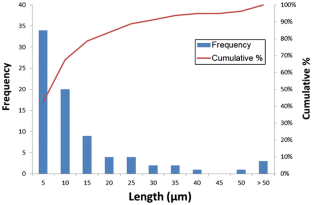

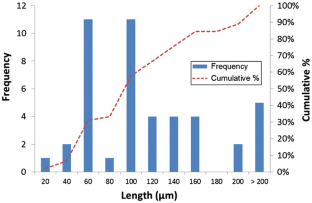

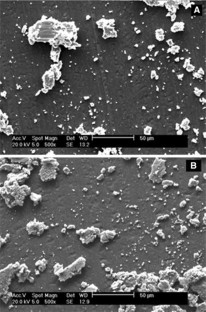

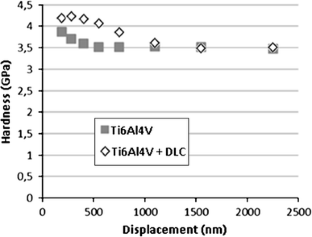

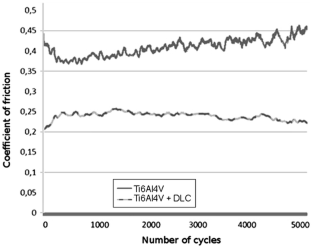

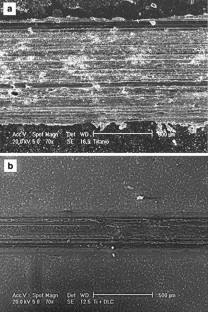

Prostheses are subject to various forms of failing mechanisms, including wear from ordinary patient motion. Superficial treatments can improve tribological properties of the contact pair, minimizing wear and increasing prostheses lifetime. One possibility is the diamond-like carbon (DLC) coating, where Carbon is deposited with variable ratio of sp2/sp3 structures, leading to an increase in surface hardness. So in this research Ti6Al4V samples were coated with DLC using sputtering process to evaluate the debris release. The Ti6Al4V and Ti6Al4V plus DLC coating surfaces were analyzed using Raman spectroscopy and instrumented indentation (hardness). The wear behavior was tested using a reciprocating linear tribometer. The wear rate was smaller in the coated samples, producing less debris than the untreated Ti6Al4V alloy. Debris morphology was also evaluated, using scanning electronic microscopy, and it was observed that debris size from the coated samples were bigger than those observed from the uncoated Ti6Al4V alloy, above the size that generally triggers biological response from the host.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

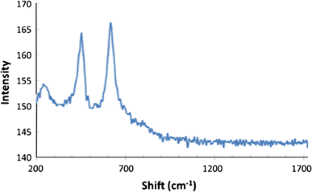

Fig. 1

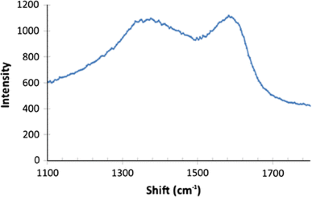

Fig. 2
