Skip to main content

Nanoscale viscoelastic properties of an aligned collagen scaffold

Journal of Materials Science: Materials in Medicine volume 20, Article number: 257 (2009) Cite this article

Abstract

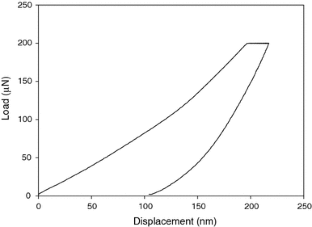

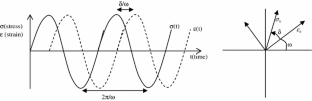

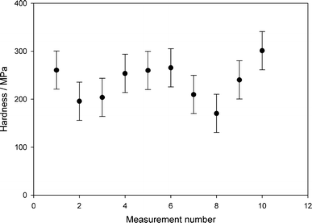

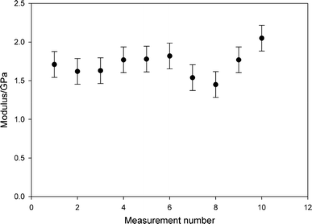

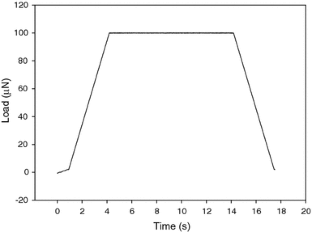

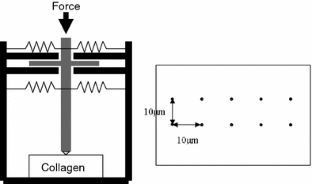

Localised mechanical properties for aligned collagen scaffolds derived from Type 1 collagen were determined by application of nanoindentation based techniques. It was possible to measure the modulus and hardness with nanometre control over the depth of penetration and quasi-static testing under displacement control yielded average modulus values ranging from 1.71 GPa to 3.31 GPa; a narrower range of values than obtained by other methods. Hardness values of 222 MPa to 256 MPa were recorded and showed little scatter, highlighting the potential of nanoindentation hardness values as a reproducible and accurate measure of soft material properties. Open loop Load-displacement curves for the collagen exhibited the expected shapes for a viscoelastic material and it was thus possible to apply dynamic stiffness measurement at the nano scale. As well as determining the storage modulus (0.71 GPa) and the loss modulus (0.40 GPa) at the sub-micron length and nano depth resolution it was also possible to discriminate between surface and bulk readings allowing surface effects to be discarded if necessary. In addition to being a more accurate indentation method than atomic force microscopy, the localised dynamic mechanical properties of collagen were measured for the first time. These results demonstrate that this nanoindentation technique can serve as a powerful tool for the characterisation of collagen based biomaterials that are used as scaffolds for a variety of engineered tissues, such as artificial skin, skeletal muscle, heart valves and neuroregeneration guides.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7

References

  1. Q. Lu, K. Ganesan, D.T. Simionescu, N.R. Vyavahare, Biomaterials 25, 5227 (2004). doi:10.1016/j.biomaterials.2003.12.019

    PubMed  Article  CAS  Google Scholar

  2. P.M. Taylor, A.E.G. Cassl, M.H. Yacoub, Prog. Pediatr. Cardiol. 21, 219 (2006). doi:10.1016/j.ppedcard.2005.11.010

    Article  Google Scholar

  3. J.T. Lu, C.J. Lee, S.F. Bent, H.A. Fishman, E.E. Sabelman, Biomaterials 28, 1486 (2007). doi:10.1016/j.biomaterials.2006.11.023

    PubMed  Article  CAS  Google Scholar

  4. M.T. Valarmathi, M.J. Yost, R.L. Goodwin, J.D. Potts, Tissue Eng: Part A 14 (2008)

  5. R.G. Jansen, T.H. van Kuppervelt, W.F. Daamen, A.M. Kuijpers-Jagtman, W. Von den Hoff, Arch. Oral. Biol. 53, 376 (2008)

    PubMed  CAS  Google Scholar

  6. V. Thomas, X. Zhang, S.A. Catledge, Y.K. Vohra, Biomed. Mater. 2, 224 (2007). doi:10.1088/1748-6041/2/4/004

    PubMed  Article  CAS  ADS  Google Scholar

  7. E. Sachlos, N. Reis, C. Ainsley, B. Derby, J.T. Czernuszka, Biomaterials 24, 1487 (2003). doi:10.1016/S0142-9612(02)00528-8

    PubMed  Article  CAS  Google Scholar

  8. L. Buttafoco, N.G. Kolkman, P. Engbers-Buijtenhuijs, A.A. Poot, P.J. Dijkstra, I. Vermes, Biomaterials 27, 724 (2006). doi:10.1016/j.biomaterials.2005.06.024

    PubMed  Article  CAS  Google Scholar

  9. M. Rafiuddin Ahmed, U. Venkateshwarlu, R. Jayakumar, Biomaterials 25, 2585 (2004). doi:10.1016/j.biomaterials.2003.09.075

    PubMed  Article  CAS  Google Scholar

  10. E. Gentleman, A.N. Lay, D.A. Dickerson, E.A. Nauman, G.A. Livesay, K.C. Dee, Biomaterials 24, 3805 (2003). doi:10.1016/S0142-9612(03)00206-0

    PubMed  Article  CAS  Google Scholar

  11. X. Wang, X. Li, M.J. Yost, J. Biomed. Res. Part A 74A, 263 (2005). doi:10.1002/jbm.a.30387

    Article  CAS  Google Scholar

  12. M.P.E. Wenger, L. Bozec, M.A. Horton, P. Mesquida, Biophys. J. 93, 1255 (2007). doi:10.1529/biophysj.106.103192

    PubMed  Article  CAS  ADS  Google Scholar

  13. L. Yang, C.F.C. Fitie, K.O. Van Der Werf, M.L. Bennink, P.J. Dijkstra, J. Feijen, Biomaterials 29, 955 (2008). doi:10.1016/j.biomaterials.2007.10.058

    PubMed  Article  CAS  Google Scholar

  14. L. Yang, K.O. Van der Werf, B.F.J.M. Koopman, V. Subramaniam, M.L. Bennink, P.J. Dijkstra, J. Biomed. Res. Part A 82A, 160 (2007). doi:10.1002/jbm.a.31127

    Article  CAS  Google Scholar

  15. G. Forgacs, S.A. Newman, B. Hinner, C.W. Maier, E. Sackmann, Biophys. J. 84, 1272 (2003)

    PubMed  Article  CAS  ADS  Google Scholar

  16. P. Netti, A. D’amore, D. Ronca, L. Ambrosio, L. Nicolais, J. Mater. Sci. Mater. Med. 7, 525 (1996). doi:10.1007/BF00122175

    Article  CAS  Google Scholar

  17. L. Bozec, M. Horton, Biophys. J. 88, 4223 (2005). doi:10.1529/biophysj.104.055228

    PubMed  Article  CAS  ADS  Google Scholar

  18. M.J. Buehler, Proc. Natl. Acad. Sci. USA 103, 12285 (2006). doi:10.1073/pnas.0603216103

    PubMed  Article  CAS  ADS  Google Scholar

  19. A. Chakravartula, K. Komvopoulos, Appl. Phys. Lett. 88, 131901 (2006). doi:10.1063/1.2189156

    Article  ADS  CAS  Google Scholar

  20. S.J. Bull, J. Appl. Phys. D 38, R393 (2005). doi:10.1088/0022-3727/38/24/R01

    Article  CAS  ADS  Google Scholar

  21. N. Bouaita, S.J. Bull, J. Fernandez Palacio, J.R. White, Polym. Eng. Sci. 46, 1160 (2006)

    Article  CAS  Google Scholar

  22. H.J. Evans, J.K. Sweet, R.L. Price, M. Yost, R.L. Goodwin, Am. J. Physiol. Heart Circ. Physiol. 285, H570 (2003)

    PubMed  CAS  Google Scholar

  23. W.C. Oliver, G.M. Pharr, J. Mater. Res. 7, 1564 (1992). doi:10.1557/JMR.1992.1564

    Article  CAS  ADS  Google Scholar

  24. N.M. Ntim, A.K. Bembey, V.L. Ferguson, A.J. Bushby, Mater. Res. Soc. Symp. Proc. 898, L05 (2006)

    Google Scholar

  25. C.A. Clifford, M.P. Seah, Appl. Surf. Sci. 252, 1915 (2005). doi:10.1016/j.apsusc.2005.08.090

    Article  CAS  ADS  Google Scholar

Download references

Acknowledgement

D.J. Frankel is supported by a Research Councils UK (RCUK) fellowship.

Author information

Affiliations

  1. Institute of Human Genetics, Newcastle University, Newcastle upon Tyne, NE1 3BZ, UK

    Bill Chaudhry

  2. School of Chemical Engineering and Advanced Materials, Newcastle University, Newcastle upon Tyne, NE1 7RU, UK

    Holly Ashton, Arif Muhamed, Steve Bull & Daniel Frankel

  3. Department of Surgery, School of Medicine, University of South Carolina, Columbia, SC, 29208, USA

    Michael Yost

Authors
  1. Bill Chaudhry
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Holly Ashton
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Arif Muhamed
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Michael Yost
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Steve Bull
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Daniel Frankel
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Daniel Frankel.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Chaudhry, B., Ashton, H., Muhamed, A. et al. Nanoscale viscoelastic properties of an aligned collagen scaffold. J Mater Sci: Mater Med 20, 257 (2009). https://doi.org/10.1007/s10856-008-3574-3

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1007/s10856-008-3574-3

Keywords

  • Atomic Force Microscopy
  • Storage Modulus
  • Dynamic Mechanical Analysis
  • Collagen Scaffold
  • Sodium Hydrogen Carbonate
