Skip to main content

Advertisement

SpringerLink
Log in

Structure, mechanical properties, and grindability of dental Ti–Zr alloys

  • Published:
Journal of Materials Science: Materials in Medicine Aims and scope Submit manuscript

Abstract

Structure, mechanical properties and grindability of a series of binary Ti–Zr alloys with zirconium contents ranging from 10 to 40 wt% have been investigated. Commercially pure titanium (c.p. Ti) was used as a control. Experimental results indicated that the diffraction peaks of all the Ti–Zr alloys matched those for α Ti. No β-phase peaks were found. The hardness of the Ti–Zr alloys increased as the Zr contents increased, and ranged from 266 HV (Ti–10Zr) to 350 HV (Ti–40Zr). As the concentration of zirconium in the alloys increased, the strength, elastic recovery angles and hardness increased. Moreover, the elastically recoverable angle of Ti–40Zr was higher than of c.p. Ti by as much as 550%. The grindability of each metal was found to be largely dependent on the grinding conditions. The Ti–40Zr alloy had a higher grinding rate and grinding ratio than c.p. Ti at low speed. The grinding rate of the Ti–40Zr alloy at 500 m/min was about 1.8 times larger than that of c.p. Ti, and the grinding ratio was about 1.6 times larger than that of c.p. Ti. Our research suggested that the Ti–40Zr alloy has better mechanical properties, excellent elastic recovery capability and improved grindability at low grinding speed. The Ti–40Zr alloy has a great potential for use as a dental machining alloy.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price includes VAT (France)

Instant access to the full article PDF.

Institutional subscriptions

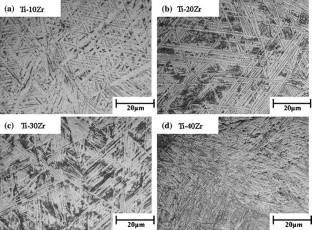

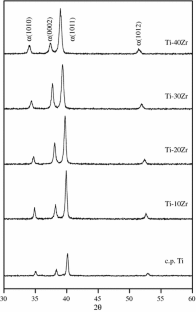

Fig. 1
Fig. 2

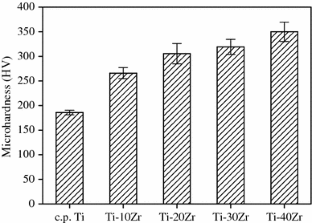

Fig. 3

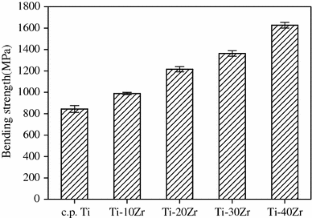

Fig. 4

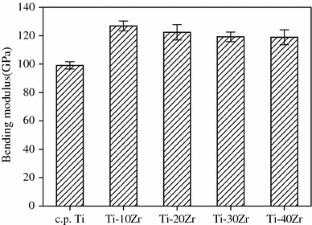

Fig. 5

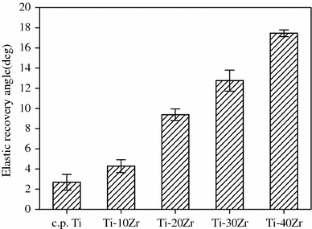

Fig. 6

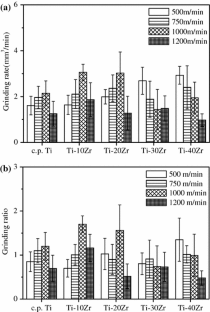

Fig. 7
Fig. 8

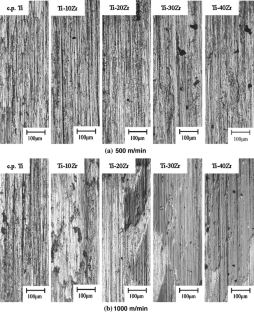

Fig. 9

References

  1. R.R. Wang, A. Fenton, Quintessence Int. 27, 401 (1996)

    CAS  Google Scholar

  2. J.A. Hautaniemi, H. Hero, J.T. Juhanoja, J. Mater. Sci. 3, 186 (1992)

    Article  CAS  Google Scholar

  3. O. Okuno, H. Hamanaka, Dent. Jpn. 26, 101 (1989)

    Google Scholar

  4. E.P. Lautenschlager, P. Monaghan, Int. Dent. J. 43(3), 245 (1993)

    CAS  Google Scholar

  5. M. Hattori, K. Hasegawa, M. Yoshinari, E. Kawada, Y. Oda, T. Okabe, Dent. Mater. J. 20(1), 16 (2001)

    CAS  Google Scholar

  6. Y. Takada, H. Nakajima, O. Okuno, T. Okabe, Dent. Mater. J. 20(1), 34 (2001)

    CAS  Google Scholar

  7. M. Takahashi, M. Kikuchi, Y. Takada, O. Okuno, Dent. Mater. J. 21(3), 270 (2002)

    Google Scholar

  8. F. Duret, J.L. Blouin, B. Duret, J. Am. Dent. Assoc. 117(6), 715 (1988)

    CAS  Google Scholar

  9. H. Nakajima, T. Okabe, Dent. Mater. J. 15, 77 (1996)

    CAS  Google Scholar

  10. M. Kikuchi, Y. Takada, S. Kiyosue, M. Yoda, M. Woldu, Z. Cai, O. Okuno, T. Okabe, Dent. Mater. 19, 375 (2003)

    Article  CAS  Google Scholar

  11. M. Kikuchi, M. Takahashi, T. Okabe, O. Okuno, Dent. Mater. J. 22(2), 191 (2003)

    CAS  Google Scholar

  12. M. Kikuchi, M. Takahashi, O. Okuno, Dent. Mater. J. 22(3), 328 (2003)

    CAS  Google Scholar

  13. M. Kikuchi, M. Takahashi, H. Sato, O. Okuno, M.E. Nunn, T. Okabe, J. Biomed. Mater. Res. B., Appl. Biomater. 77(1), 34 (2005)

    Google Scholar

  14. M. Takahashi, M. Kikuchi, O. Okuno, Dent. Mater. J. 23(2), 203 (2004)

    Google Scholar

  15. P.R. Walker, J. Leblanc, M. Sikorska, Biochemistry 28, 3911 (1989)

    Article  CAS  Google Scholar

  16. S. Yumoto, H. Ohashi, H. Nagai, S. Kakimi, Y. Ogawa, Y. Iwata, K. Ishii, Int. J. PIXE 2, 493 (1992)

    Article  Google Scholar

  17. Y. Okazaka, S. Asao, S. Rao, T. Tateshi, J. Jpn. Inst. Met. 60(9), 902 (1996)

    Google Scholar

  18. D.L. Douglass, At. Energy Rev. 3, 71 (1963)

    Google Scholar

  19. J.L. Murray, Binary alloy phase diagrams, in Alloy Phase Diagrams, ed. by H. Baker (ASM International, Materials Park, OH, 1987), p. 340

    Google Scholar

  20. S. Zinelis, A. Tsetsekou, T. Papadopoulos, J. Prosth. Dent. 90, 332 (2003)

    Article  CAS  Google Scholar

  21. E. Kobayashi, S. Matsumoto, H. Doi, T. Yoneyama, H. Hamanaka, J. Biomed. Mater. Res. 29, 943 (1995)

    Article  CAS  Google Scholar

  22. A. Guha, in Metals Handbook, 9th edn (ASM International, Materials Park, OH, 1985), p. 133

    Google Scholar

  23. W.F. Ho, C.P. Ju, J.H. Chern Lin, Biomaterials 20, 2115 (1999)

    Article  CAS  Google Scholar

  24. M. Taira, M. Okazaki, J. Takahashi, M. Yamaki, J. Oral Rehabil. 24(7), 527 (1997)

    Article  CAS  Google Scholar

  25. I. Watanabe, C. Ohkubo, J.P. Ford, M. Atsuta, T. Okabe, Dent. Mater. 16(6), 420 (2000)

    Article  CAS  Google Scholar

  26. C. Ohkubo, I. Watanabe, J.P. Ford, H. Nakajima, T. Hosoi, T. Okabe, Biomaterials 21, 421 (2000)

    Article  CAS  Google Scholar

  27. J.C. Willians, Critical review: kinetics and phase transformation, in Titanium Science and Technology; Proceeding (Metallurgical Society of AIME, Plenum Press, New York, 1973), p. 1433

    Google Scholar

  28. K. Nakasuji, M. Okada, Mater. Sci. Eng. A213, 162 (1996)

    CAS  Google Scholar

  29. W.J. Gammon, O. Kraft, A.C. Reilly, B.C. Holloway, Carbon 41, 1917 (2003)

    Article  CAS  Google Scholar

  30. C.W. Lin, C.P. Ju, J.H. Chern Lin, Biomaterials 26, 2899 (2005)

    Article  CAS  Google Scholar

  31. W.W. Cheng, C.P. Ju, J.H. Chern Lin, J. Oral Rehabil. 34, 528 (2007)

    Article  CAS  Google Scholar

  32. A.G. Guy, Introduction to Materials Science (McGraw-Hill, New York, 1972), p. 225

    Google Scholar

  33. H. Takeyama, T. Yoshikawa, T. Takada, J. Jpn. Soc. Preci Eng. 41(4), 392 (1975)

    Google Scholar

  34. R. Grajower, I. Kurz, M.S. Bapna, Dent. Mater. 2, 187 (1986)

    Article  CAS  Google Scholar

  35. M.H. Reisbick, B.F. Bunshah, J. Dent. Res. 52, 1138 (1973)

    CAS  Google Scholar

  36. W.J. O’brien, Dental Materials Properties and Selection, 3rd edn (Quintessence Publishing Co, Chicago, 1989), p. 515

    Google Scholar

  37. E.O. Ezugwu, Z.M. Wang, J. Mater. Process. Tech. 68(3), 262 (1997)

    Article  Google Scholar

Download references

Acknowledgment

This work was supported by grants, NSC95-2622-E-212-003-CC3 and NSC96-2622-E-212-008-CC3, provided by National Science Council of Taiwan.

Author information

Authors and Affiliations

  1. Department of Materials Science and Engineering, Da-Yeh University, Chang-Hwa, Taiwan, R.O.C

    Wen-Fu Ho

  2. Department of Mechanical and Automation Engineering, Da-Yeh University, Chang-Hwa, Taiwan, R.O.C

    Wei-Kai Chen

  3. Department of Dental Laboratory Technology, Central Taiwan University of Science and Technology, No. 11, Buzih Lane, Beitun District, Taichung, 40605, Taiwan, R.O.C

    Shih-Ching Wu & Hsueh-Chuan Hsu

  4. Institute of Biomedical Engineering and Material Science, Central Taiwan University of Science and Technology, Taichung, Taiwan, R.O.C

    Shih-Ching Wu & Hsueh-Chuan Hsu

Authors
  1. Wen-Fu Ho
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Wei-Kai Chen
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Shih-Ching Wu
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Hsueh-Chuan Hsu
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Hsueh-Chuan Hsu.

Rights and permissions

Reprints and permissions

About this article

Cite this article

Ho, WF., Chen, WK., Wu, SC. et al. Structure, mechanical properties, and grindability of dental Ti–Zr alloys. J Mater Sci: Mater Med 19, 3179–3186 (2008). https://doi.org/10.1007/s10856-008-3454-x

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s10856-008-3454-x

Keywords

Search

Navigation
