Fabrication of semiconducting pyrite thin films from hydrothermally synthesized pyrite (FeS2) powder

Journal of Materials Science: Materials in Electronics volume 27, pages 535–542 (2016)Cite this article

Abstract

Thin films of pyrite (FeS2) were fabricated using synthesized nano-particles and their structural, electrical and optical properties were characterized. Initially, pyrite-nano-particles were synthesized by an aqueous hydrothermal reaction. The X-ray diffraction confirmed that synthesized pyrite had a phase pure cubic pyrite structure with the average grain size around 30.0 nm. The pyrite films were fabricated by vacuum thermal evaporation of pyrite nanoparticles followed by a thermal sulfurization process. The as-deposited films have an amorphous structure and the sulfurized films have a cubic pyrite structure. The optical properties exhibited the bandgap closer to previously reported bandgap of pyrite. The photoconductivity of pyrite films was measured under AM1.5G sunlight and infrared (850 nm) light illumination. The photoconductivity data showed that the sulfurized pyrite films were more photoconductive than the as-deposited films.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

39,95 €

Price includes VAT (Finland)

Fig. 1
Fig. 2

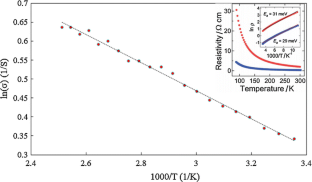

Fig. 3

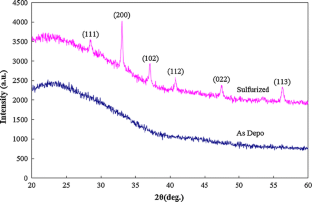

Fig. 4

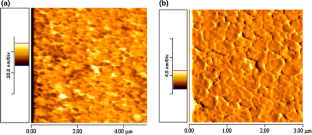

Fig. 5

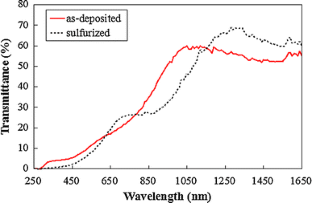

Fig. 6

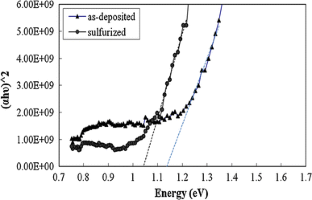

Fig. 7

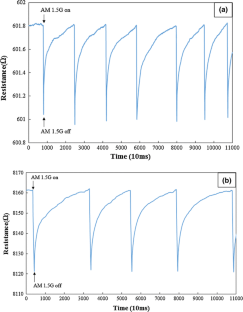

Fig. 8

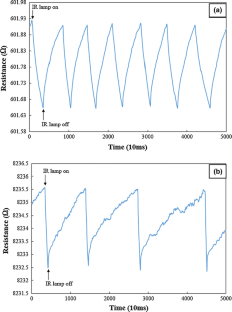

Fig. 9

References

  1. A. Ennaoui, S. Fiechter, C. Pettenkofer, N. Alonso-Vante, K. Büker, M. Bronold, Ch. Höpfner, H. Tributsch, Iron disulfide for solar energy conversion. Sol. Energy Mater. Sol. Cells 29, 289–370 (1993)

    Article  Google Scholar

  2. E.J. Kim, B. Batchelor, Synthesis and characterization of pyrite (FeS2) using microwave irradiation. Mater. Res. Bull. 44, 1553–1558 (2009)

    Article  Google Scholar

  3. C. Wadia, Y. Wu, S. Gul, S. Volkman, J.H. Guo, A.P. Alivisatos, Surfactant-assisted hydrothermal synthesis of single phase pyrite FeS2 nanocrystals. Chem. Mater. 21, 2568–2570 (2009)

    Article  Google Scholar

  4. I. Uhlig, R. Szargan, H.W. Nesbitt, K. Laajalehto, Surface states and reactivity of pyrite and marcasite. Appl. Surf. Sci. 179, 222–229 (2001)

    Article  Google Scholar

  5. A. Ennaoui, S. Fiechter, W. Jaegermann, H. Tributch, Photoelectrochemistry of highly quantum efficient single-crystalline n-FeS2 (pyrite). J. Electrochem. Soc. 133(1), 97–106 (1986)

    Article  Google Scholar

  6. B. Meester, L. Reijnen, A. Goossens, J. Schoonman, Synthesis of pyrite (FeS2) thin films by low-pressure MOCVD. Chem. Vap. Depos. 6(3), 121 (2000)

    Article  Google Scholar

  7. J. Oertel, K. Ellmer, W. Bohne, J. Röhrich, H. Tributsch, Growth of n-type polycrystalline pyrite (FeS2) films by metalorganic chemical vapour deposition and their electrical characterization. J. Cryst. Growth 198(199), 1205–1210 (1999)

    Article  Google Scholar

  8. N. Berry, M. Cheng, C.L. Perkins, M. Limpinsel, J.C. Hemminger, M. Law, Atmospheric-pressure chemical vapor deposition of iron pyrite thin films. Adv. Energy Mater. 2, 1124–1135 (2012)

    Article  Google Scholar

  9. C. de las Heras, I.J. Ferrer, C. Sánchez, Pyrite thin films: improvements in their optical and electrical properties by annealing at different temperatures in a sulfur atmosphere. J. Appl. Phys. 74(7), 4551 (1993)

    Article  Google Scholar

  10. L. Meng, Y.H. Liu, L. Tian, Structural, optical and electrical properties of polycrystalline pyrite (FeS2) films obtained by thermal sulfuration of iron films. J. Cryst. Growth 253, 530–538 (2003)

    Article  Google Scholar

  11. N. Hamdadou, A. Khelil, J.C. Bernède, Pyrite FeS2 films obtained by sulphuration of iron pre-deposited films. Mater. Chem. Phys. 78, 591–601 (2003)

    Article  Google Scholar

  12. R.J. Soukup, P. Prabukanthan, N.J. Ianno, A. Sarkar, C.A. Kamler, D.G. Sekora, Formation of pyrite (FeS2) thin films by thermal sulfurization of dc magnetron sputtered iron. J. Vac. Sci. Technol., A 29(1), 11001 (2011)

    Article  Google Scholar

  13. Y.Z. Dong, Y.F. Zheng, X.G. Zhang, H. Duan, Y.F. Sun, Y.H. Chen, FeS2 (pyrite) electro-deposition thin films and study of growth mechanism. Sci. China, Ser. E Eng. Mater. Sci. 48(6), 601–611 (2005)

    Article  Google Scholar

  14. D. Wei, K. Osseo-Asare, Aqueous synthesis of finely divided pyrite particles. Colloids Surf. A 121(1), 27–36 (1997)

    Article  Google Scholar

  15. S. Kar, S.K. Mandal, D. Das, S. Chaudhuri, Wet chemical synthesis of iron pyrite and characterization by Mössbauer spectroscopy. Mater. Lett. 58, 2886–2889 (2004)

    Article  Google Scholar

  16. J. Puthussery, S. Seefeld, N. Barry, M. Gibbs, M. Law, Colloidal iron pyrite (FeS2) nanocrystal inks for thin-film photovoltaics. J. Am. Chem. Soc. 133, 716–719 (2011)

    Article  Google Scholar

  17. S.C. Hsiao, C.M. Hsu, S.Y. Chen, Y.H. Perng, Y.L. Chueh, L.J. Chen, L.H. Chou, Facile synthesis and characterization of high temperature phase FeS2 pyrite nanocrystals. Mater. Lett. 75(15), 152–154 (2012)

    Article  Google Scholar

  18. A.M. Golsheikh, N.M. Huang, H.N. Lim, C.H. Chia, I. Harrison, M.R. Muhamad, One-pot hydrothermal synthesis and characterization of FeS2 (pyrite)/graphene nanocomposite. Chem. Eng. J. 218(15), 276–284 (2013)

    Article  Google Scholar

  19. X.Q. Qiu, M. Liu, T. Hayashi, M. Miyauchi, K. Hashimoto, Solution-based synthesis of pyrite films with enhanced photocurrent generation. Chem. Comm. 49, 1232–1234 (2013)

    Article  Google Scholar

  20. K.W. Sun, Z.H. Su, J. Yang, Z.L. Han, F.Y. Liu, Y.Q. Lai, J. Li, Y.X. Liu, Fabrication of pyrite FeS2 thin films by sulfurizing oxide precursor films deposited via successive ionic layer adsorption and reaction method. Thin Solid Films 542, 123–128 (2013)

    Article  Google Scholar

  21. B. Ouertani, J. Ouerfelli, M. Saadoun, B. Bessaïs, H. Ezzaouia, J.C. Bernède, Characterization of FeS2-pyrite thin films synthesized by sulphuration of amorphous iron oxide films pre-deposited by spray pyrolysis. Mater. Charact. 54, 431–437 (2005)

    Article  Google Scholar

  22. F. Wang, L.Y. Huang, Z.J. Luan, J.S. Huang, L. Meng, Effect of sulfurization temperature on the surface roughening, electrical and optical properties of FeS2 films deposited by sol-gel method. Mater. Chem. Phys. 132, 505–508 (2012)

    Article  Google Scholar

  23. L. Meng, M.S. Liu, Thin pyrite (FeS2) films prepared by thermal-sulfurating iron films at various temperatures. Mater. Sci. Eng., B 60, 168–172 (1999)

    Article  Google Scholar

  24. S. Lu, B. Panchapakesan, Photoconductivity in single wall carbon nanotube sheets. Nanotechnology 17, 1843 (2006)

    Article  Google Scholar

Download references

Author information

Authors and Affiliations

  1. Nanotechnology and MEMS Laboratory, Department of Mechanical, Industrial, and Manufacturing Engineering, University of Toledo, Toledo, OH, 43606, USA

    Zhengqi Shi & Ahalapitiya H. Jayatissa

  2. Department of Physics, Kenyon College, Gambier, OH, 43022, USA

    Frank C. Peiris

Authors
  1. Zhengqi Shi
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Ahalapitiya H. Jayatissa
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Frank C. Peiris
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Ahalapitiya H. Jayatissa.

Rights and permissions

Reprints and Permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Shi, Z., Jayatissa, A.H. & Peiris, F.C. Fabrication of semiconducting pyrite thin films from hydrothermally synthesized pyrite (FeS2) powder. J Mater Sci: Mater Electron 27, 535–542 (2016). https://doi.org/10.1007/s10854-015-3786-5

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s10854-015-3786-5

Keywords

  • Pyrite
  • FeS2
  • Vacuum Thermal Evaporation
  • Sulfurized Film
  • Ammonium Thiosulfate
