Skip to main content

Advertisement

Springer Nature Link
Log in

Interface homogenization and its relationship with tensile properties of laser-arc hybrid welded Al/steel butt-joint via beam oscillation

  • Composites & nanocomposites
  • Published:
Journal of Materials Science Aims and scope Submit manuscript

Abstract

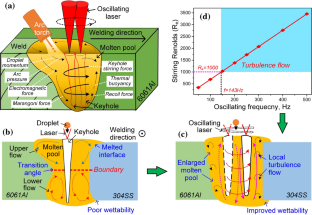

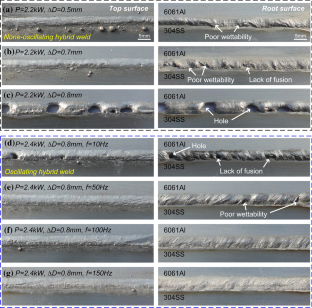

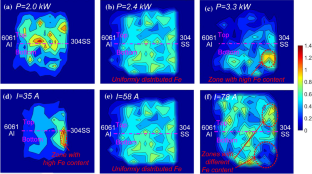

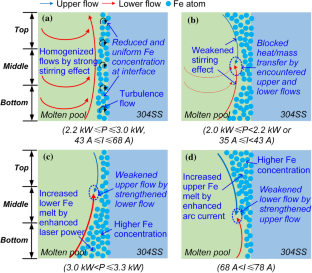

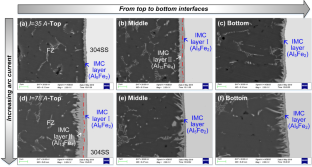

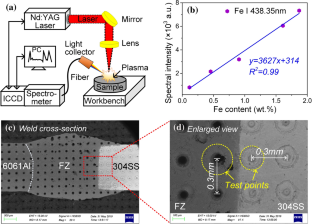

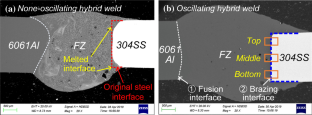

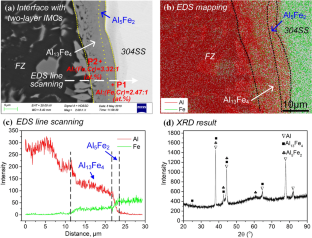

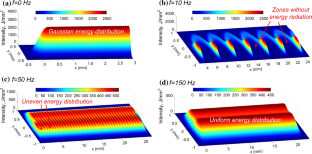

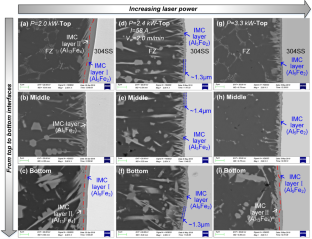

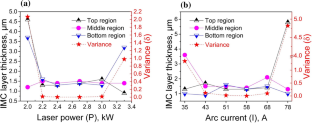

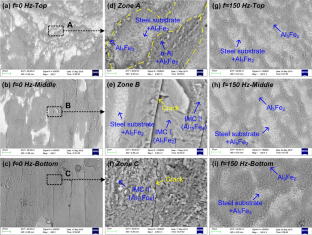

Homogenized intermetallic compound (IMC) layer at interface was achieved in laser-arc hybrid butt welded Al/steel dissimilar metals through beam oscillation. The beam oscillation reduced the macrosegregation of Fe element in the weld, which increased the uniformity of IMC layer by 443 times as its thickness variance (δ) decreased from 0.9767 to 0.0022. It was found that the tensile properties of weld were not only related to the thickness (τ) of IMC as claimed in most previous literatures, but also linked with its uniformity along interface. A new relationship between interface uniformity and tensile properties was established based on quantitative analysis of interface homogenization. The ultimate tensile strength was more than 130 MPa when δ ≤ 0.1156 and 0.9 μm ≤ τ ≤ 1.8 μm. Beam oscillation not only homogenized melt flow in molten pool, but also promoted to form turbulent flows at interface, which benefited for the interface homogenization.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Subscribe and save

Springer+ Basic
$34.99 /Month
  • Get 10 units per month
  • Download Article/Chapter or eBook
  • 1 Unit = 1 Article or 1 Chapter
  • Cancel anytime
Subscribe now

Buy Now

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
Figure 8
Figure 9
Figure 10
Figure 11
Figure 12
Figure 13
Figure 14

Similar content being viewed by others

Explore related subjects

Discover the latest articles and news from researchers in related subjects, suggested using machine learning.

References

  1. Meco S, Pardal G, Ganguly S, Williams S, McPherson N (2015) Application of laser in seam welding of dissimilar steel to aluminium joints for thick structural components. Opt Lasers Eng 67:22–30

    Article  Google Scholar

  2. Zhao S, Ni J, Wang G, Wang Y, Bi Q, Zhao Y, Liu X (2018) Effects of tool geometry on friction stir welding of AA6061 to TRIP steel. J Mater Process Technol 261:39–49

    Article  CAS  Google Scholar

  3. Derazkola H, Khodabakhshi F (2019) Underwater submerged dissimilar friction-stir welding of AA5083 aluminum alloy and A441 AISI steel. Int J Adv Manuf Technol 102:4383–4395

    Article  Google Scholar

  4. Yuan R, Deng S, Cui H, Chen Y, Lu F (2019) Interface characterization and mechanical properties of dual beam laser welding-brazing Al/steel dissimilar metals. J Manuf Process 40:37–45

    Article  Google Scholar

  5. Kuryntsev S, Morushkin A, Gilmutdinov A (2017) Fiber laser welding of austenitic steel and commercially pure copper butt joint. Opt Lasers Eng 90:101–109

    Article  Google Scholar

  6. Wang H, Kawahito Y, Nishimoto K (2019) A laser joining system for titanium and polyethylene terephthalate plastic controlled by multiple signal sources. IEEE Trans Ind Electron 66(2):1255–1263

    Article  Google Scholar

  7. Meng Y, Li X, Gao M, Zeng X (2019) Microstructures and mechanical properties of laser-arc hybrid welded dissimilar pure copper to stainless steel. Opt Laser Technol 111:140–145

    Article  CAS  Google Scholar

  8. Xia H, Tao W, Li L, Tan C, Zhang K, Ma N (2020) Effect of laser beam models on laser welding-brazing Al to steel. Opt Laser Technol 122:105845

    Article  CAS  Google Scholar

  9. Tan C, Zang C, Xia H, Zhao X, Zhang K, Meng S, Chen B, Song X, Li L (2018) Influence of Al additions in Zn-based filler metals on laser welding-brazing of Al/steel. J Manuf Process 34:251–263

    Article  Google Scholar

  10. Sun J, Huang J, Yan Q, Li Z (2016) Fiber laser butt joining of aluminum to steel using welding-brazing method. Int J Adv Manuf Technol 85:2639–2650

    Article  Google Scholar

  11. Sun J, Yan Q, Li Z, Huang J (2016) Effect of bevel angle on microstructure and mechanical property of Al/steel butt joint using laser welding-brazing method. Mater Des 90:468–477

    Article  CAS  Google Scholar

  12. Xia H, Tan C, Li L, Ma N (2018) In situ SEM observations of fracture behavior of laser welded-brazed Al/Steel dissimilar joint. J Mater Eng Perform 27(3):1047–1057

    Article  CAS  Google Scholar

  13. Li L, Xia H, Tan C, Ma N (2018) Effect of groove shape on laser welding-brazing Al to steel. J Mater Process Technol 252:573–583

    Article  CAS  Google Scholar

  14. Zhang Y, Li F, Guo G, Wang G, Wei H (2016) Effects of different powders on themicro-gap laser welding-brazing of an aluminium-steel butt joint using a coaxial feeding method. Mater Des 109:10–18

    Article  CAS  Google Scholar

  15. Wang L, Gao M, Zeng X (2019) Experiment and prediction of weld morphology for laser oscillating welding of AA6061 aluminium alloy. Sci Technol Weld Join 24(4):334–341

    Article  CAS  Google Scholar

  16. Hagenlocher C, Sommer M, Fetzer F, Weber R, Graf T (2018) Optimization of the solidification conditions by means of beam oscillation during laser beam welding of aluminum. Mater Des 160:1178–1185

    Article  CAS  Google Scholar

  17. Meng Y, Lu Y, Li Z, Zhao S, Gao M (2021) Effects of beam oscillation on interface layer and mechanical properties of laser-arc hybrid lap welded Al/Mg dissimilar metals. Intermetallics 133:107175

    Article  CAS  Google Scholar

  18. Dimatteo V, Ascari A, Fortunato A (2019) Continuous laser welding with spatial beam oscillation of dissimilar thin sheet materials (Al–Cu and Cu–Al): process optimization and characterization. J Manuf Process 44:158–165

    Article  Google Scholar

  19. Li C, Fan D, Wang B (2015) Characteristics of TIG arc-assisted laser welding-brazing joint of aluminum to galvanized steel with preset filler powder. Rare Met 34(9):650–656

    Article  CAS  Google Scholar

  20. Rathod M, Kutsuna M (2006) Use of pulsed CO2 laser in laser roll bonding of A5052 aluminium alloy and low carbon steel. Weld World 50(7–8):28–36

    Article  CAS  Google Scholar

  21. Dharmendra C, Rao K, Wilden J, Reich S (2011) Study on laser welding-brazing of zinc coated steel to aluminum alloy with a zinc based filler. Mater Sci Eng A 528(3):1497–1503

    Article  Google Scholar

  22. Meng Y, Gong M, Zhang S, Zhang Y, Gao M (2020) Effects of oscillating laser offset on microstructure and properties of dissimilar Al/steel butt-joint. Opt Lasers Eng 128:106037

    Article  Google Scholar

  23. Gao M, Chen C, Gu Y, Zeng X (2014) Microstructure and tensile behavior of laser arc hybrid welded dissimilar Al and Ti alloys. Materials 7:1590–1602

    Article  CAS  Google Scholar

  24. Lazic V, Barbini R, Colao F, Fantoni R, Palucci A (2001) Self-absorption model in quantitative laser induced breakdown spectroscopy measurements on soils and sediments. Spectrochim Acta B At Spectrosc 56(6):807–820

    Article  Google Scholar

  25. Yi R, Guo L, Li C, Yang X, Li J, Li X, Zeng X, Lu Y (2016) Investigation of the self-absorption effect using spatially resolved laser-induced breakdown spectroscopy. J Anal At Spectrom 31(4):961–967

    Article  CAS  Google Scholar

  26. Meng Y, Li G, Gao M, Zhang C, Zeng X (2019) Formation and suppression mechanism of lack of fusion in narrow gap laser-arc hybrid welding. Int J Adv Manuf Technol 100:2299–2309

    Article  Google Scholar

  27. Nakamura H, Kawahito Y, Nishimoto K, Katayama S (2015) Elucidation of melt flows and spatter formation mechanisms during high power laser welding of pure titanium. J Laser Appl 27(3):032012

    Article  Google Scholar

  28. Li G, Zhang C, Gao M, Zeng X (2014) Role of arc mode in laser-metal active gas arc hybrid welding of mild steel. Mater Des 61:239–250

    Article  CAS  Google Scholar

  29. Zhang C, Gao M, Wang D, Yin J, Zeng X (2017) Relationship between pool characteristic and weld porosity in laser arc hybrid welding of AA6082 aluminum alloy. J Mater Process Technol 240:217–222

    Article  CAS  Google Scholar

  30. Olsen F (2009) Hybrid laser-arc welding. Woodhead Publishing Limited, Cambridge

    Book  Google Scholar

  31. Meng Y, Kang K, Gao M, Zeng X (2019) Relationship between corrosion resistance and microstructure characteristic of single-pass laser-arc hybrid welded stainless clad steel plate. Metall Mater Trans A 50A:2817–2825

    Article  Google Scholar

  32. Wang L, Gao M, Hao Z (2020) A pathway to mitigate macrosegregation of laser-arc hybrid Al-Si welds through beam oscillation. Int J Heat Mass Tran 151:119467

    Article  CAS  Google Scholar

Download references

Acknowledgements

The study is supported by the National Natural Science Foundation of China (Nos. 51775206 and 51805182), and the China Postdoctoral Science Foundation (No. 2020M682409).

Author information

Authors and Affiliations

  1. Wuhan National Laboratory for Optoelectronics, Huazhong University of Science and Technology, 430074, Wuhan, People’s Republic of China

    Ming Gao, Yazhou Zhang & Yunfei Meng

Authors
  1. Ming Gao
    View author publications

    Search author on:PubMed Google Scholar

  2. Yazhou Zhang
    View author publications

    Search author on:PubMed Google Scholar

  3. Yunfei Meng
    View author publications

    Search author on:PubMed Google Scholar

Corresponding author

Correspondence to Yunfei Meng.

Additional information

Handling Editor: Naiqin Zhao.

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Gao, M., Zhang, Y. & Meng, Y. Interface homogenization and its relationship with tensile properties of laser-arc hybrid welded Al/steel butt-joint via beam oscillation. J Mater Sci 56, 14126–14138 (2021). https://doi.org/10.1007/s10853-021-06234-0

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s10853-021-06234-0
