Polycarbonate composites with high light transmittance, haze, and flame retardancy based on a series of incomplete-cage oligomeric silsesquioxanes

  • Composites & nanocomposites
  • Published:
Journal of Materials Science Aims and scope Submit manuscript

Abstract

A series of incomplete-cage polyhedral oligomeric silsesquioxanes (DVPOSSs) bearing vinyl groups (–CH=CH2) and phosphorus-containing groups (DOPO) have been synthesized through a hydrolytic condensation reaction. FTIR, NMR, and MALDI–TOF MS have been used to identify the structures of the DVPOSSs, which include T9, T10, and T11 cage structures. Polycarbonate (PC)/DVPOSSs composites can be achieved through simple twin-screw extrusion. The addition of DVPOSSs improves the haze of PC/DVPOSSs composites, while maintaining the high transmittance of PC control. The thermal properties and fire behavior of the PC/DVPOSSs composites have been investigated by TGA, DSC, cone calorimetry, and LOI and UL-94 tests. PC/DVPOSSs-2 and PC/DVPOSSs-4 attained a V-0 rating in 3.2-mm and 1.6-mm samples. The pyrolysis and flame-retardant mechanisms of the PC/DVPOSSs composites have been assessed on the basis of TGA–FTIR, cone calorimetry, and char layer morphology results. The main flame-retardant mechanism is that DVPOSSs induce early decomposition of the PC matrix and increase char formation, rapidly extinguishing the flame and causing an obvious reduction in heat release rate.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Subscribe and save

Springer+
from $39.99 /Month
  • Starting from 10 chapters or articles per month
  • Access and download chapters and articles from more than 300k books and 2,500 journals
  • Cancel anytime
View plans

Buy Now

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

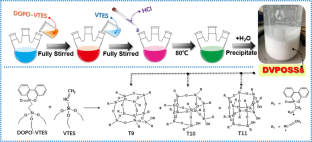

Figure 1

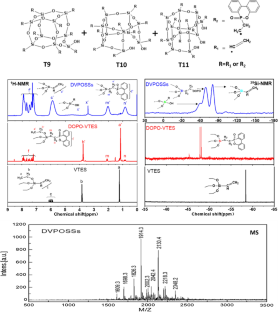

Figure 2

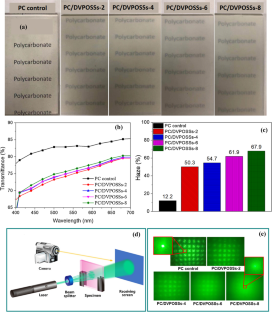

Figure 3

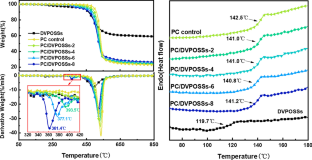

Figure 4

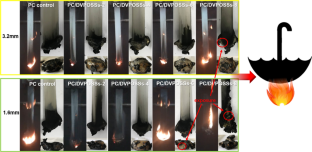

Figure 5

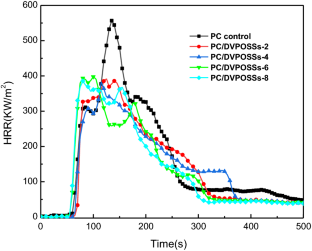

Figure 6

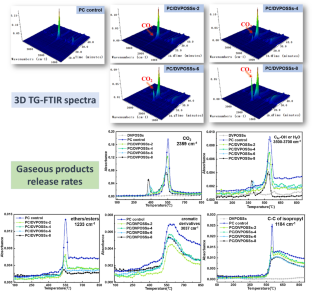

Figure 7
