Abstract

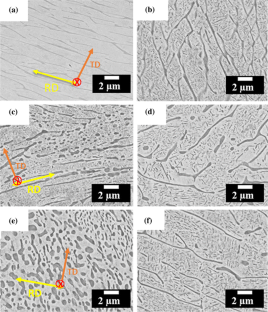

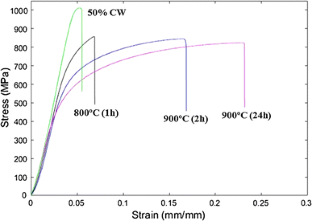

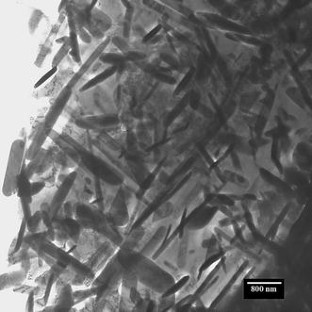

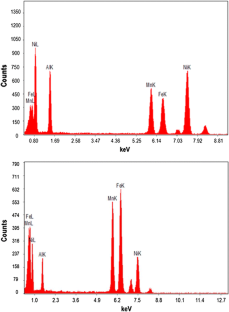

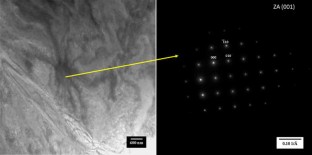

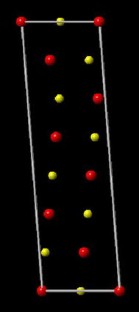

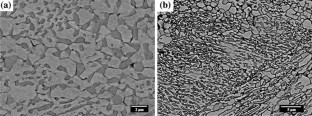

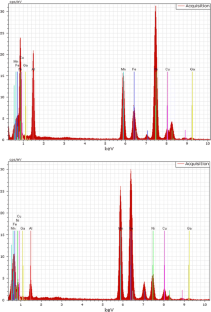

Fe36Ni18Mn33Al13 is a lamellar two-phase alloy comprising a hard, Ni,Al-rich B2 phase measuring ~500 nm in width and a ductile, Fe,Mn-rich f.c.c. phase ~1 µm in width. Upon cold rolling and annealing, the as-cast microstructure is replaced by discrete, recrystallized ~1 µm-sized grains consisting of the f.c.c. phase and a 7R (14 M) martensite phase. The formation of the latter phase appears to be related to the change in composition of the phases upon recrystallization. Room-temperature tensile tests performed on 50 % cold-worked and annealed Fe36Ni18Mn33Al13 reveal that complete recrystallization does not occur until after 24 h of annealing at 900 °C, wherein the yield strength and elongation to fracture of the recrystallized alloy are ~443 MPa and 21 %, respectively—a change from the as-cast alloy’s values of ~352 MPa and ~28 %.
This is a preview of subscription content, log in via an institution to check access.
Similar content being viewed by others
Explore related subjects
Discover the latest articles and news from researchers in related subjects, suggested using machine learning.REFERENCES
Misra A, Gibala R (1997) Room-temperature deformation behavior of directionally solidified multiphase Ni–Fe–Al alloys. Metall Mater Trans A 28(3):795–807
Guha S, Munroe PR, Baker I (1991) Room temperature deformation behavior of multiphase Ni–20 at% Al–30 at% Fe and its constituent phases. Mater Sci Eng A 131(1):27–37
Baker I, Wu X, Meng F, Munroe PR (2014) Microstructures and mechanical properties of two-phase fenimnal alloys. Mater Sci Forum 783–786:2549–2554
Baker I, Meng F, Wu M, Brandenberg A (2015) Recrystallization of a novel two-phase FeNiMnAlCr high entropy alloy. J Alloys and Compd. in press
Bhattacharjee PP, Sathiaraj GD, Zaid M, Gatti JR, Lee Chi, Tsai Che-Wei, Yeh Jien-Wei (2014) Microstructure and texture evolution during annealing of equiatomic CoCrFeMnNi high-entropy alloy. J Alloy Compd 587:544–552
Kainuma R, Ono N, Ishida K (1995) Development of nial (b2)-base shape memory alloys. Mat Res Soc Symp Proc 360:467–478
Martynov VV, Enami K, Khandros LG, Tkachenko AV, Nenno S (1983) Crystal structure of stress-induced and thermal martensites in 631 at %Ni–Al alloy. Scr Metall 17:1167–1171
Schryvers D, Tanner LE (1990) On the interpretation of high resolution electron microscopy images of premartensitic microstuctures in the Ni–Al beta2 Phase. Ultramicroscopy 32:241–254
Smialek JL, Hehemann RF (1973) Transformation temperatures of martensite in beta-phase nickel aluminide. Metall Trans 4(6):1571–1575
Meng F, Qiu J, Baker I (2014) Effect of Al content on the microstructure and mechanical behavior of two-phase FeNiMnAl alloys. J Mater Sci 49:1973–1983
Liao Y, Baker I (2011) On the room-temperature deformation mechanism of lamellar-structured Fe30Ni20Mn35Al15. Mater Sci Eng A 528:3998–4008
Noda Y, Shapiro SM, Shirane G, Yamada Y, Tanner LE (1990) Martensitic transformation of a Ni–Al alloy I experimental results and approximate structure of the seven-layered phase. Phys Rev B 42(16):397–404
Kainuma R, Nakano H, Ishida K (1996) Martensitic transformations in nimnal β phase alloys. metall mater trans A 27:4153–4162
Kainuma R, Ohtani H, Ishida K (1996) Effect of alloying elements on martensitic transformation in the binary nial (β) phase alloys. Metall Mater. Trans 27:2445–2453
Hornbogen E, Koster U(1978) Recrystallization of two phase alloys. Recryst. in Met. Mater. In: Haessner F(ed). pp159-194
Morito S, Otsuka K (1996) Electron microscopy of new martensites with long period stacking order structures in Ni50AlxMn50−x alloys I: Structures and morphologies. Mater Sci Eng, A 208(1):47–55
Wani IS, Bhattacharjee T, Sheikh S, Lu YP, Chatterjee SP, Bhattacharjee P, Guo S, Tsuji N (2016) Ultrafine-grained AlCoCrFeNi2.1 eutectic high-entropy alloy. Maters Res Lett. 1-6. doi:10.1080/21663831.2016.1160451
Honeycombe RWK, Boas W (1947) Recrystallization of duplex brass. Nature 159(4051):847–848
Clarebrough LM (1949) Deformation and recrystallization of alloys containing two phases. Aust J Sci Res, Ser A 3:72–90
Cooke BA, Jones A, Ralph B (1979) Recrystallization of microduplex steels. metal Sci 13(3–4):179–186
Clarebrough LM, Perger GM (1951) Influence of the volume fractions of the phases on the deformation of (α + β) brass. Aust J Sci Res, Ser A 5:114–118
Mader K, Hornbogen E (1974) Systematics of recrystallisation micromechanisms in alpha/beta brass. Scr Metall 8:979–984
Lee K, Im Y, Kestens L, Kim G (2007) Recrystallization and spheroidization of high carbon pearlitic steels investigated by means of orientation imaging microscopy. Mater Sci Forum 539:4556–4561
Acknowledgements
This research was supported by the US Department of Energy (DOE), Office of Basic Energy Sciences grant DE-FG02-07ER46392. The views and conclusions obtained herein are those of the authors and should not be interpreted as necessarily representing official policies, either expressed or implied of the DOE or the U.S. Government.
Author information
Authors and Affiliations
Corresponding author
Rights and permissions
About this article
Cite this article
Wu, M., Munroe, P.R. & Baker, I. Martensitic Phase Transformation in a f.c.c./B2 FeNiMnAl Alloy. J Mater Sci 51, 7831–7842 (2016). https://doi.org/10.1007/s10853-016-0015-4
Received:
Accepted:
Published:
Issue Date:
DOI: https://doi.org/10.1007/s10853-016-0015-4
