Synthesis and catalytic ammoxidation performance of hierarchical TS-1 prepared by steam-assisted dry gel conversion method: the effect of TPAOH amount

  • Published:
Journal of Materials Science Aims and scope Submit manuscript

Abstract

The hierarchical titanium silicalite-1 (TS-1) was synthesized by the steam-assisted dry gel conversion method in one step and characterized by XRD, SEM, N2 adsorption/desorption, UV–Vis, FT-IR, and Raman spectroscopies. And its catalytic activity was tested for ammoxidation of methyl ethyl ketone with hydrogen peroxide as oxidant. The results show that the amount of tetrapropylammonium hydroxide (TPAOH) as template has a major influence on the physicochemical and catalytic properties of the hierarchical TS-1 prepared. When lower amount of TPAOH (TPAOH/SiO2 = 0.08 mol) was used, hierarchical TS-1 can be successfully synthesized. With an increase in TPAOH amount in synthesis solution, the crystal size of TS-1 is decreased and mesoporous surface area is increased; if the excess template was used in the synthesis of TS-1, more extra-framework Ti would be formed in the TS-1 samples prepared. The hierarchical TS-1 exhibits higher catalytic activity than TS-1 prepared hydrothermally for ammoxidation of methyl ethyl ketone. Using hierarchical TS-1 synthesized under TPAOH/SiO2 = 0.18 as the catalyst, which has more tetrahedrally coordinated Ti species in the TS-1 framework, 94.2 % conversion of reactant and 100 % selectivity to methyl ethyl ketone oxime can be obtained after 2 h of reaction at 70 °C.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

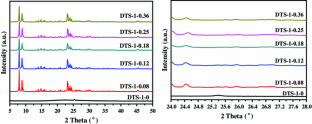

Fig. 1
Fig. 2

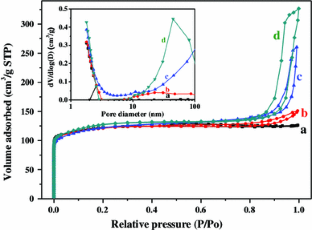

Fig. 3
Fig. 4

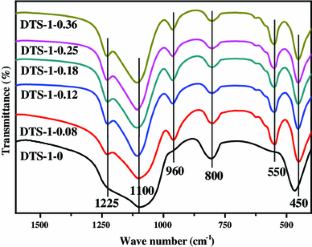

Fig. 5

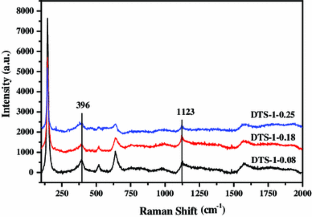

Fig. 6
