Abstract

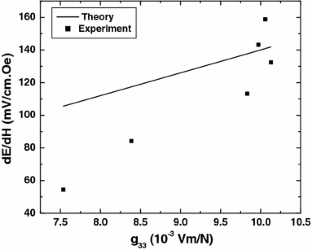

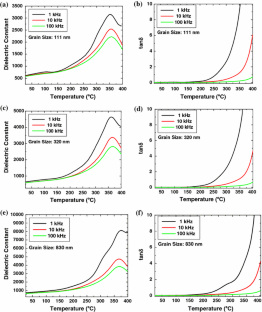

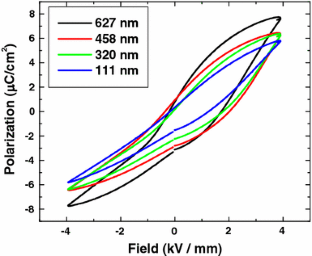

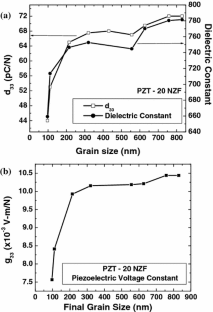

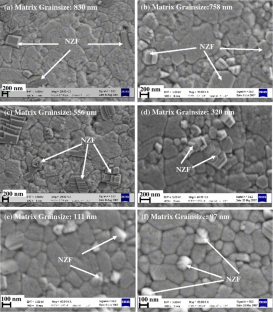

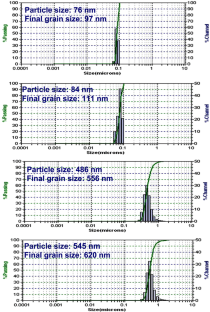

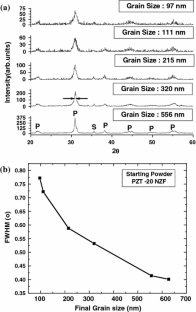

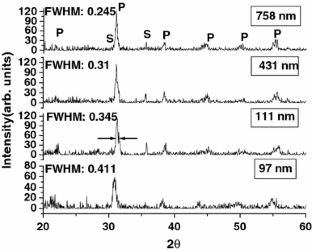

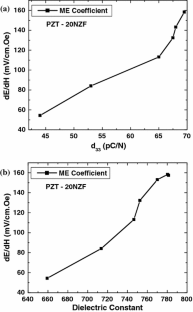

This study investigates the variation of magnetoelectric (ME) coefficient as a function of the piezoelectric grain size in the composite system of 0.8 Pb(Zr0.52Ti0.48)O3–0.2 Ni0.8Zn0.2Fe2O4. It was found that as the piezoelectric-phase grain size increases the overall resistivity, piezoelectric, dielectric, and ferroelectric property of the composite increases and saturates above 600 nm. Below 200 nm average grain size, piezoelectric and dielectric properties decrease rapidly. The ferroelectric Curie temperature was found to decrease from 377 to 356 °C as the average grain size decreases from 830 to 111 nm. ME coefficient of the composite showed a rapid change below grain size of 200 nm and was found to saturate above 600 nm to a value of 155 mV/cm.Oe.
Similar content being viewed by others
References
Suchetelene JV (1972) Philips Res Rep 27:28
Weng L, Fu Y, Song S, Tang J, Li J (2007) Scripta Mater 56:465
Ren SQ, Weng LQ, Song SH, Li F, Wan JG, Zeng M (2005) J Mater Sci 40(16):4375. doi:https://doi.org/10.1007/s10853-005-1057-1
Wu D, Gong W, Deng H, Li M (2007) J Phys D: Appl Phys 40:5002
Srinivasan G, DeVreugd CP, Flattery CS, Laletsin VM, Paddubnaya N (2004) Appl Phys Lett 85(13):2550
Van Run AMJG, Terrell DR, Scholing JH (1974) J Mater Sci 9:1710. doi:https://doi.org/10.1007/BF00540771
Lupeiko TG, Lisnevskaya IV, Chkheidze MD, Zvyagintsev BI (1995) Inorg Mater 31:1139
Lupeiko TG, Lopatina IB, Lopatin SS, Getman IP (1991) Neorg Mater 27(11):2394
Bokhan YI, Laletin VM (1996) Inorg Mater 32(5):634
Lupeiko TG, Lopatin SS, Lisnevskaya IV, Zvyagintsev BI (1994) Inorg Mater 30:1353
Ryu J, Carazo AV, Uchino K, Kim HE (2001) J Electroceram 7:17
Kang BS, Choi DG, Choi SK (1998) K Kor Phys Soc 32:S232
Martirena HT, Burfoot JC (1974) J Phys C: Solid State Phys 7:3182
Choudhury S, Li YL, Krill C, Chen LQ (2007) Act Mater 55:1415
Duiker HM, Beale PL (1990) Phys Rev B 41(1):490
Sundar V, Kim N, Randall CA, Yimnirun R, Newnham RE (1996) The Effect of Doping and Grain Size On Electrostriction in Pb(Zr0.52Ti0.48)03. Proceedings of the 10th IEEE International Symposium on Application of Ferroelectrics, p 935
Lu CJ, Ren SB, Shen HM, Liu JS, Wang YN (1996) J Phys Condens Matter 8:8011
Sakaki C, Newalkar BL, Komerneni S, Uchino K (2001) Jpn J Appl Phys 40:6907
Randall CA, Kim N, Kucera JP, Cao WW, Shrout TR (1998) J Am Ceram Soc 81:677
Jin BM, Kim J, Kim SC (1997) Appl Phys A: Mater Sci Proc 65:53
Shaw TM, Mckinstry ST, Mcintyre PC (2000) Ann Rev Mater Sci 30:263
Zhao Z, Buscaglia V, Viviani M, Buscaglia MT, Mitoseriu L, Testino A et al. (2004) Phys Rev B 70:024107
Uchino K (1997) Piezoelectric actuators and ultrasonic motors. Kluwer Academic Publishers, USA, p 61
Arlt G (1990) J Mater Sci 25:2655
Zhang S, Priya S, Shrout TR, Randall CA (2003) J Appl Phys 93:2880
Chen Y-H, Uchino K, Viehland D (2001) J Appl Phys 89:3928
Dong S, Zhai J, Li J, Viehland D (2006) Appl Phys Lett 89:252904
Islam RA, Viehland D, Priya S (2008) J Mater Sci Lett 43(4):1497
Zubkov AS (1978) Elektrichestvo 10:77
Jiles DC (2003) Acta Mater 51:5907
Gautschi G (2002) Piezoelectric sensorics. Springer, NY
Cao W, Randall CA (1996) J Phys Chem Solids 57:1499
Acknowledgement
The authors are grateful to Office of Basic Energy Science, Department of Energy for supporting this research.
Author information
Authors and Affiliations
Corresponding author
Rights and permissions
About this article
Cite this article
Islam, R.A., Priya, S. Effect of piezoelectric grain size on magnetoelectric coefficient of Pb(Zr0.52Ti0.48)O3–Ni0.8Zn0.2Fe2O4 particulate composites. J Mater Sci 43, 3560–3568 (2008). https://doi.org/10.1007/s10853-008-2562-9
Received:
Accepted:
Published:
Issue Date:
DOI: https://doi.org/10.1007/s10853-008-2562-9
