Abstract

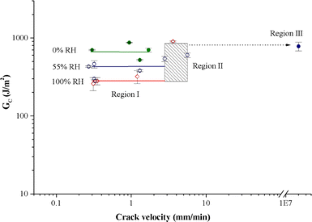

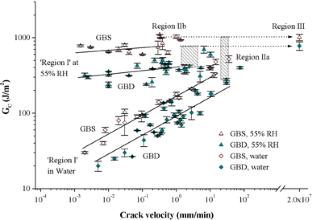

The adhesive fracture energy, G c, of metallic joints, bonded with a rubber-toughened epoxy adhesive, has been measured using monotonically-loaded tests. Such tests have been conducted in various relative humidities and in water, at 21 °C. Two surface pretreatments have been employed for the substrates prior to bonding: a simple grit-blast and degrease (‘GBD’) pretreatment or a grit-blast, degrease and silane primer (‘GBS’) pretreatment. The joints were formed using metallic substrates which were either (a) aluminium-alloy substrates, (b) steel substrates, or (c) ‘dissimilar’ substrates (i.e. one substrate being aluminium-alloy with the other one being steel). For both test environments, when G c was plotted against the crack velocity, three regions of fracture behaviour could be distinguished. At low rates of displacement the crack grew in a stable manner, visually along the interface, and relatively low crack velocities could be readily measured. This was termed ‘Region I’ and here the value of G c measured in the aqueous environment was relatively low compared to that measured in a relatively dry environment of 55% relative humidity. On the other hand, at relatively high rates of displacement the crack always grew in a stick-slip manner mainly cohesively in the adhesive layer at approximately 20 km/min. This was termed ‘Region III’, and here the value of G c was relatively high and independent of the environmental test conditions employed. In this region the crack was considered to grow faster than the water molecules were able to reach the crack tip, which explains the independence of G c upon the test environment. In between ‘Region I’ and ‘Region III’, a transition region was observed which was designated as ‘Region II’. The major effect of the ‘GBS’ pretreatment, compared to the ‘GBD’ pretreatment, was to increase the value of G c both in ‘Regions I and III’, although the presence of the silane primer had the far greater effect in ‘Region I’.
Similar content being viewed by others
References
Kinloch AJ (ed) (1983) Durability of structural adhesives. Applied Science Publishers, London
Kinloch AJ (1987) Adhesion and adhesives: science and technology. Chapman and Hall, London
Kinloch AJ (1997) Proc Inst Mech Eng 211(Part G):307
Digby RP, Shaw SJ (1998) Int J Adhes Adhes 18:261
Blackman BRK, Hadavinia H, Kinloch AJ, Paraschi M, Williams JG (2003) Eng Fract Mech 70:233
O’Brien FEM (1948) J Sci Instrum 25:73
Wiederhorn SM (1967) J Am Ceram Soc 50:407
Arnott DR, Kindermann MR (1995) J Adhesion 48:101
Gurumurthy CK, Kramer EJ, Hui CY (2001) Int J Fract 109:1
Lane MW, Snodgrass JM, Dauskardt RH (2001) Microelect Reliab 41:1615
Snodgrass JM, Pantelidis D, Jenkins ML, Bravman JC, Dauskardt RH (2002) Acta Mater 50:2395
Kook SY, Dauskardt RH (2002) J Appl Phys 91:1293
Strohband S, Dauskardt RH (2003) Interface Sci 11:11
Gurumurthy CK, Kramer EJ, Hui CY (2006) J Adhesion 82:239
Curley AJ, Hadavinia H, Kinloch AJ, Taylor AC (2000) Int J Fract 103:41
Gledhill RA, Kinloch AJ (1975) J Mater Sci Lett 10:1261
Arnott DR, Kindermann MR (1995) J Adhesion 48:85
Korenberg CF, Kinloch AJ, Watts JF (2005) J Adhesion 80:169
Maugis D (1980) J Mater Sci 20:3041
Gledhill RA, Kinloch AJ (1974) J Adhesion 6:315
Kinloch AJ, Dukes WA, Gledhill RA (1975) Adhesion science and technology, 9B. Plenum Press, New York, p 597
Yahalom J, Aladjem A (eds) (1980) Stress corrosion cracking. Freund, Tel Aviv
Gettings M, Kinloch AJ (1977) J Mater Sci 12:2511
Plueddeman EP (ed) (1982) Silane coupling agents. Plenum Press, New York
Davis SJ, Watts JF (1996) Int J Adhes Adhes 16:5
Abel M-L, Digby RP, Fletcher IW, Watts JF (2000) Surf Interface Anal 29:115
Davis SJ, Watts JF (1996) J Mater Chem 6:479
Watts JF, Castle JE (1983) J Mater Sci 18:2987
Lediheiser H (1987) J Adhes Sci Technol 1:79
Castle JE, Epler DC (1975) Surf Sci 53:286
Rattana A, Hermes JD, Abel M-L, Watts JF (2002) Int J Adhes Adhes 22:205
Acknowledgements
The authors would like to thank Dr. D. Tod (QinetiQ) for financial support. They also wish to thank Mr. Steve Greaves of the University of Surrey for conducting the XPS studies and Professor Jim Castle for invaluable discussions regarding corrosion phenomena.
Author information
Authors and Affiliations
Corresponding author
Rights and permissions
About this article
Cite this article
Kinloch, A.J., Korenberg, C.F., Tan, K.T. et al. Crack growth in structural adhesive joints in aqueous environments. J Mater Sci 42, 6353–6370 (2007). https://doi.org/10.1007/s10853-006-1181-6
