Abstract

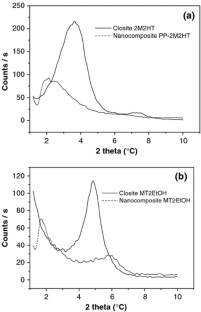

Nanocomposites of polypropylene-graft-maleic anhydride/clay were prepared by melt blending in an extruder mixer. The nanoscale dispersion of the clay in the polymer was analysed by wide-angle X-ray diffraction (XRD) and transmission electron microscopy (TEM). The results of XRD and TEM showed that the nanocomposites obtained were a kind of intercalated-delaminated structures side by side with different dominant states, depending on the clay used and on the processing conditions. The consequences of photo-oxidation on the thermal stability and fire retardant properties of the nanocomposites were investigated using thermogravimetric analysis and cone calorimetry tests. It appeared that this degradation dramatically affected the important properties of the nanocomposites. A loss of thermal stability and fire retardant performance was observed. This was ascribed to scission reactions that occurred during the oxidative degradation prior to thermal and fire tests.
Similar content being viewed by others
References
Revue de Sciences physiques, nanoscience, microélectronique, matériau (2004) Mai, No. 11
Kojima Y, Usuki A, Kawasumi M, Okada A, Fukushima Y, Kurauchi T, Kamigaito O (1993) J Mater Res 8:1185
Tidjani A, Wilkie CA (2001) Polym Deg Stab 74:33
Gilman JW, Kashiwagi T, Nyden M, Brown JET, Jackson CL, Lomakin S (1998) In: Al-Malaika S, Golovoy A, Wilkie CA (eds) Chemistry and technology of polymers additives. Blackwell Science, Oxford, pp 249–65
Zanetti M, Camino G, Thomann R, Mulhaupt R (2001) Polymer 42:4501
Kim KN, Kim H, Lee JW (2001) Polym Eng Sci 41(11):1963
Tidjani A, Wald O, Pohl MM, Hentschel MP, Schartel B (2003) Polym Deg Stab 82:133
Gradette J-L, Sinturel C, Lemaire J (1999) Polym Deg Stab 64:411
Tidjani A (2005) Polym Deg Stab 87:43
Acknowledgements
The authors are indebted to the Volkswagen foundation for the financial support, the Federal Institute for Research and Testing (BAM) for the cone tests, Mr. Claude da Silva from the Université de Mulhouse, France, for the X-ray measurements and, Dr. Bénédicte Mailhot from the Laboratoire de Photochimie de l’Université BP de Clermont, France, for the oxidation profile.
Author information
Authors and Affiliations
Corresponding author
Rights and permissions
About this article
Cite this article
Diagne, M., Gueye, M., Dasilva, A. et al. The effect of photo-oxidation on thermal and fire retardancy of polypropylene nanocomposites. J Mater Sci 41, 7005–7010 (2006). https://doi.org/10.1007/s10853-006-0221-6
