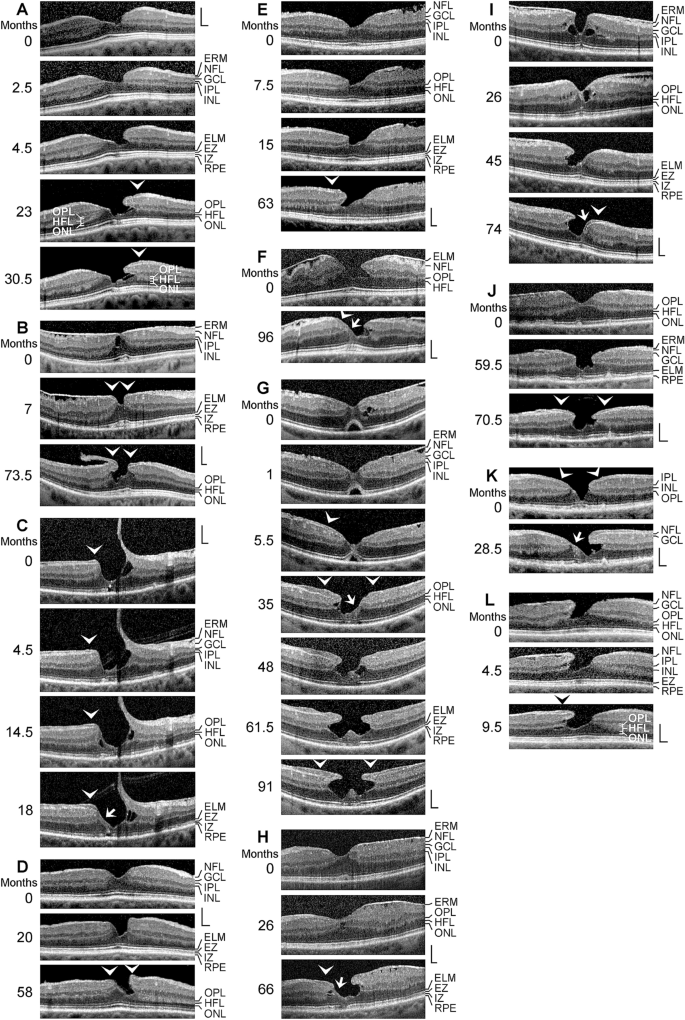

Tractional development of DLH The SD-OCT scans shown in Fig. 1 display different cases of a tractional development of DLH. In the fovea shown in Fig. 1a, degenerative cavitations developed in one foveal wall. Tractional forces of an ERM on top of the NFL of this wall caused a deformation of the foveal pit, likely due to a disruption of the connection between the inner Müller cell layer of the foveola to this wall; this resulted in an indentation between the OPL and HFL. Between 2.5 and 4.5 months after the first visit, the indentation developed to a schisis; this was associated with a thinning of the HFL/ONL and a loss of the integrity of the central photoreceptors, as indicated by the hyporeflectivities of the ellipsoid zone (EZ) and interdigitation zone (IZ) lines. Between 4.5 and 23 months, the schisis evolved into a degenerative cavitation which was traversed by thin bundles of Henle fibers. LHEP was formed at the vitreal surface of this foveal wall and parafovea. The central foveola consisted of a tissue of medium reflectivity, likely proliferating cells of the Müller cell cone which fill the photoreceptor cell-free gaps in the foveola. Below this Müller cell tissue, the ELM and EZ lines displayed outward instead of inward deflections (as in the normal fovea). The opposite foveal wall showed no abnormalities with the exceptions of an IZ line defect and the increased reflectivity of the HFL which was likely caused by a tractional distortion of the tissue.
Figure 1b shows the evolution of a foveal pseudocyst (first visit) into a DLH. Tangential traction exerted by ERM caused an anterior stretching of the fovea which produced a thickening of the foveola associated with cyst formation, an elevation of the foveal walls, and a deformation of the fovea externa which is the cone-like arrangement of the elongated photoreceptor segments in the foveola [4]. In addition, there was a loss of the integrity of the outer photoreceptor segments in the left para- and perifovea, as indicated by the absence of the IZ line. Within 7 months after the first visit, the horizontal layer of the Müller cell cone disrupted which caused an indentation at the level of the OPL-HFL interface in the right foveal wall; this was associated with the development of small LHEP at the edges of the foveal walls. Thereafter, a degenerative cavitation developed between the inner plexiform layer (IPL) and ONL of the foveal walls, and the LHEP increased. The ERM continued to the hyperreflective layers of the LHEP.
Figure 1c shows the development of a DLH due to anteroposterior traction which caused a disruption of the inner Müller cell layer of the foveola and an elevation of the inner layers of the foveal walls. LHEP was visible at the edge of a foveal wall. The foveola contained a small photoreceptor- and ONL-free area; this area was filled by a tissue of medium reflectivity. The medium reflectivity and the location suggest that this tissue was formed by Müller cells. The morphology of the lamellar hole did not alter within the next 18 months with the exceptions that the tissue of medium reflectivity, which filled the ONL-free part of the foveola, and the LHEP increased time-dependently. After 18 months, there was a relatively thick connection between the Müller cells in the foveola and the LHEP (arrow in Fig. 1c). This was associated with a disappearance of the cyst between the OPL and HFL in this wall.
Figure 1d shows the development of a DLH after a tractional thickening of the central fovea. Within 20 months after the first visit, the contour of the foveal pit was disturbed, likely by a damage to the Müller cell cone. Later on, a schistic cavitation developed between the OPL and HFL of one foveal wall which was associated with the formation of a LHEP at the edges of the walls. Figure 1e shows another case of a tractional deformation of the foveal contour with an indentation between the OPL and HFL of the left foveal wall which developed to a schisis; this was associated with the formation of a small LHEP at the edge of this wall. The fovea shown in Fig. 1f had a schisis between the OPL and HFL in one foveal wall, likely caused by the disruption of the Müller cell cone due to traction of ERM. Within the next 96 months, the schisis developed to a degenerative cavitation; there was an ONL-free area in the central fovea filled by a tissue of medium reflectivity which was connected to the LHEP at the edge of the opposite wall (arrow in Fig. 1f).
Figure 1g shows the development of a DLH after a detachment of the foveola from the retinal pigment epithelium (RPE) due to tangential traction exerted by ERM. The detachment of the foveola was associated with a gap in the central ONL which was filled by a tissue of medium reflectivity, likely composed of Müller cells. Between 1 and 5.5 months after the first visit, LHEP developed at the vitreal surface of one foveal wall. The reattachment of the foveola to the RPE between 5.5 and 35 months was associated with the formation of a DLH characterized by the development of a degenerative cavitation, an increase in the LHEP, and a nearly complete absence of photoreceptors in the foveal center which was filled by Müller cells; the Müller cells also covered the central surface of one foveal wall (arrow in Fig. 1g). Later on, the degenerative cavitations under the elevated inner layers of the foveal walls time-dependently increased; this was associated with a disruption of the connection between the foveolar Müller cells and the edge of the foveal wall.
Figure 1h shows another case of a DLH formed by tangential traction from an ERM in the parafovea. Contraction of the ERM caused tissue folds at the inner retinal surface and an anterior stretching and thickening of the foveola. A large degenerative cavitation developed via a cystic disruption of the foveola; this was associated with a loss of the integrity of the centralmost photoreceptors (as indicated by the defects of the ELM, EZ, and IZ lines) and the formation of LHEP at the inner surface of one foveal wall. A tissue of medium reflectivity, likely composed of Müller cells, covered the vitreal side of the foveola.
Figure 1i shows the development of a DLH after a surgical treatment of a TLH due to macular pucker. The TLH was characterized by an elevation of the inner layers of the foveal walls (NFL to OPL), a schistic tissue splitting between the OPL and HFL, and cystic cavities in the INL. Vitrectomy with ERM and ILM peeling was performed 2.5 months after the first visit. After surgery, the ERM regrew. Until 45 months, a degenerative cavitation developed in one foveal wall, apparently by the degeneration of the INL and OPL. The opposite foveal wall, which had a LHEP at the inner surface, did not contain degenerative cavitations. An ONL-free part of the foveola was filled by a tissue of medium reflectivity, likely composed of Müller cells; this tissue was connected to the LHEP. Figure 1j shows another eye with a development of DLH after a tractional thickening of the foveal center, apparently due to traction exerted by ERM. The development of degenerative cavitations into the foveal walls was associated with the development of LHEP at the vitreal surface of the walls.
The fovea shown in Fig. 1k was characterized by the absence of the ONL in the foveola and small LHEP at the vitreal surfaces of the foveal walls. The ONL-free area of the foveola was partly filled by a tissue of medium reflectivity; the foveal walls kept together at the ELM. In the further course, large cavitations developed in one foveal wall by the degeneration of the INL and OPL; this was associated with a degeneration of the ONL and enlargements of the LHEP and the tissue of medium reflectivity in the foveola. Figure 1l shows the time-dependent increase in degenerative cavitations in an eye with DLH. The cavitations developed in the foveal wall with the ERM, but not in the opposite wall.

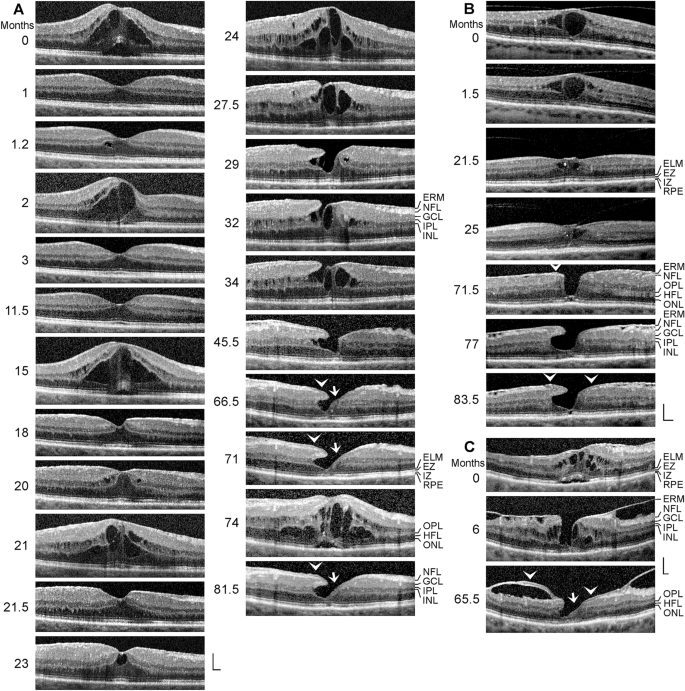

Development of DLH preceded by CME: As shown in Fig. 2a–c, the formation of a DLH can be preceded by a CME. In the case shown in Fig. 2a, the first SD-OCT image was recorded 0.5 months after descemet membrane endothelial keratoplasty. In addition, congenital glaucoma was present. Five episodes of CME occurred before the development of a DLH 29 months after the first visit. The CME was characterized by the development of cystic cavities between the OPL and HFL, and within the INL, and large elevations of the inner Müller cell layer of the foveola and the inner layers of the foveal walls (NFL to OPL). These elevations caused a tractional detachment of the central outer retina from the RPE during the first three CME episodes. After the first and second episodes (1 and 3 months), the foveal structure fully recovered. Along with the development of an ERM at the vitreal surface of the parafovea (18 months), the resolution of the edematous cysts did not result in a regular regeneration of the foveal shape. LHEP developed at the vitreal surface of one foveal wall after 24 months. A degenerative cavitation developed after 27.5 months. This was associated with a thinning of the central foveola; after 34 months, the central foveola was composed of the ELM and a thin tissue of medium reflectivity, likely Müller cells. A morphological connection developed between the Müller cells in the foveola and the edge of the nonelevated foveal wall which did not contain a degenerative cavitation (arrows in Fig. 2a). After the CME episode at 74 months, the foveal configuration of a DLH was reestablished.
The CME shown in Fig. 2b was induced by traction exerted by the partially detached posterior hyaloid which adhered at the foveola. There was a large cyst in the foveola and a schistic splitting of the foveal walls in the INL. The outer retina in the foveola was only stabilized by the ELM. After resolution of the large central cyst (21.5 months), the inner layer of the foveola still was under tension and hyperreflective. Thereafter, ERM developed at the vitreal surfaces of the foveal walls and parafovea. Contraction of the ERM produced a straightening and thickening of the foveal walls, resembling a MPH [26], which was associated with a centrifugal displacement of the central ONL; the foveal center was composed only by the hyperreflective ELM (71.5 months). Small LHEP developed at the vitreal surfaces of the foveal walls. Thereafter, a large degenerative cavitation developed in one foveal wall due to degeneration of the INL, OPL, and HFL. The outer layer of the elevated foveal wall, which protruded centripetally above the degenerative cavitation, was the IPL.
The CME shown in Fig. 2c was induced by traction exerted by ERM. Between the first visit and 6 months later, the Müller cell cone in the foveola disrupted which was associated with a degeneration of the central outer retina. Thereafter, a degenerative cavitation and LHEP developed. There were continuities between the ERM and the hyperreflective layers of LHEP. The foveal center was composed of a tissue of medium reflectivity, likely Müller cells, which was connected to the LHEP at one foveal wall.

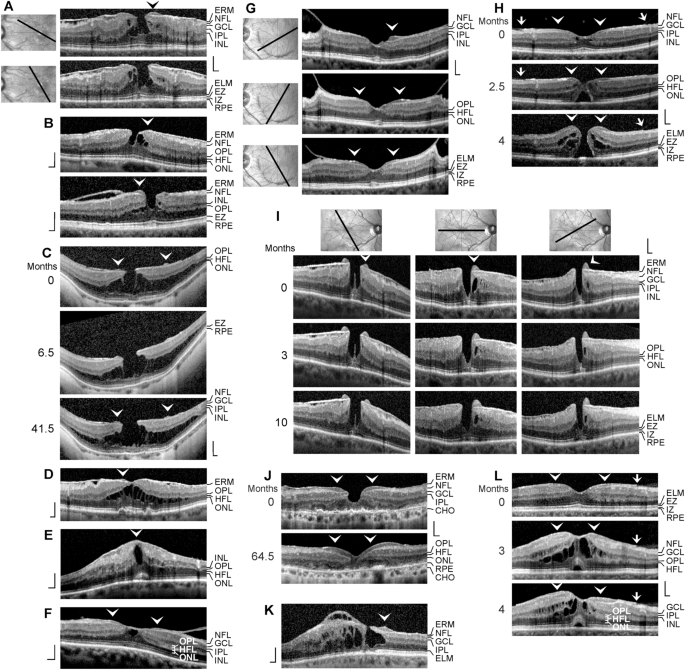

LHEP in other types of foveal defects LHEP is most frequently observed in eyes with DLH; some cases of other types of partial-thickness macular defects and FTMH also exhibit LHEP [9,10,11,12,13,14, 16, 17, 22, 23]. We found LHEP in various types of foveal defects. Figure 3a and b shows MPH with cleaved edges [26], i.e., MPH with a schistic splitting of the foveal walls between the OPL and HFL, but without degenerative cavitations. The holes were induced by ERM traction; the ERM continued into the outer hyperreflective layer of LHEP. A schisis between OPL and HFL, which is produced by an elevation of the inner layers (NFL to OPL) of the foveal walls and parafovea, is also a characteristic of other tractional foveal defects like TLH, whereas a thickening of the foveal walls is a characteristic of MPH [5, 10, 26]. The central ONL and photoreceptor layer remain normally intact in MPH and TLH [5, 10]. The dehiscence of the central ONL (Fig. 3a) is likely caused by the large oblique anterior traction due to the elevation of the inner layers of the foveal walls. Figure 3c shows a TLH with LHEP in an eye with high myopia. The degeneration of the central ONL was likely caused by the large schisis between the OPL and ONL which produced a tractional disruption of Henle fibers followed by a degeneration of photoreceptor cells.
Figure 3d shows a foveal pseudocyst with a small LHEP which was generated by tangential traction exerted by ERM. The morphology of foveal pseudocysts is similar to that of TLH (elevation of the inner layers of the foveal walls, schistic splitting of the foveal walls between the OPL and HFL) with the exception that the horizontal layer of the Müller cell cone is not disrupted and keeps the elevated inner layers of the foveal walls together [5]. Figure 3e and f shows further cases of a foveal pseudocyst with LHEP. The pseudocyst in the eye with macular pucker shown in Fig. 3e was caused by traction exerted by ERM which produced a high thickening of the foveal walls. Anterior traction exerted by the thickened inner layers of the foveal walls onto the central outer retina produced the detachment from the RPE. The pseudocyst shown in Fig. 3f was likely formed by traction from the partially detached posterior hyaloid which adhered at the parafovea. The inner layers of the foveal walls were not elevated; therefore, the walls were not splitted between the OPL and HFL. The traction caused a distortion of the tissue which explains the increased reflectivity of the HFL in the right foveal wall and parafovea.
In the case shown in Fig. 3g, vitreomacular adhesions caused traction onto the fovea and parafovea; this was associated with the development of LHEP at the foveal walls and a loss of the integrity of the central photoreceptors, as indicated by the irregular reflectivities of the EZ and IZ lines. A hyperreflective membrane lied above the surface of the foveal pit; this membrane continued to the hyperreflective layers of the LHEP. A similar case of vitreomacular traction with LHEP at the foveal walls is shown in Fig. 3h. The traction caused an elevation of the foveal center which further developed into a FTMH associated with the formation of edematous cysts in the foveal walls; the FTMH also displayed LHEP at the vitreal surface of the foveal walls.
Examples of a mixed type of a MPH and DLH are shown in Fig. 3i and j. The straightening and thickening of the foveal walls are a characteristic of MPH [26], while the presence of LHEP and the degeneration of the central outer retina are a characteristic of DLH [5, 10]. The photoreceptor degeneration in the macula shown in Fig. 3j resulted from age-related macular degeneration. The ERM continued to the outer (Fig. 3i) or inner (Fig. 3j) hyperreflective layer of the LHEP. In the case of Fig. 3j, the LHEP enlarged within 64.5 months after the first visit and formed a plug which filled the central fovea.
A DLH with CME in one foveal wall is shown in Fig. 3k. In the case shown in Fig. 3l, a, CME developed from a fovea with LHEP, likely due to traction exerted by ERM and the posterior hyaloid which adhered at the ERM in the perifovea (arrows in Fig. 3l). Although the shape of the fovea recorded at the first visit appeared nearly normal, the traction produced a distortion of the right foveal wall and parafovea, as indicated by the increased reflectivity of the HFL. The CME was associated with a high elevation of the inner horizontal layer of the foveola and the inner layers of the foveal walls and parafovea (NFL to OPL). This produced a large schisis between the OPL and HFL, cystic cavities in the INL, and a tractional detachment of the central outer retina from the RPE. The photoreceptor outer segments were elongated in the detached area.
Morphological alterations of DLH It was described that DLH are morphologically stable and show only slow structural alterations over long time periods [8, 12, 17, 22,23,24,25]. However, relatively fast transient morphological alterations of foveas with DLH can be observed after which the foveal morphology spontaneously returns to the “regular” configuration of a DLH. The scan in Fig. 4a recorded at the first visit shows a disruption of the foveal structure due to CME, likely caused by tangential contraction of ERM. Edematous cysts in the foveola and within the INL of the foveal walls produced a large elevation of the inner layers of the foveal walls (NFL to IPL) and a detachment of the central photoreceptors from the RPE. The resolution of the cysts allowed a drop of the inner layers of the foveal walls and an almost normal restoration of the foveal morphology. Between 2 and 9.5 months, a DLH developed due to a degeneration of the INL and OPL in one foveal wall. Thereafter, a CME episode occurred again which was associated with the formation of LHEP at the vitreal surface of the foveal walls; the ERM continued to the inner hyperreflective layer of LHEP. After 29 months, the DLH was reestablished. The foveal center and the central surface of one foveal wall were covered by a tissue of medium reflectivity, likely composed of Müller cells (arrow in Fig. 4a). Between 37 and 42.5 months, a small FTMH developed due to the formation of edematous cysts in the INL and between the OPL and HFL [27] which caused a high elevation of the inner layers of the foveal walls (NFL to OPL) that produced an oblique anterior displacement and a detachment of the central outer retina from the RPE. Thereafter, the edematous cysts resolved and the FTMH closed spontaneously by a drop of the elevated inner layers of the foveal walls. At the end of the examination period, the fovea showed again a DLH configuration.
The DLH shown in Fig. 4b was characterized by a photoreceptor-free center of the foveola which was filled by a tissue of medium reflectivity, likely composed of Müller cells, a cavitation of the foveal pit into one elevated foveal wall, ERM and retinal folds at the surface of the opposite wall, and LHEP at the inner surface of the foveal walls and parafovea. Within 4.5 months after the first visit, the inner layers of the foveal walls elevated largely due to the formation of edematous cysts in the INL and between the OPL and HFL. There was a tissue of medium reflectivity at the central surface of one foveal wall which connected the Müller cells in the foveola with the LHEP at the edge of this wall (arrows in Fig. 4b). The resolution of the edematous cysts (5 months) allowed a drop of the elevated inner layers of the foveal walls and resulted in a regeneration of the foveal configuration to a morphology similar to that observed at the first visit. Thereafter, a reappearance of the edematous cysts elevated again the inner layers of the foveal walls. At the end of the examination period, the foveal configuration was similar to that observed at the initial visit.
The DLH shown in Fig. 4c contained photoreceptors throughout the foveal center at the first visit, as indicated by the nearly intact ELM and EZ lines. In the further course, the central photoreceptors degenerated, and the foveal center was composed of a tissue of medium reflectivity, likely Müller cells. These cells were connected by a tissue bridge to the LHEP at the inner surface of a foveal wall (arrow in Fig. 4c).

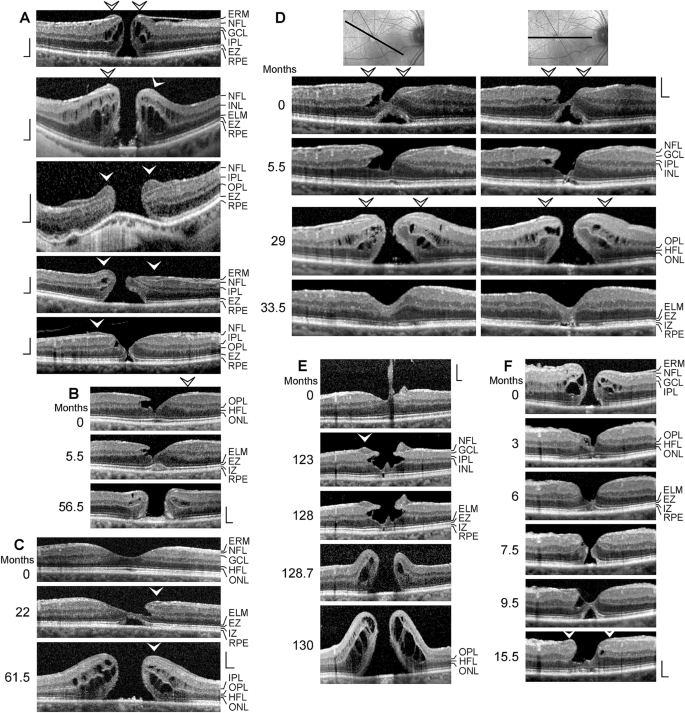

DLH and FTMH A DLH can be formed after closure of a FTMH and can evolve into a FTMH. A certain number of eyes with a FTMH showed the presence of LHEP at the vitreal surface of the foveal walls (Fig. 5a), suggesting that the FTMH developed from a DLH. Cases of a development of a DLH into a FTMH are shown in Fig. 5b–e. The development of a DLH is often caused by traction exerted by ERM (Fig. 5c, d) or vitreofoveal adhesion (Fig. 5e), while a FTMH likely develops when edematous cysts in the foveal walls are formed which cause a large elevation of the inner layers of the walls; this is associated with a dehiscence and detachment of the central outer retina from the RPE (Fig. 5c–e) [27, 28]. In the DLH shown in Fig. 5c (22 months), the foveal center was free of photoreceptors and composed of a tissue with medium reflectivity, likely Müller cells. In the case shown in Fig. 5d, vitrectomy with ILM and ERM peeling performed 31 months after the first visit resulted in a closure of the FTMH and a disappearance of the LHEP. However, the foveal center was largely devoid of photoreceptors and was filled by Müller cells. This tissue also covered the central surfaces of the foveal walls. Figure 5f shows an example of a development of a DLH after surgical closure of a FTMH. The FTMH closure was associated with a resolution of the edematous cysts which allowed a drop of the elevated foveal walls [29, 30].

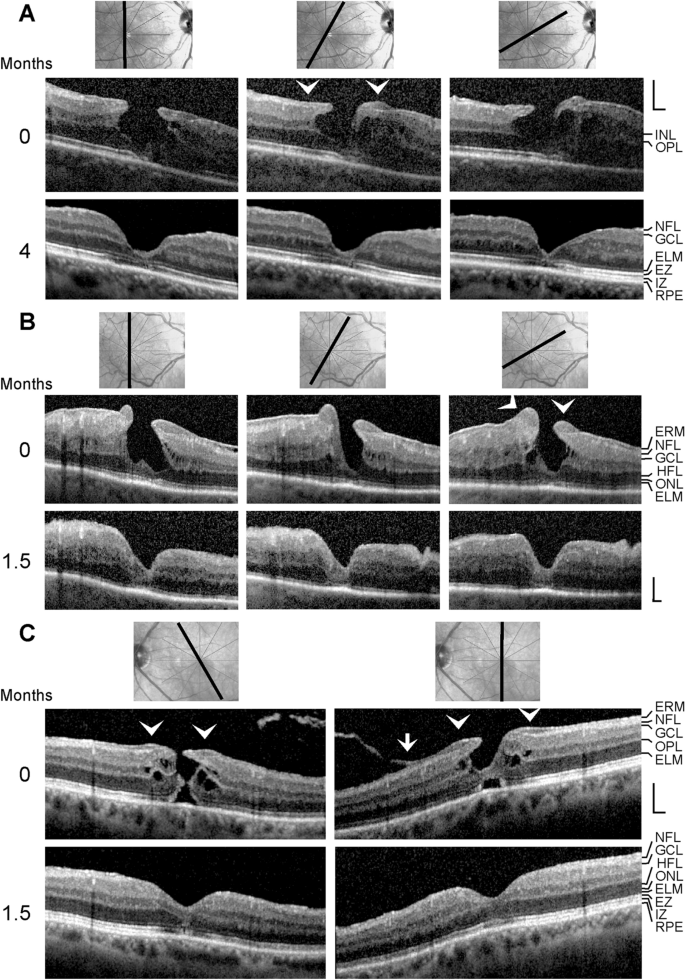

Foveal regeneration after surgical removal of LHEP Fig. 6a–c shows cases of the foveal regeneration after surgical removal of LHEP by vitrectomy with ILM and ERM peeling. The DLH shown in Fig. 6a was characterized by large degenerative cavitations below the elevated inner layers of the foveal walls and a disruption of the central ONL, as indicated by the gap in the ONL and the ELM and EZ line defects. The surgical removal of the ERM and LHEP was associated with a drop of the inner layers of the foveal walls and a disappearance of the degenerative cavitations. The central ELM largely regenerated. However, there remained a gap in the central ONL and central defects of the EZ and IZ lines, suggesting that the centralmost fovea was free of photoreceptors. The foveal center was largely filled by a tissue of medium reflectivity, likely composed of Müller cells. This tissue covered also the central surface of the dorsonasal foveal wall.
The mixed type of a MPH and DLH shown in Fig. 6b displayed a widening of the central ONL and outward deflections of the ELM and EZ lines instead of inward deflections as in the normal fovea. The inner part of the foveola was filled by a tissue of medium reflectivity, likely Müller cells; this tissue continued to the LHEP at the rim of one foveal wall. The surgery caused a drop of the formerly elevated inner layers of the foveal walls, a disappearance of the degenerative cavitations, and a restoration of a nearly normal foveal pit. However, the foveal center was largely devoid of an ONL and photoreceptors and was formed by a tissue of medium reflectivity, likely Müller cells. This tissue also covered the central surfaces of the foveal walls. Similarly, the surgical closure of the FTMH shown in Fig. 6c, which likely developed from a DLH, produced a fovea with a gap in the central ONL that was filled by Müller cells.
