Microwave Dielectric Properties of Ceramic and Nanocomposite Titanates of Transition Metal

  • Published:
Journal of Infrared, Millimeter, and Terahertz Waves Aims and scope Submit manuscript

Abstract

Ceramic and nanocomosite samples of the titanates of transition metals have been synthesized and their microwave dielectric properties have been investigated. Frequency and magnetic field dependences of the transmission and reflection coefficients in centimeter and millimeter wavebands were measured. It is established for most of studied ceramic titanates that transmission coefficient increases and reflection coefficient decreases when frequency increases. An absorption maximum has been found for ceramic sample made of Co0.9Fe0.1TiO3. The real and imaginary parts of complex dielectric permittivity were determined from measurements of transmission and reflection coefficients. On the whole, real part of dielectric permittivity of nanocomposite titanates based on an opal matrix is less than for ceramic titanates.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Price includes VAT (Austria)

Instant access to the full article PDF.

Institutional subscriptions

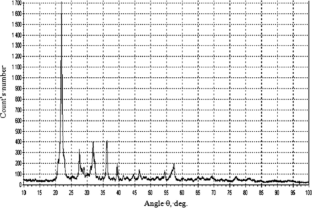

Fig. 1

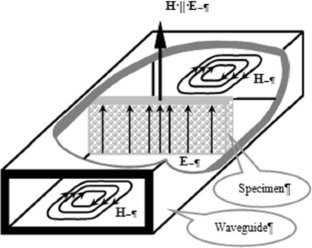

Fig. 2

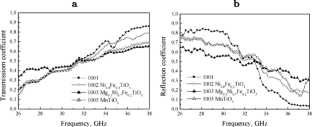

Fig. 3

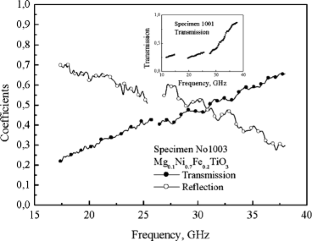

Fig. 4

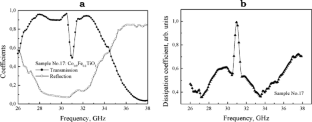

Fig. 5

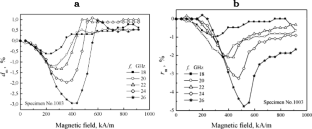

Fig. 6

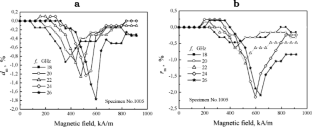

Fig. 7
Fig. 8

Similar content being viewed by others

References

  1. B. Jaffe, W. R. Cook, H. Jaffe, Piezoelectric Ceramics (London, New York: Academic Press, 1971).

  2. Y. Kigoshi, S. Hatta, T. Teranishi, T. Hoshina, H. Takeda, O. Sakurai, T. Tsurumi, Key Engineering Materials, 445, 27–30 (2010).

  3. Obradović, N., Filipović, S., Pavlović, V. B., Maričić, A., Mitrović, N., Ristić, M. M., Sci. Sinter., 43(2), 145–151 (2011).

  4. J. D. Baniecki, M. Ishii, H. Aso, K. Kurihara, D. Ricinschi, J. Appl. Phys., 113(1), 013701 (2013).

  5. R. Kinjo, I. Kawayama, H. Murakami, M. Tonouchi, J. Infrared Milli. Terahz Waves, 33(1), 6773 (2012).

  6. S. Zhang, F. Li, J. Appl. Phys., 111(3), 031301 (2012).

  7. C. M. Tavade, R. Sagar, S. Madolappa, R. L. Raibagkar, World J. Sci. Technol., 1(8), 12–14 (2011).

  8. E. K. Nyutu, C.-H. Chen, P. K. Dutta, S. L. Suib, J. Phys. Chem. C, 112(26), 9659–9667 (2008).

  9. Y. J. Lin, Y. H. Chang, W. D. Yang, B. S. Tsai, J. Non-Cryst. Solids, 352(8), 789–794 (2006).

  10. M. I. Samoilovich, A. B. Rinkevich, V. Bovtun, A. F. Belyanin, M. Kempa, D. Nuzhnyy, M. Yu. Tsvetkov, S. M. Klescheva, Rus. Chem. J., 83(11), 2132–2147 (2013).

  11. A. B. Rinkevich, L. N. Romashev, V. V. Ustinov, E. A. Kuznetsov, J. Magn. Magn. Mat., 254–255(1), 603–607 (2003).

  12. A. B. Rinkevich, L. N. Romashev, V. V. Ustinov, E. A. Kuznetsov, Int. J. Infrared Millimeter Waves, 28(5), 567–578 (2007).

  13. A. B. Rinkevich, M. I. Samoilovich, S. M. Klescheva, D. V. Perov, A. M. Burkhanov, E. A. Kuznetsov, IEEE Trans. Nanotechnol., 13(1), 3–9 (2014).

  14. A. G. Gurevich, G. A. Melkov, Magnetic Oscillations and Waves (Boca Raton, FL: CRC Press 1996).

Download references

Acknowledgements

The work is carried out with partial support of the Grant from Russian Ministry of Science and Education within p220 Program, NSh-1540.2.2014 grant and the project of Ural Branch of Russian Academy of Sciences. The authors express their thanks to V.G. Pushin, V.S. Gaviko and A.V. Korolev for the electron microscopic study, X-ray phase analysis and magnetic measurements carried out in the Testing Center of Institute of Metal Physics.

Author information

Authors and Affiliations

  1. Institute of Metal Physics, Ural Branch of Russian Academy of Science, Ekaterinburg, 620990, Russian Federation

    Anatoly B. Rinkevich & Dmitry V. Perov

  2. State Social Pedagogical Academy, Nizhny Tagil, 622031, Russian Federation

    Evgeny A. Kuznetsov

  3. Institute of Chemistry, Ural Branch of Russian Academy of Sciences, Syktyvkar, 167982, Russian Federation

    Yury I. Ryabkov

  4. Central Research Technological Institute “TECHNOMASH”, Moscow, 121108, Russian Federation

    Mikhail I. Samoylovich & Svetlana M. Klescheva

Authors
  1. Anatoly B. Rinkevich
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Evgeny A. Kuznetsov
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Dmitry V. Perov
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Yury I. Ryabkov
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Mikhail I. Samoylovich
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Svetlana M. Klescheva
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Dmitry V. Perov.

Rights and permissions

Reprints and permissions

About this article

Check for updates. Verify currency and authenticity via CrossMark

Cite this article

Rinkevich, A.B., Kuznetsov, E.A., Perov, D.V. et al. Microwave Dielectric Properties of Ceramic and Nanocomposite Titanates of Transition Metal. J Infrared Milli Terahz Waves 35, 860–870 (2014). https://doi.org/10.1007/s10762-014-0088-6

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s10762-014-0088-6
