Partial diel vertical migration in an omnivorous macroinvertebrate, Mysis diluviana
Partial migration, whereby only a portion of a population migrates, has just recently received attention in aquatic systems. Partial diel vertical migration (DVM) has received even less attention but could significantly influence our understanding of trophic interactions and nutrient movement in open water systems. Recent work in the Baltic Sea shows differences in isotope composition between benthic and pelagic Mysis salemaai sampled at night, suggesting that partial DVM may be fixed at the individual level. Historic observations of North American M. diluviana suggest partial DVM in this species, but this behavior has largely been ignored in the literature. We used length, occurrence of gravid females, and body δ13C, δ15N, δ34S, and C:N ratio as markers to test for differences among adult M. diluviana collected from benthic and pelagic habitats at night in Lake Champlain, USA. We found differences in body length and occurrence of gravid females between pelagic- and benthic-caught M. diluviana and differences in C:N between pelagic- and benthic-caught non-gravid individuals, consistent with life stage and body condition hypotheses for partial migration. Partial DVM of M. diluviana could have significant impacts on population assessments which could bias food web models used in basic research and management.
KeywordsMysis diluviana DVM Partial migration Isotope Body condition
Partial migration occurs when some individuals in a population migrate while others remain resident (Chapman et al., 2011). Although extensively studied in birds (Lundberg, 1988), partial migration has received less attention in aquatic systems (Chapman et al., 2012). Fish and macroinvertebrates exhibit partial horizontal (Brodersen et al., 2011) and diel vertical migrations (Brodersen et al., 2008; Mehner & Kasprzak, 2011; Ogonowski et al., 2013), although examples are limited.
Diel vertical migration (DVM) in aquatic organisms has been hypothesized to be the largest synchronized movement of animal biomass in the world (Hays, 2003), transporting energy and nutrients vertically in the water column (Longhurst & Harrison, 1988; Schnetzer & Steinberg, 2002). Predator avoidance is a common explanation for DVM, enabling organisms to take advantage of food-rich surface waters at night, while limiting their vulnerability to visual predators during the day (Clark & Levy, 1988; Lampert, 1989; Loose & Dawidowicz, 1994). However, many other environmental factors such as light and temperature affect DVM behavior (Lampert, 1989; Pearre, 2003; Mehner, 2012), all of which could differentially impact individuals based on life stage or reproductive status and thus lead to variation in migration behavior among individuals within populations.
Mysis diluviana (Audzijonytė & Väinölä, 2005) (hereafter Mysis when referring to this species) is a common macroinvertebrate in North America that exhibits pronounced DVM throughout its range (e.g., Beeton & Bowers, 1982; Ahrenstorff et al., 2011). Mysis prefers cold (<8°C) and deep (>50 m) lakes, typically exhibiting maximum densities in areas with bathymetric depths >100 m (Carpenter et al., 1974; Kelly et al., 2011). Mysis is omnivorous and feeds on both benthic and pelagic food sources (Johannsson et al., 2001; Sierszen et al., 2011). Thus, Mysis is able to forage in benthic and pelagic environments with DVM providing an important benthic–pelagic link, transporting benthic-derived nutrients to pelagic environments and vice versa (Sierszen et al., 2011, 2014; Oliver et al., 2014).
Despite extensive documentation of and research on Mysis DVM (op. cit.) and its proximate cues such as light, temperature and predator density (Boscarino et al., 2009a, b, 2010), and historical observations of epibenthic mysids during nighttime (Morgan, 1980; Bowers, 1988), partial DVM in Mysis has received little attention. Morgan (1980) hypothesized that the sudden absence of gravid Mysis in pelagic tows in Lake Tahoe during November and December was the result of gravid Mysis occupying benthic habitat at night to reduce predation risk, consistent with the asset protection principle (Clark, 1994). Partial DVM may also reflect differences in fasting ability or body condition (body condition hypothesis) or hunger and satiation (hunger/satiation hypothesis) among individuals (Pearre, 2003; Chapman et al., 2011) where individuals only perform DVM when hungry. Finally, Mysis could represent phenotypically different ecotypes, simplified as one migratory and one benthic-resident population (c.f. Lundberg, 1987; Ogonowski et al., 2013).
Partial DVM in Mysis spp. in the Baltic Sea was described several decades ago (Rudstam et al., 1989) and more recently (Ogonowski et al., 2013). Using stable isotopes as markers of differences in foraging arenas, Ogonowski et al. (2013) found that M. salemaai (Audzijonytė & Väinölä, 2005) exhibited isotope differences within the population. They concluded that a portion of the population was migratory, occupying the pelagic environment at night (presumably feeding on zooplankton), while remaining individuals were epibenthic day and night, feeding on detritus and benthic invertebrates. Consequently, observations of epibenthic mysids at night in North America (Morgan, 1980; Bowers, 1988) may also reflect fixed resident and migrant populations in Mysis.
In this study, we first determined whether Mysis exhibit partial DVM in Lake Champlain, USA, by sampling benthic and pelagic habitats at night. We then explored support for three hypotheses to explain partial DVM. Decision to migrate is associated with (1) the asset protection principle whereby reproductive status determines migration similar to observations in Lake Tahoe (Morgan, 1980); (2) body condition as measured by carbon to nitrogen ratio (C:N) as an estimate of lipid content, similar to what has been found in other partially migrating animals (Brodersen et al., 2008; Chapman et al., 2012); and 3) distinct population polymorphisms/ecotypes similar to M. salemaai in the Baltic Sea (Ogonowski et al., 2013). The hypotheses were explored using data on demographics, foraging habitat history (stable isotopes) and body condition (C:N ratios) of benthic and pelagic Mysis caught at night.
Mysis were sampled on several occasions during November 2013 to acquire average isotope composition and distribution for the month. Samples were pooled across dates during analyses. Samples were collected starting 1 h after nautical twilight and continued through the night (≈18:00–02:30) in early (4-Nov, only site MS and benthic Mysis from SR), middle (13- and 14-Nov, all sites), and late November (19- and 20-Nov, all sites). The order in which sites were sampled was rotated across dates to account for any bias of sampling time. Prior to sampling, a conductivity–temperature–depth probe was deployed to measure thermal profiles at each site. Water temperature was between 8 and 10°C with little or no stratification at all three sites on all sampling dates. Moon phase ranged from just after new moon on 4-Nov (moon rise = 09:44) to almost full on 20-Nov (moon rise = 20:10), with partly cloudy skies on all nights.
Pelagic Mysis were collected using a combination of oblique and discrete tows with a Tucker trawl (opening = 3.6 m2; mesh = 1000 μm; cod end = 250 μm) at water column depths 0–50 m. Benthic-caught Mysis were collected using an epibenthic sled (opening = 0.1 m2; mesh = 1000 μm; cod end = 250 μm) and represent only individuals within ≈0.5 m from the bottom.
Epibenthic transects were approximately 0.5 km, while Tucker trawl transects were approximately 1.5 km to ensure sufficient numbers of pelagic-caught Mysis. No catch per unit effort was measured. Benthic- and pelagic-caught samples from each site were placed in separate coolers filled with chilled lake water for transport to the laboratory. Within 10 h of collection, a target of 100 individual Mysis were haphazardly chosen from each date–site–habitat event, measured to the nearest mm from the tip of the rostrum to the base of telson, assessed for embryos or eggs, and individually frozen at −20°C in 2-ml centrifuge tubes.
Partial migration is defined as any population with migratory dimorphism (Chapman et al., 2011). Previous studies of Mysis have suggested that all or the vast majority of individual Mysis migrate each night (Shea & Makarewicz, 1989). Therefore, if Mysis were captured in night benthic sled tows, the sample site population was classified as partially migratory. Additionally, we set a target number of 100 Mysis per date–site–habitat sample, thereby reducing the likelihood that Mysis captured in the water column by chance during deployment and retrieval of the benthic sled would impact the sample.
The size of Mysis (max length 20–25 mm tip of rostrum to base of telson), abundance, and habitat (deep, open water) makes mark- recapture studies an impractical method to evaluate individual migration characteristics. We therefore used stable isotopes as markers to test for DVM differences among individuals. δ13C of consumers differs between benthic and pelagic habitats because of variable reliance on particulate organic matter which is generally low in 13C (France, 1995; Peterson, 1999). δ15N of consumers differs with prey trophic level (Post, 2002), and benthic diets presumably contain a different proportion of low and high trophic level foods than pelagic diets. Finally, C:N ratio varies with diet composition, and can be used as a metric of body condition (high ratio associated with high fat content; Post et al., 2007). Stable isotopes change slowly over time (McMahon et al., 2013) and, therefore differences between benthic- and pelagic-caught mysids would suggest a sustained difference in habitat use. Ogonowski et al. (2013) found these markers to differ between benthic- and pelagic-caught M. salemaai. We used δ 34S as an additional marker because the water column can be enriched in 34S compared to lake sediments (Croisetiere et al., 2009).

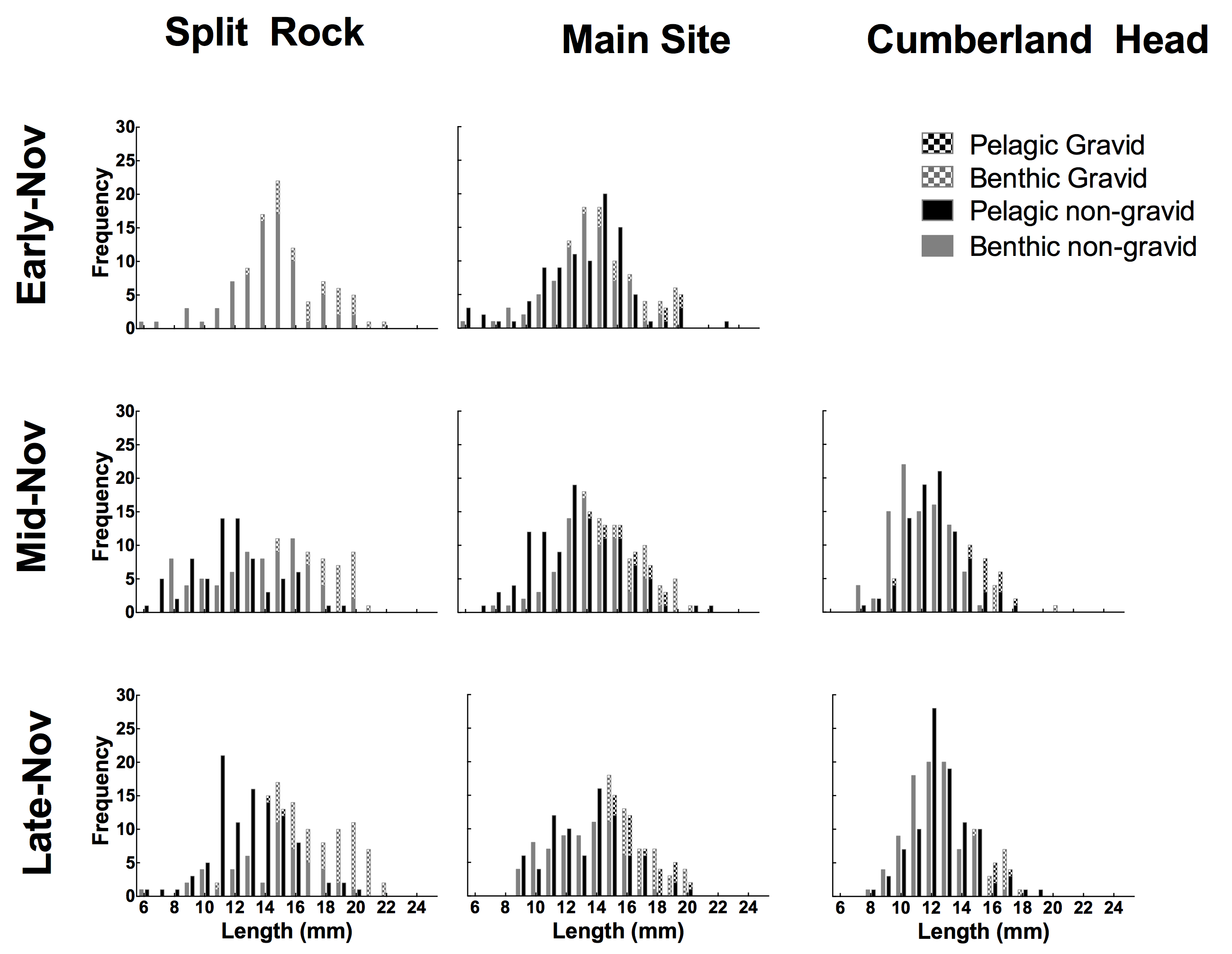

Length–frequency histograms were used to assess population size structure. Ten non-gravid Mysis from the most common size range across all samples (13-16 mm) were randomly chosen from each date–site–habitat group for C:N ratio and carbon and nitrogen stable isotope analyses. Whole dried individuals were milled into a fine powder using a mortar and pestle, and 0.75–0.85 mg of the sample was transferred to 3.5- × 5-mm tin capsules (Costech Analytical Technologies Inc). Using whole individuals provided sufficient material to run duplicate samples per individual of carbon and nitrogen to assess precision.
Sulfur stable isotope analyses were conducted on other individual mysids than those used for δ13C and δ15N (five 13–16 mm non-gravid individuals per site, habitat, and date, except from Nov. 4 due to incomplete sampling of sites on that date). Analyses were done on an Elementar vario ISOTOPE cube interfaced to a SerCon 20-22 IRMS (Sercon Ltd., Cheshire, UK) continuous-flow isotope-ratio mass spectrometer at the University of California Davis stable isotope facility. To account for variation in analysis, IAEA S-1, S-2, and S-3 were used as standard reference materials throughout sample measurement. The overall standard deviation for δ 34S was 0.18 ‰ for S-1, 0.22 ‰ for S-2 and 0.14 ‰ for S-3.
Differences in the numbers of gravid females between habitats and sites were evaluated using Chi Square test of Association. Samples from each site and habitat were pooled across date, and analysis was conducted on the total values for each site–habitat replicate.
To test for differences in length among sites and habitats, two-way analysis of variance (ANOVA) was used with habitat, site, and their interaction as principal factors. To assess possible differences in mean δ13C and δ15N, we conducted a two-way analysis of covariance (ANCOVA) with habitat, site, and their interaction as principal factors and C:N mass ratio and length as covariates. C:N was used as a covariate because δ13C can be influenced by lipid content, and C:N correlates with lipids (Post et al., 2007), while size was used to account for any size-related changes in diet. To assess differences in C:N and δ 34S at each site, two-way ANCOVAs were used with the same principal factors, but only length was used as a covariate. All analyses were conducted using R version 3.1.1 (R Core Team 2015) using the FSA (Ogle, 2014) and car (Fox & Weisburn, 2011) packages with α = 0.05 and adjusted with a Bonferroni correction for multiple comparisons.
Evidence for partial migration
Mysis were collected on bottom at night at all sites, consistent with the definition of partial migration (Chapman et al., 2011). Our target sample of 100 individuals was generally achieved within the first two to three benthic sled tows suggesting that densities were fairly high, though exact catch per unit effort and density were not quantified.
Mysis length and gravid females
Mean (±SD) Mysis length (L), number gravid Mysis observed for n individuals, and mean (±SD) C:N of ten non-gravid 13–16 mm individuals over all dates, sites, and habitats in Lake Champlain in November 2013
Mean L (mm)
No. gravid Mysis
15.5 ± 3.55
4.45 ± 0.48
12.4 ± 2.66
3.80 ± 0.22
14.6 ± 2.75
4.39 ± 0.46
13.9 ± 3.00
4.04 ± 0.37
12.4 ± 2.19
4.00 ± 0.35
13.0 ± 2.09
3.90 ± 0.34
Stable isotope analysis
Results of two-way ANCOVAs testing for differences in Lake Champlain Mysis isotopic composition and C:N ratios among non-gravid individuals caught in November 2013 from three different sites in benthic and pelagic habitats
Overall, Mysis C:N was higher in benthic-caught individuals but did not vary among sites (Fig. 2; Table 2). Additionally, length was a significant covariate for C:N. The difference in C:N between habitats was largest at SR, our deepest site, and smallest at CH, our shallowest site (Fig. 3).
Our results provide evidence that Lake Champlain Mysis exhibit partial DVM, adding to the list of systems where Mysis spp. have been observed on the bottom at night (Moen & Langeland, 1989; Rudstam et al., 1989; Ogonowski et al., 2013). Despite no quantitative assessment, the proportion of Mysis remaining on the bottom at night in November appears substantial. In all cases, our target number of 100 Mysis was surpassed within three benthic sled tows, while a much larger sampling effort was required to collect sufficient numbers of pelagic specimens. The observed catch rates appear to indicate that benthic densities were at least comparable to pelagic densities in contrast to Lake Ontario where catches from nighttime benthic sled tows were negligible (Shea & Makarewicz, 1989). Additionally, recent benthic-pelagic collections at night in Lake Champlain across seasons confirm our observations (Stockwell, unpublished data).
The larger average size of benthic-caught Mysis compared to pelagic-caught Mysis at the two deeper sites may indicate that large individuals are less migratory than smaller ones. The difference in size could be due to size-selective predation in the water column that decreases the abundance of larger Mysis (e.g., Holliland et al., 2012). Alternatively, larger Mysis with sufficient energy reserves to forego energy-rich zooplankton may remain on the bottom as a strategy to avoid predation risk. However, the observed size differences were driven in part by the lack of migration of larger gravid females, which were 4.4 mm longer on average than non-gravid Mysis. Gravid females constituted a higher proportion of the sampled populations in benthic versus pelagic habitats at the two deeper sites, which partially supports the asset protection hypothesis (Hypothesis 1; Clark, 1994). The relatively small effect size of the overall average length difference between benthic- and pelagic-caught individuals (1 mm), the size overlap between Mysis that migrate and those that remain on bottom, and observations of gravid females in pelagic samples, however, suggest that size and life stage differences cannot fully explain partial migration behavior.
Notably, non-gravid benthic-caught individuals had an average C:N ratio 9% higher than non-gravid pelagic-caught individuals at MS and 17% higher at SR, representing a potential difference in tissue lipid content of 2.5% at MS and 4.6% at SR based on dry mass (Post et al., 2007). Mysis with higher lipid content were captured on the bottom where predation risk is likely lower (Harrington et al., 2015), while Mysis with lower lipid content (lower nutritional status) may migrate to pelagic waters to access higher density and presumably more energy-rich prey, but at a presumably increased risk of predation. However, the difference in lipid content between benthic-caught and pelagic-caught Mysis at CH was less than 1%, again suggesting other factors likely contribute to partial DVM. Nonetheless, the differences in C:N at two out of three sites support that condition may be one factor in migration choice (Hypothesis 2).
Contrary to results from Ogonowski et al. (2013), we found no differences in δ15N and δ13C between benthic- and pelagic-caught Mysis. Diet differences, such as those expected between epibenthic Mysis with no DVM and vertically migrating pelagic individuals, may not necessarily result in different isotopic signatures (c.f. Phillips & Gregg, 2003; Sweeting et al., 2005; Brett, 2014). Consequently, the absence of significant differences in isotope composition in the present study precludes us from rejecting distinct ecotypes of Mysis (Hypothesis 3). However, because length and C:N differed between habitats, partial migrations are likely true partial migrations and not simply the result of continuous re-distributions of the Mysis population in the water column throughout the night. Nonetheless, to conclusively test Hypothesis 3 that Mysis partial migration is related to fixed population polymorphism, we recommend that future studies use additional markers such as fatty acids (Brett, 2014) and Mysis stomach content analyses (O’Malley & Bunnell, 2014).
Mysis exhibited partial migration at all sites. The effect size of demographics and C:N between benthic- and pelagic-caught Mysis, however, differed among sites and increased with depth. In Lake Superior, isotope composition of Mysis changed with depth and was attributed to decomposition of detritus as it sinks to the bottom (Sierszen et al., 2011). The depths of our study sites (70–120 m), however, were shallower than assessed by Sierszen et al. (2011; 120–300 m), and we saw no large differences in Mysis isotope composition with depth. Thus, the differences in Mysis demographics and C:N by depth found in the present study were more likely associated with Mysis feeding or migration behavior among sites than depth-mediated isotope changes in detritus.
Interpretation of our results is limited to the month of November when stratification in Lake Champlain is negligible. At this time, the distributions of predators and prey are presumably more vertically homogenous than during stratified periods, likely limiting the energetic advantage near the surface and decreasing the presumed predator refuge near the bottom. Pelagic productivity, thermal stratification, and presence of predators are proximate factors known to impact the depth to which Mysis migrate at night during May through September (Boscarino et al., 2007, 2009b). However, Mysis continue to migrate even when stratification breaks down and may even migrate closer to the surface in autumn than in the spring (Beeton, 1960; Ahrenstorff et al., 2011). Therefore, evaluating Mysis distribution and condition during other months when stratification and predator densities are more distinct may help further elucidate the drivers of partial DVM. However, the presence of two alternative migration strategies in November implies that bimodal behaviors do exist in Mysis at certain times of the year. Surveys of Lake Champlain suggest partial that DVM occurs year round (Stockwell, unpublished data).
Research identifying individual differences in the migration traits of invertebrates, and specifically in vertically migrating invertebrates, is underrepresented in aquatic ecology research. To the best our knowledge, our work and that of Ogonowski et al. (2013) are the only studies that have directly identified and assessed the benthic component of partial migration behavior of Mysis spp. While other studies have discussed partial DVM (Morgan, 1980; Bowers, 1988; Rudstam et al., 1989), the predominant focus of Mysis DVM research continues to be on individuals that have migrated into the water column. Our results partially support both the body condition and the asset protection hypotheses as explanations of partial DVM. However, neither hypothesis was supported at all sites. Despite inconsistencies among sites, our findings suggest that partial migration may be a non-random process. Non-random partial DVM of Mysis adds complexity to our understanding of DVM and necessitates more detailed description of benthic and pelagic distributions of Mysis to determine when and why individuals migrate. We propose that future studies of vertically migrating organisms account for potential partial migration by expanding sampling techniques to better represent non-migratory individuals (e.g., Shea & Makarewicz, 1989; Stockwell et al., 2010). Selective sampling techniques that do not account for the full distribution of the target species could bias abundance estimates (e.g., Stockwell et al., 2006). The key role Mysis play in food webs (e.g., Ellis et al., 2011; Gamble et al., 2011; Isaac et al., 2012) makes understanding impacts of Mysis on both benthic and pelagic communities essential for estimates of energy flow and connectivity in food web and ecosystem models (Kitchell et al., 2000; Stewart et al., 2010; Bunnell et al., 2011).
We thank Mike Sierszen and Brian O’Malley for thoughtful discussions about Mysis ecology and anonymous reviewers for their constructive input during earlier drafts. Additionally, we thank Captain Steve Cluett and Deckhand Suz Ball of the RV Melosira for their expertise in the field, and Rachael DeWitt, Jake Calvitti, and Carey Phalen for their help with collection and processing of samples. We also express our gratitude to Andrea Lini for the use of his laboratory for sample preparation. Finally, we thank the University of Vermont’s James Marsh Professor-at-Large program for providing the financial support to SH and the collection of samples.
- Ahrenstorff, T. D., T. R. Hrabik, J. D. Stockwell, D. L. Yule & G. G. Sass, 2011. Seasonally dynamic diel vertical migrations of Mysis diluviana, coregonine fishes, and siscowet lake trout in the pelagia of Western Lake Superior. Transactions of the American Fisheries Society 140: 1504–1520.CrossRefGoogle Scholar
- Audzijonytė, A. & R. Väinölä, 2005. Diversity and distributions of circumpolar fresh- and brackish-water Mysis (Crustacea: Mysida): descriptions of M. relicta Lovén, 1862, M. salemaai n. sp., M. segerstralei n. sp. and M. diluviana n. sp., based on molecular and morphological characters. Hydrobiologia 544: 89–141.CrossRefGoogle Scholar
- Bowers, J., 1988. Diel vertical migration of the Opossum Shrimp Mysis relicta in Lake Superior: observations and sampling from the Johnson-Sea-Link II submersible. Bulletin of Marine Science 43: 730–738.Google Scholar
- Ellis, B. K., J. A. Stanford, D. Goodman, C. P. Stafford, D. L. Gustafson, D. A. Beauchamp, D. W. Chess, J. A. Craft, M. A. Deleray & B. S. Hansen, 2011. Long-term effects of a trophic cascade in a large lake ecosystem. Proceedings of the National Academy of Sciences of the United States of America 108: 1070–1075.CrossRefPubMedPubMedCentralGoogle Scholar
- Fox, J., & S. Weisburn, 2011. An R Companion to Applied Regression. http://socserv.socsci.mcmaster.ca/jfox/Books/Companion.
- Holliland, P. B., I. Ahlbeck, E. Westlund & S. Hansson, 2012. Ontogenetic and seasonal changes in diel vertical migration amplitude of the calanoid copepods Eurytemora affinis and Acartia spp. in a coastal area of the northern Baltic proper. Journal of Plankton Research 34: 298–307.CrossRefGoogle Scholar
- Johannsson, O. E., M. F. Leggett, L. G. Rudstam, M. R. Servos, A. M. Mohammadian, G. Gal, R. M. Dermott & R. H. Hesslein, 2001. Diet of Mysis relicta in Lake Ontario as revealed by stable isotope and gut content analysis. Canadian Journal of Fisheries and Aquatic Sciences 58: 1975–1986.CrossRefGoogle Scholar
- Kelly, J. R., P. M. Yurista, S. E. Miller, A. C. Cotter, T. C. Corry, J. S. Scharold, M. E. Siersen, E. J. Isaac & J. D. Stockwell, 2011. Challenges to lake superior’s condition, assessment, and management: a few observations across a generation of change. Aquatic Ecosystem Health and Management 14: 332–344.CrossRefGoogle Scholar
- Kitchell, J. F., S. P. Cox, C. J. Harvey, T. B. Johnson, D. M. Mason, K. K. Schoen, K. Aydin, C. Bronte, M. Ebener, M. Hansen, M. Hoff, S. Schram, D. Schreiner & C. J. Walters, 2000. Sustainability of the Lake Superior fish community: interactions in a food web context. Ecosystems 3: 545–560.CrossRefGoogle Scholar
- Ogle, D. H., 2014. FSA: Fisheries Stock Analysis.Google Scholar
- R Core Team., 2015. R: A Language and Enviornment for Satistical Computing. R Foundation for Satisical Computing, Vienna. http://www.r-project.org/.
Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.
