Identification of high-mannose and multiantennary complex-type N-linked glycans containing α-galactose epitopes from Nurse shark IgM heavy chain

Glycoconjugate Journal volume 26, Article number: 1055 (2009) Cite this article

Abstract

MALDI-TOF mass spectrometry, negative ion nano-electrospray MS/MS and exoglycosidase digestion were used to identify 36 N-linked glycans from 19S IgM heavy chain derived from the nurse shark (Ginglymostoma cirratum). The major glycan was the high-mannose compound, Man6GlcNAc2 accompanied by small amounts of Man5GlcNAc2, Man7GlcNAc2 and Man8GlcNAc2. Bi- and tri-antennary (isomer with a branched 3-antenna) complex-type glycans were also abundant, most contained a bisecting GlcNAc residue (β1→4-linked to the central mannose) and with varying numbers of α-galactose residues capping the antennae. Small amounts of monosialylated glycans were also found. This appears to be the first comprehensive study of glycosylation in this species of animal. The glycosylation pattern has implications for the mechanism of activation of the complement system by nurse shark IgM.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig 1

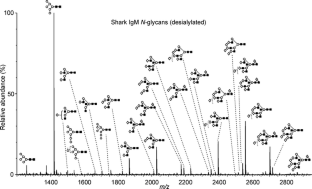

Fig 2

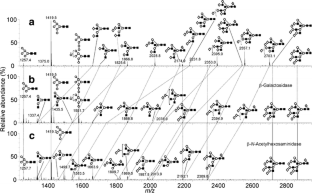

Fig 3

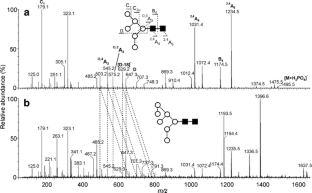

Fig 4
Fig 5

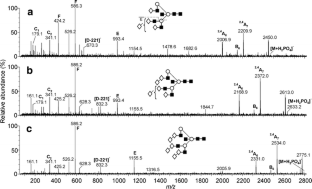

Fig 6
Fig 7

Abbreviations

ABS:

Arthrobacter ureafaciens sialidase

BTG:

bovine testis β-galactosidase

CBG:

Green coffee-bean α-galactosidase

DHB:

dihydroxybenzoic acid

dHex:

deoxy-hexose

EDTA:

ethylenediamine tetra-acetic acid

Gal:

galactose

GlcNAc:

N-acetylglucosamine

Hex:

hexose

HexNAc:

N-acetylhexosamine

IgM:

immunoglobulin M

MALDI:

matrix-assisted laser desorption/ionization

Man:

mannose

MBL:

mannose-binding lectin

MS:

mass spectrometry

PAGE:

polyacrylamide gel electrophoresis

PNGase:

protein N-glycosidase

Q:

quadrupole

SDS:

sodium dodecylsulphate

SPH:

Streptococcus pneumoniae β-N-acetylhexosaminidase

TOF:

time-of-flight

References

  1. Clem, I.W., Boutaud, F., Sigel, M.M.: Phylogeny of immunoglobulin structure and function. II. Immunoglobulins of the nurse shark. J. Immunol. 99, 1226–1235 (1967)

    CAS  PubMed  Google Scholar

  2. Rumfelt, L.L., Diaz, M., Lohr, R.L., Mochon, E., Flajnik, M.F.: Unprecedented multiplicity of Ig transmembrane and secretory mRNA forms in the cartilaginous fish. J. Immunol. 173, 1129–1139 (2004)

    CAS  PubMed  Google Scholar

  3. Clerx, J.P.M., Castel, A., Bol, J.F., Gerwig, G.J.: Isolation and characterization of the immunoglobulin of pike (Esox lucius L.). Vet. Immunol. Immunopathol. 1, 125–144 (1980). doi:10.1016/0165-2427(80)90003-3

    Article  CAS  PubMed  Google Scholar

  4. Magnadóttir, B., Gudmundsdóttir, B.K., Gudmundsdóttir, S.: The carbohydrate moiety of IgM from Atlantic salmon (Salmo salar L.). Comp. Biochem. Physiol. B 116, 423–430 (1997). doi:10.1016/S0305-0491(96)00264-7

    Article  Google Scholar

  5. Magnadóttir, B., Crispin, M., Royle, L., Colominas, C., Harvey, D.J., Dwek, R.A., Rudd, P.M.: The carbohydrate moiety of serum IgM from Atlantic cod (Gadus morhua L.). Fish Shellfish Immunol. 12, 209–227 (2002). doi:10.1006/fsim.2001.0364

    Article  PubMed  Google Scholar

  6. Rumfelt, L.L., Avila, D., Diaz, M., Bartl, S., McKinney, E.C., Flajnik, M.F.: A shark antibody heavy chain encoded by a nonsomatically rearranged VDJ is preferentially expressed in early development and is convergent with mammalian IgG. Proc. Natl. Acad. Sci. USA 98, 1775–1780 (2001). doi:10.1073/pnas.98.4.1775

    Article  CAS  PubMed  Google Scholar

  7. Harvey, D.J.: Fragmentation of negative ions from carbohydrates: Part 1; Use of nitrate and other anionic adducts for the production of negative ion electrospray spectra from N-linked carbohydrates. J. Am. Soc. Mass Spectrom. 16, 622–630 (2005). doi:10.1016/j.jasms.2005.01.004

    Article  CAS  PubMed  Google Scholar

  8. Harvey, D.J.: Fragmentation of negative ions from carbohydrates: Part 2, Fragmentation of high-mannose N-linked glycans. J. Am. Soc. Mass Spectrom. 16, 631–646 (2005). doi:10.1016/j.jasms.2005.01.005

    Article  CAS  PubMed  Google Scholar

  9. Harvey, D.J.: Fragmentation of negative ions from carbohydrates: Part 3, Fragmentation of hybrid and complex N-linked glycans. J. Am. Soc. Mass Spectrom. 16, 647–659 (2005). doi:10.1016/j.jasms.2005.01.006

    Article  CAS  PubMed  Google Scholar

  10. Dodds, A.W., Smith, S.L., Levine, R.P., Willis, A.C.: Isolation and initial characterisation of complement components C3 and C4 of the nurse shark and the channel catfish. Dev. Comp. Immunol. 22, 207–216 (1998). doi:10.1016/S0145-305X(98)00002-0

    Article  CAS  PubMed  Google Scholar

  11. Laemmli, U.K.: Cleavage of structural proteins during the assembly of the head of bacteriophage T4. Nature 227, 680–685 (1970). doi:10.1038/227680a0

    Article  CAS  PubMed  Google Scholar

  12. Fairbanks, G., Steck, T.L., Wallach, D.F.: Electrophoretic analysis of the major polypeptides of the human erythrocyte membrane. Biochemistry 10, 2606–2617 (1971). doi:10.1021/bi00789a030

    Article  CAS  PubMed  Google Scholar

  13. Küster, B., Wheeler, S.F., Hunter, A.P., Dwek, R.A., Harvey, D.J.: Sequencing of N-linked oligosaccharides directly from protein gels: In-gel deglycosylation followed by matrix-assisted laser desorption/ionization mass spectrometry and normal-phase high performance liquid chromatography. Anal. Biochem. 250, 82–101 (1997). doi:10.1006/abio.1997.2199

    Article  PubMed  Google Scholar

  14. Börnsen, K.O., Mohr, M.D., Widmer, H.M.: Ion exchange and purification of carbohydrates on a Nafion(R) membrane as a new sample pretreatment for matrix-assisted laser desorption-ionization mass spectrometry. Rapid Commun. Mass Spectrom. 9, 1031–1034 (1995). doi:10.1002/rcm.1290091112

    Article  Google Scholar

  15. Sledge, C., Clem, L.W., Hood, L.: Antibody structure: amino terminal sequences of nurse shark light and heavy chains. J. Immunol. 112, 941–948 (1974)

    CAS  PubMed  Google Scholar

  16. Domon, B., Costello, C.E.: A systematic nomenclature for carbohydrate fragmentations in FAB-MS/MS spectra of glycoconjugates. Glycoconj. J. 5, 397–409 (1988). doi:10.1007/BF01049915

    Article  CAS  Google Scholar

  17. Magnadóttir, B.: Comparison of immunoglobulin (IgM) from four fish species. Icelandic Agric. Sci. 12, 47–59 (1998)

    Google Scholar

  18. Tezuka, T., Taguchi, T., Kanamori, A., Muto, Y., Kitajima, K., Inoue, Y., Inoue, S.: Identification and structural determination of the KDN-containing N-linked glycan chains consisting of bi- and triantennary complex-type units of KDN-glycoprotein previously isolated from rainbow trout vitelline envelopes. Biochemistry 33, 6495–6502 (1994). doi:10.1021/bi00187a016

    Article  CAS  PubMed  Google Scholar

  19. Smith, S.L.: Shark complement: an assessment. Immunol. Rev. 166, 67–78 (1998). doi:10.1111/j.1600-065X.1998.tb01253.x

    Article  CAS  PubMed  Google Scholar

  20. Duncan, A.R., Winter, G.: The binding site for C1q on IgG. Nature 332, 738–740 (1988). doi:10.1038/332738a0

    Article  CAS  PubMed  Google Scholar

  21. Matsushita, M., Matsushita, A., Endo, Y., Nakata, M., Kojima, N., Mizuochi, T., Fujita, T.: Origin of the classical complement pathway: Lamprey orthologue of mammalian C1q acts as a lectin. Proc. Natl. Acad. Sci. USA 101, 10127–10131 (2004). doi:10.1073/pnas.0402180101

    Article  CAS  PubMed  Google Scholar

  22. Arnold, J.N., Wormald, M.R., Sim, R.B., Rudd, P.M., Dwek, R.A.: The impact of glycosylation on the biological function and structure of human immunoglobulins. Annu. Rev. Immunol. 25, 21–50 (2007). doi:10.1146/annurev.immunol.25.022106.141702

    Article  CAS  PubMed  Google Scholar

  23. Takahashi, M., Iwaki, D., Matsushita, A., Nakata, M., Matsushita, M., Endo, Y., Fujita, T.: Cloning and characterization of mannose-binding lectin from lamprey (Agnathans). J. Immunol. 176, 4861–4868 (2006)

    CAS  PubMed  Google Scholar

Download references

Acknowledgements

We thank the Wellcome Trust and the Biotechnology and Biological Sciences Research Council for equipment grants to purchase the Q-Tof and TofSpec mass spectrometers respectively. SS was supported by NIH/MBRS grant SO6 GM008205.

Author information

Affiliations

  1. Oxford Glycobiology Institute, Department of Biochemistry, University of Oxford, South Parks Road, Oxford, OX1 3QU, UK

    David J. Harvey & Raymond A. Dwek

  2. Division of Structural Biology, Wellcome Trust Centre for Human Genetics, University of Oxford, Roosevelt Drive, Headington, Oxford, OX3 7BN, UK

    Max Crispin

  3. MRC Immunochemistry Unit, Department of Biochemistry, University of Oxford, South Parks Road, Oxford, OX1 3QU, UK

    Beryl E. Moffatt & Robert B. Sim

  4. Department of Biological Sciences, Florida International University, Miami, FL, 33199, USA

    Sylvia L. Smith

  5. National Institute for Bioprocessing, Research and Training (NIBRT), Conway Institute, University College Dublin, Belfield, Dublin 4, Ireland

    Pauline M. Rudd

Authors
  1. David J. Harvey
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Max Crispin
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Beryl E. Moffatt
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Sylvia L. Smith
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Robert B. Sim
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Pauline M. Rudd
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Raymond A. Dwek
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to David J. Harvey.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Harvey, D.J., Crispin, M., Moffatt, B.E. et al. Identification of high-mannose and multiantennary complex-type N-linked glycans containing α-galactose epitopes from Nurse shark IgM heavy chain. Glycoconj J 26, 1055 (2009). https://doi.org/10.1007/s10719-008-9226-5

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1007/s10719-008-9226-5

Keywords

  • Nurse shark
  • N-Glycans
  • MALDI mass spectrometry
  • Negative ion fragmentation
  • α-Galactose
