Original Article

Abstract

EUSO-Balloon is a pathfinder for JEM-EUSO, the Extreme Universe Space Observatory which is to be hosted on-board the International Space Station. As JEM-EUSO is designed to observe Ultra-High Energy Cosmic Rays (UHECR)-induced Extensive Air Showers (EAS) by detecting their ultraviolet light tracks “from above”, EUSO-Balloon is a nadir-pointing UV telescope too. With its Fresnel Optics and Photo-Detector Module, the instrument monitors a 50 km2 ground surface area in a wavelength band of 290–430 nm, collecting series of images at a rate of 400,000 frames/sec. The objectives of the balloon demonstrator are threefold: a) perform a full end-to-end test of a JEM-EUSO prototype consisting of all the main subsystems of the space experiment, b) measure the effective terrestrial UV background, with a spatial and temporal resolution relevant for JEM-EUSO. c) detect tracks of ultraviolet light from near space for the first time. The latter is a milestone in the development of UHECR science, paving the way for any future space-based UHECR observatory. On August 25, 2014, EUSO-Balloon was launched from Timmins Stratospheric Balloon Base (Ontario, Canada) by the balloon division of the French Space Agency CNES. From a float altitude of 38 km, the instrument operated during the entire astronomical night, observing UV-light from a variety of ground-covers and from hundreds of simulated EASs, produced by flashers and a laser during a two-hour helicopter under-flight.

Keywords

UHECR Air-fluorescence JEM-EUSO Balloon experiment

1 Context

EUSO-Balloon is developed by the JEM-EUSO collaboration as a demonstrator for the key technologies and methods featured in the forthcoming space instrument [1]. JEM-EUSO is designed to observe ultra high-energy cosmic rays (UHECRs) by looking downward to the Earth’s atmosphere from the ISS, observing the UV fluorescence light of UHECR-induced Extensive Air Showers (EAS). This volume contains a number of detailed articles on JEM-EUSO, notably its status [1], the science case [2, 3], and an overview on the instruments [4].

Whereas the physics and the detection technique of EAS through ultraviolet light (UV) emission is well established and used daily in ground based detectors (see e.g. the Pierre Auger Observatory [5], or the Telescope Array [6]), their observation from space has never been performed. Thorough knowledge of the earth’s UV background, and particularly its spatial and temporal variability, is an important prerequisite for the JEM-EUSO mission. Like JEM-EUSO, EUSO-Balloon is a nadir-pointing UV telescope, monitoring the atmosphere from above. Although observing from a float altitude of “only” ∼40 km, EUSO-Balloon performs a full scale end-to-end test of all the key technologies and instrumentation for the JEM-EUSO mission—as well as any future mission dedicated to the observation of extensive air showers from space.

The EUSO-Balloon mission has been proposed in 2011 to the French Space Agency CNES by the three French laboratories (APC, IRAP and LAL) involved in the international JEM-EUSO collaboration. All relevant institutions and international partners within the JEM-EUSO collaboration contribute to the instrument (Table 1) according to their corresponding tasks and responsibilities within JEM-EUSO. As a CNES-led project, EUSO-Balloon was kicked off in September 2011 and went through a phase A study, demonstrating its feasibility by the end of the same year. The instrument definition (phase B) was carried out in 2012, with the production and the qualification of crucial subsystems (PDM, DP—see below) being led in parallel by the institutes of the JEM-EUSO collaboration. The manufacturing of all the subsystems was accomplished by the end of 2013, and the instrument was integrated and tested by June 2014.
Table 1

Responsibilities in the procurement and delivery of the various components of the EUSO-Balloon instrument, and the LASER/flasher tests during the Timmins flight

System

Sub-assembly

Lab / University

Country

Telescope

Fresnel Lenses

RIKEN

Japan



Lens Fitting

IRAP

France



Telescope Structure / Gondola

IRAP

France

PDM

Multi-Anode Photo-Multipliers

RIKEN

Japan



ASIC

LAL

France



Elementary Cell

LAL, KIT

France, Germany



HV Power Supply and Switches

NCBJ, APC

Poland, France



PDM Board

EWHA

South Korea



PDM Low Power Supply

UNAM

Mexico



PDM Structure

INFN Frascati

Italy

Processor

Main processing unit

INFN Napoli

Italy



Data Storage

INFN Napoli

Italy



Clock Generator

INFN Napoli

Italy



Trigger software

INFN Torino

Italy

Digital

CCB Data Processor

IAAT

Germany



House Keeping Board

UNAM

Mexico



Low Voltage Power Supply

UNAM

Mexico

Battery Pack

Batteries and Controller

UAH, IRAP

Spain, France

IR-CAM

IR Camera

UAH

Spain

Helicopter

UV-LASER, LED and

UHA, CSM

USA

underflight

Xenon flashers



The full names and addresses of the contributing institutions are listed in the end of this article

On August 25, 2014 EUSO-Balloon has performed a successful maiden flight after a launch by the French Space Agency CNES from the Stratospheric Balloon Base in Timmins, Ontario (Ca). The present instrumental paper exposes the objectives of EUSO-Balloon (Section 2); it describes the instrument and its subsystems (Section 3), summarizes the balloon flight of August 2014 (Section 4), and concludes with the perspectives of planned future balloon flights (Section 5). The 2014 balloon flight produced a multitude of results that will be reported in detail in the proceedings of the 34th ICRC [7, 8, 9, 10, 11, 12, 13, 14, 15, 16].

2 Objectives

A) technology demonstrator: Among the crucial technologies that benefit from the balloon flights are the High Voltage (HV) power supplies, the HV switches (HV relays commuting the HV in case a bright atmospheric event comes into the FOV), the Front-End Electronics (including the ASICs and FPGA), the on-board hardware and software algorithms involved in the triggering and recognition of cosmic-ray initiated air showers.

B) data acquisition and background study: An accurate measurement of the background light / airglow in the near UV region is an important prerequisite for the JEM-EUSO mission. Whereas a number of background measurements have been performed by previous balloon missions [17, 18], and even from space [19], no imaging instrument has been employed so far, resulting in “spatial resolutions” that were extremely modest. Localized background signals were washed out by the integration over a large surface and, likewise, temporal variations on small scales were not observable, and thus went unconstrained. The B) objectives are thus:
  • experimental confirmation of the effective background below 40 km observed with a pixel size on ground representative for JEM-EUSO (150 m × 150 m in a ± 5.5 field of view),

  • acquisition of UV signal and background in a format similar to JEM-EUSO,

  • testing of observational modes and switching algorithms,

  • testing/optimizing trigger algorithms with real observations, i.e. different ground-covers and time-variable background,

  • testing of the acquisition capability of the infrared-camera (IRcam).

C) pioneering mission for JEM-EUSO: The ultimate objective for EUSO-Balloon is the actual detection of EASs by looking downward from the edge of space. Since detecting these obviously rare events is unlikely during a first short balloon flight (threshold ≃1018 eV), LASER-induced events provide a proof of principle and a way to calibrate the sensitivity.

3 Overview of the EUSO-Balloon instrument

The general layout of EUSO-Balloon is shown in Fig. 1, its main components are the optical bench and the instrument booth. The main driver for determining the optical specifications—i.e. the pixel size and the field of view—was to observe a representative background within the pixel of a standard JEM-EUSO photodetector module (PDM). The EUSO Simulation and Analysis Framework (ESAF) has been adapted to simulate the response of the instrument (see e.g. [20]). The configuration used for JEM-EUSO has been modified, scaling for the altitude of the instrument, changing the surface parameterization, introducing the new optical system and field of view (see Table 2). An electronic block diagram of the entire instrument, summarizing all subsystems and components is shown in Fig. 2. The development of all components and sub-assemblies is based on similar JEM-EUSO components and sub-assemblies, designed and built entirely within the JEM-EUSO collaboration (see Table 2).

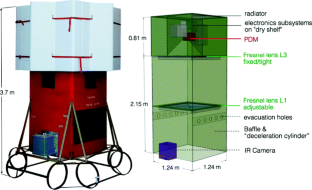

Fig. 1

Left: EUSO-Balloon, ready for its first flight, Timmins, Ontario (Ca), August 2014. Right: schematic view of the instrument booth and optical bench, without floaters and “crash rings”

Table 2

Comparison of the principle characteristics between JEM-EUSO and EUSO-Balloon



JEM-EUSO

EUSO-Balloon

Number of PDMs

137

1

Flight Altitude [km]

420

38

Diameter of Optics [m]

2.5

1

Field of View / PDM

3.8

11

PDM@ground [km]

28.2

7.3

Field of View / pixel

0.08

0.23

Pixel@ground [km]

0.580

0.150

Signal w/r to JEM-EUSOa

1

17.6

BG w/r to JEM-EUSO

1

0.9–1.8

S/\(\sqrt {\mathrm {N}}\) w/r to JEM-EUSOa

1

20-10

Threshold Energy [eV]

3 ⋅1019

1.5–3 ⋅1018

The field of view of EUSO-Balloon—and hence its pixel size—has been dimensioned to see a level of background that is comparable to the one expected for JEM-EUSO

a The Signal is in arbitrary units assuming the same shower energy

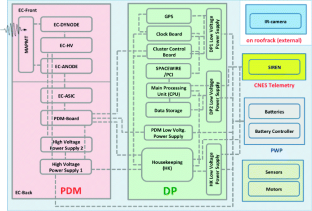

Fig. 2

Functional Block Diagram of the EUSO-Balloon electronics

Besides the focal plane detector (PDM) and associated electronics (DP) which are described below, the instrument booth houses the telemetry system (SIREN), CNES specific instrumentation (ICDV, Hub), and two battery-packs.

3.1 The Photo-Detector Module (PDM)

The UV light collected by the telescope is focused onto—and detected by—the PDM (Fig. 3), which is composed of 36 Multi-Anode Photomultiplier Tubes (MAPMT), associated front-end electronics, High-Voltage Power supplies, and trigger logic. The key characteristics of this UV camera are its spatial resolution of a few mm, its time resolution of a few ns, a quantum efficiency of up to 30 % making possible the detection of single photons, and its wide dynamic range over 6 orders of magnitudes. As the focal plane of JEM-EUSO will consist of 140 closely packed PDMs, the PDM of EUSO-BALLON has a modular design and is four-side buttable, i.e. its compact array of 6×6 MAPMT is covering a detection surface of 16.7 × 16.7 cm2, and it is fully contained in a volume of 17×17×20 cm 3 with its mechanical support and Front-End electronics included. For the various tasks of photodetection, photodetector polarisation, analog processing, and digital processing, the PDM is composed of the following components and subcomponents:
  • 36 MAPMTs organized in,

  • 9 Elementary Cell Units (EC-Units), consisting of 2×2 MAPMTs each,

  • the EC ASIC board for their readout (referred to as the EC-ASIC),

  • the High-Voltage Power Supply (HVPS)

  • the PDM board which includes the FPGA.

Fig. 3

The Photo-Detector Module (PDM): the 36 Multi-Anode Photomultiplier Tubes MAPMTs are covered with UV filters; four MAPMTs form an Elementary Cell (EC). The PDM includes 9 ECs, 6 EC-boards and a PDM board

The MAPMT’s (Hamamatsu R11265-103-M64) have 8 × 8 pixels of 2.9 × 2.9 mm 2 each, and a global footprint of 26.2 × 26.2 mm 2. A UV color glass filter is bonded to the window of the MAPMT with optical glue. The filter (SCHOTT BG3 with anti-reflection coating) transmits UV light in a band between 290 and 430 nm. The Hamamatsu MAPMTs need 14 different high voltages, the highest potential being delivered to the photocathode, the others to the 12 dynodes and the grid. During the flight the photocathode voltage was set to 950 V which corresponds to a gain of 1.1×106.

The EC-Units are fixed individually to the PDM mechanical frame. At the rear of the MAPMT array, 6 EC-ASIC boards are stacked in parallel inside a mechanical frame with their plane perpendicular to the photocathodes’ surfaces. Behind the EC-ASIC stack, the PDM board is fixed with its plane in parallel with the focal surface plane. The HVPS comes in four boxes out of which three are allocated to the nine independent generators and the forth one is dedicated to the control of the switches. The whole EC-Unit block is potted to prevent high voltage sparking at the low-pressure conditions prevailing in the stratosphere.

The EC ASIC is the Front-End electronics performing the MAPMT full-time analog readout, detecting individual photons in each channel in order to count them per unit of time called the Gate Time Unit (1 GTU =2.5 μs), performing the analog to digital conversion. The core of the EC-ASIC is the ASIC called SPACIROC V1 (Spatial Photomultiplier Array Counting and Integrating Readout Chip, see [21]), capable of processing in parallel all the anodes of a single MAPMT. For EUSO-Balloon, the two pulses separation was set at 30 ns which limited the maximum number of counts per channel to 35 per GTU. In parallel to the 64 photoelectron counting channels, a signal integration per GTU on the anode current sum of groups of 8 adjacent pixels is done so as to correct for counting non-linearity and saturation. Each double sided EC-ASIC board hosts 6 ASIC, three per face.

The High-Voltage Power Supply (HVPS) can operate the MAPMT of an EC-Unit either in the standard photoelectron counting mode with high gain, or in reduced downgraded gain modes in order to face bursts of intense light pulses extending over milliseconds or even more. The HVPS consists of a miniaturized Cockroft-Walton (CW) generator [22] which delivers the 14 high voltages, a switch system used to reduce the photocathode voltage to lower the MAPMT gain, and the logic system to manage the interfaces with the other elements of the electronic chain. The HVPS boxes are required to be potted. The advantage of the CW generator is its negligible power consumption—an appreciable feature when working from onboard batteries.

The PDM board handles the interfaces between the various boards in the PDM and the Data Processor (6 EC-ASICs, HVPS in the PDM; the HK and CCB from the DP system—see below). Its core is an industrial Virtex6 XC6VLX240T FPGA. Besides managing the configuration, the PDM board governs the the data stream from the 36 ASICs by means of the 6 EC-ASIC boards. The FPGA has to absorb a data-volume of 1 GBytes per second from the EC-Units, transmitting a part of the data to the Central Cluster Board (CCB) of the DP. During the 2014 flight, the order for data transmission was directly sent by the CCB, based on a CPU request. The various parameters of the PDM’s performance are treated in detail by a number of articles: photoelectron counting rate measurements [23]; sensitivity and detection performances [24]; absolute calibration [25].

3.2 The Data Processor (DP)

The different sub-assemblies of the DP (Fig. 4) collect the PDM data, process them (trigger, time and position-tagging), handle their on-board storage, and send a subset to the telemetry system. The DP also includes the housekeeping system. The Digital Processor (DP) is composed of
  • Control Cluster Board (CCB),

  • CPU,

  • Data storage (DST),

  • Housekeeping system (HK),

  • Clock Board (CLKB),

  • GPS receiver (GPSR),

  • Data Processor Power Supply (DP-LVPS).

Fig. 4

The Data Processor (DP) collects and processes the data from the PDM. It handles their on-board storage, and sends a subset to the telemetry system. The DP also includes the housekeeping system. The various sub-assemblies are contained in an aluminum crate to assure thermal contact with the radiator

The CCB, is developed around an FPGA Xilinx Virtex-4 FX-60, it collects the data from the PDM board, processes and classifies the received data, and performs a second level trigger filtering. The CLKB host the interface with the GPS receiver, it tags the events with their arrival time (UTC) and payload position (both provided by GPSR). It also measures the up-time and dead-time of the instrument and provides signals for time synchronization of the event. As the on-board triggers were not implemented on the 2014 flight, the CLK-Board also generated a “fake trigger signal”, enabling the acquisition of events. In addition to these two main acquisition modes, two trigger modes linked to 1 Pulse Per Second (1 PPS) signal provided by the GPS receiver are implemented. Both of them are optimized in order to synchronize the acquisition with the light emission from calibrated light sources, a laser or a Xenon flasher, installed on the helicopter flying inside the instrument field of view. Most of the functions of the CLKB are implemented in a FPGA Xilinx Virtex-5 XC5VLX50T.

The CPU, based on Atom N270 1.6 GHz processor, collects data from the CCB and CLKB through two (200 Mbits/sec) SpaceWire links. It manages the Mass Memory for data storage and handles the interface with the telecommand/telemetry system. One acquired event represents roughly 330 kB of data. Since only a limited data rate can be transmitted to the ground through CNES’ new NOSYCA telemetry system, all data are stored on board. The mass storage is composed of two Solid-State Drives (SSD), each one with 512 GB capacity operating in fault-tolerant mode RAID 1 disks (Redundant Array of Independent Disks). The House-Keeping system collects telemetry from several sub-systems of the instrument in slow control mode. It is responsible for monitoring voltages and currents of the Low Voltage Power Supply (LVPS), has a serial bus to convey telemetry and telecommands through the CPU interface and to other sub-systems. The HK is implemented around an off-the-shelf micro-controller board (Arduino Mega 2560), combined with 5 custom-made protocol interface boards to pre-process the various signals. The power is provided to the LV board and the HK board by two 28 V battery packs; the total power consumption of the electronics (DP and PDM is to much) being 70 W. A detailed description of the DP and its performance is given in [26].

3.3 The optics

The optical bench contains two Fresnel lenses made of 8 mm thick PMMA (UV transmitting polymethyl-methacrylate) with a front surface of 100×100 cm2 each. The EUSO-Balloon optics has been designed to resemble the JEM-EUSO optics: it is dimensioned to produce background rates per pixel comparable to the one anticipated for JEM-EUSO (i.e. roughly 1–1.5 photoelectrons per pixel in a 2.5 μsec frame). A ray tracing diagram of the optical bench is shown in Fig. 5: L1 and L3 are aspherical Fresnel Lenses with focal lengths of 258.56 cm and 60.02 cm, respectively (focal lengths are reference values only, single lenses are not producing stigmatic images). The position of L1 can be adjusted along the optical (Z) axis within the optical bench, the focal distance of the PDM is adjusted by a translation stage in the instrument boot. Together with the 15 × 15 cm2 focal plane detector (PDM, see above) the optics provides a field of view of ± 5.5. A detailed description of the design and manufacturing of the balloon optics is given in [27] and [28]. The measurements of the performance of the fully integrated optical bench (global optical efficiency and point spread function) were performed at IRAP Toulouse and are reported in [29].
Fig. 5

Left: raytracing diagram for the EUSO-Balloon optics with the Fresnel Lenses L1 and L3, and the focal surface FS; the incident rays are at off-axis angles ranging from 0 (blue) to 1 (green), 2 (red) 3 (yellow) and 4 (purple); inserts show partial sectional views of L1 and L3; right: the Fresnel lenses L1 and L3 (8 mm thick PMMA, surface of 1 × 1 m2) mounted onto their fiberglass frames and spiders, and held at a distance of 1.11 m by an optical “sled”

3.4 The Infrared Camera (IRcam)

In order to monitor the cloud covers and particularly their height, the co-aligned IRcam (Fig. 6) observes the field of view of the main instrument. The general design of the IRcam is similar to the one used on JEM-EUSO [30]. The camera provides images with a resolution of 640 × 480 pixels, in two wavelength bands centered at 10.8 μ and 12 μ (medium infrared), thanks to a ULIS UL 04171 microbolometer and two filters with 0.85 μm bandwidth, centered on the above wavelengths. The data from the IRcam, along with auxiliary data (temperature, pressure and humidity), are stored in a RAID1 configuration of 2 SSD of 32 GB of capacity. The entire stand-alone IRcam system, including CPU and batteries, is housed in a rugged aluminium box (0.4 × 0.4 × 0.4 m3) on the outside of the optical bench (see Fig. 1). A detailed description of the IRcam is presented in [31], its performance is detailed in [32].
Fig. 6

Left: block diagram of the stand-alone IRcam system; right: the rugged watertight aluminium housing (0.4 × 0.4 × 0.4 m) of the IRcam with the IRX CAM640 in its lower left side

3.5 The gondola

The particular configuration of the nadir pointing instrument allowed to design a simple telescope structure serving simultaneously as a ballon gondola. The structure consists of two main modules, the optical bench and the instrument booth (see Fig. 1), both built from 10 mm Fibrelam aerospace panels assembled by Fribrolux L profiles. Fibrelam panels are manufactured from honeycomb that is bonded between composite facing skins; they are light-weight, structurally sound and exceptionally stiff. The dimensions of the fibrelam-telescope itself are 1.21 × 1.21 × 2.90 m3, the size of the flight-ready gondola is 2.58 × 2.58 × 3.7 m3, including “crash-rings” and floaters. The overall launch mass of the integrated instrument is 467 kg.

Inside the self-contained, watertight instrument booth, all electronic equipment is mounted on a system of aluminum “shelves” that provides a thermal link to the 1.2 × 1.2 m2 aluminum backplate (also called radiator). As the flight chain and harness interface to this backplate, it gets almost all the mechanical efforts at the opening shock of the parachutes. The entire gondola has been designed to withstand accelerations of up to 15 g along the Z-axis, and 5 g in transverse (X,Y) directions. Besides its role as a structural element, the role of the radiator is to evacuate the excess energy generated by the electronics towards outer space.

A thermo-mechanical analysis of the instrument was performed to ensure the operation of the various electronic sub-systems in near vacuum conditions within their admissible range (−20C to 30C), and to check the mechanical behavior and integrity of the telescope structure in extreme “hot” and “cold” flight scenarios.

The two Fresnel lenses (see above) and their mechanical supports are fixed within the optical bench so that the focal surface coincides with the photocathodes of the Photo-Detector Module. While the rear Fresnel lens (L3) is fixed, closing the watertight instrument booth, the front lens (L1) can be adjusted along the optical (Z) axis; the PDM is mounted on a translation stage, allowing to adjust the distance between PDM and rear lens (L3).

Instead of “classic” crash-pads made of layered cardboard-honeycomb, EUSO-Balloon is using an ensemble of aluminium “crash-rings”, designed to absorb the kinetic energy on ground impact through inelastic distortion (Fig. 1). Due to the coincidence of a science requirement and a safety constraint, EUSO-Balloon has deliberately been designed to protect all sensitive equipment in the event of a water-landing.

In EUSO-Balloon, a number of independent features (Fig. 7) maximize the chances for recovering all sensitive equipment in working condition: 1) To minimize damage to the payload and warrant the integrity of the instrument booth at splashdown, efficient deceleration is achieved by using the instruments optical baffle as a “deceleration-cylinder”; the pressure of the air-cushion in the enclosed volume being passively controlled by calibrated evacuation-holes; 2) the entire instrument booth is held above the waterline by a collar of floaters, whatever the orientation of the gondola in the water may be; 3) during splashdown the instrument booth will be at least immersed partially (and the submersion may become permanent if the floaters are damaged on impact). All electronics are therefore hosted within the instrument booth which is built as a watertight capsule, using the third Fresnel lens (L3) as a porthole; 4) all sensitive equipment is mounted on a “dry-shelf” with limber-holes, keeping the electronics clear from the inside walls of the instrument booth where eventual capillary water might accumulate.
Fig. 7

The features making EUSO-Balloon survive a water-landing: 1) “deceleration-cylinder”, 2) collar of floaters, 3) watertight instrument booth using the third Fresnel lens (L3) as a porthole, 4) electronics is mounted on a “dry-shelf” above eventual capillary water—see text

On its maiden flight in August 2014, EUSO-Balloon not only accomplished its science goals, but it also accidentally splashed down into a tiny solitary lake (barely bigger than two football fields) validating the water-landing capabilities it was designed for in the first place.

4 The 2014 ballon flight from Timmins, Ontario

On August 25, 2014 EUSO-Balloon was launched from the Timmins Stratospheric Balloon Base (lat 48.57 N, lon 81.38 W). Thanks to the auxiliary balloon technique routinely used by CNES the entire launch-operations went very smoothly (Fig. 8). The 467 kg payload was lifted from the airfield by a 400,000 m 3 Zodiac balloon at 0:53 UT, reaching a float altitude of 38300 m at 3:43 UT (see Fig. 9 for a map with the flight path). The high-voltages of the PDM had already been switched on at 2:50 UT, at an altitude of 32 km, when the balloon was still on its ascent. Telemetry data rapidly indicated that all systems were operating flawlessly, and soon the city-lights of Timmins came into the field of view at the saturation level, confirming that the PDM was in good health and was taking UV images. During more than five hours of operation at float, a total of 258,592 data-packets, corresponding to roughly 33 million frames (GTU’s) were recorded and written onto the two redundant hard-drives onboard. With the NOSYCA (S-band) telemetry system featuring a data rate of ≤1,75 Mb/s, about one million frames (GTU’s) were transmitted to the ground during the flight. The largest part of the science harvest, however, resided on the two hard-drives onboard, and therefore relied upon a safe landing and recovery.

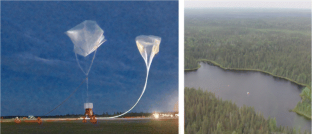

Fig. 8

Left: Timmins (Ontario, Canada) Stratospheric Balloon Base, August 25, 2014, 0:53 UT: the perfect launch of EUSO-Balloon by the balloon division of the French Space Agency CNES, the auxiliary balloons (above the payload in the picture) warrant a smooth launch even in case of moderate surface winds. Right: the instrument floating in the middle of “Lake Euso” after splashing down at 8:59 UT. All systems survived the impact and more than eight hours in the water thanks to a dedicated “water-landing” design

Fig. 9

The flight-track of EUSO-Balloon on August 25, 2014 (yellow)—float altitude was 38 km. The helicopter carrying the UV laser and two UV flashers followed the balloon for over two hours at an altitude of 3000 m (red)

The moonless night of August 24/25 provided optimal conditions for the study of the UV background: a variety of ground covers have been overflown—including different types of soil and vegetation, wetlands, open water, urban and industrial areas, and various types of clouds. As it seemed unlikely to detect cosmic-ray induced air showers during this first short balloon flight, a pulsed UV laser and two UV flashers (LED and Xe) were shot into the field of view from a helicopter to simulate tracks of UV fluorescence photons, providing a means for the absolute calibration of the instrument [12]. The helicopter followed the balloon for over two hours, flying circles along the flight track at an altitude of 3000 m (Fig. 9).

Towards the end of the astronomical night at 8:20 UT, the flight was terminated (separation between the balloon and the instrument which descends on a parachute) about 100 km to the west of Timmins. Despite a descent path guaranteeing one of the “driest” landing zones along the flight track, EUSO-Balloon and the entire flight train splashed down in a small solitary lake at 8:59 UT. An adventurous recovery was performed by a crew of trappers, EUSO members, and with the help of a helicopter. Thanks to its inborn design for water-landings, the entire instrument was undamaged, both lenses were intact, the electronics, IRcam, and the RAID disks had not suffered any water damage and were fully operational.

4.1 Summary of the first results

As the present article focuses on the description of the instrument, the results of the Timmins flight are merely summarized here. For a general overview of the preliminary results, the reader is referred to [7]. A first estimate of the UV background in a clear atmosphere—and with the presence of clouds—has been performed by [9]. By comparing UV and IR images the authors reveal a strong dependence of the upward UV radiance on the atmospheric conditions. Close to 300 laser-shots produced during the helicopter underflight were detected by processing the complete flight data set with algorithm foreseen for the 1st level trigger of JEM-EUSO [11]. The detailed analysis of these laser-shots (determining the Shower Detector Plane and the time projection of the track onto this plane) allowed to reconstruct the laser directions to within a few degrees in 3D [8]. The absolute calibration of the entire EUSO-Balloon system through the airborne light sources (laser, flashers) has been performed by [12]. Detailed simulations of the full instrument (including detection, efficiencies atmospheric absorption etc.) have been performed by [34] to reconstruct the shower profile, deduce the energy and direction resolution, and evaluate the performance of the trigger algorithm. An analysis of the flight data within the Offline framework, and comparing them with simulations, is presented in [13]. Images from the IRcam were used to retrieve the cloud coverage and the Cloud Top Height during times the UV flashers were operated, with the goal to infer the UV optical depth when the atmosphere was not clear [14]. An accurate method for extracting Cloud Top Heights via vertical profiles predicted by the WRF model is developed in [15]. The reliability of this model for the modeling of atmospheric properties has been tested by [16]. Finally, the sensitivity of the instrument to coherent fluctuations of the UV background is investigated over large areas, on timescales ranging from a few microseconds to a few seconds, with the goal to search for significant variations [10].

5 Conclusions and perspectives

With its EUSO-Balloon flight in 2014, our collaboration has made a giant step towards demonstrating the key technologies and methods featured in JEM-EUSO. An ample part of the technological objectives (“A” objectives, see Section 2) have been achieved during this flight, and the UV background was studied from a variety of ground covers (“B” objectives). The detection of hundreds of laser-shots produced during the helicopter underflight has already partly fulfilled the “C” objectives, namely the detection of (simulated) Extensive Air Showers from above.

In order to achieve the ultimate objective (“C”) of EUSO-Balloon, i.e. the first observation of UHECR induced Extensive Air Showers, the collaboration is planning two further balloon flights [33].

A first short flight will be carried out possibly as early as June 2016 with a launch from the CNES balloon-base in Aire-sur-l’Adour (France). The main goal is to test both an improved PDM and an achromatic optical bench, measure background above the Atlantic Ocean as well as simulated EASs (laser/flashers flown on an airplane), and validate strategies for the recovery of hardware and data in a planned splashdown at high sea.

Even tough the performance of the instrument was adequate for the objectives of the Timmins flight, a number of issues need to be ameliorated. The most important improvements for the PDM concern the FPGA, the ASIC and a simplification of the HV electrical architecture. The new firmware and resource allocation implemented in a more performant FPGA will handle a first level trigger, allowing for the detection on-board of EASs (and incidentally dramatically reduce the data volume to be transmitted to the ground). The new ASIC (SPACIROC V3) will enhance the double pulse separation capability from 30 ns to 10 ns resolution, extending the dynamic range for photoelectron counting by a factor 3, from 35 counts per GTU to 100 counts per GTU. A simplified electrical architecture of the HV will permit to run the MAPMTs at −1100 V (instead of the −950 V for the Timmins flight), resulting in a gain of G = 5 × 106, amply reducing electronic noise and facilitate separation from single photoelectron signal. The main improvement of the optics is the addition of a flat diffractive lens (L2) between L1 and L3 which will correct the chromatic aberration of the system, and obtain a small RMS spot size of ∼3 mm (pixel size of the PDM).

The second long or ultra-long duration balloon (ULDB) flight shall achieve our ultimate goal, i.e. measuring a significant sample of UHECR induced tracks of UV light “from above”. The flight could take place in spring 2017, most likely with a launch from the recently inaugurated base at Wanaka (NZ) by the Columbia Scientific Balloon Facility (CSBF/NASA). For this flight, the instrument will be supplemented with solar panels and a power management system guaranteeing virtually unlimited continuous operation. The trigger efficiency has been determined as a function of energy by [35], deriving the number of triggered EASs that can be expected during an ULDB flight in the range 1017 to 1019 eV. EUSO-Balloon has the potential to detect for the first time UV-light generated by atmospheric air-showers from near space. This milestone represents an important breakthrough in the development of UHECR science, paving the way for JEM-EUSO, and for any future space-based Cosmic Ray observatory.

Notes

Acknowledgments

The authors acknowledge strong support from the French Space Agency CNES who provided—besides funding—the leadership that made this achievement possible in a very short time. We are indebted to the balloon division of CNES for a perfect launch, smooth flight operation and flawless telemetry. The Canadian Space Agency has provided outstanding facilities at the Timmins Stratospheric Balloon Base, and a quick and careful recovery of the instrument. We would like to thank our laboratories and the entire JEM-EUSO collaboration for their strong and undivided support all along this project.

This work was partially supported by Basic Science Interdisciplinary Research Projects of RIKEN and JSPS KAKENHI Grant (22340063, 23340081, and 24244042), by the Italian Ministry of Foreign Affairs and International Cooperation by the ‘Helmholtz Alliance for Astroparticle Physics HAP’ funded by the Initiative and Networking Fund of the Helmholtz Association, Germany, and by Slovak Academy of Sciences MVTS JEM-EUSO as well as VEGA grant agency project 2/0076/13. The Spanish consortium involved in the JEM-EUSO Space Mission is funded by MICINN under projects AYA2009- 06037-E/ESP, AYA-ESP 2010-19082, AYA2011-29489-C03- 01, AYA2012-39115-C03-01, CSD2009-00064 (Consolider MULTIDARK) and by Comunidad de Madrid (CAM) under project S2009/ESP-1496.

References

  1. 1.
    Adams, J.H. et al. (The JEM-EUSO Collaboration): The JEM-EUSO mission, this volumeGoogle Scholar
  2. 2.
    Adams, J.H. et al. (The JEM-EUSO Collaboration): Ultra High Energy Cosmic Rays studies with the JEM-EUSO mission, this volumeGoogle Scholar
  3. 3.
    Adams, J.H. et al. (The JEM-EUSO Collaboration): Ultra High Energy Photons and Neutrinos with JEM-EUSO, this volumeGoogle Scholar
  4. 4.
    Adams, J.H. et al. (The JEM-EUSO Collaboration): An overview of the JEM-EUSO instrument, this volumeGoogle Scholar
  5. 5.
    The Pierre Auger Collaboration: Measurement of the energy spectrum of cosmic rays above 1018 eV using the Pierre Auger Observatory. Phys. Lett. B 685, 239–246 (2010)CrossRefADSGoogle Scholar
  6. 6.
    Fukushima, M.: for the Telescope Array Collaboration: Proc. ISVHECRI-2014 symposium at CERN, arXiv: 1503.06961, Recent Results from Telescope Array (2015)
  7. 7.
    Bertaina, M., et al.: Proc. 34th ICRC, Preliminary results from the EUSO-Balloon flight (2015)Google Scholar
  8. 8.
    Eser, J., et al.: Proc. 33rd ICRC. Laser direction reconstruction in EUSO-Balloon experiment (2015)Google Scholar
  9. 9.
    Mackovjak, S., et al.: Proc. 34th ICRC. Night time measurement of the UV background by EUSO-Balloon (2015)Google Scholar
  10. 10.
    Jung, J., et al.: Proc. 34th ICRC. Search for significant background fluctuations in the EUSO-Balloon data (2015)Google Scholar
  11. 11.
    Suino, G., et al.: Proc. 34th ICRC. Tests of JEM-EUSO 1st level trigger using EUSO-Balloon data (2015)Google Scholar
  12. 12.
    Adams, J., et al.: Proc. 34th ICRC. The Calibration of EUSO-Balloon using airborne light sources mounted to a Helicopter (2015)Google Scholar
  13. 13.
    Panico, B., et al.: Proc. 34th ICRC. Analysis of EUSO-Balloon data with Offline (2015)Google Scholar
  14. 14.
    Saez, G., et al.: Proc. 34th ICRC. Cloud Optical Depth obtained from the IR Camera data and the UV Flashers flying under the EUSO-Balloon (CNES) (2015)Google Scholar
  15. 15.
    Merino, A., et al.: Proc. 34th ICRC. Cloud top height estimation from WRF model: application to the infrared camera onboard EUSO-Balloon (CNES) (2015)Google Scholar
  16. 16.
    Tabone, I., et al.: Proc. 34th ICRC. The WRF model contribution to the atmospheric conditions estimation during the EUSO-Balloon experiment (2015)Google Scholar
  17. 17.
    Catalano, O., et al.: The atmospheric nightglow in the 300–400 nm wavelength: results by the balloon-borne experiment BABY. Nucl. Inst. Methods A 480, 547–554 (2002)CrossRefADSGoogle Scholar
  18. 18.
    Barbier, M., et al.: NIGHTGLOW: An instrument to measure the Earth’s nighttime ultraviolet glow—results from the first engineering flight. Astropart. Phys. 22, 439–449 (2005)CrossRefADSGoogle Scholar
  19. 19.
    Garipov, G.K., et al.: UV radiation from the atmosphere: results of the MSU Tatiana satellite measurements. Astropart. Phys. 24, 400–408 (2005)CrossRefADSGoogle Scholar
  20. 20.
    Mernik, T., et al.: Proc. 33rd ICRC (ID777). ESAF-Simulation of the EUSO-Balloon (2013)Google Scholar
  21. 21.
    Ahmad, S., et al.: Proc. 33rd ICRC (ID1089). Performance of the SPACIROC front-end ASIC for JEM-EUSO (2013)Google Scholar
  22. 22.
    Blaksley, C., et al.: Proc. 34th ICRC. A Cockcroft-Walton High-Voltage Power Supply for the EUSO Instruments (2015)Google Scholar
  23. 23.
    Rabanal, J., et al.: Proc. 34th ICRC. Photoelectron counting rate measurements in the UV camera during the EUSO-BALLOON night flight (2015)Google Scholar
  24. 24.
    Dagoret, S., et al.: Proc. 34th ICRC. Determination of the sensitivity and detection performances of the UV camera pixels of the EUSO-BALLOON instrument (2015)Google Scholar
  25. 25.
    Moretto, C., et al.: Proc. 34th ICRC. Absolute calibration of the photon detector module of the EUSO-Balloon experiment and improvements for future missions (2015)Google Scholar
  26. 26.
    Osteria, G. et al.: Proc. 34th ICRC. The Data Processor System of EUSO-Balloon: in flight performance (2015)Google Scholar
  27. 27.
    Takizawa, Y., Zuccaro, A.: Proc. 33rd ICRC (ID832). The TA-EUSO and EUSO-Balloon optics designs (2013)Google Scholar
  28. 28.
    Takizawa, Y., et al.: Proc. 33rd ICRC (ID1040). Manufacturing of the TA-EUSO and the EUSO-Balloon lenses (2013)Google Scholar
  29. 29.
    Catalano, C. et al.: Proc. 34th ICRC. Performance of the EUSO-Balloon optics (2015)Google Scholar
  30. 30.
    Morales, J.A., et al.: Proc. 33rd ICRC (ID514). An end to end simulation code for the IR-Camera of the JEM-EUSO Space Observatory (2013)Google Scholar
  31. 31.
    Rodriguez Firas, M.D., et al.: Proc. 34th ICRC. The Spanish Infrared Camera onboard the EUSO-Balloon (CNES) flight on August 24, 2015 (2015)Google Scholar
  32. 32.
    Fernandez, J., et al.: Proc. 34th ICRC. Performances of the Spanish Infrared Camera onboard the EUSO-Balloon (CNES) flight on August 24, 2014 (2015)Google Scholar
  33. 33.
    Wiencke, L., et al.: Proc. 34th ICRC. EUSO-Balloon mission to record extensive air showers from near space (2015)Google Scholar
  34. 34.
    Fenu, F., et al.: Proc. 34th ICRC. The simulation of cosmic rays in EUSO-Balloon: performance in the direction and energy reconstruction (2015)Google Scholar
  35. 35.
    Bacholle, S., et al.: Proc. 34th ICRC. EUSO-Balloon trigger efficiency in preparation of a long duration flight (2015)Google Scholar

Copyright information

© Springer Science+Business Media Dordrecht 2015

Authors and Affiliations

  • The JEM-EUSO Collaboration
  • J. H. AdamsJr.
    • 76
  • S. Ahmad
    • 3
  • J. -N. Albert
    • 2
  • D. Allard
    • 4
  • L. Anchordoqui
    • 78
  • V. Andreev
    • 77
  • A. Anzalone
    • 18
    • 24
  • Y. Arai
    • 48
  • K. Asano
    • 46
  • M. Ave Pernas
    • 67
  • P. Baragatti
    • 25
  • P. Barrillon
    • 2
  • T. Batsch
    • 59
  • J. Bayer
    • 9
  • R. Bechini
    • 22
  • T. Belenguer
    • 66
  • R. Bellotti
    • 11
    • 12
  • K. Belov
    • 77
  • A. A. Berlind
    • 80
  • M. Bertaina
    • 21
    • 22
  • P. L. Biermann
    • 7
  • S. Biktemerova
    • 61
  • C. Blaksley
    • 4
  • N. Blanc
    • 70
  • J. Błȩcki
    • 60
  • S. Blin-Bondil
    • 3
  • J. Blümer
    • 7
  • P. Bobik
    • 64
  • M. Bogomilov
    • 1
  • M. Bonamente
    • 76
  • M. S. Briggs
    • 76
  • S. Briz
    • 68
  • A. Bruno
    • 11
  • F. Cafagna
    • 11
  • D. Campana
    • 16
  • J. -N. Capdevielle
    • 4
  • R. Caruso
    • 13
    • 24
  • M. Casolino
    • 49
    • 19
  • C. Cassardo
    • 21
    • 22
  • G. Castellinic
    • 14
  • C. Catalano
    • 5
  • G. Catalano
    • 18
    • 24
  • A. Cellino
    • 21
    • 23
  • M. Chikawa
    • 30
  • M. J. Christl
    • 79
  • D. Cline
    • 77
  • V. Connaughton
    • 76
  • L. Conti
    • 25
  • G. Cordero
    • 54
  • H. J. Crawford
    • 73
  • R. Cremonini
    • 22
  • S. Csorna
    • 80
  • S. Dagoret-Campagne
    • 2
  • A. J. de Castro
    • 68
  • C. De Donato
    • 19
  • C. de la Taille
    • 3
  • C. De Santis
    • 19
    • 20
  • L. del Peral
    • 67
  • A. Dell’Oro
    • 21
    • 23
  • N. De Simone
    • 19
  • M. Di Martino
    • 21
  • G. Distratis
    • 9
  • F. Dulucq
    • 3
  • M. Dupieux
    • 1
  • A. Ebersoldt
    • 7
  • T. Ebisuzaki
    • 49
  • R. Engel
    • 7
  • S. Falk
    • 7
  • K. Fang
    • 74
  • F. Fenu
    • 9
  • I. Fernández-Gómez
    • 68
  • S. Ferrarese
    • 21
    • 22
  • D. Finco
    • 25
  • M. Flamini
    • 25
  • C. Fornaro
    • 25
  • A. Franceschi
    • 15
  • J. Fujimoto
    • 48
  • M. Fukushima
    • 33
  • P. Galeotti
    • 21
    • 22
  • G. Garipov
    • 63
  • J. Geary
    • 76
  • G. Gelmini
    • 77
  • G. Giraudo
    • 21
  • M. Gonchar
    • 61
  • C. González Alvarado
    • 66
  • P. Gorodetzky
    • 4
  • F. Guarino
    • 16
    • 17
  • A. Guzmán
    • 9
  • Y. Hachisu
    • 49
  • B. Harlov
    • 62
  • A. Haungs
    • 7
  • J. Hernández Carretero
    • 67
  • K. Higashide
    • 44
    • 49
  • D. Ikeda
    • 33
  • H. Ikeda
    • 42
  • N. Inoue
    • 44
  • S. Inoue
    • 33
  • A. Insolia
    • 13
    • 24
  • F. Isgrò
    • 16
    • 26
  • Y. Itow
    • 40
  • E. Joven
    • 69
  • E. G. Judd
    • 73
  • A. Jung
    • 51
  • F. Kajino
    • 35
  • T. Kajino
    • 38
  • I. Kaneko
    • 49
  • Y. Karadzhov
    • 1
  • J. Karczmarczyk
    • 59
  • M. Karus
    • 7
  • K. Katahira
    • 49
  • K. Kawai
    • 49
  • Y. Kawasaki
    • 49
  • B. Keilhauer
    • 7
  • B. A. Khrenov
    • 63
  • J. -S. Kim
    • 53
  • S. -W. Kim
    • 50
  • S. -W. Kim
    • 52
  • M. Kleifges
    • 7
  • P. A. Klimov
    • 63
  • D. Kolev
    • 1
  • I. Kreykenbohm
    • 6
  • K. Kudela
    • 61
  • Y. Kurihara
    • 48
  • A. Kusenko
    • 77
  • E. Kuznetsov
    • 76
  • M. Lacombe
    • 5
  • C. Lachaud
    • 4
  • J. Lee
    • 52
  • J. Licandro
    • 69
  • H. Lim
    • 52
  • F. López
    • 68
  • M. C. Maccarone
    • 18
    • 24
  • K. Mannheim
    • 10
  • D. Maravilla
    • 54
  • L. Marcelli
    • 20
  • A. Marini
    • 15
  • O. Martinez
    • 56
  • G. Masciantonio
    • 19
    • 20
  • K. Mase
    • 27
  • R. Matev
    • 1
  • G. Medina-Tanco
    • 54
  • T. Mernik
    • 9
  • H. Miyamoto
    • 2
  • Y. Miyazaki
    • 29
  • Y. Mizumoto
    • 38
  • G. Modestino
    • 15
  • A. Monaco
    • 12
  • D. Monnier-Ragaigne
    • 2
  • J. A. Morales de los Ríos
    • 65
    • 67
  • C. Moretto
    • 2
  • V. S. Morozenko
    • 62
  • B. Mot
    • 5
  • T. Murakami
    • 48
  • M. Nagano Murakami
    • 29
  • M. Nagata
    • 34
  • S. Nagataki
    • 37
  • T. Nakamura
    • 57
  • T. Napolitano
    • 15
  • D. Naumov
    • 61
  • R. Nava
    • 54
  • A. Neronov
    • 71
  • K. Nomoto
    • 47
  • T. Nonaka
    • 33
  • T. Ogawa
    • 49
  • S. Ogio
    • 41
  • H. Ohmori
    • 49
  • A. V. Olinto
    • 74
  • P. Orleański
    • 60
  • G. Osteria
    • 16
  • M. I. Panasyuk
    • 63
  • E. Parizot
    • 4
  • I. H. Park
    • 52
  • H. W. Park
    • 52
  • B. Pastircak
    • 61
  • T. Patzak
    • 4
  • T. Paul
    • 78
  • C. Pennypacker
    • 73
  • S. Perez Cano
    • 67
  • T. Peter
    • 72
  • P. Picozza
    • 19
    • 20
    • 49
  • T. Pierog
    • 7
  • L. W. Piotrowski
    • 49
  • S. Piraino
    • 9
    • 18
  • Z. Plebaniak
    • 59
  • A. Pollini
    • 70
  • P. Prat
    • 4
  • G. Prévôt
    • 4
  • H. Prieto
    • 67
  • M. Putis
    • 61
  • P. Reardon
    • 76
  • M. Reyes
    • 69
  • M. Ricci
    • 15
  • I. Rodríguez
    • 68
  • M. D. Rodríguez Frías
    • 67
  • F. Ronga
    • 15
  • M. Roth
    • 7
  • H. Rothkaehl
    • 60
  • G. Roudil
    • 5
  • I. Rusinov
    • 1
  • M. Rybczyński
    • 57
  • M. D. Sabau
    • 66
  • G. Sáez-Cano
    • 67
  • H. Sagawa
    • 33
  • A. Saito
    • 36
  • N. Sakaki
    • 7
  • M. Sakata
    • 35
  • H. Salazar
    • 56
  • S. Sánchez
    • 68
  • A. Santangelo
    • 9
  • L. Santiago Crúz
    • 54
  • M. Sanz Palomino
    • 66
  • O. Saprykin
    • 62
  • F. Sarazin
    • 75
  • H. Sato
    • 35
  • M. Sato
    • 45
  • T. Schanz
    • 9
  • H. Schieler
    • 7
  • V. Scotti
    • 16
    • 17
  • A. Segreto
    • 18
    • 24
  • S. Selmane
    • 4
  • D. Semikoz
    • 4
  • M. Serra
    • 69
  • S. Sharakin
    • 63
  • T. Shibata
    • 43
  • H. M. Shimizu
    • 39
  • K. Shinozaki
    • 49
    • 9
  • T. Shirahama
    • 44
  • G. Siemieniec-Oziȩbło
    • 58
  • H. H. Silva López
    • 54
  • J. Sledd
    • 79
  • K. Słomińska
    • 60
  • A. Sobey
    • 79
  • T. Sugiyama
    • 39
  • D. Supanitsky
    • 54
  • M. Suzuki
    • 42
  • B. Szabelska
    • 59
  • J. Szabelski
    • 59
  • F. Tajima
    • 31
  • N. Tajima
    • 49
  • T. Tajima
    • 8
  • Y. Takahashi
    • 45
  • H. Takami
    • 48
  • M. Takeda
    • 69
  • Y. Takizawa
    • 49
  • C. Tenzer
    • 9
  • O. Tibolla
    • 10
  • L. Tkachev
    • 61
  • H. Tokuno
    • 46
  • T. Tomida
    • 49
  • N. Tone
    • 49
  • S. Toscano
    • 71
  • F. Trillaud
    • 54
  • R. Tsenov
    • 1
  • Y. Tsunesada
    • 46
  • K. Tsuno
    • 49
  • T. Tymieniecka
    • 59
  • Y. Uchihori
    • 28
  • M. Unger
    • 7
  • O. Vaduvescu
    • 69
  • J. F. Valdés-Galicia
    • 54
  • P. Vallania
    • 21
    • 23
  • L. Valore
    • 16
    • 17
  • G. Vankova
    • 1
  • C. Vigorito
    • 21
    • 22
  • L. Villaseñor
    • 55
  • P. von Ballmoos
    • 5
    • 81
  • S. Wada
    • 49
  • J. Watanabe
    • 38
  • S. Watanabe
    • 45
  • J. WattsJr
    • 76
  • M. Weber
    • 7
  • T. J. Weiler
    • 80
  • T. Wibig
    • 59
  • L. Wiencke
    • 75
  • M. Wille
    • 6
  • J. Wilms
    • 6
  • Z. Włodarczyk
    • 57
  • T. Yamamoto
    • 35
  • Y. Yamamoto
    • 35
  • J. Yang
    • 51
  • H. Yano
    • 42
  • I. V. Yashin
    • 63
  • D. Yonetoku
    • 32
  • K. Yoshida
    • 35
  • S. Yoshida
    • 27
  • R. Young
    • 79
  • M. Yu. Zotov
    • 63
  • A. Zuccaro Marchi
    • 49
  1. 1.St. Kliment Ohridski University of SofiaSofiaBulgaria
  2. 2.LALUniv Paris-Sud, CNRS/IN2P3OrsayFrance
  3. 3.Omega, Ecole Polytechnique, CNRS/IN2P3PalaiseauFrance
  4. 4.APC, Univ Paris Diderot, CNRS/IN2P3, CEA/IrfuSorbonne Paris CitéFrance
  5. 5.IRAPUniversité de Toulouse, CNRSToulouseFrance
  6. 6.ECAPUniversity of Erlangen-NurembergErlangenGermany
  7. 7.Karlsruhe Institute of Technology (KIT)KarlsruheGermany
  8. 8.Ludwig Maximilian UniversityMunichGermany
  9. 9.Inst. for Astronomy and Astrophysics, Kepler CenterUniversity of TübingenTübingenGermany
  10. 10.Institut für Theoretische Physik und AstrophysikUniversity of WürzburgWürzburgGermany
  11. 11.Istituto Nazionale di Fisica Nucleare, Sezione di BariBariItaly
  12. 12.Universita’ degli Studi di Bari Aldo Moro and INFN, Sezione di BariBariItaly
  13. 13.Dipartimento di Fisica e AstronomiaUniversita’ di CataniaCataniaItaly
  14. 14.Consiglio Nazionale delle Ricerche (CNR)Ist. di Fisica Applicata Nello CarraraFirenzeItaly
  15. 15.Istituto Nazionale di Fisica Nucleare - Laboratori Nazionali di FrascatiFrascatiItaly
  16. 16.Istituto Nazionale di Fisica Nucleare - Sezione di NapoliNaplesItaly
  17. 17.Dipartimento di Scienze FisicheUniversita’ di Napoli Federico IINaplesItaly
  18. 18.INAF - Istituto di Astrofisica Spaziale e Fisica Cosmica di PalermoPalermoItaly
  19. 19.Istituto Nazionale di Fisica Nucleare - Sezione di Roma Tor VergataRomaItaly
  20. 20.Dipartimento di FisicaUniversita’ di Roma Tor VergataRomaItaly
  21. 21.Istituto Nazionale di Fisica Nucleare - Sezione di TorinoTorinoItaly
  22. 22.Dipartimento di FisicaUniversità di Torino, INFN TorinoTorinoItaly
  23. 23.Istituto Nazionale di AstrofisicaOsservatorio Astrofisico di TorinoTorinoItaly
  24. 24.Istituto Nazionale di Fisica Nucleare - Sezione di CataniaCataniaItaly
  25. 25.Dipartimento di IngegneriaUTIURomeItaly
  26. 26.DIETIUniversita’ degli Studi di Napoli Federico IINapoliItaly
  27. 27.Chiba UniversityChibaJapan
  28. 28.National Institute of Radiological SciencesChibaJapan
  29. 29.Fukui University of TechnologyFukuiJapan
  30. 30.Kinki UniversityHigashi-OsakaJapan
  31. 31.Hiroshima UniversityHiroshimaJapan
  32. 32.Kanazawa UniversityKanazawaJapan
  33. 33.Institute for Cosmic Ray ResearchUniversity of TokyoKashiwaJapan
  34. 34.Kobe UniversityKobeJapan
  35. 35.Konan UniversityKobeJapan
  36. 36.Kyoto UniversityKyotoJapan
  37. 37.Yukawa InstituteKyoto UniversityKyotoJapan
  38. 38.National Astronomical ObservatoryMitakaJapan
  39. 39.Nagoya UniversityNagoyaJapan
  40. 40.Solar-Terrestrial Environment LaboratoryNagoya UniversityNagoyaJapan
  41. 41.Graduate School of ScienceOsaka City UniversityOsakaJapan
  42. 42.Institute of Space and Astronautical Science/JAXASagamiharaJapan
  43. 43.Aoyama Gakuin UniversitySagamiharaJapan
  44. 44.Saitama UniversitySaitamaJapan
  45. 45.Hokkaido UniversitySapporoJapan
  46. 46.Interactive Research Center of ScienceTokyo Institute of TechnologyTokyoJapan
  47. 47.University of TokyoTokyoJapan
  48. 48.High Energy Accelerator Research Organization (KEK)TsukubaJapan
  49. 49.RIKENWakoJapan
  50. 50.Korea Astronomy and Space Science Institute (KASI)DaejeonRepublic of Korea
  51. 51.Ewha Womans UniversitySeoulRepublic of Korea
  52. 52.Sungkyunkwan UniversitySeoulRepublic of Korea
  53. 53.Center for Galaxy Evolution ResearchYonsei UniversitySeoulRepublic of Korea
  54. 54.Universidad Nacional Autónoma de México (UNAM)Mexico cityMexico
  55. 55.Universidad Michoacana de San Nicolas de Hidalgo (UMSNH)MoreliaMexico
  56. 56.Benemérita Universidad Autónoma de Puebla (BUAP)PueblaMexico
  57. 57.Institute of PhysicsJan Kochanowski UniversityKielcePoland
  58. 58.Astronomical ObservatoryJagiellonian University KrakowPoland
  59. 59.National Centre for Nuclear ResearchLodzPoland
  60. 60.Space Research Centre of the Polish Academy of Sciences (CBK)WarsawPoland
  61. 61.Joint Institute for Nuclear ResearchDubnaRussia
  62. 62.Central Research Institute of Machine Building, TsNIIMashKorolevRussia
  63. 63.Skobeltsyn Institute of Nuclear PhysicsLomonosov Moscow State UniversityMoscowRussia
  64. 64.Department of Space PhysicsInstitute of Experimental PhysicsKosiceSlovakia
  65. 65.Consejo Superior de Investigaciones Científicas (CSIC)MadridSpain
  66. 66.Instituto Nacional de Técnica Aeroespacial (INTA)MadridSpain
  67. 67.Universidad de Alcalá (UAH)MadridSpain
  68. 68.Universidad Carlos III de MadridMadridSpain
  69. 69.Instituto de Astrofísica de Canarias (IAC)TenerifeSpain
  70. 70.Swiss Center for Electronics and Microtechnology (CSEM)NeuchâtelSwitzerland
  71. 71.ISDC Data Centre for AstrophysicsVersoixSwitzerland
  72. 72.Institute for Atmospheric and Climate ScienceETH ZürichZürichSwitzerland
  73. 73.Space Science LaboratoryUniversity of CaliforniaBerkeleyUSA
  74. 74.University of ChicagoChicagoUSA
  75. 75.Colorado School of MinesGoldenUSA
  76. 76.University of Alabama in HuntsvilleHuntsvilleUSA
  77. 77.University of California (UCLA)Los AngelesUSA
  78. 78.University of Wisconsin-MilwaukeeMilwaukeeUSA
  79. 79.NASA - Marshall Space Flight CenterMadison CountyUSA
  80. 80.Vanderbilt UniversityNashvilleUSA
  81. 81.Institut de Recherche en Astrophysique et PlanétologieToulouseFrance

Personalised recommendations
