Analysis of land cover/use changes using Landsat 5 TM data and indices

Environmental Monitoring and Assessment volume 189, Article number: 136 (2017) Cite this article

Abstract

Urban expansion and unprecedented rural to urban transition, along with a huge population growth, are major driving forces altering land cover/use in metropolitan areas. Many of the land cover classes such as farmlands, wetlands, forests, and bare soils have been transformed during the past years into human settlements. Identification of the city growth trends and the impact of it on the vegetation cover of an area is essential for a better understanding of the sustainability of urban development processes, both planned and unplanned. Analyzing the causes and consequences of land use dynamics helps local government, urban planners, and managers for the betterment of future plans and minimizing the negative effects.

This study determined temporal changes in vegetation cover and built-up area in Istanbul (Turkey) using the normalized difference vegetation index (NDVI), soil-adjusted vegetation index (SAVI), and built-up area index (BUAI). The temporal data were based on Landsat 5 Thematic Mapper (TM) images acquired in June of 1984, 2002, 2007, 2009, and 2011. The NDVI was applied to all the Landsat images, and the resulting NDVI images were overlaid to generate an NDVI layer stack image. The same procedure was repeated using the SAVI and BUAI images. The layer stack images revealed those areas that had changed in terms of the different indices over the years. To determine temporal change trends, the values of 150 randomly selected control points were extracted from the same locations in the NDVI, SAVI, and BUAI layer stack images. The results obtained from these control points showed that vegetation cover decreased considerably because of a remarkable increase in the built-up area.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2
Fig. 3

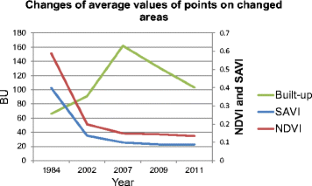

Fig. 4

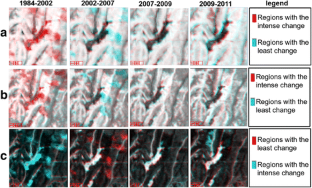

Fig. 5

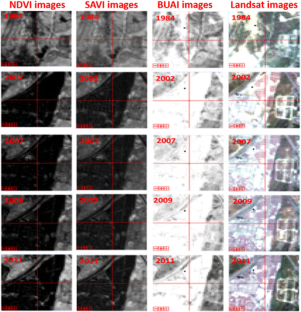

Fig. 6

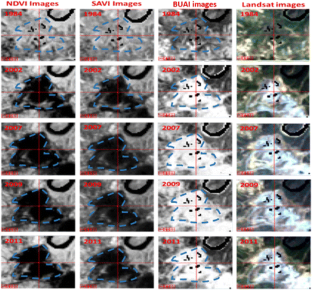

Fig. 7
Fig. 8

References

  • Benkouider, F., Abdellaoui, A., Hamami, L., & Elaihar, M. (2013). Spatio temporal analysis of vegetation by vegetation indices from multi-dates satellite images: application to a semi arid area in ALGERIA. In Energy Procedia, 36, 667–675. doi:10.1016/j.egypro.2013.07.077.

    Article  Google Scholar

  • Carlson, T. N., & Arthur, T. S. (2000). The impact of land use—land cover changes due to urbanization on surface microclimate and hydrology: a satellite perspective. Global and Planetary Change, 25(1–2), 49–65.

    Article  Google Scholar

  • Coban, H. O., Koc, A., & Eker, M. (2010). Investigation on changes in complex vegetation coverage using multi-temporal Landsat data of Western Black Sea region—a case study. Journal of Environmental Biology, 31, 169–178.

    Google Scholar

  • Drummond, M. a., & Loveland, T. R. (2010). Land-use pressure and a transition to forest-cover loss in the eastern United States. Bioscience, 60(4), 286–298.

    Article  Google Scholar

  • Gazioğlu, C., Alpar, B., Yücel, Z. Y., Müftüoğlu, A. E., Güneysu, C., Ertek, T. A., Demir, V., & Kaya, H. (2014). Morphologic features of Kapıdağ Peninsula and its coasts (NW-Turkey) using by remote sensing and DTM. International Journal of Environment and Geoinformatics, 1(1), 48–63.

    Google Scholar

  • Gazioğlu, C., Yücel, Z. Y., Burak, S. Z., Okus, E., & Alpar, B. (1997). Coastline changes and inadequate management between Kilyos and Karaburun shoreline. Turkish Journal of Marine Sciences, 3(2), 111–122.

    Google Scholar

  • Han, G. F., Xu, J. H., & Yuan, X. Z. (2008). Impact of urbanization on vegetation phenology in major cities in Yangtze River Delta region. The Journal of Applied Ecology, 19(8), 1803–1809.

    Google Scholar

  • Huete, A. R. (1988). A soil-adjusted vegetation index (SAVI). Remote Sensing of Environment, 25(3), 295–309.

    Article  Google Scholar

  • Jung, A., Kardeván, P., & Tokei, L. (2005). Detection of urban effect on vegetation in a less built-up Hungarian City by hyperspectral remote sensing. Physics and Chemistry of the Earth, Parts A/B/C, 30(1), 255–259.

    Article  Google Scholar

  • Kaya, S. (2007). Multitemporal analysis of rapid urban growth in Istanbul using remotely sensed data. Environmental Engineering Science, 24(2), 228–233. doi:10.1089/ees.2005.0040.

    CAS  Article  Google Scholar

  • Kaya, H., & Gazioğlu, C. (2015). Real estate development at landslides. International Journal of Environment and Geoinformatics, 2(1), 62–71.

    Google Scholar

  • Kaya, S., Basar, U. G., Karaca, M., & Seker, D. Z. (2012). Assessment of urban heat islands using remotely sensed data. Ekoloji, 21(84), 107–113. doi:10.5053/ekoloji.2012.8412.

    Article  Google Scholar

  • Kaya, S., Gazioğlu, C., Sertel, E., Şeker, D.Z., and Algancı, U., (2015). Rapid determination of land use/cover changes using data fusion. The 36th Asian Conference on Remote Sensing "Fostering Resilient Growth in Asia", Metro Manila, Filipinler, 19–23 October 2015.

  • Khan, M.H., Bryceson, I., Korine N. Kolivras, K.N., Fazlay Faruque, F., Rahman, M., and Haque, U., (2014). Natural disasters and land-use/land-cover change in the southwest coastal areas of Bangladesh. Regional Environmental Change, 241–50. doi:10.1007/s10113-014-0642-8.

  • Lambin, E. F., Geist, H. J., & Lepers, E. (2003). Dynamics of land-use and land-cover change in tropical regions. Annual Review of Environment and Resources, 28, 205–241.

    Article  Google Scholar

  • Lambin, E. F., Turner, B. L., Geist, H. J., Agbola, S. B., Angelsen, A., Bruce, J. W., & Xu, J. (2001). The causes of land-use and land-cover change: moving beyond the myths. Global Environmental Change, 11, 261–269.

    Article  Google Scholar

  • Li, S., Yang, S., Liu, X., Liu, Y., & Shi, M. (2015). NDVI-based analysis on the influence of climate change and human activities on vegetation restoration in the Shaanxi-Gansu-Ningxia Region. Central China, Remote Sensing, 7, 11163–11182. doi:10.3390/rs70911163.

    Article  Google Scholar

  • Lu, L., Guo, H., Wang, C., Pesaresi, M., & Ehrlich, D. (2014). Monitoring bidecadal development of urban agglomeration with remote sensing images in the Jing-Jin-Tang area, China. Journal of Applied Remote Sensing, 8(1), 84592. doi:10.1117/1.JRS.8.084592.

    Article  Google Scholar

  • Morawitz, D. F., Blewett, T. M., Cohen, A., & Alberti, M. (2006). Using NDVI to assess vegetative land cover change in central Puget Sound. Environmental Monitoring and Assessment, 114(1–3), 85–106. doi:10.1007/s10661-006-1679-z.

    Article  Google Scholar

  • Musaoglu, N., Gürel, M., Ulugtekin, N., Tanik, A., & Seker, D. Z. (2006). Use of remotely sensed data for analysis of land-use change in a highly urbanized district of mega city, Istanbul. Journal of environmental science and health. Part A, Toxic/hazardous substances & environmental engineering, 41(9), 2057–2069.

    CAS  Article  Google Scholar

  • Osgouei, P. E., (2015). Analysis of land cover/use change using Landsat 5 TM data and indices. Master Thesis, Istanbul Technical University, 86 p.

  • Piao, S., Fang, J., Zhou, L., Guo, Q., Henderson, M., Ji, W., Li, Y., & Tao, S. (2003). Interannual variations of monthly and seasonal normalized difference vegetation index (NDVI) in China from 1982 to 1999. Journal of Geophysical Research, 108, 14,4401. doi:10.1029/2002JD002848.

  • Ridd, M. K., & Liu, J. (1998). A comparison of four algorithms for change detection in an urban environment. Remote Sensing of Environment, 63, 95–100.

    Article  Google Scholar

  • Rokni, K., Anuar Ahmad, A., Selamat, A., & Hazini, S. (2014). Water feature extraction and change detection using multitemporal Landsat imagery. Remote Sensing, 6(5), 4173–4189. doi:10.3390/rs6054173.

    Article  Google Scholar

  • Saroglu, E, Bektas, F, Dogru, A.O., Ormeci, C., and Musaoglu, N., (2005). Environmental impact analyses of quarries located on the Asian side of Istanbul using remotely sensed data. XXIInd International Cartographic Conference, 9–16 July, Coruna, Spain (CD ROM).

  • Seker, D. Z., Kaya, S., Alkan, R. M., Tanik, A., & Saroglu, E. (2008). 3D coastal erosion analysis of Kilyos-Karaburun region using multi-temporal satellite image data. Fresenius Environmental Bulletin, 17(11 B), 1977–1982.

    CAS  Google Scholar

  • Sertel, E., Ormeci, C., & Robock, A. (2011). Modelling land cover change impact on the summer climate of the Marmara Region, Turkey. International Journal of Global Warming, 3(1), 194–202.

    Article  Google Scholar

  • Shalaby, A., & Tateishi, R. (2007). Remote sensing and GIS for mapping and monitoring land cover and land-use changes in the Northwestern coastal zone of Egypt. Applied Geography, 27(1), 28–41.

    Article  Google Scholar

  • Sun, J., Wang, X., Chen, A., Ma, Y., Cui, M., & Pia, S. (2011). NDVI indicated characteristics of vegetation cover change in China’s metropolises over the last three decades. Environmental Monitoring and Assessment, 179, 1–14. doi:10.1007/s10661-010-1715-x.

    Article  Google Scholar

  • Wolman, M. G., (1993). Population, land use, and environment : a long history (p. 15–29). Washington, DC: National Academy Press.

  • Yuan, F., Kali, E., Sawaya, K. E., Loeffelholz, B. C., & Bauer, M. E. (2005). Land cover classification and change analysis of the twin cities (Minnesota) metropolitan area by multitemporal Landsat remote sensing. Remote Sensing of Environment, 98(2–3), 317–328. doi:10.1016/j.rse.2005.08.006.

    Article  Google Scholar

  • Zha, Y., Gao, J., & Ni, S. (2003). Use of normalized difference built-up index in automatically mapping urban areas from TM imagery., Int. J. Remote Sensing, 24(3), 583–594.

    Article  Google Scholar

Download references

Acknowledgment

The authors would like to thank Istanbul Technical University (ITU) Research Fund for their financial support to the Project no. 38200.
