Atmospheric deposition of heavy metals in Wuxi, China: estimation based on native moss analysis

Environmental Monitoring and Assessment volume 188, Article number: 360 (2016) Cite this article

Abstract

We studied atmospheric deposition of heavy metals in Wuxi, China, using moss (Haplocladium microphyllum and H. angustifolium) as a biomonitoring agent. Moss samples were collected from 49 sites determined by a systematic sampling method. The top layer of soil on each site was also sampled. No significant correlation (P < 0.05) was observed between the moss and soil concentrations for any of the six heavy metal elements (Cd, Cr, Cu, Ni, Pb, and Zn), indicating that the soil substrate had little effect on the heavy metal concentrations in the moss materials. The metal enrichment capacity of the moss material, characterized by the concentration ratio between the moss and soil samples for each heavy metal, was topped by Cd and then followed by Zn, Pb, Cu, Cr, and Ni, respectively. Significant (P < 0.05) correlations were found among the six elements in mosses, suggesting potential anthropogenic inputs of these heavy metal pollutants. Based on concentrations of the heavy metals in mosses and the calculated contamination factors, we evaluated the contamination level of each heavy metal on the 49 sampling sites. Spatial distribution maps of heavy metal deposition for each element were interpolated using ArcGIS 9.0. A total pollution coefficient was calculated for each sampling site to identify the seriously polluted areas in the region.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

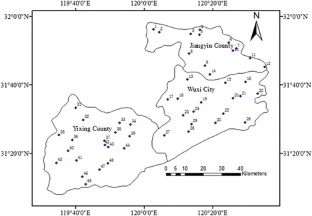

Fig. 1
Fig. 2

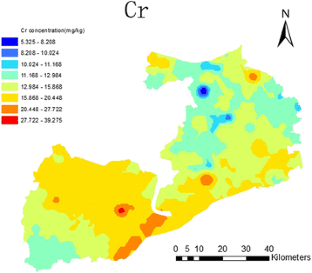

Fig. 3

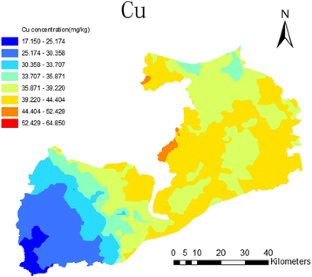

Fig. 4

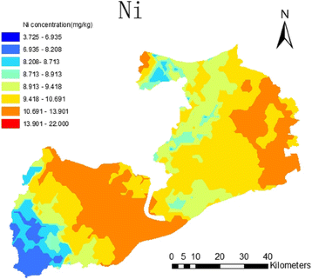

Fig. 5

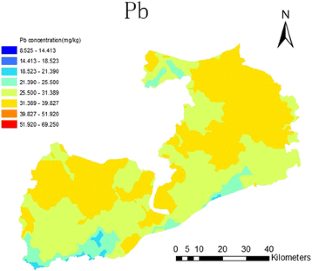

Fig. 6

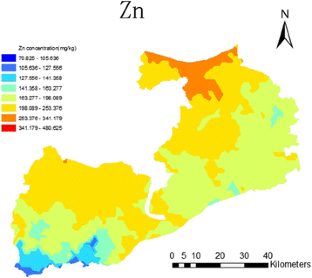

Fig. 7

References

  • An, L., Cao, T., & Yu, Y. H. (2006). Bryophytes and environmental heavy metal pollution monitoring. Chinese Journal of Ecology, 25(2), 201–206 (in Chinese).

    CAS  Google Scholar

  • Buse, A., Norris, D., Harmens, H., Büker, P., Ashenden, T., & Mills, G. (2003). Heavy metals in European mosses: 2000/2001 survey. Bangor: Centre for Ecology and Hydrology. http://icpvegetation.ceh.ac.uk.

    Google Scholar

  • Cao, T., Wang, M., An, L., Yu, Y. H., Lou, Y. X., Guo, S. L., Zuo, B. R., Liu, Y., Wu, J., Cao, Y., & Zhu, Z. R. (2009). Air quality for metals and sulfur in Shanghai, China, determined with moss bags. Environmental Pollution, 157, 1270–1278.

    CAS  Article  Google Scholar

  • Carballeira, A., Couto, J. A., & Fernández, J. A. (2002). Estimation of background levels of various elements in terrestrial mosses from Galicia (NW Spain). Water, Air, & Soil Pollution, 133, 235–252.

    CAS  Article  Google Scholar

  • Chen, L., Wu, Y. H., Li, W., & Gao, Q. (2009). Bryophyte as an indicator of air quality in Shenyang City. Chinese Journal of Ecology, 28(12), 2460–2465 (in Chinese).

    Google Scholar

  • Coskun, M., Cayir, A., Coskun, M., & Kilic, O. (2011). Heavy metal deposition in moss samples from East and South Marmara Region, Turkey. Environmental Monitoring and Assessment, 174, 219–227.

    CAS  Article  Google Scholar

  • Ermakova, E. V., Frontasyeva, M. V., & Steinnes, E. (2004). Air pollution studies in Central Russia (Tula Region) using the moss biomonitoring technique, INAA and AAS. Journal of Radioanalytical and Nuclear Chemistry, 259, 51–58.

    CAS  Article  Google Scholar

  • Fang, Y. M., & Koponen, T. (2001). A revision of Thuidium, Haplocladium, and Clapodium (Musci, Thuidiaceae) in China. Bryobrothera, 6, Finnish Bryological Society.

  • Fernández, J. A., Ederra, A., Núņez, E., Martínez-Abaigar, J., Infante, M., Heras, P., Elías, M. J., Mazimpaka, V., & Carballeira, A. (2002). Biomonitoring of metal deposition in northern Spain by moss analysis. The Science of the Total Environment, 300, 115–127.

    Article  Google Scholar

  • Florek, M., Maňkovská, B., Oszlányi, J., Frontasyeva, M. V., Ermakova, E., & Pavlov, S. S. (2007). The Slovak heavy metals survey by means the bryophyte technique. International Journal for Ecological Problems of the Bisphere, 26, 99–114.

    CAS  Google Scholar

  • Harmens, H., Buse, A., Büker, P., Norris, D., Mills, G., Williams, B., Reynolds, B., Ashenden, T. W., Rühling, Å., & Steinnes, E. (2004). Heavy metal concentrations in European mosses: 2000/2001 survey. Journal of Atmospheric Chemistry, 49, 425–436.

    CAS  Article  Google Scholar

  • Harmens, H., Norris, D. A., Koerber, G. R., Buse, A., Steinnes, E., & Rühling, Å. (2007). Temporal trends in the concentration of arsenic, chromium, copper, iron, nickel, vanadium and zinc in mosses across Europe between 1990 and 2000. Atmospheric Environment, 41, 6673–6687.

    CAS  Article  Google Scholar

  • Harmens, H., Norris, D. A., Koerber, G. R., Buse, A., Steinnes, E., & Rühling, Å. (2008). Temporal trends (1990–2000) in the concentration of cadmium, lead and mercury in mosses across Europe. Environmental Pollution, 151, 368–376.

    CAS  Article  Google Scholar

  • Harmens, H., Norris, D. A., Steinnes, E., Kubin, E., Piispanen, J., Alber, R., Aleksiayenak, Y., Blum, O., Coskun, M., & Dam, M. (2010). Mosses as biomonitors of atmospheric heavy metal deposition: spatial patterns and temporal trends in Europe. Environmental Pollution, 158, 3144–3156.

    CAS  Article  Google Scholar

  • Harmens, H., Norris, D. A., Sharps, K., Mills, G., Alber, R., Aleksiayenak, Y., et al. (2015). Heavy metal and nitrogen concentrations in mosses are declining across Europe whilst some “hotspots” remain in 2010. Environmental Pollution, 200, 93–104.

    CAS  Article  Google Scholar

  • Lee, C. S. L., Li, X., Zhang, G., Peng, X., & Zhang, L. (2005). Biomonitoring of trace metals in the atmosphere using moss (Hypnum plumaeforme) in the Nanling Mountains and the Pearl River Delta, Southern China. Atmospheric Environment, 39, 397–407.

    CAS  Article  Google Scholar

  • Ma, Y. L., Jia, G. M., Wang, Y. P., & Liu, H. P. (2001). Contents of heavy metal in leaves of plants and air pollution evaluation in Guangzhou Region. Urban Environment & Urban Ecology, 14(6), 28–30 (in Chinese).

    Google Scholar

  • Nygård, T., Steinnes, E., & Røyset, O. (2012). Distribution of 32 elements inorganic surface soils: contributions from atmospheric transport of pollutants and natural sources. Water, Air, and Soil Pollution, 223, 699–713.

    Article  Google Scholar

  • Olajire, A. (1998). A survey of heavy metal deposition in Nigeria using the moss monitoring method. Environment International, 24, 951–958.

    CAS  Article  Google Scholar

  • Pott, U., & Turpin, D. H. (1996). Changes in atmospheric trace element deposition in the Fraser Valley, B. C., Canada from 1960 to 1993 measured by moss monitoring with Isothecium stoloniferum. Canadian Journal of Botany, 74, 1345–1353.

    CAS  Article  Google Scholar

  • Rühling, A., & Tyler, G. (1968). An ecological approach to the lead problem. Botaniska Notiser, 122, 248–342.

    Google Scholar

  • Rühling, A., & Tyler, G. (1984). Recent changes in the deposition of heavy metals in Northern Europe. Water, Air, & Soil Pollution, 22, 173–180.

    Article  Google Scholar

  • Saxena, D. K., Singh, S., & Srivastava, K. (2008). Atmospheric heavy metal deposition in Garhwal Hill area (India): estimation based on native moss analysis. Aerosol and Air Quality Resarch, 8, 94–111.

    CAS  Google Scholar

  • Schilling, J. S., & Lehman, M. E. (2002). Bioindication of atmospheric heavy metal deposition in the Southeastern US using the moss Thuidium delicatulum. Atmospheric Environment, 36, 1611–1618.

    CAS  Article  Google Scholar

  • Schintu, M., Cogoni, A., Durante, L., Cantaluppi, C., & Contu, A. (2005). Moss (Bryum radiculosum) as a bioindicator of trace metal deposition around an industrialised area in Sardinia (Italy). Chemosphere, 60, 610–618.

    CAS  Article  Google Scholar

  • Strogyloudi, E., Angelidis, M. O., Christides, A., & Papathanassiou, E. (2012). Metal concentrations and metallothionein levels in Mytilus galloprovincialis from Elefsis bay (Saronikos gulf, Greece). Environmental Monitoring and Assessment, 184, 7189–7205.

    CAS  Article  Google Scholar

  • Wang, A. X. (2010). Mosses and trees as indicators for heavy metal pollution in the atmosphere of Nanjing City, China. PhD thesis

Download references

Acknowledgments

This study was supported by the Priority Academic Program Development of Jiangsu High Education Institutions (PAPD).

Author information

Affiliations

  1. Co-Innovation Center for Sustainable Forestry in Southern China, College of Biology and the Environment, Nanjing Forestry University, 159 Longpan Rd., Nanjing, 210037, China

    Yun Yan, Qiang Zhang, G. Geoff Wang & Yan-Ming Fang

  2. Department of Forestry and Environmental Sciences, Clemson University, 261 Lehotsky Hall, Clemson, SC, 29634, USA

    G. Geoff Wang

  3. Jiangsu Misho Ecology Landscape Co., Ltd, Wuxi, Lake District, 214125, China

    Yun Yan

Authors
  1. Yun Yan
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Qiang Zhang
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. G. Geoff Wang
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Yan-Ming Fang
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding authors

Correspondence to G. Geoff Wang or Yan-Ming Fang.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Yan, Y., Zhang, Q., Wang, G.G. et al. Atmospheric deposition of heavy metals in Wuxi, China: estimation based on native moss analysis. Environ Monit Assess 188, 360 (2016). https://doi.org/10.1007/s10661-016-5315-2

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1007/s10661-016-5315-2

Keywords

  • Moss
  • Heavy metal
  • Atmospheric pollution
  • Biomonitoring
  • Spatial distribution
