Skip to main content

Metallic corrosion in the polluted urban atmosphere of Hong Kong

Environmental Monitoring and Assessment volume 187, Article number: 4112 (2015) Cite this article

Abstract

This study aimed to explore the relationship between air pollutants, particularly acidic particles, and metallic material corrosion. An atmospheric corrosion test was carried out in spring-summer 2012 at a polluted urban site, i.e., Tung Chung in western Hong Kong. Nine types of metallic materials, namely iron, Q235 steel, 20# steel, 16Mn steel, copper, bronze, brass, aluminum, and aluminum alloy, were selected as specimens for corrosion tests. Ten sets of the nine materials were all exposed to ambient air, and then each set was collected individually after exposure to ambient air for consecutive 6, 13, 20, 27, 35, 42, 49, 56, 63, and 70 days, respectively. After the removal of the corrosion products on the surface of the exposed specimens, the corrosion rate of each material was determined. The surface structure of materials was observed using scanning electron microscopy (SEM) before and after the corrosion tests. Environmental factors including temperature, relative humidity, concentrations of gaseous pollutants, i.e., sulfur dioxide (SO2), nitrogen dioxide (NO2), carbon monoxide (CO), ozone (O3), and particulate-phase pollutants, i.e., PM2.5 (FSP) and PM10 (RSP), were monitored. Correlation analysis between environmental factors and corrosion rate of materials indicated that iron and carbon steel were damaged by both gaseous pollutants (SO2 and NO2) and particles. Copper and copper alloys were mainly corroded by gaseous pollutants (SO2 and O3), while corrosion of aluminum and aluminum alloy was mainly attributed to NO2 and particles.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

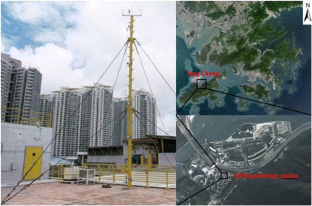

Fig. 1

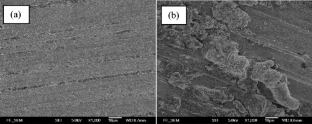

Fig. 2
Fig. 3
Fig. 4

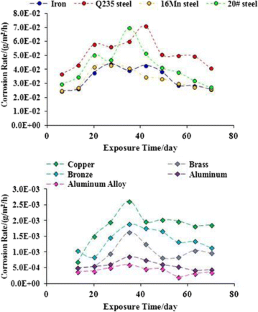

Fig. 5
Fig. 6

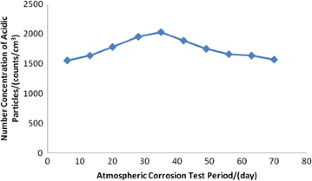

Fig. 7

References

  • Aastrup, T., Wadsak, M., Leygraf, C., & Schreiner, M. (2000). In situ studies of the initial atmospheric corrosion of copper: influence of humidity, sulfur dioxide, ozone, and nitrogen dioxide. Journal of the Electrochemical Society, 147(7), 2543–2552.

    CAS  Article  Google Scholar

  • Baer, N. S., Bermabo, J. C., Lipfert, F. W., & Smythe, K. D. (1987). Effects of acidic deposition on materials degradation. A Synthesis Report, EPRI-EA-5424. Palo Alto: Electric Power Research Institute.

    Google Scholar

  • Castaño, J. G., Botero, C. A., Restrepo, A. H., Agudelo, E. A., Correa, E., & Echeverría, F. (2010). Atmospheric corrosion of carbon steel in Colombia. Corrosion Science, 52(1), 216–223.

    Article  Google Scholar

  • Cohen, B. S., Heikkinen, M. S., Hazi, Y., Guo, H., Peters, P., & Lippmann, M. (2004). Field evaluation of nanofilm detectors for measuring acidic particles in indoor and outdoor air. Research Report. Health Effects Institute, 121, 1–35. discussion 37–46.

    Google Scholar

  • Gan, F. X., Guo, H., & Yao, L. A. (1991). The mechanism of arsenic in inhibiting dezincification of brass. Journal Chinese Society for Corros and Protection, 11(1), 75–82.

    Google Scholar

  • Godish, T. (2004). Air quality (4th ed.). Boca Raton: CRC.

    Google Scholar

  • Hutzinger, O. (Ed.). (1989). The handbook of environmental chemistry. Verlag: Springer.

    Google Scholar

  • ISO 8407. (2009). Corrosion of metals and alloys—removal of corrosion products from corrosion test specimens. UK: International Organization for Standards.

    Google Scholar

  • ISO 8565. (2011). Metals and alloys—atmospheric corrosion testing—general requirements. Switzerland: International Organization for Standards.

    Google Scholar

  • ISO 9226. (2012). Corrosion of metals and alloys—corrosivity of atmospheres—determination of corrosion rate of standard specimens for the evaluation of corrosivity. Switzerland: International Organization for Standards.

    Google Scholar

  • Knotkova, D., Boschek, P., & Kreislova, K. (1995). Effect of acidification on atmospheric corrosion of structural metals in Europe. Water Air Soil Pollution, 85(4), 2661–2666.

    CAS  Article  Google Scholar

  • Kucera, V., & Fitz, S. (1996). Direct and indirect air pollution effects on materials including cultural monuments. Water Air Soil Pollution, 85(1), 153–165.

    Article  Google Scholar

  • Landolt, D. (1993). Corrosion et chimie de surfaces des metaux 2. Laussanne: Presse Polytechniques et Universitaires Romandes.

    Google Scholar

  • Leidheiser, H., Jr. (1971). The corrosion of copper, tin, and their alloys. New York: Wiley.

    Google Scholar

  • Maeda, Y., Morioka, J., Tsujino, Y., Satoh, Y., Zhang, X., Mizoguchi, T., & Hatakeyama, S. (2001). Material damage caused by acidic air pollution in East Asia. Water Air Soil Pollution, 130(1–4), 141–150.

    CAS  Article  Google Scholar

  • Mikhailov, A. A., Suloeva, M. N., & Vasilieva, E. G. (1995). Environmental aspects of atmospheric corrosion. Water Air Soil Pollution, 85(4), 2673–2678.

    CAS  Article  Google Scholar

  • Nord, A. G., Tronner, K., & Boyce, A. (2001). Atmospheric bronze and copper corrosion as an environmental indicator. Water Air Soil Pollution, 127(1–4), 193–204.

    CAS  Article  Google Scholar

  • Shreir, L. L. (1963). Corrosion: Vol. 1, Corrosion of metals and alloys. New York: Wiley.

    Google Scholar

  • Syed, S. (2010). Atmospheric corrosion of carbon steel at marine sties in Saudi Arabia. Materials and Corrosion, 61(3), 238–244.

    CAS  Article  Google Scholar

  • Tzanis, C., Varotsos, C., Ferm, M., Christodoulakis, J., Assimakopoulos, M. N., & Efthymiou, C. (2009). Nitric acid and particulate matter measurements at Athens, Greece, in connection with corrosion studies. Atmospheric Chemistry and Physics, 9(21), 8309–8316.

    CAS  Article  Google Scholar

  • Tzanis, C., Varotsos, C., Christodoulakis, J., Tidblad, J., Ferm, M., Lonescu, A., Lefevre, R.-A., Theodorakopoulou, K., & Kreislova, K. (2011). On the corrosion and soiling effects on materials by air pollution in Athens, Greece. Atmospheric Chemistry and Physics, 11(23), 12039–12048.

    CAS  Article  Google Scholar

  • Upham, J. B. (1967). Atmospheric corrosion studies in two metropolitan areas. Journal Air Pollution Control Association, 17(6), 398–402.

    CAS  Article  Google Scholar

  • Vargel, C. (2004). Corrosion of aluminum. Oxford: Elsevier.

    Google Scholar

  • Wallinder, I. O., & Leygraf, C. (2001). Seasonal variations in corrosion rate and runoff rate of copper roofs in an urban and a rural atmospheric environment. Corrosion Science, 43(12), 2379–2396.

    Article  Google Scholar

  • Wang, D. W., Guo, H., & Chan, C. K. (2012). Measuring ambient acidic ulrafine particles using iron nano-film detectors: method development. Aerosol Science and Technology, 46(5), 521–532.

    CAS  Article  Google Scholar

Download references

Acknowledgments

This study was supported by the internal grant of the Hong Kong Polytechnic University (A-PL40 and 87UB) and the Environment and Conservation Fund of the Hong Kong government (ECF20/2008). Special thanks go to Hong Kong Environmental Protection Department for providing the corrosion testing site.

Author information

Affiliations

  1. Air Quality Studies, Department of Civil and Environmental Engineering, The Hong Kong Polytechnic University, Hong Kong, Hong Kong

    Bo Liu, Da-Wei Wang, Hai Guo, Zhen-Hao Ling & Kalam Cheung

Authors
  1. Bo Liu
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Da-Wei Wang
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Hai Guo
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Zhen-Hao Ling
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Kalam Cheung
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Hai Guo.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Liu, B., Wang, DW., Guo, H. et al. Metallic corrosion in the polluted urban atmosphere of Hong Kong. Environ Monit Assess 187, 4112 (2015). https://doi.org/10.1007/s10661-014-4112-z

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1007/s10661-014-4112-z

Keywords

  • Metallic corrosion
  • Acidic particles
  • Corrosion rate
  • Polluted urban atmosphere
