Management of groundwater in farmed pond area using risk-based regulation

Environmental Monitoring and Assessment volume 186, pages 5763–5775 (2014)Cite this article

Abstract

Blackfoot disease (BFD) had occurred seriously in the Yichu, Hsuehchia, Putai, and Peimen townships of Chia-Nan District of Taiwan in the early days. These four townships are the districts of fishpond cultivation domestically in Taiwan. Groundwater becomes the main water supply because of short income in surface water. The problems of over pumping in groundwater may not only result in land subsidence and seawater intrusion but also be harmful to the health of human giving rise to the bioaccumulation via food chain in groundwater with arsenic (As). This research uses sequential indicator simulation (SIS) to characterize the spatial arsenic distribution in groundwater in the four townships. Risk assessment is applied to explore the dilution ratio (DR) of groundwater utilization, which is defined as the ratio showing the volume of groundwater utilization compared to pond water, for fish farming in the range of target cancer risk (TR) especially on the magnitude of 10−4∼10−6. Our study results reveal that the 50th percentile of groundwater DRs served as a regulation standard can be used to perform fish farm groundwater management for a TR of 10−6. For a TR of 5 × 10−6, we suggest using the 75th percentile of DR for groundwater management. For a TR of 10−5, we suggest using the 95th percentile of the DR standard for performing groundwater management in fish farm areas. For the TR of exceeding 5 × 10−5, we do not suggest establishing groundwater management standards under these risk standards. Based on the research results, we suggest that establishing a TR at 10−5 and using the 95th percentile of DR are best for groundwater management in fish farm areas.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

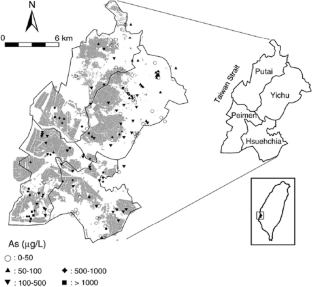

Fig. 1
Fig. 2
Fig. 3

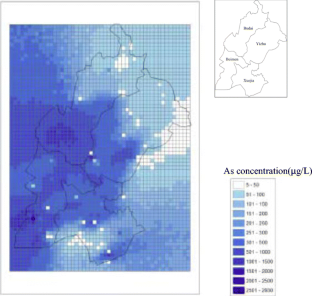

Fig. 4

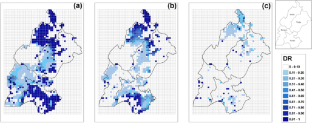

Fig. 5
Fig. 6
Fig. 7
Fig. 8

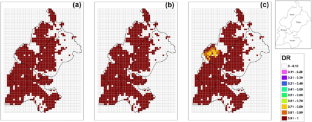

Fig. 9

References

  • Aquaculture Development Association (2010). Aquaculture Development Association, R.O.C. http://www.aquatwn.com.tw.

  • Deutsch, C. V. (2002). Geostatistical reservoir modeling (pp. 124–152). New York: Oxford University Press.

    Google Scholar

  • Deutsch, C. V., & Journel, A. G. (1998). GSLIB geostatistical software library and user’s guide. In A. G. Journel (Ed.) (2nd ed.). New York: Oxford University Press.

    Google Scholar

  • EPA (1998). Surface water classification and water quality standards. In R. O. C. Environmental Protection Administration (Ed.).

  • Fisheries Agency (2003). Fisheries Agency, Council of Agriculture. http://www.fa.gov.tw.

  • Goovaerts, P. (1997). Geostatistics for natural resources evaluation. New York: Oxford University Press.

    Google Scholar

  • Han, B. C., Jeng, W. L., Jeng, M. S., Kao, L. T., Meng, P. J., & Huang, Y. L. (1997). Rock-shells (Thais clavigera) as an indicator of As, Cu, and Zn contamination on the Putai Coast of the black-foot disease area in Taiwan. Archives of Environmental Contamination and Toxicology, 32(4), 456–461.

    CAS  Article  Google Scholar

  • Huang, Y. K., Lin, K. H., Chen, H. W., Chang, C. C., Liu, C. W., Yang, M. H., et al. (2003). Arsenic species contents at aquaculture farm and in farmed mouthbreeder (Oreochromis mossambicus) in blackfoot disease hyperendemic areas. Food and Chemical Toxicology, 41(11), 1491–1500.

    CAS  Article  Google Scholar

  • ITRI (1993). Industrial Technology Research Institute, R.O.C. http://www.itri.org.tw.

  • Jang, C. S. (2008). Probabilistic assessment of safe groundwater utilization in farmed fish ponds of blackfoot disease hyperendemic areas in terms of the regulation of arsenic concentrations. Science of the Total Environment, 392(1), 59–68. doi:10.1016/j.scitotenv.2007.11.020.

    CAS  Article  Google Scholar

  • Jang, C. S. & Chen, J. S. (2009), Probabilistic assessment of groundwater mixing with surface water for agricultural utilization. Journal of Hydrology, 376(1–2), 188–199.

  • Jang, C. S., Liu, C. W., Lin, K. H., Huang, F. M., & Wang, S. W. (2006). Spatial analysis of potential carcinogenic risks associated with ingesting arsenic in aquacultural tilapia (Oreochromis mossambicus) in blackfoot disease hyperendemic areas. Environmental Science and Technology, 40(5), 1707–1713.

    CAS  Article  Google Scholar

  • Liang, C. P., Jang, C. S., Liu, C. W., Lin, K. H., & Lin, M. C. (2010). An integrated GIS-based approach in assessing carcinogenic risks via food-chain exposure in arsenic-affected groundwater areas. Environmental Toxicology, 25(2), 113–123. doi:10.1002/tox.20481.

    CAS  Google Scholar

  • Liang, C. P., Liu, C. W., Jang, C. S., Wang, S. W., & Lee, J. J. (2011). Assessing and managing the health risk due to ingestion of inorganic arsenic from fish and shellfish farmed in blackfoot disease areas for general Taiwanese. Journal of Hazardous Materials, 186(1), 622–628.

  • Liao, C. M., Chen, B. C., Singh, S., Lin, M. C., Liu, C. W., & Han, B. C. (2003). Acute toxicity and bioaccumulation of arsenic in tilapia (Oreochromis mossambicus) from a blackfoot disease area in Taiwan. Environmental Toxicology, 18(4), 252–259. doi:10.1002/tox.10122.

    CAS  Article  Google Scholar

  • Liao, C. M., & Ling, M. P. (2003). Assessment of human health risks for arsenic bioaccumulation in tilapia (Oreochromis mossambicus) and large-scale mullet (Liza macrolepis) from blackfoot disease area in Taiwan. Archives of Environmental Contamination and Toxicology, 45(2), 264–272.

    CAS  Article  Google Scholar

  • Liao, C. M., Shen, H. H., Lin, T. L., Chen, S. C., Chen, C. L., Hsu, L. I., et al. (2008). Arsenic cancer risk posed to human health from tilapia consumption in Taiwan. Ecotoxicology and Environmental Safety, 70(1), 27–37. doi:10.1016/j.ecoenv.2007.10.018.

    CAS  Google Scholar

  • Lin, M. C., & Liao, C. M. (2008). Assessing the risks on human health associated with inorganic arsenic intake from groundwater-cultured milkfish in southwestern Taiwan. Food and Chemical Toxicology, 46(2), 701–709. doi:10.1016/j.fct.2007.09.098.

    CAS  Article  Google Scholar

  • Lin, M. C., Liao, C. M., Liu, C. W., & Singh, S. (2001). Bioaccumulation of arsenic in aquacultural large-scale mullet Liza macrolepis from blackfoot disease area in Taiwan. Bulletin of Environmental Contamination and Toxicology, 67(1), 91–97. doi:10.1007/s001280095.

    CAS  Google Scholar

  • Lin, M. C., Lin, H. Y., Cheng, H. H., Chen, Y. C., Liao, C. M., & Shao, K. T. (2005). Risk assessment of arsenic exposure from consumption of cultured milkfish, Chanos chanos (Forsskal), from the arsenic-contaminated area in southwestern Taiwan. Bulletin of Environmental Contamination and Toxicology, 75(4), 637–644. doi:10.1007/s00128-005-0800-2.

    CAS  Article  Google Scholar

  • Liu, C. W., Liang, C. P., Huang, F. M., & Hsueh, Y. M. (2006a). Assessing the human health risks from exposure of inorganic arsenic through oyster (Crassostrea gigas) consumption in Taiwan. Science of the Total Environment, 361(1–3), 57–66. doi:10.1016/j.scitotenv.2005.06.005.

    CAS  Article  Google Scholar

  • Liu, C. W., Liang, C. P., Lin, K. H., Jang, C. S., Wang, S. W., Huang, Y. K., et al. (2007). Bioaccumulation of arsenic compounds in aquacultural clams (Meretrix lusoria) and assessment of potential carcinogenic risks to human health by ingestion. Chemosphere, 69(1), 128–134. doi:10.1016/j.chemosphere.2007.04.038.

    CAS  Article  Google Scholar

  • Liu, C. W., Wang, S.-W., Jang, C.-S., & Lin, K.-H. (2006b). Occurrence of arsenic in ground water in the Choushui River Alluvial Fan. Taiwan. Journal of Environmental Quality, 35(1), 68–75. doi:10.2134/jeq2005.0129.

    CAS  Article  Google Scholar

  • McGeer, J. C., Brix, K. V., Skeaff, J. M., DeForest, D. K., Brigham, S. I., Adams, W. J., et al. (2003). Inverse relationship between bioconcentration factor and exposure concentration for metals: implications for hazard assessment of metals in the aquatic environment. Environmental Toxicology & Chemistry, 22(5), 1017–1037.

    CAS  Article  Google Scholar

  • Taiwan COA (2005). Taiwanese Food Supply and Demand Annual Report, Year 2004. In Concil of Agriculture (Ed.): Executive Yuan, R.O.C.

  • Taiwan DOH (2006). Department of Health, Executive Yuan, R.O.C. http://www.doh.gov.tw.

  • USEPA. (1988). Special report on ingested inorganic arsenic: skin cancer; nutritional essentiality. Washington, DC: United States Environmental Protection Agency Risk Assessment Forum.

    Google Scholar

  • USEPA. (1989). Guidance manual for assessing human health risks from chemically contaminated, fish and shellfish. Washington, DC: United States Environmental Protection Agency.

    Google Scholar

  • USEPA (2006). Risk-based concentration table, Region 3, Philadelphia, PA. http://www.epa.gov/reg3hwmd/risk/human/index.htm.

Download references

Acknowledgments

The authors would like to thank Dr. Cheng-Shin Jang for technically giving assistance and the National Science Council of the Republic of China for financially supporting this research under Contracts No. NSC-97-2313-B-006-003-MY3.

Author information

Affiliations

  1. Department of Resources Engineering, National Cheng Kung University, Tainan, 701, Taiwan, Republic of China

    Jun-Ying Huang, Chiao-Miao Liao & Cheng-Haw Lee

  2. Sustainable Environment Research Center, National Cheng-Kung University, Tainan, 70955, Taiwan, Republic of China

    Kao-Hung Lin

Authors
  1. Jun-Ying Huang
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Chiao-Miao Liao
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Kao-Hung Lin
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Cheng-Haw Lee
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Cheng-Haw Lee.

Rights and permissions

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Huang, JY., Liao, CM., Lin, KH. et al. Management of groundwater in farmed pond area using risk-based regulation. Environ Monit Assess 186, 5763–5775 (2014). https://doi.org/10.1007/s10661-014-3818-2

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s10661-014-3818-2

Keywords

  • Blackfoot disease
  • Geostatistics
  • Sequential indicator simulation
  • Bioaccumulation
  • Risk assessment
  • Groundwater management
