The effectiveness and risk comparison of EDTA with EGTA in enhancing Cd phytoextraction by Mirabilis jalapa L.

Environmental Monitoring and Assessment volume 186, pages 751–759 (2014)Cite this article

Abstract

In the previous study, Mirabilis jalapa L. had revealed the basic Cd hyperaccumulator characteristics, but the accumulation ability was not as strong as that of other known Cd hyperaccumulators. In order to improve the accumulation ability of this ornamental plant, the chelants were used to activate the Cd in soil. As a substitute, ethylene glycol bis(2-aminoethyl) tetraacetic acid (EGTA) was selected to testify whether it has better effectiveness and can bring lesser metal leaching risk than EDTA. The data showed that the growth of M. jalapa was inhibited, while the Cd concentration of the plant was significantly increased under the treatments containing EDTA or EGTA. The Cd translocation ability under the EGTA treatments was higher than that under the EDTA treatments. The available Cd resulted from the application of chelant EGTA to the contaminated soils can be limited to the top 5 cm, while the application of chelant EDTA to the contaminated soils can be limited to the top 10 cm. In a word, EGTA showed better effectiveness than EDTA in enhancing Cd phytoextraction of M. jalapa. As an ornamental plant, M. jalapa has the potential to be used for phytoextraction of Cd-contaminated soils and it can beautify the environment at the same time.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1

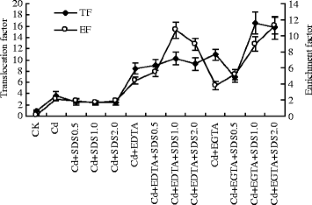

Fig. 2

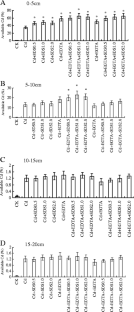

Fig. 3

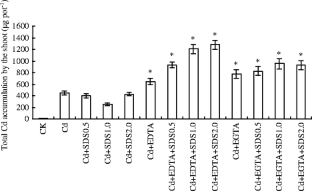

Fig. 4

References

  • Alford, E. R., Pilon-Smits, E. A. H., & Paschke, M. W. (2010). Metallophytes-a view from the rhizosphere. Plant and Soil, 337, 1–2.

    Article  Google Scholar

  • Blaylock, M. J., Salt, D. E., Dushenkov, S., Zakharova, O., Gussman, C., Kapulnik, Y., et al. (1997). Enhanced accumulation of Pb in Indian mustard by soil-applied chelating agents. Environmental Science & Technology, 31, 860–865.

    Article  Google Scholar

  • Chen, H. Y., OuYang, J. P., & Ma, Z. D. (2003). Status quo of and countermeasures for Cd contamination of farm and in the vicinity of Daye smeltery. The Soil, 1, 76–82.

    Google Scholar

  • Chen, Y. C., Dong, S. Y., & Xiong, Z. T. (2004). Effects of surfactants and EDTA on cadmium bioaccumulation by Brassica juncea var. multiceps. Plant Nutrition & Fertilizer Science, 10, 651–656.

    Google Scholar

  • Dahmani-Muller, H., van Oort, F., Gélie, B., & Balabane, M. (2000). Strategies of heavy metal uptake by three plant species growing near a metal smelter. Environmental Pollution, 109, 231–238.

    CAS  Article  Google Scholar

  • do Nascimento, C. W. A., Amarasiriwardena, D., & Xing, B. (2006). Comparison of natural organic acids and synthetic chelates at enhancing phytoextraction of metals from a multi-metal contaminated soil. Environmental Pollution, 140, 114–123.

    Article  Google Scholar

  • Gunawardana, B., Singhal, N., & Johnson, A. (2010). Amendments and their combined application for enhanced copper, cadmium, lead uptake by Lolium perenne. Plant and Soil, 329, 283–294.

    CAS  Article  Google Scholar

  • Jean-Soro, L., Bordas, F., & Bollinger, J. C. (2012). Column leaching of chromium and nickel from a contaminated soil using EDTA and citric acid. Environmental Pollution, 164, 175–181.

    CAS  Article  Google Scholar

  • Leitenmaier, B., & Kupper, H. (2011). Cadmium uptake and sequestration kinetics in individual leaf cell protoplasts of the Cd/Zn hyperaccumulator Thlaspi caerulescens. Plant, Cell & Environment, 34, 208–219.

    CAS  Article  Google Scholar

  • Liu, J. N., Zhou, Q. X., Wang, X. F., Zhang, Q. R., & Sun, T. (2006). Potential of ornamental plant resources applied to contaminated soil remediation, in: J. A. Teixeira da Silva (ed.) Floriculture, Ornamental and Plant Biotechnology, 3, 245–252.

  • Liu, J. N., Zhou, Q. X., Wang, S., & Sun, T. (2009). Cadmium tolerance and accumulation of Althaea rosea Cav. and its potential as a hyperaccumulator under chemical enhancement. Environmental Mornitoring & Assessment, 149, 419–427.

    CAS  Article  Google Scholar

  • Liu, J. N., Zhou, Q. X., & Wang, S. (2010). Evaluation of chemical enhancement on phytoremediation effect of Cd-contaminated soils with Calendula Officinal L. International Journal of Phytormediation, 12, 503–515.

    CAS  Article  Google Scholar

  • Lu, R. K. (2004). Analytical methods of in soil agro-chemical. Beijing: Agricultural Science and Technology Press (in Chinese).

    Google Scholar

  • Mihucz, V. G., Csog, Á., Fodor, F., Tatár, E., Szoboszlai, N., Silaghi-Dumitrescu, L., et al. (2012). Impact of two iron (Ш) chelators on the iron, cadmium, lead and nickel accumulation in poplar grown under heavy metal stress in hydoponics. Journal of Plant Phydiology, 169, 561–566.

    CAS  Article  Google Scholar

  • Rékási, M., & Filep, T. (2012). Fractions and background concentrations of potentially toxic elements in Hungrian surface soils. Environmental Monitoring & Assessment, 184, 7461–7471.

    Article  Google Scholar

  • Smolińska, B., & Król, K. (2012). Leaching of mercury during phytoextraction assisted by EDTA, KI and citric acid. Journal of Chemical Technology and Biotechnology, 87, 1360–1365.

    Article  Google Scholar

  • Stanhope, K. G., Young, S. D., Hutchinson, J. J., & Kamath, R. (2000). Use of isotopic dilution techniques to assess the mobilization of nonlabile Cd by chelating agents in phytoremediation. Environmental Science & Technology, 34, 4123–4127.

    CAS  Article  Google Scholar

  • Surat, W., Kruatrachue, M., Pokethitiyook, P., Thanhan, P., & Samranwanich, T. (2008). Potential of Sonchus arvensis for the phytoremediation of lead-contaminated soil. International Journal of Phytoremediation, 10, 325–342.

    CAS  Article  Google Scholar

  • Van Engelen, D. L., Sharpe-Pedler, R. C., & Moorhead, K. K. (2007). Effect of chelating agents and solublity of cadmium complexes on uptake from soil by Brassica juncea. Chemosphere, 68, 401–408.

    Article  Google Scholar

  • Verkleij, J. A. C., Golan-Goldhirsh, A., Antosiewisz, D. M., Schwitzguebel, J. P., & Schroder, P. (2009). Dualities in plant tolerance to pollutants and their uptake and translocation to the upper plant parts. Environmental and Experimental Botany, 67, 10–22.

    CAS  Article  Google Scholar

  • Wang, A. G., Luo, C. L., Yang, R. X., Chen, Y. H., Shen, Z. G., & Li, X. D. (2012a). Metal leaching along soil profiles after the EDDS application-a field study. Environmental Pollution, 164, 204–210.

    CAS  Article  Google Scholar

  • Wang, Y. B., Yan, A. L., Dai, J., Wang, N. N., & Wu, D. (2012b). Accumulation and tolerance characteristics of cadmium in Chlorophytum comosum: a popular ornamental plant and potential Cd hyperaccumulator. Environmental Mornitoring & Assessment, 184, 929–937.

    CAS  Article  Google Scholar

  • Wei, S. H., & Zhou, Q. X. (2004). Identification of weed species with hyperaccumulative characteristics of heavy metals. Progress in Natural Science, 14, 495–503.

    CAS  Article  Google Scholar

  • Wei, S. H., Zhou, Q. X., & Wang, X. (2005). A newly discovered Cd-hyperaccumulator Solanum nigrum L. Science Bulletin, 50, 33–38.

    CAS  Article  Google Scholar

  • Weiss, J., Hondzo, N., Biesboer, D., & Semmens, N. (2006). Laboratory study of heavy metal phytoremediation by three wetland macrophytes. International Journal of Phytoremediation, 8, 245–259.

    CAS  Article  Google Scholar

  • Xia, J. Q. (1996). Detail explanation on the state soil-environment quality standard of China. Beijing: Chinese Environmental Science Press.

    Google Scholar

  • Yan, D. Y. S., & Lo, I. M. C. (2012). Phyrophosphate coupling with chelant-enhanced soil flushing of field contaminated soils for heavy metal extraction. Journal of Hazardous Materials, 199–200, 51–57.

    Article  Google Scholar

  • Zheng, M. X., Li, L. Q., Feng, L., Liu, J., & Chen, M. (2009). Effects of chelators on species and bioavailability of cadmium in soil to Daucus carota var. sativa and Brassica juncea var. multiceps. 3RD International Conference on Bioinformatics & Biomedical, 1–11, 4448–4451.

    Google Scholar

  • Zhou, Q. X., & Liu J. N. (2006). A new method to remediate Cd-contamination soil by Mirabilis jalapa L.. China Patent, no. CN101049603 B.

  • Zhou, J. H., Yang, Q. W., Lan, C. Y., & Ye, Z. H. (2010). Heavy metal uptake and extraction potential of two Bechmeria nivea (L.) Gaud. (Ramie) varieties associated with chemical reagents. Water Air & Soil Polltion, 211, 359–366.

    CAS  Article  Google Scholar

Download references

Acknowledgements

The work was supported by the Specialized Research Fund for the Doctoral Program of Higher Education (grant no. 20100031120030) and the National Natural Foundation of Science (grant no. 31200395, 41140008).

Author information

Affiliations

  1. Tianjin Academy of Environmental Sciences, Tianjin, 300191, People’s Republic of China

    Song Wang

  2. Tianjin Key Laboratory of Environmental Remediation and Pollution Control, College of Environmental Science and Engineering, Nankai University, Tianjin, 30071, People’s Republic of China

    Jianv Liu

Authors
  1. Song Wang
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Jianv Liu
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Jianv Liu.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Wang, S., Liu, J. The effectiveness and risk comparison of EDTA with EGTA in enhancing Cd phytoextraction by Mirabilis jalapa L.. Environ Monit Assess 186, 751–759 (2014). https://doi.org/10.1007/s10661-013-3414-x

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s10661-013-3414-x

Keywords

  • Cd
  • Mirabilis jalapa L
  • Phytoremediation
  • EDTA
  • EGTA
