Geochemical evaluation of present-day Tuul River sediments, Ulaanbaatar basin, Mongolia

Environmental Monitoring and Assessment volume 185, pages 2869–2881 (2013)Cite this article

Abstract

The Tuul River flows through the Ulaanbaatar basin of Mongolia and is the main source of water for the capital city, Ulaanbaatar. The Tuul catchment can be divided into three parts around Ulaanbaatar (upper, middle, and lower), according to the extent of urbanization. Sixteen surface water and groundwater samples were collected to evaluate present-day water quality and 34 stream sediment samples taken to examine their geochemical composition in relation to provenance and to assess the impact of urban activity on heavy metal accumulation. Groundwater quality in the upper and central water sources was adequate, but high concentrations of NO −3 were found in the lower water source. Heavy metal concentrations in the sediments are evaluated by comparison with average upper continental crust (UCC) values, coupled with ecological risk assessment by reference to sediment quality guidelines (SQG). The results show average abundances of potentially toxic metals such as As, Pb, Zn, Cu, Ni, Cr, and V are higher in the middle part (within the city) than in the upper and lower parts. However, all three parts show depletion in some chalcophile and high field strength elements (Cu, Ni, Cr, Sr, Nb, Zr, Th, Sc) relative to UCC, indicating that the river sediments were derived from a highly felsic crustal source. The assessment using SQG shows As and Cr are present in levels that cause adverse aquatic biological effects. Although concentrations of Pb, Zn, Cu, and Ni are generally below their respective threshold effect levels, in the middle reaches, values increase and border on the probable effect level. This suggests significant anthropogenic contamination in the urban areas, increasing values above a naturally low regional background.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

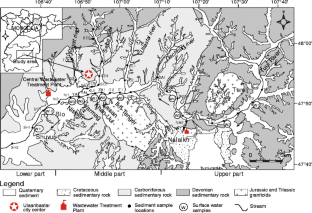

Fig. 1

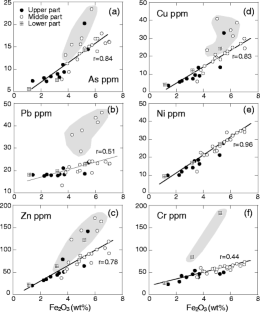

Fig. 2

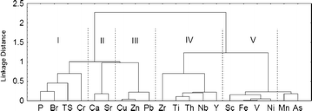

Fig. 3

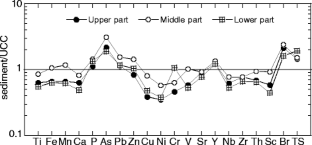

Fig. 4

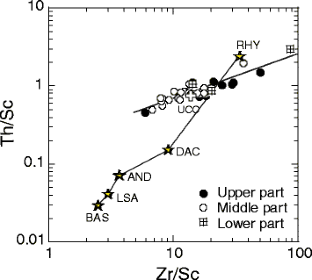

Fig. 5

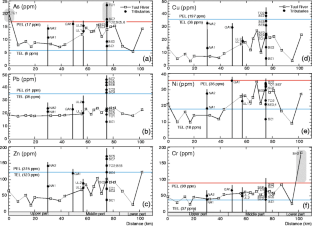

Fig. 6

References

  • Bhattacharyya, K. G., & Kapil, N. (2010). Impact of urbanization on the quality of water in a natural reservoir: a case study with Deeper Beel in Guwahati city, India. Water and Environment Journal, 24, 83–96.

    Article  Google Scholar

  • Bibi, M. H., Ahmed, F., & Ishiga, H. (2008). Geochemical study of arsenic concentrations in groundwater of the Meghna River Delta, Bangladesh. Journal of Geochemical Exploration, 97, 43–58.

    Article  CAS  Google Scholar

  • Chinzorig, G. (2009). The surface water pollution of Mongolia. Ulaanbaatar: Admon. In Mongolian.

    Google Scholar

  • CSM. (1998). Standard for surface water quality (p. 30). Ulaanbaatar: Centre of Standardization and Measurement. In Mongolian.

    Google Scholar

  • Davaa, G., & Erdenetuya, M. (2004). Hydrological changes in the upper Tuul River basin. Proceedings of the 3rd International Workshop on Terrestrial Change in Mongolia, Tsukuba, Japan. pp. 16–19.

  • Dinelli, E., Lucchuni, F., Mordenti, A., & Paganelli, L. (1999). Geochemistry of Oligocene-Miocene sandstone of the northern Apennines (Italy) and evolution of chemical features in relation to provenance changes. Sedimentary Geology, 127, 193–207.

    Article  CAS  Google Scholar

  • Emerton, L., Erdenesaikhan, N., De Veen, B., Tsogoo, D., Janchivdorj, L., Suvd, P., et al. (2009). The economic value of the Upper Tuul ecosystem, Mongolia. Discussion papers, East Asia and Pacific Sustainable Development Department. Washington, D.C.: World Bank.

  • Gotovsuren, A., Belogolova, G.A., Erdenedelger, D., & Yanjmaa, J. (1994). Engineering geology and ecological study at Ulaanbaatar area. Ulaanbaatar, final report (in Mongolian).

  • Hubbard, R. K., Newton, G. L., & Hill, M. G. (2004). Water quality and the grazing animal. Journal of Animal Science, 82, E255–E265.

    Google Scholar

  • Japan International Cooperation Agency (JICA). (1995). The study on water supply system in Ulaanbaatar and surroundings. Final report.

  • Javzan, C., Narantuya, L., Chandmani, D., & Gantumur, D. (2008). Water quality, sanitation and purification technology of Mongolia. “Mongolian vital questions and resolution methods” science meeting brochure. 21–37 (in Mongolian).

  • Johnsson, M. J. (1993). The system controlling the composition of clastic sediments. Geological Society of America, 284, 1–19. Special paper.

    Google Scholar

  • Lu, Q., & Sato, M. (2007). Estimation of hydraulic property of an unconfined aquifer by GPR. Sens Imaging, 8, 83–99.

    Article  Google Scholar

  • Ma, J., Ding, Z., Wei, G., Zhao, H., & Huang, T. (2009). Sources of water pollution and evolution of water quality in the Wuwei basin of Shiyang river, Northwest China. Journal of Environmental Management, 90, 1168–1177.

    Article  CAS  Google Scholar

  • MacDonald, D. D., Ingersoll, C. G., & Berger, T. A. (2000). Development and evaluation of consensus-based sediment quality guidelines for freshwater ecosystems. Archives of Environmental Contamination and Toxicology, 39, 20–31.

    Article  CAS  Google Scholar

  • McLennan, S. M., Hemming, S., McDanial, D. K., & Hanson, G. N. (1993). Geochemical approaches to sedimentation, provenance, and tectonics. Geology Society of America, Special Paper, 284, 21–40.

    Google Scholar

  • Mohiuddin, K. M., Zakir, H. M., Otomo, K., Sharmin, S., & Shikazono, N. (2010). Geochemical distribution of trace metal pollutants in water and sediments of downstream of a urban river. International Journal of Environmental Science and Technology, 7(1), 17–28.

    CAS  Google Scholar

  • Pfeifer, H. R., Beatrizotti, G., Berthoud, J., Rossa, M. D., Girardet, A., Jaggli, M., et al. (2002). Natural arsenic-contamination of surface and ground waters in Southern Switzerland (Ticino). Bulletin for Applied Geology, 7, 81–103.

    Google Scholar

  • Roser, B. P. (2000). Whole-rock geochemical studies of clastic sedimentary suites. Memoirs of the Geological Society of Japan, 57, 73–89.

    Google Scholar

  • Roser, B. P., & Korsch, R. J. (1999). Geochemical characterization, evolution and source of a Mesozoic accretionary wedge: the Torlesse terrane, New Zealand. Geological Magazine, 136, 493–512.

    Article  CAS  Google Scholar

  • Rudnick, R. L., & Gao, S. (2005). Composition of the continental crust. In R. L. Rudnick (Ed.), The crust (pp. 17–18). Oxford: Elsevier-Pergamon. Vol. 3, Treatise on geochemistry (eds. H.D. Holland and K.K. Turekian).

    Google Scholar

  • Singh, P. (2010). Geochemistry and provenance of stream sediments of the Ganga River and its major tributaries in the Himalayan region, India. Chemical Geology, 269, 220–236.

    Article  CAS  Google Scholar

  • Singh, M., Singh, A. K., Swati, Srivastava, N., Singh, S., & Chowdhary, A. K. (2010). Arsenic mobility in fluvial environment of the Ganga Plain, northern India. Environmental Earth Sciences, 59, 1703–1715.

    Article  CAS  Google Scholar

  • Smith, S. L., MacDonald, D. D., Keenleyside, K. A., Ingersoll, C. G., & Field, L. J. (1996). A preliminary evaluation of sediment quality assessment values for freshwater ecosystems. Journal of Great Lakes Research, 22, 624–638.

    Article  CAS  Google Scholar

  • Suthar, S., Nema, A. K., Chabukdhara, M., & Gupta, S. K. (2009). Assessment of metals in water and sediments of Hindon River, India: impact of industrial and urban discharges. Journal of Hazardous Materials, 171, 1088–1095.

    Article  CAS  Google Scholar

  • Whalen, J. B., Currie, K. L., & Chappell, B. W. (1987). A-type granites: geochemical characteristics, discrimination and petrogenesis. Contributions to Mineralogy and Petrology, 95, 407–419.

    Article  CAS  Google Scholar

  • Whitehead, P. G., & Lack, T. (1982). Dispersion and self-purification of pollutants in surface water systems. Unesco, Technical papers in Hydrology, 23, 41–68.

    Google Scholar

  • Youngming, H., Peixuan, D., Junji, C., & Posmentier, E. S. (2006). Multivariate analysis of heavy metal contamination in urban dusts of Xi’an, Central China. Science of the Total Environment, 355, 176–186.

    Article  Google Scholar

  • Zandaryaa, S., Borhculuun, U., & Munkhtuya, Sh. (2003). Reserves, consumption and contamination of groundwater in Ulaanbaatar, Mongolia. Atlas of Urban Geology, 14, 445–488.

    Google Scholar

  • Zhang, J. (1996). Geochemistry of arsenic in the Huanghe (Yellow River) and its delta region—a review of available data. Aquatic Geochemistry, 1, 241–275.

    Article  Google Scholar

Download references

Acknowledgments

This study was supported by a Monbukagakusho (Japanese government scholarship) which is gratefully acknowledged. Our thanks also to Dr. B.P. Roser of the Department of Geoscience, Shimane University, for comments on the manuscript; to Prof. D. Nasandulam (Mongolian State University of Agriculture) and B. Urnaa (Water Supply and Sewerage Authority) for their support during sample survey; and to D.T. Jayawardana and N. Purevjav for their assistance and discussion.

Author information

Affiliations

  1. Department of Geoscience, Shimane University, 1060, Matsue, 690-8504, Japan

    Banzragch Dalai & Hiroaki Ishiga

Authors
  1. Banzragch Dalai
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Hiroaki Ishiga
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Banzragch Dalai.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Dalai, B., Ishiga, H. Geochemical evaluation of present-day Tuul River sediments, Ulaanbaatar basin, Mongolia. Environ Monit Assess 185, 2869–2881 (2013). https://doi.org/10.1007/s10661-012-2757-z

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s10661-012-2757-z

Keywords

  • Geochemistry
  • Heavy metals
  • Provenance
  • Pollution
  • Urban activity
  • Quality guideline
