Use of diffusing filters for artificially reducing visual acuity when testing equipment and procedures

Documenta Ophthalmologica volume 140, pages 83–93 (2020)Cite this article

Abstract

Purpose

When evaluating ophthalmological devices and procedures, for instance those for visual electrophysiology, it is often desirable to perform tests with reduced acuity. Doing this with individuals with actual visual impairments has a number of disadvantages, such as considerable recruitment efforts, especially when a specific acuity range is targeted, and little control about the actual perceptual characteristics of the impairment, which are normally not fully known. Lenses with positive diopters or blurring filters that are placed in front of the eyes of visually normal observers promise a simple solution to the problem. However, defocus results in considerable spurious resolution, and previous studies suggest that the frequently used Bangerter occluders are not optimal for the purpose. The present study therefore reviews a number of other options and tests a selection of filters with respect to their effect on acuity and contrast sensitivity with the aim of identifying filters that primarily degrade acuity while mostly sparing contrast sensitivity.

Methods

First, we screened several filters for potential usefulness. The Freiburg Acuity and Contrast Test was then used to measure visual acuity and contrast sensitivity with a subset of three filters (Luminit LSD 0.5° and 1°, and LEE 420) and, for comparison, with a Bangerter occluder with a nominal acuity grade of 0.1. A qualitative comparison of the filters’ effect on the checkerboard-reversal VEP was also performed.

Results

With both Luminit filters, variability in acuity across participants was relatively small, and at least with the 0.5° version, contrast sensitivity was relativity little affected. The LEE filter and the Bangerter occluder resulted in more variability and, compared to the effect on acuity, a relatively strong reduction in contrast sensitivity. Comparing the Luminit 0.5° and 1° filters, the reduction of acuity was not proportional to physical stimulus degradation. The effect on VEP responses was consistent with the psychophysical data.

Conclusions

The Luminit filters, which have a Gaussian light diffusion profile, appear to be a good choice for artificial reduction of acuity.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

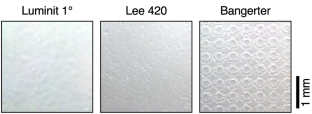

Fig. 1
Fig. 2

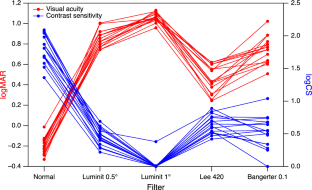

Fig. 3

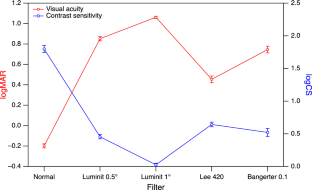

Fig. 4

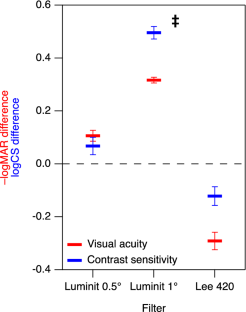

Fig. 5

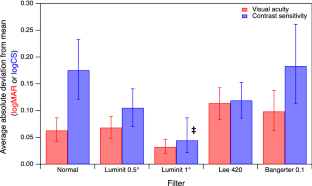

Fig. 6
Fig. 7

Notes

  1. This discussion only considers aspects related to the observer’s own visual performance. Any function of a device that benefits from a clear optical pathway toward the observer, such as imaging the eye, or video-based tracking of eye movements, might of course be affected by whatever is inserted between the device and the eye.
