Climatic Change

, Volume 122, Issue 4, pp 595–608 | Cite as

Detection of urbanization signals in extreme winter minimum temperature changes over Northern China

  • Qingxiang LiEmail author
  • Jiayou Huang
  • Zhihong Jiang
  • Liming Zhou
  • Peng Chu
  • Kaixi Hu

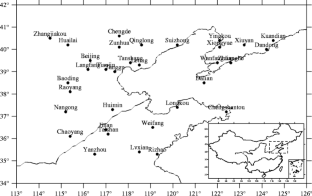

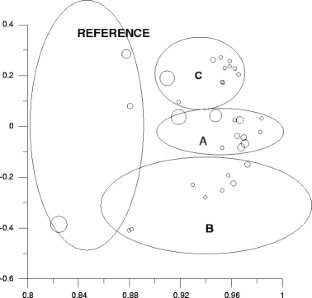

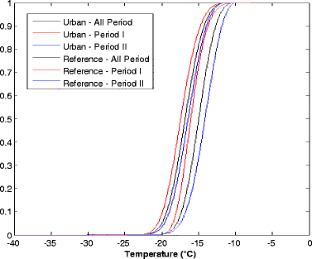

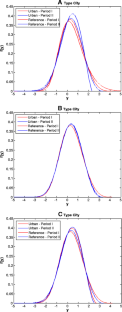

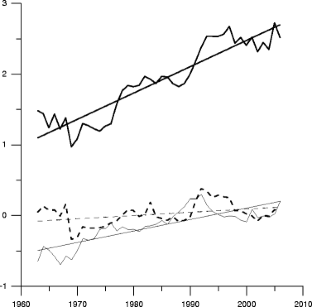

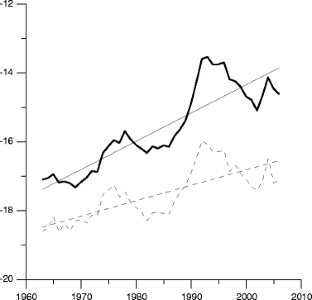

Although previous studies show that urbanization contributes to less than 10 % of the long-term regional total warming trend of mean surface air temperature in northeast China (Li et al. 2010), the urban heat island (UHI) impact on extreme temperatures could be more significant. This paper examines the urbanization impact on extreme winter minimum temperatures from 33 stations in North China during the period of 1957–2010. We use the Generalized Extreme Value (GEV) distribution to analyze the distribution of extreme minimum temperatures and the long-term variations of the three distributional characteristics parameters. Results suggest that among the three distribution parameters, the position parameter is the most representative in terms of the long-term extreme minimum temperature change. A new classification method based on the intercommunity (factors analysis method) of the temperature change is developed to detect the urbanization effect on winter extreme minimum temperatures in different cities. During the period of rapid urbanization (after 1980), the magnitude of variations of the three distribution parameters for the urban station group is larger than that for the reference station group, indicating a higher chance of occurrence of warmer weather and a larger fluctuation of temperatures. Among different types of cities, the three parameters of extreme minimum temperature distribution of the urban station group are, without exception, higher than those of the reference station group. The urbanization of different types of cities all show a warming effect, with small-size cities have the most evident effects on extreme minimum temperatures.


Station Group Urban Heat Island Generalize Extreme Value Urban Station Generalize Extreme Value Distribution
These keywords were added by machine and not by the authors. This process is experimental and the keywords may be updated as the learning algorithm improves.



The study is supported by: the State Key Development Program of Basic Research of China (2010CB951600; 2010CB428505), the National Science and Technology Supporting Plan of the Twelfth Five-Year (2012BAC22B05), National Natural Science Foundation of China (grant 40605021),China Meteorological Administration Special Foundation for Climate Change (CCSF201224). The first author has made an in-depth discussion with Dr. Wang Xiaolan on the separation of urbanization signal by GEV method during his visit to the Ministry of Environment in Canada. Dr. Yang Xuchao of Zhejiang Provincial Metrological Bureau provided data on nocturnal illumination and also technical support for the present study. And we would like to thank Prof. Phil Jones and Mr David Parker for their kindly reviewing an early version of this manuscript and their helpful comments to it.

Supplementary material

10584_2013_1013_MOESM1_ESM.doc (68 kb)
ESM 1 (DOC 68 kb)


  1. Alexander LV et al (2006) Global observed changes in daily climate extremes of temperature and precipitation. J Geophys Res 111, D05109. doi: 10.1029/2005JD006290 Google Scholar
  2. Brohan P, Kennedy JJ, Harris I et al (2006) Uncertainty estimates in regional and global observed temperature changes: a new data set from 1850. J Geophys Res 111, D12106. doi: 10.1029/2005JD006548 CrossRefGoogle Scholar
  3. Chen Y, Li X, Chen M et al (2008) Research on general exteme value distribution linear matrix which takes account of historical data on floods. J China Hydrol 28(3):8–13 (in Chinese)Google Scholar
  4. Chen Z, Liu Z, Lu J (2010) Comparative analysis of parameter estimation methods of generalized extreme value distribution. Acta Sci Nat Univ Sun Yat-sen 48(6):105–109 (in Chinese)Google Scholar
  5. Chu Z, Ren G (2005) The impact of change in Beijing metropolis heat island intensity on regional temperature series. Trans Meteorol 63(4):534–540 (in Chinese)Google Scholar
  6. Coles SG (2001) An introduction to statistical modeling of extreme values. SpringerGoogle Scholar
  7. Du Y, Xie Z, Zeng Y et al (2007) Impact of urban expansion on regional temperature change in the Yangtze River Delta. J Geogr Sci 17(4):387–398. doi: 10.1007/s11442-007-0387-0 CrossRefGoogle Scholar
  8. Easterling DR et al (1997) Maximum and minimum temperature trends for the globe. Science 277(5324):364–367CrossRefGoogle Scholar
  9. Fang F, Bai H, Zhao H et al (2007) The urbanization effect in Northwestern China and its contribution to temperature warming. Plateau Meteorol 26(3):579–585 (in Chinese)Google Scholar
  10. Hansen J, Ruedy R, Sato M, Lo K (2010) Global surface temperature change. Rev Geophys 48, RG4004. doi: 10.1029/2010RG000345 CrossRefGoogle Scholar
  11. Hua L, Ma Z, Guo W (2008) The impact of urbanization on air temperature across China. Theor Appl Climatol 93(3):179–194CrossRefGoogle Scholar
  12. Huang J (2007) Methods of meteorological statistical analysis and forecast. Meteorology Press, BeijingGoogle Scholar
  13. IPCC (2007) Climate change: the physical science basis. Contribution of working group I to the fourth assessment report of the intergovernmental panel on climate change. Cambridge University Press, CambridgeGoogle Scholar
  14. IPCC (2012) Managing the risks of extreme events and disasters to advance climate change adaptation, a special report of working groups I and II of the intergovernmental panel on climate change. Cambridge University Press, Cambridge and New YorkGoogle Scholar
  15. Jones PD, Groisman PY, Coughlan M et al (1990) Assessment of urbanization effects in time series of surface air temperature over land. Nature 347:169–172CrossRefGoogle Scholar
  16. Jones PD, Lister DH, Li Q (2008) Urbanization effects in large-scale temperature records, with an emphasis on China. J Geophys Res 113, D16122. doi: 10.1029/2008/JD009916 CrossRefGoogle Scholar
  17. Kalnay E, Cai M (2003) Impact of urbanization and land-use change on climate. Nature 423(6939):528–531CrossRefGoogle Scholar
  18. Karl TR, Diaz HF, Kukla G (1988) Urbanization: its detection and effect in the United States climate record. J Clim 1:1099–1123CrossRefGoogle Scholar
  19. Kukla G, Gavin J (1986) Urban warming. J Clim Appl Meteorol 250:1265–1270CrossRefGoogle Scholar
  20. Li Q (2011) Introduction to research on climatic data homogenization [M]. Meteorological Press, BeijingGoogle Scholar
  21. Li Q, Dong W (2009) Detection and adjustment of undocumented discontinuities in Chinese temperature series using a composite approach. Adv Atmos Sci 26(1):143–153. doi: 10.1007/s00376-009-0143-8 CrossRefGoogle Scholar
  22. Li Q, Huang J (2012) Long-term change in the extreme climate events of minimum temperature in Beijing. Plateau Meteorol 31(4):1145–1150 (in Chinese)Google Scholar
  23. Li Q, Huang J (2013) Effects of urbanization in surrounding Bohai area on extreme summer warmest night temperatures, Acta Meteorologica Sinica 71(4):668–676 (in Chinese)Google Scholar
  24. Li Q, Zhang H, Liu X et al (2004a) UHI effect on annual mean temperature during recent 50 years in china. Theor Appl Climatol 79:165–174CrossRefGoogle Scholar
  25. Li Q, Liu X, Zhang H et al (2004b) Detecting and adjusting on temporal inhomogeneity in Chinese mean surface air temperature dataset. Adv Atmos Sci 21(2):165–174Google Scholar
  26. Li Q, Zhang H, Chen J et al (2009) A mainland China homogenized historical temperature dataset of 1951-2004. Bull Am Meteorol Soc 90:1062–1065. doi: 10.1175/2009BAMS2736 CrossRefGoogle Scholar
  27. Li Q, Li W, Si P et al (2010) Assessment of surface air warming in northeast China, with emphasis on the impacts of urbanization. Theor Appl Climatol. doi: 10.1007/s00704-009-0155-4 Google Scholar
  28. Mohsin T, Gough WA (2012) Characterization and estimation of urban heat island at Toronto: impact of the choice of rural sites. Theor Appl Climatol 108(1–2):105–117CrossRefGoogle Scholar
  29. Parker DE (2004) Large-scale warming is not urban. Nature 432:290CrossRefGoogle Scholar
  30. Peterson TC (2003) Assessment of urban versus rural in situ surface temperature in the contiguous United States: no difference found. J Clim 16:2941–2959CrossRefGoogle Scholar
  31. Ren G, Zhou Y, Chu Z et al (2008) Urbanization effects on observed surface air temperature trends in North China. J Climate 21:1333–1348CrossRefGoogle Scholar
  32. Tang H, Zhai P, Wang Z (2005) On the change in the mean maximum and minimum temperature and diurnal range from 1951 to 1990. Clim Environ Res 10(4):728–735 (in Chinese)Google Scholar
  33. Wang XL, Trewin B, Feng Y et al (2013a) Historical changes in Australian temperature extremes as inferred from extreme value distribution analysis. Geophys Res Lett 40:573–578. doi: 10.1002/grl.50132 CrossRefGoogle Scholar
  34. Wang X, Feng Y, Vincent L (2013b) Observed changes in one-in-20 year extremes of Canadian surface air temperatures. Atmos Ocean (accepted)Google Scholar
  35. Yang X, Hou Y, Chen B (2011) Observed surface warming induced by urbanization in East China. J Geophys Res 116, D14113. doi: 10.1029/2010/JD15452 CrossRefGoogle Scholar
  36. Zhai P, Pan X (2003) The change in extreme events of temperature and precipitation in Northern China over the past 50 years. Geogr Trans 58(Supplement):1–10Google Scholar
  37. Zhai P, Ren F (1997) On the change of China's maximum and minimum temperature in the recent 40 years. Acta Meteorologica Sinic 55(4):418–429 (in Chinese)Google Scholar
  38. Zhang J, Dong W, Wu L et al (2005a) Impact of land use changes on surface warming in China. Adv Atmos Sci 22(3):343–348CrossRefGoogle Scholar
  39. Zhang XB, Gabriele H, Francis WZ, et al (2005b) Avoiding inhomogeneity in percentile-based indices of temperature extremes. J Clim 18:1641–1651CrossRefGoogle Scholar
  40. Zhou L, Dickinson RE, Tian Y et al (2004) Evidence for a significant urbanization effect on climate in China. Proc Natl Acad Sci U S A 101(26):9540–9544CrossRefGoogle Scholar
  41. Zhou L, Dai A, Dai Y et al (2009) Spatial dependence of diurnal temperature range trends on precipitation from 1950 to 2004. Clim Dyn 32:429–440. doi: 10.1007/s00382-008-0387-5 CrossRefGoogle Scholar
