, Volume 21, Issue 1, pp 323–333 | Cite as

Highly ductile fibres and sheets by core-shell structuring of the cellulose nanofibrils

  • Per A. LarssonEmail author
  • Lars A. Berglund
  • Lars Wågberg
Original Paper

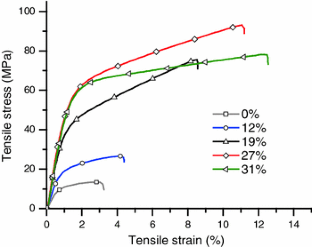

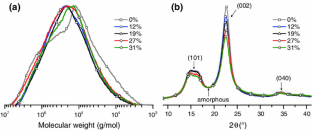

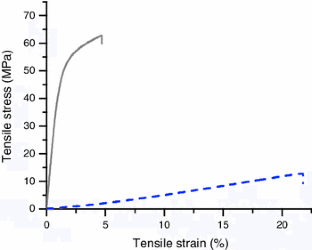

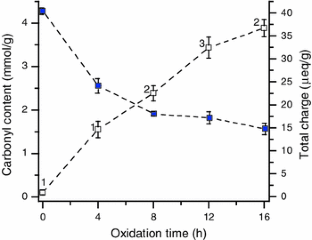

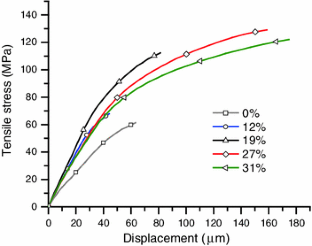

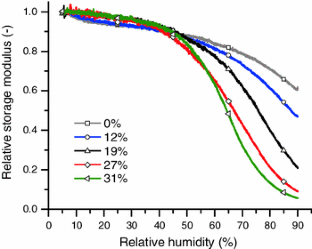

A greater ductility of cellulosic materials is important if they are to be used in increasingly advanced applications. This study explores the potential for using chemical core-shell structuring on the nanofibril level to alter the mechanical properties of cellulose fibres and sheets made thereof. The structuring was achieved by a selective oxidation of the cellulose C2–C3 bonds with sodium periodate, followed by a reduction of the aldehydes formed with sodium borohydride, i.e. locally transforming cellulose to dialcohol cellulose. The resulting fibres were morphologically characterised and the sheets made of these modified fibres were mechanically tested. These analyses showed a minor decrease in the degree of polymerisation, a significantly reduced cellulose crystal width and a greater ductility. At 27 % conversion of the available C2–C3 bonds, sheets could be strained 11 %, having a stress at break of about 90 MPa, and consequently a remarkable tensile energy absorption at rupture of about 9 kJ/kg, i.e. 3–4 times higher than a strong conventional paper. Zero-span tensile measurements indicated that the treatment increased the ductility not only of sheets but also of individual fibres. This suggests that the amorphous and molecularly more mobile dialcohol cellulose is located as a shell surrounding the crystalline core of the cellulose fibrils, and that, at deformations beyond the yield point, this facilitates plastic deformation both within and between individual fibres.


Borohydride reduction Dialcohol cellulose Ductile paper Energy absorption Periodate oxidation Strain at break Core-shell structure



The financial support from the Swedish Governmental Agency for Innovation Systems (VINNOVA), through the excellence centre BiMaC Innovation at KTH, is respectfully acknowledged. Mr Philip Lindh is acknowledged for skilful laboratory assistance and SCA R&D Centre AB, Sundsvall, Sweden is acknowledged for performing the zero-span measurements.


  1. Batchelor WJ, Westerlind BS (2003) Measurement of short span stress–strain curves of paper. Nord Pulp Pap Res J 18:044–050CrossRefGoogle Scholar
  2. Burgert I, Fruehmann K, Keckes J, Fratzl P, Stanzl-tschegg SE (2003) Microtensile testing of wood fibers combined with video extensometry for efficient strain detection. Holzforschung 57:661–664CrossRefGoogle Scholar
  3. Buxton GV, Greenstock CL, Helman WP, Ross AB (1988) Critical review of rate constants for reactions of hydrated electrons, hydrogen atoms and hydroxyl radicals (·OH/·O) in aqueous solution. J Phys Chem Ref Data 17(2):513–886CrossRefGoogle Scholar
  4. Calvini P, Conio G, Lorenzoni M, Pedemonte E (2004) Viscometric determination of dialdehyde content in periodate oxycellulose. Part I. Methodology. Cellulose 11(1):99–107CrossRefGoogle Scholar
  5. Decher G (1997) Fuzzy nanoassemblies: toward layered polymeric multicomposites. Science 277(5330):1232–1237CrossRefGoogle Scholar
  6. Eder M, Terziev N, Daniel G, Burgert I (2008) The effect of (induced) dislocations on the tensile properties of individual Norway spruce fibres. Holzforschung 62:77–81CrossRefGoogle Scholar
  7. El-Hosseiny F, Page DH (1975) The mechanical properties of single wood pulp fibres: theories of strength. Fibre Sci Technol 8(1):21–31CrossRefGoogle Scholar
  8. Hansen NML, Plackett D (2008) Sustainable films and coatings from hemicelluloses: a review. Biomacromolecules 9(6):1493–1505CrossRefGoogle Scholar
  9. Hou QX, Liu W, Liu ZH, Bai LL (2007) Characteristics of wood cellulose fibers treated with periodate and bisulfite. Ind Eng Chem Res 46:7830–7837CrossRefGoogle Scholar
  10. Jayne BA (1959) Mechanical properties of wood fibres. Tappi 42(6):461–467Google Scholar
  11. Kasai W, Morooka T, Ek M (2011). Mechanical properties of films made from dialcohol cellulose. In: Proceedings of the 16th international symposium on wood, fiber and pulping chemistry, ISWFPC, vol 1. Tianjin, China, pp 436–438Google Scholar
  12. Katz S, Beatson RP, Scallan AM (1984) The determination of strong and weak acidic groups in sulfite pulps. Sv Papperstidn 87:R48–R53Google Scholar
  13. Kim U-J, Kuga S, Wada M, Okano T, Kondo T (2000) Periodate oxidation of crystalline cellulose. Biomacromolecules 1:488–492CrossRefGoogle Scholar
  14. Kim U-J, Wada M, Kuga S (2004) Solubilization of dialdehyde cellulose by hot water. Carbohydr Polym 56(1):7–10CrossRefGoogle Scholar
  15. Larsson PA, Gimåker M, Wågberg L (2008) The influence of periodate oxidation on the moisture sorptivity and dimensional stability of paper. Cellulose 15:837–847CrossRefGoogle Scholar
  16. Larsson PA, Berglund L, Wågberg L (2013) Ductile cellulose nanocomposite films fabricated from nanofibrillated cellulose after partial conversion to dialcohol cellulose. Abstract of Papers of the American Chemical Society. Paper presented at 245th ACS National Meeting and Exposition, New Orleans, Louisiana, 7–11 April 2013Google Scholar
  17. Leopold B, Thorpe JL (1968) Effect of pulping on strength properties of dry and wet pulp fibres from Norway spruce. Tappi 51(7):304–308Google Scholar
  18. Li H, Wu B, Mu C, Lin W (2011) Concomitant degradation in periodate oxidation of carboxymethyl cellulose. Carbohydr Polym 84(3):881–886CrossRefGoogle Scholar
  19. Liimatainen H, Visanko M, Sirviö JA, Hormi OEO, Niinimaki J (2012) Enhancement of the nanofibrillation of wood cellulose through sequential periodate–chlorite oxidation. Biomacromolecules 13(5):1592–1597CrossRefGoogle Scholar
  20. Lindström T, Wågberg L, Larsson T (2005) On the nature of joint strength in paper—a review of dry and wet strength resins used in paper manufacturing. In: Advances in paper science and technology, 13th fundamental research symposium, Cambridge, UKGoogle Scholar
  21. Marais A, Wågberg L (in press) Towards a super-strainable paper using the layer-by-layer technique carbohydrate polymers. Carbohydr Polym. doi: 10.1016/j.carbpol.2013.03.049
  22. Marsh K, Bugusu B (2007) Food packaging—roles, materials, and environmental issues. J Food Sci 72(3):R39–R55CrossRefGoogle Scholar
  23. Marton J (1996) Dry-strength additives. In: Roberts JC (ed) Paper chemistry. Blackie Academic & Professional, Glasgow, pp 83–97Google Scholar
  24. Matsumura H, Sugiyama J, Glasser WG (2000) Cellulosic nanocomposites. I. Thermally deformable cellulose hexanoates from heterogeneous reaction. J Appl Polym Sci 78(13):2242–2253CrossRefGoogle Scholar
  25. Mohlin U-B (1974) Cellulose fibre bonding: determination of interfibre bond strength. Sv Papperstidn 4:131–137Google Scholar
  26. Moon RJ, Martini A, Nairn J, Simonsen J, Youngblood J (2011) Cellulose nanomaterials review: structure, properties and nanocomposites. Chem Soc Rev 40(7):3941–3994CrossRefGoogle Scholar
  27. Morooka T, Norimoto M, Yamada T (1989) Periodate oxidation of cellulose by homogeneous reaction. J Appl Polym Sci 38(5):849–858CrossRefGoogle Scholar
  28. Niskanen K, Kärenlampi P (1998) In-plane tensile properties. In: Niskanen K (ed) Paper physics, vol 16, pp 138–191, Helsinki, FapetGoogle Scholar
  29. Östlund M, Borodulina S, Östlund S (2011) Influence of paperboard structure and processing conditions on forming of complex paperboard structures. Pack Technol Sci 24(6):331–341CrossRefGoogle Scholar
  30. Page DH (1969) Theory for the tensile strength of paper. Tappi 52:674–681Google Scholar
  31. Painter TJ (1988) Control of depolymerisation during the preparation of reduced dialdehyde cellulose. Carbohydr Res 179:259–268CrossRefGoogle Scholar
  32. Patterson A (1939) The scherrer formula for x-ray particle size determination. Phys Rev 56:978–982CrossRefGoogle Scholar
  33. Rinaudo M (2010) Periodate oxidation of methylcellulose: characterization and properties of oxidized derivatives. Polymers 2(4):505–521CrossRefGoogle Scholar
  34. Schultz-Eklund O, Fellers C, Johansson PA (1992) Method for the local determination of the thickness and density of paper. Nordic Pulp Paper Res J 7:133–139, 154–139, 154Google Scholar
  35. Segal L, Creely JJ, Martin AE, Conrad CM (1959) An empirical method for estimating the degree of crystallinity of native cellulose using the X-ray diffractometer. Text Res J 29(10):786–794CrossRefGoogle Scholar
  36. Sehaqui H, Zhou Q, Berglund LA (2011) Nanostructured biocomposites of high toughness—a wood cellulose nanofiber network in ductile hydroxyethylcellulose matrix. Soft Matter 7(16):7342–7350CrossRefGoogle Scholar
  37. Sihtola H (1960) Chemical properties of modified celluloses. Die Makromolekulare Chemie 35(1):250–265CrossRefGoogle Scholar
  38. Sirviö J, Hyväkkö U, Liimatainen H, Niinimäki J, Hormi O (2011a) Periodate oxidation of cellulose at elevated temperatures using metal salts as cellulose activators. Carbohydr Polym 83(3):5CrossRefGoogle Scholar
  39. Sirviö J, Liimatainen H, Niinimäki J, Hormi O (2011b) Dialdehyde cellulose microfibers generated from wood pulp by milling-induced periodate oxidation. Carbohydr Polym 86(1):260–265CrossRefGoogle Scholar
  40. Soroka W (2002) Flexible packaging laminates. In: Fundamentals of packaging technology. Institute of Packaging Professionals, Naperville, IL, pp 345–406Google Scholar
  41. Symons MCR (1955) Evidence for formation of free-radical intermediates in some reactions involving periodate. J Chem Soc 2794–2796Google Scholar
  42. Torgnysdotter A, Wågberg L (2006) Tailoring of fibre/fibre joints in order to avoid the negative impacts of drying on paper properties. Nord Pulp Pap Res J 21(3):411–418CrossRefGoogle Scholar
  43. Torgnysdotter A, Kulachenko A, Gradin P, Wågberg L (2007) The link between the fiber contact zone and the physical properties of paper: a way to control paper properties. J Compos Mater 41(13):1619–1633CrossRefGoogle Scholar
  44. Vishtal A, Retulainen E (2012) Deep-drawing of paper and paperboard: the role of material properties. Bioresources 7(3):4424–4450Google Scholar
  45. Wågberg L (2009) On the mechanisms behind the action of dry strength and dry strength agents. In: Ek M, Gellerstedt G, Henriksson G (eds) Pulp and paper chemistry and technology: paper products physics and technology. Walter de Gruyter, Berlin, p 4Google Scholar
  46. Wågberg L, Annergren G (1997). Physicochemical characterization of papermaking fibres. In: 11th fundamental research symposium, Cambridge, England, Pira InternationalGoogle Scholar
  47. Zeronian SH (1963) The preparation of borohydride-reduced periodate oxycellulose: the effect of the reactivity of the cellulose and degradation. Sv Papperstidn 18:707–710Google Scholar
  48. Zeronian SH, Hudson FL, Peters RH (1964) The mechanical properties of paper made from periodate oxycellulose pulp and from the same pulp after reduction with borohydride. Tappi 47:557–564Google Scholar
  49. Zhao H, Heindel N (1991) Determination of degree of substitution of formyl groups in polyaldehyde dextran by the hydroxylamine hydrochloride method. Pharm Res 8(3):400–402CrossRefGoogle Scholar

Copyright information

© Springer Science+Business Media Dordrecht 2013

Authors and Affiliations

  • Per A. Larsson
    • 1
    • 2
    Email author
  • Lars A. Berglund
    • 1
    • 2
    • 3
  • Lars Wågberg
    • 1
    • 2
    • 3
  1. 1.Fibre and Polymer TechnologyKTH Royal Institute of TechnologyStockholmSweden
  2. 2.BiMaC InnovationKTH Royal Institute of TechnologyStockholmSweden
  3. 3.Wallenberg Wood Science CenterKTH Royal Institute of TechnologyStockholmSweden

Personalised recommendations
