Skip to main content
Springer Nature Link
Log in

Carboxymethyl cellulose on a fiber substrate: the interactions with cationic polyelectrolytes

  • Original Paper
  • Published:
Cellulose Aims and scope Submit manuscript

Abstract

High and low molecular weight (Mw) carboxymethyl celluloses (CMC) were adsorbed on a well-characterized fiber substrate (long fibers of a commercial bleached birch kraft pulp with the carboxylic acid groups in Na-form) to increase the charge of the fibers in a controlled fashion. The Mw played a role in the utilization of CMCs as a strength additive in paper sheets nearly doubling the tensile strength with the high Mw CMC. Swelling properties of the CMC treated fibers were measured with water retention value (WRV). The WRV increased more with the high Mw CMC. The swelling was further tuned by two highly cationic polyelectrolytes; high Mw poly(diallyldimethyl ammonium chloride) (PDADMAC) and low Mw polybrene (hexadimethrine bromide, [3,6]-ionene). They were chosen because of their known ability to neutralize the anionic charge either exclusively on the surface or in the whole fiber, respectively. Adsorption of PDADMAC could reduce WRV of the CMC pre-treated fibers to the level of the untreated reference, while polybrene adsorbed pulps with 3–10 times more cationic polyelectrolyte deswelled the fibers only slightly more than the surface neutralized fibers. These results indicated surface conformation differences with low and high Mw CMCs. While the conformation did play a role after physical alteration (drying and rewetting) of the fibers, the paper sheets produced from these fibers showed remarkable differences. In extreme cases, the strength of the paper could be retained after drying (low Mw CMC + PDADMAC) or paper, resistant to disintegration, could be achieved (CMC + polybrene).

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Subscribe and save

Springer+
from $39.99 /Month
  • Starting from 10 chapters or articles per month
  • Access and download chapters and articles from more than 300k books and 2,500 journals
  • Cancel anytime
View plans

Buy Now

Price excludes VAT (USA)
Tax calculation will be finalised during checkout.

Instant access to the full article PDF.

Institutional subscriptions

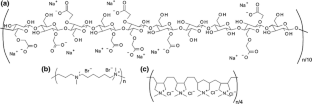

Fig. 1

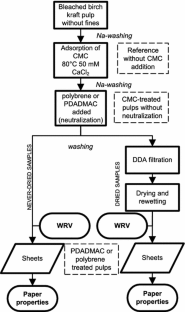

Fig. 2

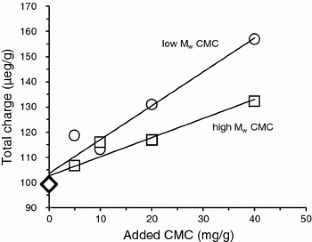

Fig. 3
Fig. 4

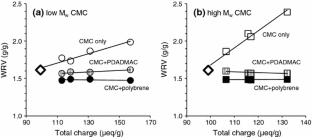

Fig. 5

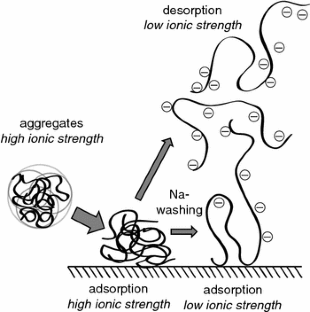

Fig. 6

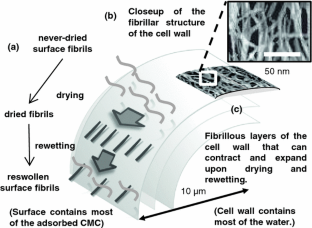

Fig. 7

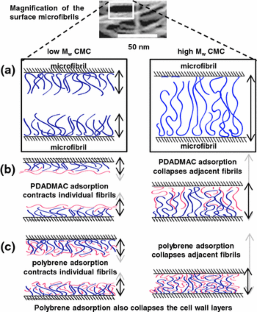

Fig. 8

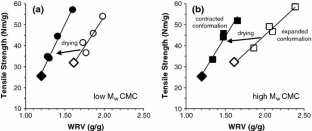

Fig. 9

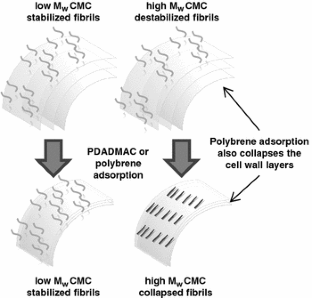

Fig. 10

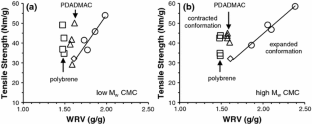

Fig. 11

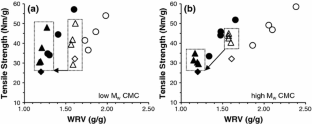

Fig. 12

Similar content being viewed by others

Explore related subjects

Discover the latest articles, books and news in related subjects, suggested using machine learning.

References

  • Aarne N, Kontturi E, Laine J (2012) Influence of adsorbed polyelectrolytes on pore size distribution of a water-swollen biomaterial. Soft Matter 8:4740–4749

    Article  Google Scholar

  • Blomstedt M, Kontturi E, Vuorinen T (2007a) Optimising CMC sorption in order to improve tensile stiffness of hardwood pulp sheets. Nord Pulp Pap Res J 22:336–342

    Article  CAS  Google Scholar

  • Blomstedt M, Mitikka-Eklund M, Vuorinen T (2007b) Simplified modification of bleached softwood pulp with carboxymethyl cellulose. Appita J 60:309–314

    CAS  Google Scholar

  • Brännvall E, Eriksson M, Lindström ME, Wågberg L (2007) Fibre surface modifications of market pulp by consecutive treatments with cationic and anionic starch. Nord Pulp Pap Res J 22:244–248

    Article  Google Scholar

  • Decher G (1997) Fuzzy nanoassemblies: toward layered polymeric multicomposites. Science 277:1232–1237

    Article  CAS  Google Scholar

  • Dubas ST, Schlenoff JB (1999) Factors controlling the growth of polyelectrolyte multilayers. Macromolecules 32:8153–8160

    Article  CAS  Google Scholar

  • Duker E, Lindström T (2008) On the mechanisms behind the ability of CMC to enhance paper strength. Nord Pulp Pap Res J 23:57–64

    Article  CAS  Google Scholar

  • Duker E, Ankertors M, Lindström T, Nordmark GG (2008) The use of CMC as a dry strength agent—the interplay between CMC attachment and drying. Nord Pulp Pap Res J 23:65–71

    Article  CAS  Google Scholar

  • Ekevåg P, Lindström T, Gellerstedt G, Lindström ME (2004) Addition of carboxymethylcellulose to the kraft cook. Nord Pulp Pap Res J 19:200–207

    Article  Google Scholar

  • Enarsson L, Wågberg L (2007) Kinetics of sequential adsorption of polyelectrolyte multilayers on pulp fibres and their effect on paper strength. Nord Pulp Pap Res J 22:258–266

    Article  CAS  Google Scholar

  • Eriksson M, Notley SM, Wågberg L (2005) The influence on paper strength properties when building multilayers of weak polyelectrolytes onto wood fibers. J Colloid Interface Sci 292:38–45

    Article  CAS  Google Scholar

  • Fei B, Wach RA, Mitomo H, Yoshii F, Kume T (2000) Hydrogel of biodegradable cellulose derivatives. I. Radiation-induced crosslinking of CMC. J Appl Polym Sci 78:278–283

    Article  CAS  Google Scholar

  • Gassan J, Gutowski VS, Bledzki AK (2000) About the surface characteristics of natural fibres. Macromol Mater Eng 283:132–139

    Article  CAS  Google Scholar

  • Gondo T, Watanabe M, Soma H, Kitao O, Yanagisawa M, Isogai A (2006) SEC-MALS study on carboxymethyl cellulose (CMC): relationship between conformation of CMC molecules and their adsorption behavior onto pulp fibers. Nord Pulp Pap Res J 21:591–597

    Article  CAS  Google Scholar

  • Gruber E, Weigert J (1998) Chemical modification of pulp to reduce its hornification tendency. Papier 52:V20–V26

    CAS  Google Scholar

  • Häggkvist M, Solberg D, Wågberg L (1998) The influence of two wet strength agents on pore size and swelling of pulp fibres and on tensile strength properties. Nord Pulp Pap Res J 13:292–298

    Article  Google Scholar

  • Heinze T, Pfeiffer K (1999) Studies on the synthesis and characterization of carboxymethylcellulose. Angew Makromol Chem 266:37–45

    Article  CAS  Google Scholar

  • Horvath, AE, Lindström, T, Laine, J (2006) On the indirect polyelectrolyte titration of cellulosic fibers. Conditions for charge stoichiometry and comparison with ESCA. Langmuir 22:824

    Google Scholar

  • Horvath AT, Horvath AE, Lindström T, Wågberg L (2008) Adsorption of highly charged polyelectrolytes onto an oppositely charged porous substrate. Langmuir 24:7857–7866

    Article  CAS  Google Scholar

  • Hubbe MA, Venditti RA, Rojas OJ (2007) What happens to cellulosic fibers during papermaking and recycling? A review. BioResources 2:739–788

    CAS  Google Scholar

  • Jean B, Heux L, Dubreuil F, Chambat G, Cousin F (2009) Non-electrostatic building of biomimetic cellulose-xyloglucan multilayers. Langmuir 25:3920–3923

    Article  CAS  Google Scholar

  • Karlsson JO, Gatenholm P (1999) Cellulose fibre-supported pH-sensitive hydrogels. Polymer 40:379–387

    Article  CAS  Google Scholar

  • Kato KL, Cameron RE (1999) A review of the relationship between thermally-accelerated ageing of paper and hornification. Cellulose 6:23

    Article  CAS  Google Scholar

  • Laine J, Lindström T, Nordmark GG, Risinger G (2000) Studies on topochemical modification of cellulosic fibres. Part 1. Chemical conditions for the attachment of carboxymethyl cellulose onto fibres. Nord Pulp Pap Res J 15:520–526

    Article  CAS  Google Scholar

  • Laine J, Lindström T, Nordmark GG, Risinger G (2002a) Studies on topochemical modification of cellulosic fibres. Part 2. The effect of carboxymethyl cellulose attachment on fibre swelling and paper strength. Nord Pulp Pap Res J 17:50–56

    Article  CAS  Google Scholar

  • Laine J, Lindström T, Nordmark GG, Risinger G (2002b) Studies on topochemical modification of cellulosic fibres. Part 3. The effect of carboxymethyl cellulose attachment on wet-strength development by alkaline-curing polyamide-amine epichlorohydrin resins. Nord Pulp Pap Res J 17:57–60

    Article  CAS  Google Scholar

  • Laine J, Lindström T, Bremberg C, Glad-Nordmark G (2003a) Studies on topochemical modification of cellulosic fibers part 4. Toposelectivity of carboxymethylation and its effects on the swelling of fibers. Nord Pulp Pap Res J 18:316–324

    Article  CAS  Google Scholar

  • Laine J, Lindström T, Bremberg C, Glad-Nordmark G (2003b) Studies on topochemical modification of cellulosic fibers part 5. Comparison of the effects of surface and bulk chemical modification and beating of pulp on paper properties. Nord Pulp Pap Res J 18:325–332

    Article  CAS  Google Scholar

  • Laivins, GV, Scallan, AM (1993) The mechanism of hornification of wood pulps. Prod Papermaking Trans Fundam Res Symp 10th 2:1235–1260

    Google Scholar

  • Lancaster, JE, Baccei, L, Panzer, HP (1976) The structure of poly(diallyldimethylammonium) chloride by carbon-13 NMR spectroscopy. J Polym Sci Polym Lett Ed 14:549–554

    Google Scholar

  • Lindström, T, Wågberg, L, Larsson, T (2005) On the nature of joint strength in paper-A review of dry and wet strength resins in paper manufacturing. Adv Pap Sci Technol Fundam Res Symp 13th 1:457–562

    Google Scholar

  • Lingström R, Wågberg L, Larsson PT (2006) Formation of polyelectrolyte multilayers on fibres: influence on wettability and fibre/fibre interaction. J Colloid Interface Sci 296:396–408

    Article  Google Scholar

  • Lingström R, Notley SM, Wågberg L (2007) Wettability changes in the formation of polymeric multilayers on cellulose fibres and their influence on wet adhesion. J Colloid Interface Sci 314:1–9

    Article  Google Scholar

  • Liu Z, Choi H, Gatenholm P, Esker AR (2011) Quartz crystal microbalance with dissipation monitoring and surface plasmon resonance studies of carboxymethyl cellulose adsorption onto regenerated cellulose surfaces. Langmuir 27:8718–8728

    Article  CAS  Google Scholar

  • Mathew L, Joseph KU, Joseph R (2006) Swelling behaviour of isora/natural rubber composites in oils used in automobiles. Bull Mater Sci 29:91–99

    Article  CAS  Google Scholar

  • Mitikka-Eklund M, Halttunen M, Melander M, Ruuttunen K, Vuorinen T (1999) Fibre engineering. 10th International symposium on wood and pulping chemistry, Yokohama, Japan, 1:432

  • Myllytie P, Holappa S, Paltakari J, Laine J (2009) Effect of polymers on aggregation of cellulose fibrils and its implication on strength development in wet paper web. Nord Pulp Pap Res J 27:125–134

    Article  Google Scholar

  • Nazhad MM, Paszner L (1994) Fundamentals of strength loss in recycled paper. Tappi J 77:171–179

    CAS  Google Scholar

  • Notley SM, Eriksson M, Wågberg L (2005) Visco-elastic and adhesive properties of adsorbed polyelectrolyte multilayers determined in situ with QCM-D and AFM measurements. J Colloid Interface Sci 292:29–37

    Article  CAS  Google Scholar

  • Orelma H, Filpponen I, Johansson L, Laine J, Rojas OJ (2011) Modification of cellulose films by adsorption of CMC and chitosan for controlled attachment of biomolecules. Biomacromolecules 12:4311–4318

    Article  CAS  Google Scholar

  • Paulapuro, H (2000) Papermaking. Part 1, stock preparation and wet end. In Fapet Oy, Helsinki

  • Perez, DdS, Heiningen, ARPv (2002) Determination of cellulose degree of polymerization in chemical pulps by viscosimetry. 7th EWLP Proceedings 1:393–396

  • Pettersson G, Sjöberg JC, Wågberg L, Höglund M, Averheim A (2007) Increased joint-forming ability of ductile kraft pulp fibres by polyelectrolyte multilayer treatment—influence of refining and drying strategies. Nord Pulp Pap Res J 22:228–235

    Article  CAS  Google Scholar

  • Quinn JF, Johnston APR, Such GK, Zelikin AN, Caruso F (2007) Next generation, sequentially assembled ultrathin films: beyond electrostatics. Chem Soc Rev 36:707

    Article  CAS  Google Scholar

  • Scallan AM, Carles JE (1972) The correlation of the water retention value with the fibre saturation point. Svensk Papperstidning 75:699–703

    CAS  Google Scholar

  • Scallan AM, Tigerström AC (1992) Swelling and elasticity of the cell walls of pulp fibers. J Pulp Pap Sci 18:188–193

    CAS  Google Scholar

  • Schoeler B, Sharpe S, Hatton TA, Caruso F (2004) Polyelectrolyte multilayer films of different charge density copolymers with synergistic nonelectrostatic interactions prepared by the layer-by-layer technique. Langmuir 20:2730–2738

    Article  CAS  Google Scholar

  • Sixta H (2006) Introduction [to industrial pulping]. Handb Pulp 1:3–19

    CAS  Google Scholar

  • Stratton RA (1989) Dependence of sheet properties on the location of adsorbed polymer. Nord Pulp Pap Res J 4:104–112

    Article  CAS  Google Scholar

  • Swerin A, Ödberg L, Lindström T (1990) Deswelling of hardwood kraft pulp fibers by cationic polymers. Nord Pulp Pap Res J 5:188

    Article  CAS  Google Scholar

  • Wågberg L, Ödberg L (1989) Polymer adsorption on cellulosic fibers. Nord Pulp Pap Res J 4:135–140

    Article  Google Scholar

  • Wågberg L, Ödberg L, Glad-Nordmark G (1989) Charge determination of porous substrates by polyelectrolyte adsorption Part 1. Carboxymethylated, bleached cellulosic fibers. Nord Pulp Pap Res J 4:71

    Article  Google Scholar

  • Wågberg L, Forsberg S, Johansson A, Juntti P (2002) Engineering of fibre surface properties by application of the polyelectrolyte multilayer concept. Part I. Modification of paper strength. J Pulp Pap Sci 28:222–228

    Google Scholar

  • Weise, U (1997) Characterization and mechanisms of changes in wood pulp fibers caused by water removal. Acta Polytech Scand Chem Technol Ser 249:i, ii, 1–141

  • Weise U (1998) Hornification—mechanisms and terminology. Pap Puu 80:110–115

    Google Scholar

  • Wistara N, Young RA (1999) Properties and treatments of pulps from recycled paper. Part I. Physical and chemical properties of pulps. Cellulose 6:291–324

    Article  CAS  Google Scholar

  • Yamauchi T, Yamamoto M (2008) Effects of repeated drying-and-rewetting and disintegration cycles on fundamental properties of kraft pulp fibres and paper made from them. Appita J 61:396–401

    CAS  Google Scholar

  • Yang H, Deng Y (2008) Preparation and physical properties of superhydrophobic papers. J Colloid Interface Sci 325:588–593

    Article  CAS  Google Scholar

Download references

Acknowledgments

Assistance of Anu Anttila with the experimental work is kindly acknowledged. NMR measurements with Jari Koivisto, Dept. of Chemistry, Aalto University, SEC measurements of the cationic polyelectrolytes by Jukka Rautiainen, Kemira Oyj and SEC measurements of the CMCs by Sascha Lebioda and prof. Bodo Saake, Chemical Wood Technology, Department of Wood Science, University of Hamburg, Germany are deeply acknowledged. Financing from ChAD project—Botnia, Kemira, UPM, Andritz and Finnish Centre for Technology and Innovation (TEKES)—is greatly acknowledged.

Author information

Authors and Affiliations

  1. Department of Forest Products Technology, School of Chemical Technology, Aalto University, P.O. Box 16300, 00076, Aalto, Finland

    Niko Aarne, Eero Kontturi & Janne Laine

Authors
  1. Niko Aarne
    View author publications

    Search author on:PubMed Google Scholar

  2. Eero Kontturi
    View author publications

    Search author on:PubMed Google Scholar

  3. Janne Laine
    View author publications

    Search author on:PubMed Google Scholar

Corresponding author

Correspondence to Eero Kontturi.

Electronic supplementary material

Below is the link to the electronic supplementary material.

Supplementary material 1 (PDF 79 kb)

Rights and permissions

Reprints and permissions

About this article

Cite this article

Aarne, N., Kontturi, E. & Laine, J. Carboxymethyl cellulose on a fiber substrate: the interactions with cationic polyelectrolytes. Cellulose 19, 2217–2231 (2012). https://doi.org/10.1007/s10570-012-9793-2

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s10570-012-9793-2

Keywords
