Fragment analysis of different size-reduced lignocellulosic pulps by hydrodynamic fractionation

Abstract

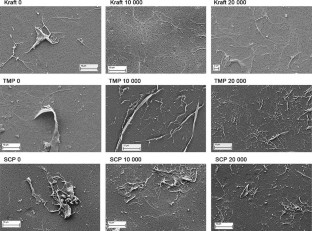

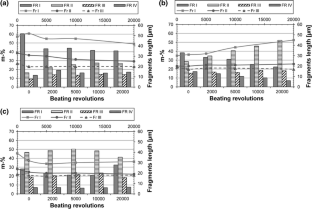

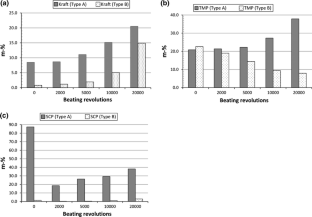

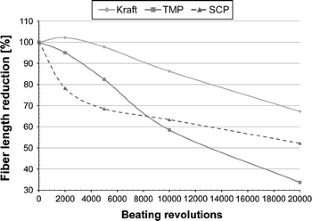

Micro- and nanocelluloses are typically produced using intensive mechanical treatments such as grinding, milling or refining followed by high-pressure homogenization to liberate individual nano- and microcellulose fragments. Even though chemical and enzymatic pretreatments can be used to promote fiber disintegration, the required mechanical treatments are still highly energy consuming and very costly. Therefore, it is important to understand the kinetics and factors affecting the disintegration tendency of cellulose. In this study, the disintegration tendency of three different wood cellulose pulps with varying chemical composition processed in a PFI mill was examined by analyzing the fractional composition of the microparticles formed. The fractional compositions of the microfibrils and microparticles formed were measured with novel analyzers, which fractionated particles using a continuous water flow in a long tube. The hydrodynamic fractionators used in this study gave valuable information about different size of particles. Results showed that the amount of lignin and hemicelluloses clearly affected the kinetics and the mechanics of cellulose degradation. The P and S1 layers were peeled off from the Kraft fibers, causing the S2 layer to be cropped out. The thermomechanical pulp (TMP) fibers were first degraded by comminution and delamination from the middle lamella and the primary wall. As the refining process progressed, the fibers and fiber fragments began to unravel. Surprisingly, the semi-chemical pulp (SCP) fibers degraded more like Kraft fibers than TMP fibers despite their high lignin and extractive content.
