Cell-free DNA comparative analysis of the genomic landscape of first-line hormone receptor-positive metastatic breast cancer from the US and China



Meaningful comparison of mutational landscapes across ethnic groups requires the use of standardized platform technology. We have used a harmonized NGS-based liquid biopsy assay to explore the differential genomic landscape of patients with initially hormone receptor-positive (HR+), HER2-negative MBC of first line metastasis or primary Stage IV at diagnosis from the United States (US) and China (CN).


Plasma circulating tumor DNA (ctDNA) from 27 US patients and 65 CN patients was sequenced using the harmonized CLIA-certified, 152-gene PredicineCare™ liquid biopsy assay. Kaplan–Meier survival analysis was performed to analyze the correlation between genomic alterations and progression-free survival (PFS), and p-values were calculated using the log-rank test.


All patients in the CN cohort received chemotherapy and/or hormonal therapy, while 85.2% (23/27) patients in the US cohort received hormonal therapy plus CDK4/6 inhibitors. Mutations were detected in 23 of 27 (85%) US patients and 54 of 65 (83%) CN patients. The prevalence of AKT1 (P = 0.008) and CDH1 (P = 0.021) alterations were both higher in the US vs. CN cohort. In addition, FGFR1 amplification were more frequent in the CN vs. US cohort (P = 0.048). PTEN deletions (P = 0.03) and ESR1 alterations (P = 0.02) were associated with shorter PFS in the CN cohort, neither of these associations were observed in the US cohort. Interestingly, a reduced association between PTEN deletion and PFS was observed in patients receiving CDK4/6 inhibitor treatment.


The differential prevalence of ctDNA-based alterations such as FGFR1, AKT1, and CDH1 was observed in initially HR+/HER2− MBC patients in the US vs. CN. In addition, the association of PTEN deletions with shorter PFS was found in the CN but not the US cohort. The differential genomic landscapes across the two ethnic groups may reflect biologic differences and clinical implications.


Metastatic breast cancer (MBC) is a heterogeneous disease with increased genomic complexity compared to primary breast cancer and is associated with known somatic mutations, which vary across different subtypes [1]. Hormone receptor-positive (HR+), HER2-negative (HER2−) breast cancer (BC) accounts for over 70% percent of all breast cancer cases [2, 3]. Currently, endocrine therapy, CDK4/6 inhibitors, and PI3K/AKT/mTOR pathway inhibitors are being used in the clinic with several novel endocrine, targeted, and chemotherapy-based treatments in clinical development [4, 5].

Liquid biopsies, including cell-free DNA (cfDNA), circulating tumor DNA (ctDNA), cell-free RNA, circulating tumor cells, exosomes, and protein, have emerged as clinically relevant analytes for determining prognosis, genomic characterization, and therapeutic response in MBC. For MBC patients with metastasis to lung, liver, or bone acquiring biopsies, particularly at serial timepoints, can be difficult and invasive [6]. Furthermore, tissue biopsies only capture a spatially and temporally limited snapshot of disease biology [7]. In contrast, cfDNA assays provide non-invasive tools that facilitate serial disease monitoring and capture tumor heterogeneity. In multiple clinical trials for patients with MBC, ctDNA mutational profiling has been incorporated into the drug development process to identify potential predictive biomarkers [8]. For example, in one trail ESR1 mutations were present in 37% of baseline samples and were enriched in patients with luminal A and PIK3CA-mutated tumors [9]. Another study using archived baseline plasma from the SoFEA and PALOMA-3 trails reported that ESR1 mutations were present in 39.1% of patients, respectively. Analysis of cfDNA from the BOLERO-2 trial using droplet digital PCR (ddPCR) showed that 28.8% of patients had either D538G or Y537S mutations in ESR1 [10] and 43.3% of the patients harbored H1047R, E545K, or E542K mutations in PIK3CA [11]. Another study, using whole exome sequencing of plasma DNA from the PALOMA-3 trial, revealed dynamic changes in PIK3CA and ESR1 mutations after treatment, demonstrating the utility of ctDNA assays for serial monitoring in MBC [12, 13].

Despite diagnostic and therapeutic advances for patients with MBC, breast cancer patients experience dramatic differences in terms of disease onset, management, and clinical outcomes between CN and western countries. For instance, the median age of diagnosis in Chinese breast cancer is almost 10 years younger than in the United States (US) and in European Union (EU) [14]. Genomic profiling of breast cancer patients in the US vs. CN has generated conflicting results. While some studies have reported significant differences in certain gene pathways and molecular subtypes [15,16,17,18,19], others have described similar genetic landscape [20, 21].

Few studies have explored the differences in genomic features of tumors, particularly based on ctDNA assessment, across these populations. In this study, we used a harmonized ctDNA liquid biopsy test to systematically compare the genomic landscape of patients with first relapse of distant metastasis after surgery or those with primary stage IV metastatic diagnosis in the US and CN. All the patients have initially HR+/HER2− tumors.

Materials and methods


Two cohorts with initially HR+/HER2− BC at the time of first-line metastatic breast cancer (first-line MBC) or primary stage IV breast cancer (primary stage IV BC) pathological diagnosis from the US (February 2017–October 2019) and CN (March 2018–March 2019) participated in this study. The enrollment criteria were as follows: (1) The patients had relapse after surgery or primary stage IV BC. (2) A diagnosis of HR+ and HER2− of primary tumor. HR+ was defined as ≥ 1% positive tumor nuclear estrogen receptor (ER) and/or progesterone receptor (PR) [22]. HER2 status was determined via immunohistochemistry (range 0–3+). For HER2 results, 0 and 1+ were classified as negative, 2+ as equivocal, and 3+ as positive. Fluorescence in situ hybridization tests were used to confirm HER2 status when immunohistochemistry results were equivocal. (3) Patients signed informed consent for additional blood to be collected for gene testing. (4) Age between 18 and 85 years. (5) At least one measurable lesion according to the Response Evaluation Criteria in Solid Tumors (RECIST) version 1.1. (6) Patients had a performance status score of Eastern Cooperative Oncology Group (ECOG) ≤ 1. (7) Patients had a life expectancy of at least 12 weeks and adequate hematologic, hepatic, and renal function. Plasma samples of 10 mL were prospectively collected from each patient. The samples were collected at the time of diagnosis of first-line MBC or primary stage IV BC and before treatment. Institutional Review Boards at each site approved the study in the US (ethic No. NU16B06) and CN (ethic No. 2016KT75).

Plasma cfDNA NGS testing

cfDNA testing from plasma was performed using the harmonized 152-gene PredicineCARE assay in two Colleges of American Pathologist (CAP)-accredited laboratories separately, one was in the US (Predicine Inc.) and another in China (Huidu Shanghai Medical Sciences Ltd.). The final comparative data analysis was conducted in China. The detailed information of 152-gene PredicineCARE can be found in supplementary Table 2.

Plasma cfDNA extraction

cfDNA was extracted from plasma samples using QIAamp circulating nucleic acid kit. Quantity and quality of the purified cfDNA were checked using Qubit fluorimeter and Bioanalyzer 2100.

Library preparation, capture, and sequencing

5 to 20 ng of extracted cfDNA was prepared for library construction including end-repair, dA-tailing, adapter ligation, and PCR amplification. The amplified DNA libraries with sufficient yields proceeded to hybrid capture. In brief, the library was hybridized overnight with the panel probes. Unbound fragments were then washed away. The purified libraries were QCed with Bioanalyzer 2100 and then paired-end 2 × 150 bp sequenced using the Illumina sequencing platform.

Variant calling

Variants were called using a Predicine in-house analysis pipeline, starting from the raw sequencing data to the final mutation calls, which has been described in previous publications [23, 24]. Briefly, the pipeline first performed adapter trimming, barcode checking, and correction. Cleaned paired FASTQ files were outputted by the in-house pipeline and further aligned to the human reference genome build hg19 using BWA (version 0.7.15) alignment tool. Consensus bam files were then derived by merging paired-end reads originated from the same molecules (based on mapping location and unique molecular identifiers) as single-strand fragments. Single-strand fragments from the same double-strand DNA molecules were further merged as double stranded. Both sequencing and PCR errors were deeply suppressed during this process. Candidate variants, consisting of point mutations, small insertions, and deletions, were identified across the targeted regions covered in the panel. Copy number variations were estimated at the gene level. The pipeline calculated the on-target unique fragment coverage, which was first corrected for GC bias and was then adjusted to the probe level bias (estimated from a pooled reference).

Statistical analysis

Fisher’s exact test was performed to compare the mutational prevalence between CN and US cohorts. The basic clinical characteristic comparison of the two cohorts were carried out using a t test. Kaplan–Meier survival analysis was performed to analyze the correlation between genomic alterations and progression-free survival (PFS), and P-values were calculated using the log-rank test by comparing the patients with and without a particular genomic alteration. R (version 3.5) was used for statistical analysis. Survival and Survminer R packages were used for survival analysis.


Baseline patient characteristics

In total, there were 27 US patients at Northwestern University and 65 Chinese patients at Peking University Cancer Hospital enrolled in this study based on the inclusion criteria (see Materials and Methods). All were female. All patients were confirmed for a diagnosis of initially HR+/HER2− tumors. HR and HER2 status of metastatic tumors were confirmed for twenty-one patients from the CN cohort, with 18 patients maintaining HR+ and HER2− status, while 3 patients became HR- and HER2−. In the US cohort, the HR and HER2 status of metastatic tumor was confirmed for 23 patients, with all patients maintaining HR+ and HER2− status. Median age of diagnosis was 51 years (range: 30–79) in the US cohort and 49 years (range: 27–82) in the CN cohort. In the US cohort, 4 out of 27 (14.8%) patients were primary stage IV BC and the rest (23/27, 85.2%) were all first-line MBC. In CN cohort, 15 out of 65 (23.1%) patients were primary stage IV BC and the rest (50/65, 76.9%) were all first-line MBC. The sites of metastasis in decreasing order of frequency were liver, lung, and bone in the US cohort and lung, liver, and bone in the CN cohort. There were no significant differences found between US and Chinese samples with respect to age of diagnosis and primary tumor stages (mostly stage II or above in US and Chinese patients, 91.3% and 75.0%, respectively). Patients’ clinical and pathological characteristics are summarized in Table 1.

Table 1 Comparison of baseline clinical characteristics between the US and CN (n = 90)

Mutational and CNV landscape

The samples were tested using a harmonized NGS-based 152-gene PredicineCARE™ assay at Predicine Inc. in the US and at Huidu (Shanghai) in CN. SNV/Indel mutations were detected in 23 of 27 (85%) US patients and 54 of 65 (83%) Chinese patients. The number of mutations detected in each patient ranged from 0 to 9 in US patients and 0 to 9 in Chinese patients. CNVs, including both copy number gain and loss, were also detected in 13 of 27 (48%) US patients and 32 of 65 (51%) Chinese patients. The number of CNVs detected in each patient ranged from 0 to 19 in the US patients and 0 to 24 in the Chinese patients. The most frequently detected SNV/Indel mutations included TP53 (44.6%), PIK3CA (25.9%), ESR1 (11.1%), and BRCA2 (11.1%) in US patients vs. TP53 (33.8%), PIK3CA (44.6%), ESR1 (12.3%), and BRCA2 (9.2%) in Chinese patients. Alterations in CDH1 (18.5% vs. 1.5%, P = 0.008) and AKT1 (18.5% vs. 3.1%, P = 0.021) were more frequent in the US cohort than in the CN cohort. However, the prevalence of PIK3CA alteration between US and CN patients was not observed in total cohort (25.9 vs. 44.6%, P = 0.074). The most frequently detected CNVs included copy number gains of the following genes in the US vs. CN patients: CCND1 (11.1 vs 16.9%), CCND2 (14.8 vs 12.3%), CCND3 (14.8 vs. 3.1%), and MYC (11.1 vs. 13.8%), respectively. There were no statistically significant differences in these genomic alterations. In contrast, FGFR1 copy number gain was significantly different between the US (7.4%) and CN (24.6%) (P = 0.048). CDK4 copy number gain was not significantly different between the US (7.4%) and CN (1.5%) populations (P = 0.205). No significant differences were observed for most copy number loss alterations in the US vs. CN patients except ATM: ATM loss (0 vs. 16.9%, P = 0.017), RB1 loss (3.7 vs. 13.8%, P = 0.145), BRCA2 loss (0 vs 7.7%, P = 0.168), PTEN (7.4 vs. 4.6%, P = 0.460), and BRCA1 (0 vs 1.5%, P = 0.707) (Fig. 1A–C). In first-line MBC subgroup, TP53 (52.2 vs. 11.8%, P < 0.001) and AKT (0 vs. 21.7%, P = 0.002) mutations were more frequently found in US as compared to CN cohort. ATM loss (0 vs. 17.6%, P = 0.028) was more frequently found in CN than in US patients. However, the differential prevalence of PIK3CA mutation (P = 0.179) and FGFR1 copy number gain (P = 0.115) between US and CN patients were not found in this subgroup. (Fig. 2A–C). In primary stage IV BC subgroup, no significant differential prevalence of alterations was found between US and CN cohort. (Fig. 2E, F).

Fig. 1
figure 1figure 1

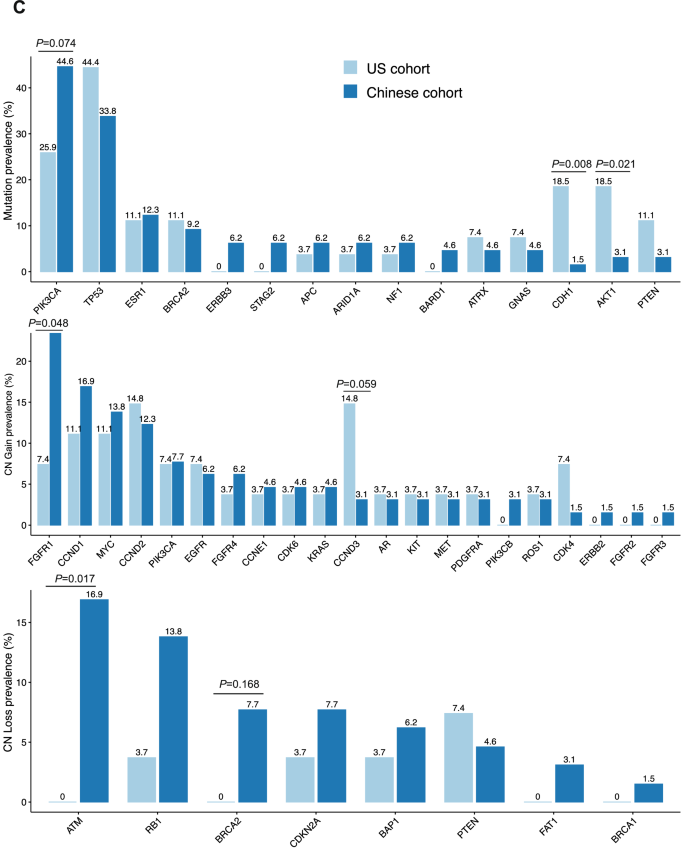

ctDNA mutation landscapes of US and Chinese HR+ MBC patients. A Mutation profile of US cohort. B Mutation profile of Chinese cohort. C Prevalence of gene mutation, copy number (CN) gain, and CN loss in US and Chinese cohorts. P value was calculated using one-side Fisher’s exact test

Fig. 2
figure 2

Subgroup analysis of differential mutation prevalence between US and CN patients. A, B, C Comparison of mutation prevalence between US and CN patients in primary stage IV BC subgroup; D, E, F Comparison of mutation prevalence between US and CN patients in first-line MBC subgroup. Mutations which detected more than twice in US or CN cohort were included for analysis. Comparison between groups with statistical significance were marked by corresponding P values above

Survival analysis

The first-line treatment regimens for US and CN patients were different. The majority of patients (85.2%) in the US cohort were treated with standard-of-care single hormonal therapy plus CDK4/6 inhibitor treatment, while no patients in the Chinese cohort received upfront CDK4/6 inhibitors. In the total cohort, patients who received hormonal therapy plus CDK4/6 inhibitors were set up as one group and the PFS of this group was compared to the group receiving hormonal therapy only. Multivariate analysis showed that patients receiving hormonal therapy plus CDK4/6 inhibitors had longer median PFS compared to those receiving hormonal therapy alone (26.9 vs. 11.3 months, P = 0.025) (Fig. 3A). We also carried out survival analysis for patients with any AKT-activating, PTEN-inactivating, or DDR deficiency mutations, in the Chinese and US cohorts. (Supplementary Fig. 1, and data not shown). PTEN deletion was associated with shorter PFS of HR+ MBC patients in CN (5.7 vs. 13.2 months, P = 0.03) (Fig. 3B). This result was not encountered in US patients (5.4 vs. 16.5 months, P = 0.65) (Fig. 3B). The same result regarding PTEN deletion was also observed in multivariate analysis considering recurrent/initial stage IV status of the patients (Supplementary Table 1). Meanwhile, patients with cfDNA-based ESR1 alterations had shorter PFS compared to the other patients in the first-line treatment after relapse in the CN patient cohort (9.0 months vs. 13.2 months, P = 0.023) (Fig. 3C). A similar trend was not statistically significant in US patients (11.2 vs. 26.9 months, P = 0.62) (Fig. 3C). The same result regarding ESR1 alteration was also observed in multivariate analysis considering recurrent/initial stage IV status of the patients (Supplementary Table 1). cfDNA yield has previously been reported as a prognostic biomarker related to patient disease progression and prognosis [25]. However, there was no significant difference in cfDNA yield between Chinese and US patients in this study. (Supplementary Fig. 2). In addition to mutational aspect, we also found that patients with liver or lung metastasis tend to have shorter PFS (14.3 vs. 10.5 months, P = 0.15) (Data not showed). This trend was observed in the CN cohort (14.3 vs. 10.3 months, P = 0.18) but not in the US cohort (13.5 vs. 16.5 months, P = 0.80). (Data not showed).

Fig. 3
figure 3

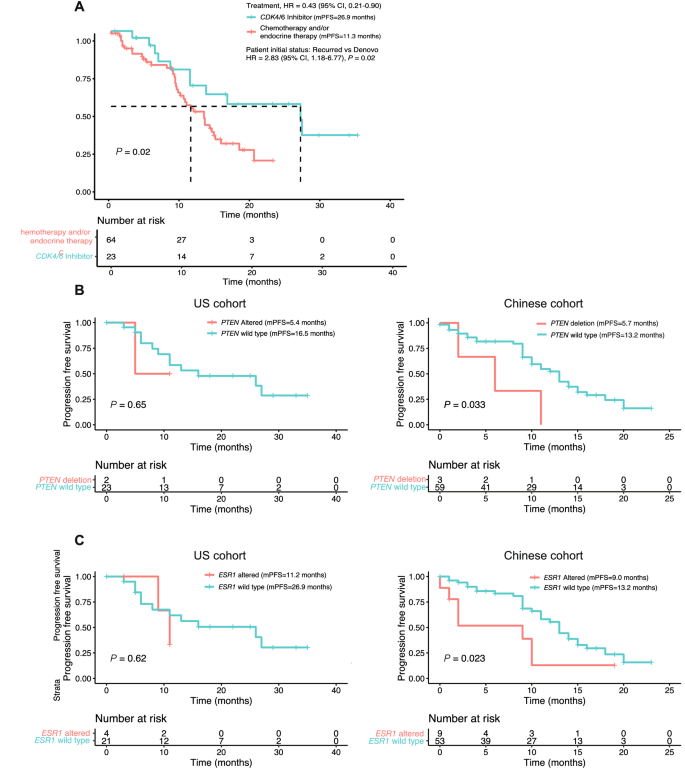

Survival analysis of Chinese and US patients. A Prolonged progression-free survival (PFS) in patients treated with CDK4/6 inhibitor. HR, hazard ratio, CI, confidence interval. B PFS of patients with or without PTEN detection. C PFS of patients with or without ESR1 activating mutation or copy number gain. P value was calculated using log-rank test


In this retrospective study, the gene mutation landscape in metastatic breast cancer was compared across two different populations. The results of the mutational analysis and prevalence varied for particular alterations between the two ethnic groups. Currently, cfDNA-derived gene mutational assays have wide application in clinical practice for breast cancer (Fig. 4 A and B). In prior work, the cfDNA-derived mutations were detected using next-generation sequencing (NGS) platforms in almost all of the studies. However, the means of extracting, processing, and analyzing cfDNA samples were different, which can lead to a limited ability to compare differences across populations.

Fig. 4
figure 4

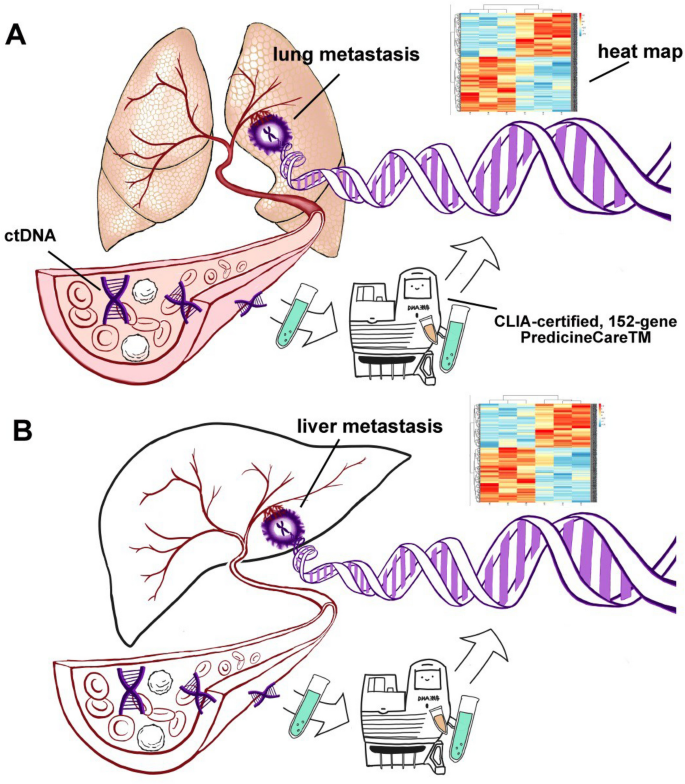

Schematic diagram of ctDNA detection. A Detection of ctDNA from lung metastasis. B Detection of ctDNA from liver metastasis

This retrospective, multicenter study is the first proof-of-concept study to report on the use of a single harmonized ctDNA assay in different populations of initially HR+/HER2− MBC from two institutions in the US and CN. The populations analyzed included first-line MBC and primary stage IV BC patients who had not been exposed to treatment in the advanced setting, but who had received similar adjuvant endocrine therapy regimens following standard-of-care guidelines. The study demonstrates that cfDNA analysis can provide a reliable real-world assessment of the molecular landscape of metastatic breast cancer and identify differences in genomic abnormalities between patients in the US and CN.

In this study we evaluated a number of cancer variants that are associated with resistance to endocrine therapy alone or in combination with or without PI3K/AKT/mTOR or CDK4/6 inhibitors, such as PTEN gene copy number loss and ESR1 activating mutations and copy number gain. Previous cfDNA-based studies have reported PIK3CA mutations in 18–40% BC patients [26], with PIK3CA mutations detected in 43.3% [12] and 25% [27] MBC patients in different studies. In China, the prevalence of PIK3CA was 51.3% (40/78) in MBC patients [28] and 46.5% (236/507) in primary BC patients [29]. In this study, the PIK3CA mutation prevalence between US and CN patients showed no significant difference in total cohort (P = 0.074) or in recurrent subgroup (P = 0.179) and in primary stage IV BC subgroup (P = 0.069). However, a differential prevalence with statistical significance for AKT1 (P = 0.008) was found between US and CN cohort, respectively. The similar result also observed in first-line MBC subgroup (P = 0.001).

In prior work, a mutational frequency of 0.4% was observed for ATM alterations in 7,675 BRCA1 and BRCA2-negative breast cancer patients in a Chinese population [30, 31] and a mutational frequency range of 0.45 to 1.0% was found in the US and Europe [32, 33]. However, no available data regarding comprehensive ctDNA-based comparisons between US and CN patients have been reported. Here, we found that ATM loss was more frequently observed in CN patients with initially HR+/HER2− MBC as compared to those in the US (16.9% vs. 0.0%, P = 0.017). Meanwhile, the high prevalence of ATM loss in CN patients was also confirmed in recurrent MBC subgroup (P = 0.028). Similar to previous studies [21, 34], our data showed that the mutational prevalence of CDH1 detected in initially HR+/HER2− MBC was higher in US than CN patients (18.5% vs. 1.5%). Our data also showed the prevalence of FGFR1 copy number gain was higher in CN patients compared to US patients (P = 0.048). This result was in line with previous reports found in HR+/HER2− cohorts of US (1.0 ~ 8.0%) and CN (13.0%) patients [12, 21, 34].

PTEN exerts its function in multiple ways including repressing tumor cell growth and cell survival. Nuclear PTEN exhibits phosphatase-independent tumor suppressive function such as regulation of chromosome stability, DNA repair, and apoptosis [35, 36]. PTEN loss has been identified in cfDNA of 25% MBC patients [27]. Here, we found that the difference in PTEN mutation frequency between the US and CN did not reach statistical significance (P = 0.15). However, PTEN deletion was associated with shorter PFS of HR+ MBC patients in CN (P = 0.03), but not in the US (P = 0.65).

ESR1 mutations are associated with poor prognosis in ER+ MBC patients [37]. Chandarlapaty et al. reported that cfDNA ESR1 mutations were associated with shorter OS of MBC patients from the BOLERO-2 study [10]. A recent meta-analysis by Zhang et al. demonstrated that plasma ESR1 mutation carriers had significantly worse PFS compared to wild-type ESR1 [38]. In the present study, the ESR1 mutation prevalence between the US and CN was not significantly different. Patients with cfDNA-based ESR1 copy number gain or mutation had shorter PFS compared to the other patients in the first-line treatment after relapse in the CN patient cohort (P = 0.023). However, this finding was not observed in US patients (P = 0.62), which may be due to the treatment of most ESR1 mutation carriers with fulvestrant (3/4, 75.0%). The differential predictive value of PTEN deletion found in the US vs. CN cohort raised the possibility that in patients receiving a CDK4/6 inhibitor-based regimen (US cohort), the PTEN variation may have less effect on the PFS. This finding needs to be evaluated in a larger cohort. Multivariate analysis showed that patients subjected to CDK4/6 inhibitor had longer PFS than patients receiving endocrine therapy only (P = 0.02). This result underscores the urgent need for CDK4/6 inhibitor treatment for Chinese patients, since all the patients without CDK4/6 inhibitors were found in the CN cohort. Moreover, there was a trend that patients with liver or lung metastasis tended to have shorter PFS (P = 0.18) in the CN cohort, which is not found in the US cohort (P = 0.80). This may be partly due to the massive application of CDK4/6 inhibitor in US patients, and this result also needs to be further demonstrated in larger cohort. In addition, the lung metastatic rate was higher in the CN group as compared to the US group (P = 0.021). A previous study demonstrated that HR-positive patients with non-visceral metastases had a better prognosis than those with visceral metastases [39]. Thus, we believe the higher lung metastatic rate of the CN group may contribute to the shortened PFS. This study has several limitations. Firstly, this is a retrospective study, with the limitations associated with this type of study. Secondly, the number of patients in each study cohort is relatively small and a larger study is required to more conclusively confirm our finding. Thirdly, it should point out that the study cohort is mixed with first-line MBC and primary stage IV BC. The application of adjuvant/neoadjuvant therapy might also affect the ctDNA landscape of first-line MBC patients. Finally, although we have considered the first-line regimen in multivariate analysis regarding PFS, the significant differences of first-line regimens and re-staging standard between US and CN cohort still cannot be neglected. A larger cohort specifically designed for first-line MBC and primary stage IV BC should be carried out separately to retest our finding in the future works.


Collectively, our data revealed the differential prevalence of FGFR1, AKT1, CDH1, and ATM alterations in initially HR+/HER2− MBC in the US vs. CN patients. In addition, PTEN deletion appears to have less effect on PFS in patients receiving CDK4/6 inhibitor-based regimens, a finding that needs to be validated in a larger cohort.
