Effect of microfabricated microgroove-surface devices on the morphology of mesenchymal stem cells

Biomedical Microdevices volume 17, Article number: 116 (2015) Cite this article

Abstract

The surface of a material that is in contact with cells is known to affect cell morphology and function. To develop an appropriate surface for tendon engineering, we used zigzag microgroove surfaces, which are similar to the tenocyte microenvironment. The purpose of this study was to investigate the effect of microgroove surfaces with different ridge angles (RAs), ridge lengths (RLs), ridge widths (RWs), and groove widths (GWs) on human bone marrow-derived mesenchymal stem cell (MSC) shape. Dishes with microgroove surfaces were fabricated using cyclic olefin polymer by injection-compression molding. The other parameters were fixed, and effects of different RAs (180 – 30 °), RLs (5 – 500 μm), RWs (5 – 500 μm), and GWs (5 – 500 μm) were examined. Changes in the zigzag shape of the cell due to different RAs, RLs, RWs, and GWs were observed by optical microscopy and scanning electron microscopy. Cytoskeletal changes were investigated using Phalloidin immunofluorescence staining. As observed by optical microscopy, MSCs changed to a zigzag shape in response to microgroove surfaces with different ridge and groove properties. . As observed by scanning electron microscopy, the cell shape changed at turns in the microgroove surface. Phalloidin immunofluorescence staining indicated that F-actin, not only in cell filopodia but also inside the cell body, changed orientation to conform to the microgrooves. In conclusion, the use of zigzag microgroove surfaces microfabricated by injection-compression molding demonstrated the property of MSCs to alter their shapes to fit the surface.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

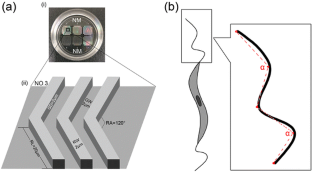

Fig. 1

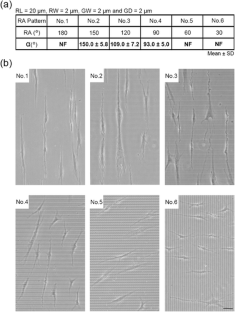

Fig. 2

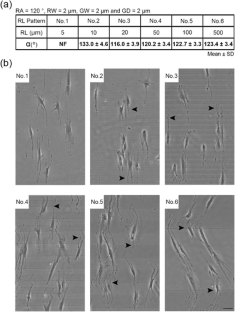

Fig. 3

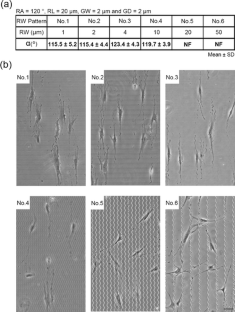

Fig. 4

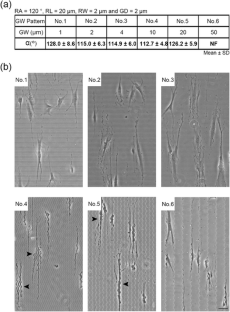

Fig. 5

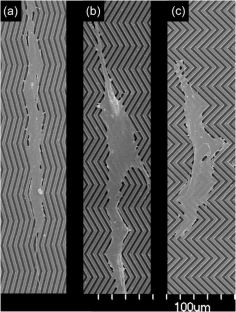

Fig. 6

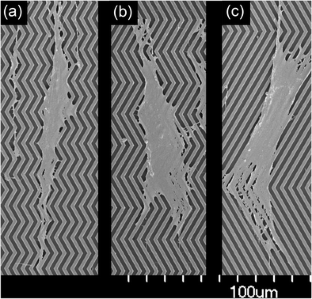

Fig. 7

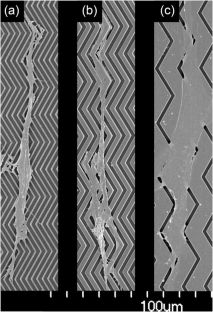

Fig. 8

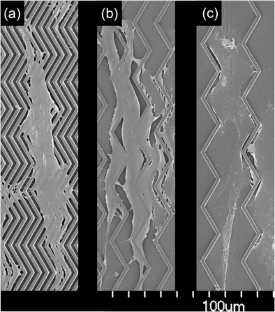

Fig. 9
Fig. 10

References

  • J.A. Alaerts, V.M. De Cupere, S. Moser, P. van den Bosh de Aguilar, P.G. Rouxhet, Biomaterials 22, 1635 (2001)

    Article  Google Scholar

  • R. Ayala, C. Zhang, D. Yang, Y. Hwang, A. Aung, S.S. Shroff, F.T. Arce, R. Lal, G. Arya, S. Varghses, Biomaterials 32, 3700 (2011)

    Article  Google Scholar

  • Y. Bi, C.H. Stuelten, T. Kilts, S. Wadhwa, R.V. Lozzo, P.G. Robey, X. Chen, M.F. Young, J. Biol. Chem. 280, 30481 (2005)

    Article  Google Scholar

  • J.C. Boggiano, R.G. Fehon, Dev. Cell 22, 1534 (2012)

    Article  Google Scholar

  • E.J. Caterson, L.J. Nesti, K.G. Danielson, R.S. Tuan, Mol. Biotechnol. 20, 245 (2002)

    Article  Google Scholar

  • A.C. De Luca, M. Zink, A. Weidt, S.G. Mayr, A.E. Markaki, J. Biomed. Mater. Res. A 103, 2689 (2015)

    Article  Google Scholar

  • T. Gong, K. Zhao, G. Yang, J. Li, H. Chen, Y. Chen, S. Zhou, Adv. Healthcare Mater. 3, 1608 (2014)

    Article  Google Scholar

  • A. Higuchi, Q.D. Ling, Y. Chang, S.T. Hsu, A. Umezawa, Chem. Rev. 113, 3297 (2013)

    Article  Google Scholar

  • M. Iannone, M. Ventre, L. Formisano, L. Casalino, E.J. Patriarca, P.A. Netti, Nano Lett. 15, 1517 (2015)

    Article  Google Scholar

  • T.A.H. Järvinen, T.L.N. Järvinen, P. Kannus, L. Józsa, M. Järvinen, J. Orthop. Res. 22, 1303 (2004)

    Article  Google Scholar

  • N.W. Karuri, P.F. Nealey, C.J. Murphy, R.M. Albrecht, Scanning 30, 405 (2008)

    Article  Google Scholar

  • T.J. Kean, P. Lin, A.I. Caplan, J.E. Dennis, Stem Cells Int. 2013, 13 (2013)

    Article  Google Scholar

  • K. Kolind, A. Dolatshahi-Pirouz, J. Lovmand, F.S. Pedersen, M. Foss, F. Besenbacher, Biomaterials 31, 9182 (2010)

    Article  Google Scholar

  • Y. Liu, H.S. Ramanath, D.A. Wang, Trends Biotechnol. 26, 201 (2008)

    Article  Google Scholar

  • J. Mai, C. Sun, S. Li, X. Zhang, Biomed. Microdevices 9, 523 (2007)

    Article  Google Scholar

  • R. McBeath, D.M. Pirone, C.M. Nelson, K. Bhadriraju, C.S. Chen, Dev. Cell 6, 483 (2004)

    Article  Google Scholar

  • K.M. Mountain, T.A. Bjarnason, J.F. Dunn, J.R. Matyas, Magn. Reson. Med. 66, 520 (2011)

    Article  Google Scholar

  • K. Nagato, T. Hamaguchi, M. Nakao, J. Vac. Sci. Technol. B 29, 06FG10 (2011)

    Article  Google Scholar

  • A. Nandakumar, Z.T. Birgani, D. Santos, A. Mentink, N. Auffermann, K. van der Werf, M. Bennink, L. Moroni, C. van Blitterswijk, P. Habibovic, Biofabrication 5, 015006 (2013)

    Article  Google Scholar

  • Q.P. Pham, F.K. Kasper, L.S. Baggett, R.M. Raphael, J.A. Jansen, A.G. Mikos, Biomaterials 29, 2729 (2008)

    Article  Google Scholar

  • A. Rajnicek, S. Britland, C. McCaig, J. Cell Sci. 110, 2905 (1997)

    Google Scholar

  • T. Rozario, D.W. DeSimone, Dev. Biol. 341, 126 (2010)

    Article  Google Scholar

  • S. Schu, M. Nosov, L. O’Flynn, G. Shaw, O. Treacy, F. Barry, M. Murphy, T. O’Brien, T. Ritter, J. Cell. Mol. Med. 16, 2094 (2012)

    Article  Google Scholar

  • A. Uccelli, L. Moretta, V. Pistoia, Nat. Rev. Immunol. 8, 726 (2008)

    Article  Google Scholar

  • M. Ventre, F. Causa, P.A. Netti, J. R. Soc. Interface 9, 2017 (2012)

    Article  Google Scholar

  • V. Vogel, M. Sheetz, Nat. Rev. Mol. Cell Biol. 7, 265 (2006)

    Article  Google Scholar

  • X.F. Walboomers, H.J.E. Croes, L.A. Ginsel, J.A. Jansen, J. Biomed. Mater. Res. 47, 204 (1999)

    Article  Google Scholar

  • Y. Xu, J. Wu, H. Wang, H. Li, N. Di, L. Song, S. Li, D. Li, Y. Xiang, W. Liu, Tissue Eng. C: Methods 19, 925 (2013)

    Article  Google Scholar

  • J. Zhu, J. Li, B. Wang, W.J. Zhang, G. Zhou, Y. Cao, W. Liu, Biomaterials 31, 6952 (2010)

    Article  Google Scholar

Download references

Acknowledgments

This study was funded by collaborative research funding from SEIKOH GIKEN Co., Ltd.

Author information

Affiliations

  1. Human Health Sciences, Graduate School of Medicine, Kyoto University, 53 kawahara-cho, Shogoin, Sakyo-ku, Kyoto, 606-8507, Japan

    Xiangkai Zhang, Tomoki Aoyama, Akira Ito, Junichi Tajino, Momoko Nagai, Rune Fujioka, Hirotaka Iijima, Shoki Yamaguchi & Hiroshi Kuroki

  2. Precision Machinery Department, SEIKOH GIKEN Co., Ltd., Chiba, Japan

    Takashi Yasuda, Makoto Oike & Norihiro Kakinuma

Authors
  1. Xiangkai Zhang
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Tomoki Aoyama
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Takashi Yasuda
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Makoto Oike
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. Akira Ito
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Junichi Tajino
    View author publications

    You can also search for this author in PubMed Google Scholar

  7. Momoko Nagai
    View author publications

    You can also search for this author in PubMed Google Scholar

  8. Rune Fujioka
    View author publications

    You can also search for this author in PubMed Google Scholar

  9. Hirotaka Iijima
    View author publications

    You can also search for this author in PubMed Google Scholar

  10. Shoki Yamaguchi
    View author publications

    You can also search for this author in PubMed Google Scholar

  11. Norihiro Kakinuma
    View author publications

    You can also search for this author in PubMed Google Scholar

  12. Hiroshi Kuroki
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Tomoki Aoyama.

Ethics declarations

Conflict of interest

Takashi Yasuda, Makoto Oike, and Norihiro Kakinuma are employees of SEIKOH GIKEN Co., Ltd.

Electronic supplementary material

Below is the link to the electronic supplementary material.

Supplementary Fig. 1
figure 11

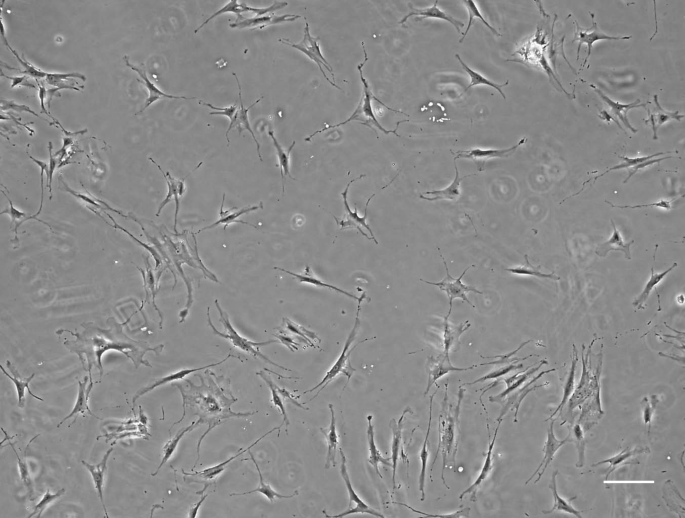

Cells on the non-microgroove. Magnification, 40×. Scale bar, 100 μm (GIF 2087 kb)

Full size image
Supplementary Fig. 2
figure 12

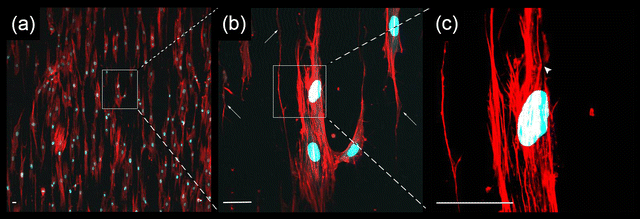

Immunohistochemical staining of cells, at 80 % confluence, cultured on the No. 2 of the RA pattern dish. (a) Magnification, 10×, Scale bar, 100 μm (b) Magnification, 60×, Scale bar, 100 μm (3) Magnification, 150×, Scale bar, 100 μm. White arrow indicates the change of F-actin in filopodia of cell. White arrowhead indicates the change of F-actin in the cell body. Ridge angle (RA) (GIF 98 kb)
