Biotechnology Letters

, Volume 39, Issue 12, pp 1835–1842 | Cite as

Characterization of biomarkers in stroke based on ego-networks and pathways

Original Research Paper



To explore potential biomarkers in stroke based on ego-networks and pathways.

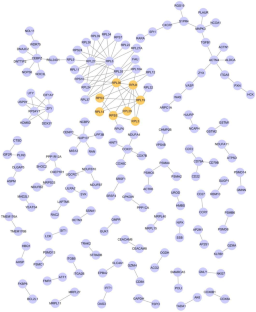

EgoNet method was applied to search for the underlying biomarkers in stroke using transcription profiling of E-GEOD-58294 and protein–protein interaction (PPI) data. Eight ego-genes were identified from PPI network according to the degree characteristics at the criteria of top 5% ranked z-sore and degree >1. Eight candidate ego-networks with classification accuracy ≥0.9 were selected. After performed randomization test, seven significant ego-networks with adjusted p value < 0.05 were identified. Pathway enrichment analysis was then conducted with these ego-networks to search for the significant pathways. Finally, two significant pathways were identified, and six of seven ego-networks were enriched to “3′-UTR-mediated translational regulation” pathway, indicating that this pathway performs an important role in the development of stroke.

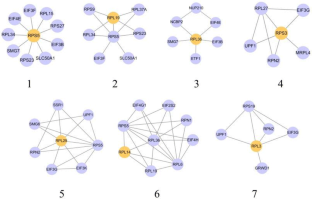

Seven ego-networks were constructed using EgoNet and two significant enriched by pathways were identified. These may provide new insights into the potential biomarkers for the development of stroke.


Ego-gene Ego-network Pathway Stroke


Compliance with ethical standards

Conflict of interest

The authors declare that they have no conflict of interest.


  1. Ahn T, Lee E, Huh N, Park T (2014) Personalized identification of altered pathways in cancer using accumulated normal tissue data. Bioinformatics 30:i422–i429CrossRefPubMedPubMedCentralGoogle Scholar
  2. Anand N, Stead LG (2005) Neuron-specific enolase as a marker for acute ischemic stroke: a systematic review. Cerebrovasc Dis 20:213–219CrossRefPubMedGoogle Scholar
  3. Benjamini Y, Hochberg Y (1995) Controlling the false discovery rate: a practical and powerful approach to multiple testing. J R Stat Soc B 57:289–300Google Scholar
  4. Bolstad BM, Irizarry RA, Astrand M, Speed TP (2003) A comparison of normalization methods for high density oligonucleotide array data based on variance and bias. Bioinformatics 19:185–193CrossRefPubMedGoogle Scholar
  5. Borgatti SP, Mehra A, Brass DJ, Labianca G (2009) Network analysis in the social sciences. Science 323:892–895CrossRefPubMedGoogle Scholar
  6. Di Napoli M, Schwaninger M, Cappelli R, Ceccarelli E, Di Gianfilippo G, Donati C, Emsley HC, Forconi S, Hopkins SJ, Masotti L et al (2005) Evaluation of C-reactive protein measurement for assessing the risk and prognosis in ischemic stroke: a statement for health care professionals from the CRP Pooling Project members. Stroke 36:1316–1329CrossRefPubMedGoogle Scholar
  7. Donnan GA, Fisher M, Macleod M, Davis SM (2008) Stroke. Lancet 371:1612–1623CrossRefPubMedGoogle Scholar
  8. Hassan A, Markus HS (2000) Genetics and ischaemic stroke. Brain 123:1784–1812CrossRefPubMedGoogle Scholar
  9. Hsu FC, Sides EG, Mychaleckyj JC, Worrall BB, Elias GA, Liu Y, Chen WM, Coull BM, Toole JF, Rich SS et al (2011) Transcobalamin 2 variant associated with poststroke homocysteine modifies recurrent stroke risk. Neurology 77:1543–1550CrossRefPubMedPubMedCentralGoogle Scholar
  10. Irizarry RA, Bolstad BM, Collin F, Cope LM, Hobbs B, Speed TP (2003) Summaries of Affymetrix GeneChip probe level data. Nucleic Acid Res 31:e15CrossRefPubMedPubMedCentralGoogle Scholar
  11. Jang CY, Lee JY, Kim J (2004) RpS3, a DNA repair endonuclease and ribosomal protein, is involved in apoptosis. FEBS Lett 560:81–85CrossRefPubMedGoogle Scholar
  12. Liao D, Myers R, Hunt S, Shahar E, Paton C, Burke G, Province M, Heiss G (1997) Familial history of stroke and stroke risk. The family heart study. Stroke 28:1908–1912CrossRefPubMedGoogle Scholar
  13. Liu Z, Song Y (2017) Characterizing biomarkers in osteosarcoma metastasis based on an ego-network. Biotechnol Lett 39:841–848CrossRefPubMedGoogle Scholar
  14. Liu D, Han L, Wu X, Yang X, Zhang Q, Jiang F (2014) Genome-wide microRNA changes in human intracranial aneurysms. BMC Neurol 14:188CrossRefPubMedPubMedCentralGoogle Scholar
  15. Ma L, Robinson LN, Towle HC (2006) ChREBP*Mlx is the principal mediator of glucose-induced gene expression in the liver. J Biol Chem 281:28721–28730CrossRefPubMedGoogle Scholar
  16. Ma X, Gao L, Karamanlidis G, Gao P, Lee CF, Garcia-Menendez L, Tian R, Tan K (2015) Revealing pathway dynamics in heart diseases by analyzing multiple differential networks. PLoS Comput Biol 11:e1004332CrossRefPubMedPubMedCentralGoogle Scholar
  17. Mozaffarian D, Benjamin EJ, Go AS, Arnett DK, Blaha MJ, Cushman M, de Ferranti S, Despres JP, Fullerton HJ, Howard VJ et al (2015) Heart disease and stroke statistics–2015 update: a report from the American Heart Association. Circulation 131:e29–e322CrossRefPubMedGoogle Scholar
  18. Pogue-Geile K, Geiser JR, Shu M, Miller C, Wool IG, Meisler AI, Pipas JM (1991) Ribosomal protein genes are overexpressed in colorectal cancer: isolation of a cDNA clone encoding the human S3 ribosomal protein. Mol Cell Biol 11:3842–3849CrossRefPubMedPubMedCentralGoogle Scholar
  19. Rifai N, Ridker PM (2001) Proposed cardiovascular risk assessment algorithm using high-sensitivity C-reactive protein and lipid screening. Clin Chem 47:28–30PubMedGoogle Scholar
  20. Roger VL, Go AS, Lloyd-Jones DM, Benjamin EJ, Berry JD, Borden WB, Bravata DM, Dai S, Ford ES, Fox CS et al (2012) Heart disease and stroke statistics–2012 update: a report from the American Heart Association. Circulation 125:e2–e220CrossRefPubMedGoogle Scholar
  21. Sakellariou A, Spyrou G (2015) mAPKL: R/Bioconductor package for detecting gene exemplars and revealing their characteristics. BMC Bioinformatics 16:291CrossRefPubMedPubMedCentralGoogle Scholar
  22. Srihari S, Leong HW (2013) A survey of computational methods for protein complex prediction from protein interaction networks. J Bioinform Comput Biol 11:1230002CrossRefPubMedGoogle Scholar
  23. Stamova B, Jickling GC, Ander BP, Zhan X, Liu D, Turner R, Ho C, Khoury JC, Bushnell C, Pancioli A et al (2014) Gene expression in peripheral immune cells following cardioembolic stroke is sexually dimorphic. PLoS ONE 9:e102550CrossRefPubMedPubMedCentralGoogle Scholar
  24. Szklarczyk D, Franceschini A, Kuhn M, Simonovic M, Roth A, Minguez P, Doerks T, Stark M, Muller J, Bork P et al (2011) The STRING database in 2011: functional interaction networks of proteins, globally integrated and scored. Nucleic Acid Res 39:D561–D568CrossRefPubMedGoogle Scholar
  25. Wainwright EN, Jorgensen JS, Kim Y, Truong V, Bagheri-Fam S, Davidson T, Svingen T, Fernandez-Valverde SL, McClelland KS, Taft RJ et al (2013) SOX9 regulates microRNA miR-202-5p/3p expression during mouse testis differentiation. Biol Reprod 89:34CrossRefPubMedGoogle Scholar
  26. Whiteley W, Jackson C, Lewis S, Lowe G, Rumley A, Sandercock P, Wardlaw J, Dennis M, Sudlow C (2009) Inflammatory markers and poor outcome after stroke: a prospective cohort study and systematic review of interleukin-6. PLoS Med 6:e1000145CrossRefPubMedPubMedCentralGoogle Scholar
  27. Yang R, Bai Y, Qin Z, Yu T (2014) EgoNet: identification of human disease ego-network modules. BMC Genomics 15:314CrossRefPubMedPubMedCentralGoogle Scholar
  28. Zhou M, Wang H, Zhu J, Chen W, Wang L, Liu S, Li Y, Wang L, Liu Y, Yin P et al (2016) Cause-specific mortality for 240 causes in China during 1990-2013: a systematic subnational analysis for the Global Burden of Disease Study 2013. Lancet 387:251–272CrossRefPubMedGoogle Scholar

Copyright information

© Springer Science+Business Media B.V. 2017

Authors and Affiliations

  1. 1.Department of NeurologyThe 2nd People’s Hospital of LiaochengLiaochengPeople’s Republic of China
