Cellular imaging assay for early evaluation of an apoptosis inducer

Apoptosis volume 16, Article number: 1068 (2011) Cite this article

Abstract

The objective of this study was to propose a feasibility of a cellular imaging assay as an alternative to the conventional cytotoxicity assay, such as MTS assay, for apoptosis monitoring. As an apoptosis monitoring parameter, affinity interaction between phosphatidylserine (PS) and annexin V was chosen. First, the specific binding affinity between annexin V and PS in phospholipid bilayers consisting of various molar (0–15%) composition of PS was measured using a surface plasmon resonance biosensor. As PS composition increased, the binding level of annexin V increased proportionally. Second, various concentrations (0.1–10 μM) of staurosporine were used as to induce apoptosis and introduced to MCF-7 breast carcinoma cells. The cellular fluorescence images from annexin V-FITC conjugate were obtained by confocal microscopy, and their fluorescence intensities were quantified by image scanning. Dose–apoptosis (or cell death) relationships were very similar to those from MTS and FACS assays. In summary, our cellular imaging method could serve as a quicker and simpler alternative to MTS (end point assay) and FACS (flow cytometry) to screen potential apoptosis inducers.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1

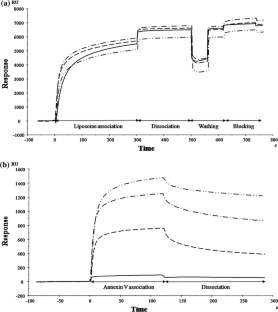

Fig. 2

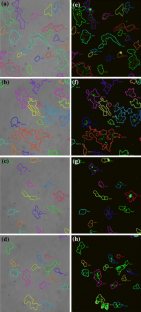

Fig. 3

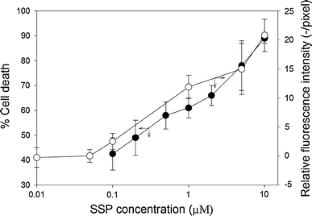

Fig. 4

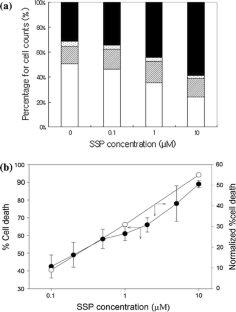

Fig. 5

References

  1. Lovborg H, Gullbo J, Larsson R (2005) Screening for apoptosis-classical and emerging techniques. Anti-Cancer Drugs 16:593–599

    PubMed  Article  Google Scholar

  2. Laumonier C, Segers J, Laurent S, Michel A, Coppee F, Belayew C, Elst LV, Muller RN (2006) A new peptidic vector for molecular imaging of apoptosis, identified by phage display technology. J Biomol Screen 11:537–545

    PubMed  Article  CAS  Google Scholar

  3. Martin SJ, Reutelingsperger CPM, Mcgahon AJ, Rader JA, Vanschie RCAA, Laface DM, Green DR (1995) Early redistribution of plasmamembrane phosphatidylserine is a general feature of apoptosis regardless of the initiating stimulus: inhibition by overexpression of Bcl-2 and Abl. J Exp Med 182:1545–1556

    PubMed  Article  CAS  Google Scholar

  4. Reutelingsperger CPM, vanHeerde WL (1997) Annexin V, the regulator of phosphatidylserine-catalyzed inflammation and coagulation during apoptosis. Cell Mol Life Sci 53:527–532

    PubMed  Article  CAS  Google Scholar

  5. Rucker-Martin C, Henaff M, Hatem SN, Delpy E, Mercadier JJ (1999) Early redistribution of plasma membrane phosphatidylserine during apoptosis of adult rat ventricular myocytes in vitro. Basic Res Cardiol 94:171–179

    PubMed  Article  CAS  Google Scholar

  6. Fadok VA, Bratton DL, Rose DM, Pearson A, Ezekewitz RAB, Henson PM (2000) A receptor for phosphatidylserine-specific clearance of apoptotic cells. Nature 405:85–90

    PubMed  Article  CAS  Google Scholar

  7. Kenis H, van Genderen H, Bennaghmouch A, Rinia HA, Frederik P, Narula J, Reutelingsperger CPM (2004) Cell surface-expressed phosphatidylserine and annexin A5 open a novel portal of cell entry. J Biol Chem 279:52623–52629

    PubMed  Article  CAS  Google Scholar

  8. Tait JF, Gibson DF, Smith C (2004) Measurement of the affinity and cooperativity of annexin V-membrane binding under conditions of low membrane occupancy. Anal Biochem 329:112–119

    PubMed  Article  CAS  Google Scholar

  9. Seaton BA, Dedman JR (1998) Annexins. Biometals 11:399–404

    PubMed  Article  CAS  Google Scholar

  10. van Engeland M, Nieland LJW, Ramaekers FCS, Schutte B, Reutelingsperger CPM (1998) Annexin V-affinity assay: a review on an apoptosis detection system based on phosphatidylserine exposure. Cytometry 31:1–9

    PubMed  Article  Google Scholar

  11. Laufer EM, Reutelingsperger CPM, Narula J, Hofstra L (2008) Annexin A5: an imaging biomarker of cardiovascular risk. Basic Res Cardiol 103:95–104

    PubMed  Article  CAS  Google Scholar

  12. Boersma AWM, Nooter K, Oostrum RG, Stoter G (1996) Quantification of apoptotic cells with fluorescein isothiocyanate-labeled annexin V in Chinese hamster ovary cell cultures treated with cisplatin. Cytometry 24:123–130

    PubMed  Article  CAS  Google Scholar

  13. Petrovsky A, Schellenberger E, Josephson L, Weissleder R, Bogdanov A (2003) Near-infrared fluorescent imaging of tumor apoptosis. Cancer Res 63:1936–1942

    PubMed  CAS  Google Scholar

  14. Reutelingsperger CPM, Dumont E, Thimister PW, van Genderen H, Kenis H, van de Eijnde S, Heidendal G, Hofstra L (2002) Visualization of cell death in vivo with the annexin A5 imaging protocol. J Immunol Methods 265:123–132

    PubMed  Article  CAS  Google Scholar

  15. Jan E, Byrne S, Cuddihy M, Davies AM, Volkov Y, Gun’ko YK, Kotov NA (2008) High-content screening as a universal tool for fingerprinting of cytotoxicity of nanoparticles. ACS Nano 2(5):928–938

    PubMed  Article  CAS  Google Scholar

  16. Jessel R, Haertel S, Socaciu C, Tykhonova S, Diehl HA (2002) Kinetics of apoptotic markers in exogeneously induced apoptosis of EL4 cells. J Cell Mol Med 6:82–92

    PubMed  Article  CAS  Google Scholar

  17. Fadok VA, de Cathelineau A, Daleke DL, Henson PM, Bratton DL (2001) Loss of phospholipid asymmetry and surface exposure of phosphatidylserine is required for phagocytosis of apoptotic cells by macrophages and fibroblasts. Journal of Biological Chemistry 276:1071–1077

    PubMed  Article  CAS  Google Scholar

  18. Monette R, Small DL, Mealing G, Morley P (1998) A fluorescence confocal assay to assess neuronal viability in brain slices. Brain Res Protocols 2:99–108

    Article  CAS  Google Scholar

  19. Jeon JY, Hwang SY, Cho SH, Choo J, Lee EK (2010) Effect of cholesterol content on affinity and stability of factor VIII and annexin V binding to a liposomal bilayer membrane. Chem Phys Lipids 163:335–340

    PubMed  Article  CAS  Google Scholar

  20. Hwang SY, Cho SH, Choi DY, Lee M, Choo J, Jung KH, Maeng JH, Chai YG, Yoon WJ, Lee EK (2010) Time-lapse, single cell based confocal imaginganalysis of caspase activation andphosphatidylserine flipping during cellularapoptosis. Biotech Histochem. doi:10.3109/10520291003648367

  21. Lovborg H, Nygren P, Larsson R (2004) Multiparametric evaluation of apoptosis: EFFECTS of standard cytotoxic agents and the cyanoguanidine CHS 828. Mol Cancer Ther 3:521–526

    PubMed  Google Scholar

Download references

Acknowledgments

This research was supported by Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education, Science and Technology (R11-2008-044-01001-0). It was also supported by Kyungwon University Research Fund in 2010.

Competing interest

The authors declare no competing interests.
