Rheological Study of Synovial Fluid Obtained from Dogs: Healthy, Pathological, and Post-Surgery, after Spontaneous Rupture of Cranial Cruciate Ligament

Annals of Biomedical Engineering volume 38, pages 57–65 (2010)Cite this article

Abstract

In the present study synovial fluid (SF) obtained from the stifle joint of healthy adult dogs and of dogs after cranial cruciate ligament rupture was analyzed regarding its rheological characteristics according to the condition of the joint. The viscoelastic and shear flow properties were measured at 25 and 38 °C. The results showed that the healthy SF exhibits practically temperature independent viscosity curve and satisfactory viscoelastic characteristics, i.e. G′ > G′′, over frequencies of 0.05–5 Hz, and characteristic relaxation time λ of the order of magnitude of 100 s. Creep measurements demonstrate that the zero shear viscosity was in the range of 10–100 Pa s. In shear flow viscosity measurements, by increasing \( \dot{\gamma } \) from 10−4 s−1 up to 103 s−1, non-Newtonian shear thinning behavior was observed and the viscosity values were decreased from 103 to 0.1 Pa s. On the contrary, in pathological conditions of cranial cruciate ligament rupture (CCLR), the measured viscosity was found drastically reduced, i.e. between 100 and 10 mPa s. The CCLR synovial fluid, similar to healthy SF, exhibits insignificant temperature dependence. The present study showed also that about one week after a surgery for CCLR repair the SF exhibits non-Newtonian behavior of dilute polymers. After two weeks from the operation, however, the rheological behavior converges to the one of healthy SF.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Figure 1
Figure 2
Figure 3

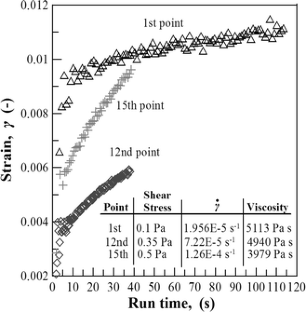

Figure 4

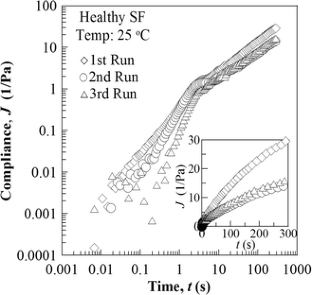

Figure 5

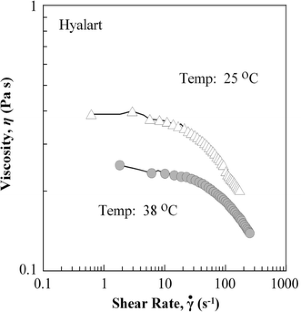

Figure 6

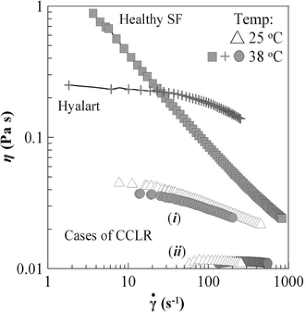

Figure 7

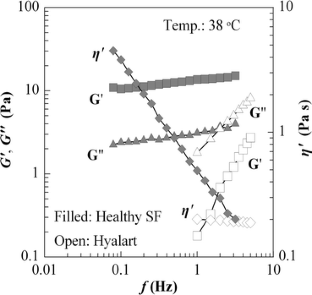

Figure 8

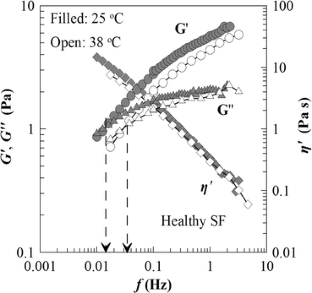

Figure 9

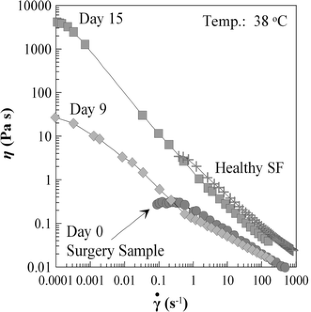

Figure 10

References

  1. Adams, M. E., M. H. Atkinson, A. Lussier, J. I. Schutz, K. A. Siminovitch, J. P. Wade, and M. Zummer. The role of viscosupplementation with Hylan G-F 20 (Synvisc) in the treatment of osteoarthritis of the knee: a Canadian multi-center trial comparing Hylan GF 20 alone, Hylan G-F 20 with nonsteroidal anti-inflammatory drugs (NSAIDs) and NSAIDs alone. Osteoarthr. Cartil. 3:213–226, 1996.

    Article  Google Scholar

  2. Al-Assaf, S., J. Meadows, G. O. Phillips, P. A. Williams, and B. J. Parsons. The effect of hydroxyl radicals on the rheological performance of hylan and hyaluronan. Int. J. Biol. Macromol. 27:337–348, 2000.

    Article  CAS  PubMed  Google Scholar

  3. Balazs, E. A., and J. L. Denlinger. Viscosupplementation: a new concept in the treatment of osteoarthritis. J. Rheumatol. 20:3–9, 1993.

    Google Scholar

  4. Barbucci, R., S. Lamponi, A. Borzacchiello, L. Ambrosio, M. Fini, P. Torricelli, and R. Giardino. Hyaluronic acid hydrogel in the treatment of osteoarthritis. Biomaterials 23(23):4503–4513, 2002.

    Article  CAS  PubMed  Google Scholar

  5. Benz, M., N. Chen, G. Jay, and J. Israelachvili. Static forces, structure and flow properties of complex fluids in highly confined geometries. Ann. Biomed. Eng. 33(1):39–51, 2005.

    Article  PubMed  Google Scholar

  6. Blewis, M. E., G. E. Nugent-Derfus, T. A. Schmidt, B. L. Schumacher, and R. L. Sah. A model of synovial fluid lubricant composition in normal and injured joints. Eur. Cell Mater. 13:26–39, 2007.

    CAS  PubMed  Google Scholar

  7. Canapp, S. O., A. R. Cross, M. P. Brown, D. D. Lewis, J. Hernandez, K. A. Merritt, and R. Tran-Son-Tay. Examination of synovial fluid and serum following intravenous injections of hyaluronan for the treatment of osteoarthritis in dogs. Vet. Comp. Orthop. Traumatol. 18(3):169–174, 2005.

    CAS  PubMed  Google Scholar

  8. Dejardin, L. M. Tibial plateau leveling osteotomy. In: Textbook of Small Animal Surgery, edited by D. Slatter, 3rd ed. Philadelphia: WB Saunders, 2003, pp. 2133–2143.

    Google Scholar

  9. Fam, H., J. T. Bryant, and M. Kontopoulou. Rheological properties of synovial fluids. Biorheology 44(1–2):59–74, 2007.

    CAS  PubMed  Google Scholar

  10. Ghosh, P., and D. Guidolin. Potential mechanism of action of intra-articular hyaluronan therapy in osteoarthritis: Are the effects molecular weight dependent? Semin. Arthritis Rheum. 32(1):10–37, 2002.

    Article  CAS  PubMed  Google Scholar

  11. Gomez, J. E., and G. B. Thurston. Comparisons of the oscillatory shear viscoelasticity and composition of pathological synovial fluids. Biorheology 31(5–6):409–427, 1993.

    Google Scholar

  12. Hills, B. A. Remarkable anti-wear properties of joint surfactant. Ann. Biomed. Eng. 23(2):112–115, 1995.

    Article  CAS  PubMed  Google Scholar

  13. Jay, G. D., J. R. Torres, M. L. Warman, M. C. Laderer, and K. S. Breuer. The role of lubricin in the mechanical behavior of synovial fluid. Proc. Natl. Acad. Sci. USA 104(15):6194–6199, 2007.

    Article  CAS  PubMed  Google Scholar

  14. Kato, Y., S. Nakamura, and M. Nichimura. Beneficial actions of hyaluronan (HA) on arthritic joints: effects of molecular weight of HA on elasticity of cartilage matrix. Biorheology 43:347–354, 2006.

    PubMed  Google Scholar

  15. Krause, W. E., E. G. Bellomo, and R. H. Colby. Rheology of sodium hyaluronate under physiological conditions. Biomacromolecules 2(1):65–69, 2001.

    Article  CAS  PubMed  Google Scholar

  16. Kuroki, K., J. L. Cook, and J. M. Kreeger. Mechanisms of action and potential uses of hyaluronan in dogs with osteoarthritis. J. Am. Vet. Med. Assoc. 221(7):944–950, 2002.

    Article  CAS  PubMed  Google Scholar

  17. Lee, S., and N. D. Spencer. Sweet, hairy, soft, and slippery. Science 319(5863):575–576, 2008.

    Article  CAS  PubMed  Google Scholar

  18. Mazzucco, D., G. McKinley, R. D. Scott, and M. Spector. Rheology of joint fluid in total knee arthroplasty patients. J. Orthop. Res. 20(6):1157–1163, 2002.

    Article  PubMed  Google Scholar

  19. Mensitieri, M., L. Ambrosio, S. Iannace, L. Nicolais, and A. Perbellini. Viscoelastic evaluation of different knee osteoarthritis therapies. J. Mater. Sci. Mater. Med. 6(3):130–137, 1995.

    Article  Google Scholar

  20. Mezger, T. G. The Rheology Handbook: For Users of Rotational and Oscillatory Rheometers, 2nd Revised Edition. Hannover: Vincentz Verlag, 2002.

    Google Scholar

  21. Mo, Y., K. Kubota, and K. Nishinari. Rheological evidence of the gelation behavior of hyaluronan–gellan mixtures. Biorheology 37:401–408, 2000.

    CAS  PubMed  Google Scholar

  22. Nuki, G., and J. Ferguson. Studies on the nature and significance of macromolecular complexes in the rheology of synovial fluid from normal and diseased human joints. Rheol. Acta 10:8–14, 1971.

    Article  CAS  Google Scholar

  23. Oates, K. M. N., W. E. Krause, and R. H. Colby. Using rheology to probe the mechanism of joint lubrication: polyelectrolyte/protein interactions in synovial fluid. Mater. Res. Soc. Symp. Proc. Mater. Res. Soc. 711:53–58, 2002.

    CAS  Google Scholar

  24. Oates, K. M. N., W. E. Krause, R. L. Jones, and R. H. Colby. Rheopexy of synovial fluid and protein aggregation. J. R. Soc. Interface 3(6):167–174, 2006.

    Article  CAS  PubMed  Google Scholar

  25. Pelletier, S., P. Hubert, E. Payan, P. Marchal, L. Choplin, and E. Dellacherie. Amphiphilic derivatives of sodium alginate and hyaluronate for cartilage repair: rheological properties. J. Biomed. Mater. Res. 54(1):102–108, 2001.

    Article  CAS  PubMed  Google Scholar

  26. Schmidt, T. A., N. S. Gastelum, Q. T. Nguyen, B. L. Schumacher, and R. L. Sah. Boundary lubrication of articular cartilage—role of synovial fluid constituents. Arthritis Rheum. 56(3):882–891, 2007.

    Article  CAS  PubMed  Google Scholar

  27. Schurz, J. Rheology of synovial fluids and substitute polymers. J. Macromol. Sci. A 33(9):1249–1262, 1996.

    Article  Google Scholar

  28. Tadmor, R., N. H., Chen, and J. Israelachvili. Thin film rheology and lubricity of hyaluronic acid solutions at a normal physiological concentration. J. Biomed. Mater. Res. 61(4):514–523, 2002.

    Article  PubMed  Google Scholar

  29. Tanaka, E., M. S. Detamore, K. Tanimoto, and N. Kawai. Lubrication of the temporomandibular joint. Ann. Biomed. Eng. 36(1):14–29, 2008.

    Article  PubMed  Google Scholar

  30. Van de Lest, C. H. A., B. M. van den Hoogen, and P. R. van Weeren. Loading-induced changes in synovial fluid affect cartilage metabolism. Biorheology 37:45–55, 2000.

    PubMed  Google Scholar

  31. Zubay, G. L., W. W. Parson, and D. E. Vance. Principles of Biochemistry. Dubuque, IA: William C. Brown, Communications Inc., 1995.

    Google Scholar

Download references

Acknowledgments

The study was supported by the General Secretariat for Research and Technology (GSRT), Ministry of Development, Greece, in the framework of the Project: EPEAEK II—PYTHAGORAS II, Support of the Universities Research Teams.

Author information

Affiliations

  1. Chemical Engineering Department, Faculty of Engineering, Aristotle University of Thessaloniki, Univ. Box 453, GR-54124, Thessaloniki, Greece

    Thomas B. Goudoulas, Eleftherios G. Kastrinakis & Stavros G. Nychas

  2. Department of Clinical Sciences, Faculty of Veterinary Medicine, Companion Animal Clinic, Aristotle University of Thessaloniki, 11 St. Voutyra Str., GR-54627, Thessaloniki, Greece

    Lysimachos G. Papazoglou, George M. Kazakos & Panagiotis V. Kosmas

Authors
  1. Thomas B. Goudoulas
    View author publications

    You can also search for this author in PubMed Google Scholar

  2. Eleftherios G. Kastrinakis
    View author publications

    You can also search for this author in PubMed Google Scholar

  3. Stavros G. Nychas
    View author publications

    You can also search for this author in PubMed Google Scholar

  4. Lysimachos G. Papazoglou
    View author publications

    You can also search for this author in PubMed Google Scholar

  5. George M. Kazakos
    View author publications

    You can also search for this author in PubMed Google Scholar

  6. Panagiotis V. Kosmas
    View author publications

    You can also search for this author in PubMed Google Scholar

Corresponding author

Correspondence to Thomas B. Goudoulas.

Rights and permissions

Reprints and Permissions

About this article

Cite this article

Goudoulas, T.B., Kastrinakis, E.G., Nychas, S.G. et al. Rheological Study of Synovial Fluid Obtained from Dogs: Healthy, Pathological, and Post-Surgery, after Spontaneous Rupture of Cranial Cruciate Ligament. Ann Biomed Eng 38, 57–65 (2010). https://doi.org/10.1007/s10439-009-9832-9

Download citation

  • Received:

  • Accepted:

  • Published:

  • Issue Date:

  • DOI: https://doi.org/10.1007/s10439-009-9832-9

Keywords

  • Hyaluronic acid
  • Shear thinning behavior
  • Relaxation time
  • Viscoelastic properties
