Landslides

, Volume 7, Issue 3, pp 219–236 | Cite as

An integrated model simulating the initiation and motion of earthquake and rain induced rapid landslides and its application to the 2006 Leyte landslide

  • Kyoji SassaEmail author
  • Osamu Nagai
  • Renato Solidum
  • Yoichi Yamazaki
  • Hidemasa Ohta
Original Paper

Abstract

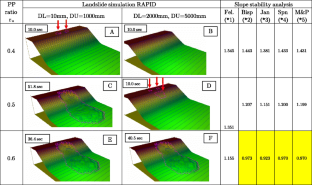

A gigantic rapid landslide claiming over 1,000 fatalities was triggered by rainfalls and a small nearby earthquake in the Leyte Island, Philippines in 2006. The disaster presented the necessity of a new modeling technology for disaster risk preparedness which simulates initiation and motion. This paper presents a new computer simulation integrating the initiation process triggered by rainfalls and/or earthquakes and the development process to a rapid motion due to strength reduction and the entrainment of deposits in the runout path. This simulation model LS-RAPID was developed from the geotechnical model for the motion of landslides (Sassa 1988) and its improved simulation model (Sassa et al. 2004b) and new knowledge obtained from a new dynamic loading ring shear apparatus (Sassa et al. 2004a). The examination of performance of each process in a simple imaginary slope addressed that the simulation model well simulated the process of progressive failure, and development to a rapid landslide. The initiation process was compared to conventional limit equilibrium stability analyses by changing pore pressure ratio. The simulation model started to move in a smaller pore pressure ratio than the limit equilibrium stability analyses because of progressive failure. However, when a larger shear deformation is set as the threshold for the start of strength reduction, the onset of landslide motion by the simulation agrees with the cases where the factor of safety estimated by the limit equilibrium stability analyses equals to a unity. The field investigation and the undrained dynamic loading ring shear tests on the 2006 Leyte landslide suggested that this landslide was triggered by the combined effect of pore water pressure due to rains and a very small earthquake. The application of this simulation model could well reproduce the initiation and the rapid long runout motion of the Leyte landslide.

Keywords

Leyte landslides Computer simulation Rapid landslides Ring shear test

Notes

Acknowledgement

This research is a technical development activity for the computer simulation within the project titled as “Early Warning of Landslides”, one of projects of the International Program on Landslides (IPL) jointly managed by ICL, UNESCO, WMO, FAO, UNISDR, ICSU and WFEO. The project was financially supported by the Ministry of Education, Culture, Sports, Science and Technology of Japan (MEXT) in the frame work of International Joint Research Promotion Fund. The project (leader: K. Sassa) was jointly conducted by the International Consortium on Landslides (ICL) and the Disaster Prevention Research Institute (DPRI) of Kyoto University, the China Geological Survey, the Korean Institute of Geosience and Mineral Resources (KIGAM) and the National Institute for Disaster Prevention (NIDP) in Korea, University of Gadjah Mada (UGM) and the Bandung Institute of Technology (ITB) of Indonesia, Philippine Institute of Volcanology and Seismology (PHIVOLCS). The part of Leyte landslide investigation was conducted together with Assoc. Prof. Hiroshi Fukuoka, Prof. Hideaki Marui, Assoc Prof. Fawu Wang and Dr Wang Gonghui.

References

  1. Araiba K, Nagura H, Jeong B, Koarai M, Sato H, Osanai N, Itoh H, Sassa K (2008) Topography of failed and deposited areas of the large collapse in Southern Leyte, Philippines occurred on 17 February 2006. In: Proc. International Conference on Management of Landslide Hazard in the Asia-Pacific Region (Satellite Symposium on the First World Landslide Forum). pp 434–443Google Scholar
  2. Catane SG, Cabria HB, Tomarong CP, Saturay RM, Zarco MA, Pioquinto WC (2007) Catastrophic rockslide-debris avalanche at St. Bernard, Southern Leyte, Philippines. Landslides 4(1):85–90CrossRefGoogle Scholar
  3. Chen H, Lee CF (2003) A dynamic mode for rainfall-induced landslides on natural slopes. Geomorphology 51:269–288CrossRefGoogle Scholar
  4. Chen H, Lee CF (2007) Landslide mobility analysis using MADFLOW. Proc The 2007 International Forum on Landslide Disaster Management 2:857–874Google Scholar
  5. Denlinger RP, Iverson RM (2004) Granular avalanches across irregular three-dimensional terrain: 1. Theory and computation. J Geophys Res 106(F01014):14Google Scholar
  6. Fukushima Y, Tanaka T (1990) A new attenuation relation for peak horizontal acceleration of strong earthquake ground motion in Japan. Bull Seismol Soc Am 84:757–783Google Scholar
  7. GSI (2006) 1:50,000 topographical map “Surroundding area of Leyte landslide”, Geological Survey Institute of JapanGoogle Scholar
  8. Hong Y, Hiura H, Shino K, Sassa K, Fukuoka H (2005) Quantitative assessment on the influence of heavy rainfall on the crystalline schist aldnslide by monitoirng system—case study on Zentoku landslide in Japan. Landslides 2-1:31–41CrossRefGoogle Scholar
  9. Hungr O (2009) Numerical modelling of the motion of rapid, flow-like landslides for hazard assessment. KSCE J Civ Eng 13(4):281–287CrossRefGoogle Scholar
  10. Hungr O, KcKinnon M, McDougall S.(2007a). Two models for analysis of landslide motion: Application to the 2007 Hong Kong benchmarking exersies. In: Proc. the 2007 International Forum on landslide disaster management, vol. 2. pp 919–932Google Scholar
  11. Hungr O, Morgenstern NR, Wong HN (2007b). Review of benchmarking exercise on landslide debris runout and mobility modelling. In: Proc. the 2007 International Forum on landslide disaster management, vol. 2. pp 755–812Google Scholar
  12. Igwe O, Sassa K, Wang FW (2007) The influence of grading on the shear strength of loose sands in stress-controlled ring shear tests. Landslides 4(1):43–51CrossRefGoogle Scholar
  13. Körner, H (1980). Model conceptions for the rock slide and avalanche movement. Proc. Iternational Symposium ”INTERPRAEVENT 1980”, Bad Ischl, vol. 2. pp 15–55Google Scholar
  14. Kwan J, Sun HW (2007). Benchmarking exersise on landslide mobility modelling-runout anayses using 3dDMM. In: Proc. the 2007 International Forum on landslide disaster management, vol.2. pp 945–966Google Scholar
  15. Okada Y, Sassa K, Fukuoka H (2000) Liquefaction and the steady state of weathered granite sands obtained by undrained ring shear tests: a fundamental study on the mechanism of liquidized landslides. J Nat Disaster Sci 22(2):75–85CrossRefGoogle Scholar
  16. Philippine Atmospheric, Geophysical and Astronomical Services Agency (PAGASA) (2006) Precipitation record at Otikon, LibagonGoogle Scholar
  17. PHIVOLCS (2008) Digital map and ground rupture of Southern Leyte Island. Philippine Institute of Volcanology and Seismology (PHIVOLCS) in CDGoogle Scholar
  18. Sassa K (1988) Geotechnical model for the motion of landslides. In: Proc. 5th International Symposium on Landslides, “Landslides”, Balkema, Rotterdam, vol. 1. pp 37–56Google Scholar
  19. Sassa K, Fukuoka H, Wang G, Ishikawa N (2004a) Undrained dynamic-loading ring-shear apparatus and its application to landslide dynamics. Landslides 1(1):7–19CrossRefGoogle Scholar
  20. Sassa K, Wang G, Fukuoka H, Wang FW, Ochiai T, Sugiyama, Sekiguchi T (2004b) Landslide risk evaluation and hazard mapping for rapid and long-travel landslides in urban development areas. Landslides 1(3):221–235CrossRefGoogle Scholar
  21. Sassa K, Fukuoka H, Wang FW, Wang GH (2007) Landslides induced by a combined effects of earthquake and rainfall. Progress in Landslide Science (Editors: Sassa , Fukuoka, Wang, Wang), Springer, Berlin. pp 311–325Google Scholar
  22. Sassa K, Fukuoka H, Solidum R, Wang G, Marui H, Furumura T, Wang F (2008) Mechanism of the initiation and motion of the 2006 Leyte landslide, Philippines. In: Proc International Conference-Workshop “Guinsaugon 2008—Living with Landslides (in CD)Google Scholar
  23. Stone R (2009) Peril in the Pamirs. Science 326:1614–1617CrossRefGoogle Scholar
  24. Takahashi T, Tsujimoto H (2000) A mechanical model for Merapi-type pyroclastic flow. J Volcanol Geotherm Res 98:91–115CrossRefGoogle Scholar
  25. Wang FW, Sassa K (2007). Landslide simulation by geotechnical model adopting a model for variable apparent friction coefficient. In: Proc. the 2007 International Forum on landslide disaster management, vol. 2. pp 1079–1096Google Scholar
  26. Zhang D, Sassa K (1996) A study of the apparent friction angle after failure during undrained shear of loess soils. J Japan Soc Erosion Control Eng 49(3):20–27Google Scholar
