Improvement of 19F MR image uniformity in a mouse model of cellular therapy using inductive coupling

Magnetic Resonance Materials in Physics, Biology and Medicine volume 32, pages 15–23 (2019)Cite this article

Abstract

Objective

Improve 19F magnetic resonance imaging uniformity of perfluorocarbon (PFC)-labeled cells by using a secondary inductive resonator tuned to 287 MHz to enhance the induced radio frequency (RF) magnetic field (B1) at 7.05 T.

Materials and methods

Following Faraday’s induction law, the sign of induced B1 made by the secondary resonator can be changed depending on the tuning of the resonator. A secondary resonator located on the opposite side of the phantom of the 19F surface coil can be shown to enhance or subtract the induced B1 field, depending upon its tuning.

Results

The numerical simulation results of rotating transmit B1 magnitude (|B +1 |) and corresponding experimental 19F images were compared without and with the secondary resonator. With the secondary resonator tuned to 287 MHz, improvements of |B +1 | and 19F image uniformity were demonstrated. The use of the secondary resonator improved our ability to visualize transplanted cell location non-invasively over a period of 6 weeks.

Conclusion

The secondary resonator tuned to enhance the induced B1 results in improved image uniformity in a pre-clinical application, enabling cell tracking of PFC-labeled cells with the secondary resonator.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

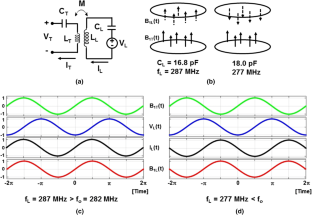

Fig. 1
Fig. 2
Fig. 3
Fig. 4
