The Importance of Human–Computer Interaction in Radiology E-learning

Journal of Digital Imaging volume 29, pages 195–205 (2016)Cite this article

Abstract

With the development of cross-sectional imaging techniques and transformation to digital reading of radiological imaging, e-learning might be a promising tool in undergraduate radiology education. In this systematic review of the literature, we evaluate the emergence of image interaction possibilities in radiology e-learning programs and evidence for effects of radiology e-learning on learning outcomes and perspectives of medical students and teachers. A systematic search in PubMed, EMBASE, Cochrane, ERIC, and PsycInfo was performed. Articles were screened by two authors and included when they concerned the evaluation of radiological e-learning tools for undergraduate medical students. Nineteen articles were included. Seven studies evaluated e-learning programs with image interaction possibilities. Students perceived e-learning with image interaction possibilities to be a useful addition to learning with hard copy images and to be effective for learning 3D anatomy. Both e-learning programs with and without image interaction possibilities were found to improve radiological knowledge and skills. In general, students found e-learning programs easy to use, rated image quality high, and found the difficulty level of the courses appropriate. Furthermore, they felt that their knowledge and understanding of radiology improved by using e-learning. In conclusion, the addition of radiology e-learning in undergraduate medical education can improve radiological knowledge and image interpretation skills. Differences between the effect of e-learning with and without image interpretation possibilities on learning outcomes are unknown and should be subject to future research.

Introduction

E-learning refers to the use of electronic media and network technologies for educational purposes and includes for example the use of audio, digital images, and web-based learning [1].

Due to the digital revolution, e-learning evolved rapidly in the past decades [2]. It is expected that e-learning will play an increasing role in future medical education and teaching strategies will change [3]. E-learning in general has several advantages over traditional, non-digital learning. First, e-learning gives learners the opportunity to learn at any time and at any location [4]. For example, e-lectures can be followed at home using the internet. Second, other types of study material, like animation and video clips, and interactive programs can be used. Third, the possibility to reach a high number of students might lead to cost reduction [3, 5].

Especially for radiology education, e-learning has a potential important benefit. E-learning makes human–computer interaction possible. The two most important forms of human–computer interaction in radiology are navigation (scrolling through stack of images in different planes) and manipulation (adjusting contrast setting, rotating 3D models) [6]. Computed tomography (CT) and magnetic resonance imaging (MRI) are widely used in almost all medical specialties and viewed as a stack of images (volumetric image) instead of single images printed next to each other. Digitalization and the emergence of PACS (Picture Archiving and Communication Systems) made radiological images, including all image manipulation tools, available for all in-hospital doctors. Therefore, it is important that all medical students learn how to interpret radiological images and understand the relation between anatomical and pathological structures. Cognitive processes in volumetric and 2D image interpretation differ substantially, which makes it important for students to learn to interpret both image types [7]. A first step can be the use of videos of volumetric image stacks. However, ultimately human–computer interaction with the images should be possible since this is more representative to clinical practice and more reliable than tests with 2D CT images [7].

E-learning has the potential to improve radiology education because it allows for authentic image manipulation, for example, scrolling through CT and MRI scans, which helps students to understand the 3D relations between anatomical and pathological structures [8]. In this study, we evaluate the emergence of image interaction in radiology e-learning programs in radiology education literature and the existing evidence of effects of radiology e-learning programs with and without image interaction possibilities on learning outcomes and perspectives of medical students and teachers.

Methods

Search

The electronic databases PubMed, EMBASE, Cochrane, ERIC, and PsycInfo were searched. All medical, psychological, and educational electronic databases were used to perform an extensive search because the topic of this review can be categorized in different databases. The terms education, radiology, e-learning, and synonyms of these words were combined. The search syntax is provided in Table 1. Duplicates were removed, and the articles were screened by two authors (AH and MF) on title and abstract using predefined in- and exclusion criteria. Relevant articles were screened on full text and included if eligible. Articles concerning evaluation of radiologic e-learning programs for undergraduate medical students were included. Exclusion criteria were (1) language other than English, (2) posters or congress reports, (3) no full text availability, (4) concerning nuclear medicine, (5) only description of the e-learning program and no evaluation, and (6) articles that included other study populations (e.g., residents, radiologists, non-medical students) and did not report outcomes separately for undergraduate medical students. A manual search was performed by authors with expertise on e-learning in radiology. Finally, reference lists of reviews retrieved through the search were screened for additional articles.

Table 1 Search syntax
Full size table

Data Extraction and Quality Assessment

Two authors (AH and MF) independently extracted data and assessed quality of the included articles. In case of discrepancy, consensus was reached between authors. Study quality was assessed using the Medical Education Research Study Quality Instrument (MERSQI), developed to measure the quality of educational research studies [9]. The MERSQI also includes evaluation of the Kirkpatrick level which consists of four levels of evaluation, namely (1) reaction, (2) learning, (3) behavior, and (4) results [10, 11]. Outcomes were (1) the effect of e-learning on learning outcomes, (2) students’, and (3) teachers’ perspectives on e-learning.

Results

The search yielded 1479 articles of which 1102 articles remained after removing duplicates. A flowchart is provided in Fig. 1. Nineteen relevant articles were included for further analysis. Baseline characteristics of the included studies are shown in Table 2. Included studies were published between 2000 and 2013. Most studies were performed in the USA, Germany, or UK and included 26 to 687 students. Five studies used a control group of students. Imaging modalities used were CT (n = 14), MRI (n = 9), X-ray (n = 11), angiography (n = 5), and ultrasound (n = 6). Twelve studies (63 %) used a web-based e-learning program. The evaluated e-learning course was mandatory in 26 % (five studies).

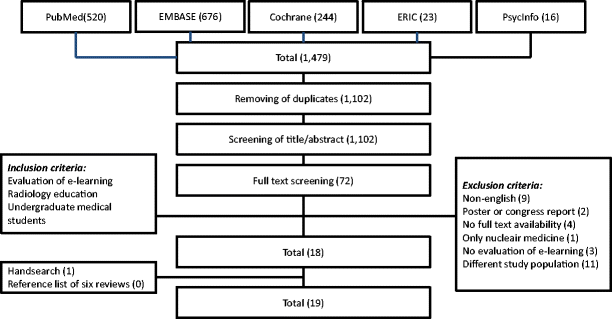

Fig. 1
figure 1

Flowchart of study inclusion

Full size image
Table 2 Characteristics of the included studies
Full size table

Quality Assessment

The MERSQI score of the included articles is provided in Table 3. The Kirkpatrick level, which is included in the MERSQI score assessment, was 1 in 11 of the studies. This means that only the perception of students of the e-learning program was investigated. Seven studies also evaluated the effect of the e-learning program on knowledge and skills (Kirkpatrick level 2). The MERSQI score varied from 7 to 14.5 (out of 18). Most studies did not randomize groups (except for the studies of Mahnken et al. [12, 13] and Maleck et al. [13]), and none of the studies assessed the effect of e-learning on student behavior or patient outcomes.

Table 3 MERSQI score assessment. The maximum achievable score for each row is 18
Full size table

Image Interaction Possibilities

In seven studies, the e-learning program offered students the possibility of viewing a stack of images [14–21]. Of which two studies used videos, i.e., scroll rated was fixed [15, 16], while in the other five studies, students could scroll through the images at their own pace [14, 17–21]. In one study, students were allowed to rotate 3D models of vessels derived from volumetric images [18]. Two studies [17, 19] additionally offered the possibility to adjust contrast settings.

Effect of Radiology E-learning on Learning Outcomes

The reported outcomes for each study are provided in Table 4. Eight studies (42 %) investigated the effect of radiology e-learning on learning outcomes, of which two studies concerned e-learning with image interaction possibilities. Learning effects were measured with pre- and post-course radiology skills tests, and all studies reported improved test results after the e-learning course. Three studies compared the test results with a control group, including one study using e-learning with image interaction possibilities [18], and found a higher improvement in knowledge in students exposed to e-learning compared to a control group [12, 13, 18].

Table 4 Reported outcomes for each study
Full size table

The study of Petersson et al. [18] investigated the value of an additional 3D radiological anatomy e-learning tool for students taking vascular anatomy courses. Student test scores on 3D anatomical knowledge of peripheral vessels improved significantly after introduction of the additional e-learning tool compared to test scores of control groups from a year before who only took the traditional vascular anatomy courses. Radiological knowledge of neurovascular anatomy did not significantly improve after introducing the e-learning course.

Maleck et al. [13] randomized students in four groups: group 1 and 2 were presented with e-learning cases, respectively, with and without interactive elements; group 3 with paper-based cases with interactive elements, and a control group was not exposed to any cases. Interactive elements comprised questions guiding students through the cases and did not relate to image interaction in this case. All students had the opportunity to attend radiology lectures on a voluntary basis. Pre- and post-course tests with questions related to radiological knowledge and image interpretation skills were used. Both multiple choice questions and free-text questions were used related to radiographs projected with a slide projector. The authors found significant improvement in knowledge and X-ray image interpretation skills in both e-learning groups and in the paper-based group in contrast to the control group who showed no significant improvement. Most improvement in image interpretation skills was found in e-learning group 1, and most improvement in knowledge was found in e-learning group 2, though it was not reported if these differences were significant.

Mahnken et al. [12] provided e-learning with radiological cases and expert feedback and compared this to a group without access to the e-learning environment. Image interaction was not possible. All students followed an internship in radiology, so the control group was exposed to radiology as well but without access to the additional e-learning program. Learning effects were measured with a pre- and post-course radiology knowledge test based on the learning objectives of the internship and the e-learning content. Knowledge improvement in the e-learning group was higher, but this difference was not significant. None of the studies compared the learning effect of e-learning alone in comparison to traditional learning.

Students’ Perspectives on E-learning with Image Interaction Possibilities

Most studies reported that the possibility of image interaction was advantageous to students. For example, Ernst et al. [15] introduced a CD-ROM with stack viewing in their learning program, which was found to be a useful addition to hard copy images by 96 % of students. In the study of Arya et al. [14], an e-learning module with stack image viewing was compared to three other methods: a 3D anatomic model, a poster with tiled images, and an ultrasound station. The e-learning module was found to be most helpful in recall of anatomic principles and was perceived to be, together with the 3D anatomic model, more effective in improving the comprehension of 3D physical relationships than the other two methods. The e-learning station and the ultrasound station were thought to represent more clinically relevant material than the other two. Overall, the 3D model was found to be most valuable by students. According to a qualitative evaluation of an e-learning program using 2D images and videos of stacks, students particularly appreciate stacks of cross-sectional images for radiology learning [16]. In another study with scrollable images, 3 % of the participants suggested to add more image interaction possibilities, such as changing viewing direction [21]. One negative comment concerning image interaction was reported and concerned the lack of facilitators to assist in navigating through the scrollable images [17].

In the study of Bohl et al. [22], students did not have the opportunity to use image interaction. However, some students mentioned that it would be better to use actual software for practice which allows image interaction.

Students’ Perspectives on Radiology E-learning in General

Nearly all studies (89 %) investigated the perspectives of students on radiology e-learning in general. The quality of the images used in e-learning was rated high in six studies. Only one study with X-ray images reported that a few students (4 %) found that the image quality should be improved [23].

Seven studies described that students found that they could use the knowledge gained from the e-learning programs in clinical practice [14, 16, 17, 21–24]. On the other hand, students also experienced that the information in the e-learning course was sometimes too much, too detailed, or not relevant for the post-course assessment [14, 17, 22].

Seven studies addressed the question if e-learning could be an alternative to traditional lectures. In three studies, the e-learning program was preferred over traditional learning [13, 22, 25]. Two studies reported that students found e-learning alone not suitable but preferred e-learning as an addition to traditional lectures [16, 26]. Traditional lectures were preferred over e-learning by the majority of students in two studies [18, 27]. One of these studies mentioned that students missed the student–teacher interaction [27]. However, this study was essentially different from the other included studies as it investigated the use of e-learning in radiation protection education, and therefore, radiological images did not play a central role. The e-learning course existed of information hyperlinked to webpages and images from the Internet.

In 11 studies, students mentioned that e-learning improved their understanding of radiology and anatomy [13, 14, 19, 21–23, 26–30]. Specifically, they experienced improved recognition of pathology on radiological images [22–24]. Students also mentioned that they were more interested in radiology after the e-learning course [23, 27]. Students liked the possibility to study from home and found that e-learning made it possible to cover larger areas of knowledge in a short time frame [16, 23, 27, 28].

Teacher Perspectives

Advantages of e-learning that were experienced by authors were less administrative tasks and a decrease in costs [15, 16, 25]. Administrative tasks reduced because exams could be reviewed electronically [25]. Ernst et al. [15] experienced a decrease in costs because CD-ROMs containing both the syllabus and radiology images were used instead of a printed syllabus. In several studies, technical problems were experienced, making it temporarily impossible to access the e-learning program [20, 21, 23, 27, 28].

Discussion

E-learning offers the opportunity to let users interact with radiological images but less than half of the included studies took advantage of this possibility. Most studies only used static images which also could be used in traditional learning. The image interaction possibilities varied from videos of an image stack to scrolling freely through stacks of images in multiple directions and contrast settings. Students found image interaction possibilities valuable and encourage its use in e-learning programs. The effect of e-learning with and without image interpretation possibilities on learning outcomes was not compared.

Radiology e-learning can improve learning outcomes of students. Some results suggest that the addition of e-learning to traditional learning can lead to improved radiological knowledge and image interpretation skills. Students’ perspectives of e-learning are generally positive, and students feel that their knowledge and understanding of radiology improves by using e-learning. However, we did not find evidence to conclude that e-learning methods are superior to traditional teaching methods or that e-learning methods could replace traditional lectures because none of the studies compared both methods individually. Students’ opinions about this topic were diverse. In three studies, students preferred e-learning over traditional lectures, while in two studies, traditional lectures were preferred. Two other studies reported that students preferred e-learning as an addition to traditional lectures.

The level of evidence of the included studies was relatively low. First, a lot of studies investigate students’ perspectives on e-learning, and there was relatively few evidence of the effect on learning outcomes. This is reflected in the low Kirkpatrick levels of the investigated studies, namely only level 1 and level 2. It would be interesting to know if e-learning also leads to improved image interpretation in clinical practice (Kirkpatrick level 4). However, this would be challenging to investigate because improved performance in clinical practice usually cannot be traced to a single educational component. An improvement in performance is the result of different educational activities and is also influenced by what students learn on their own initiative by reading books, for example. Most studies did not compare their results to a control group, and in only one study, students were randomized in groups. Moreover, most studies were descriptive and did not go beyond descriptive analysis. As most comparative studies added e-learning to traditional learning, part of the effect of e-learning can possibly be explained by the benefit of additional education and extra study time. Another limitation was the large diversity between the included studies. For example, each study used a different e-learning and software program. Further, some studies used small study populations.

The current study included a thorough and systematic search; however, there are a few limitations. The manual search identified an additional article which was not found in the original search. The reason was that this article did not name their new software for radiology education as e-learning, and therefore, this article did not show up in our initial search. There might probably be more studies evaluating the effect of an e-learning tool that were not detected by our search. Further, local unpublished initiatives of certain e-learning programs were not included in the search, but they might contain very valuable information. To further evaluate the effect of e-learning, it might be useful to also investigate the evidence for e-learning in related fields. In this study, only radiology was investigated because radiology is different due to cross-sectional imaging techniques and the transformation to digital reading of radiological images.

According to this review study, no studies investigated the difference in learning effect between radiology e-learning with and without image interaction possibilities. In the assessment literature, however, tests with and without image interaction possibilities were compared, and tests using stack images were found to be more reliable and more representative for clinical practice compared to tests with 2D images [7]. Since all in-hospital doctors have the ability to scroll through stacks of images and apply other image manipulation possibilities in daily practice, and this requires different cognitive processes than viewing 2D images [31], medical students could benefit from exposure to this aspect of image interpretation. Further, radiological anatomy test scores with stack viewing and image manipulation possibilities correlated significantly to scores on human cadaver anatomy tests, while scores on tests without stack viewing did not correlate to human cadaver test scores [7]. This might indicate that in a radiology-anatomy course, it would be preferable to use radiological image with stack viewing and other image manipulation tools.

Evidence for effects of e-learning in medical education was previously reported in another review study, concerning e-learning methods in continuing medical education for health care professionals [32]. In this context, in contrast to the undergraduate radiology domain, several studies compared web-based programs to traditional lectures in randomized controlled trials. Traditional teaching was found to be as effective as internet-based learning programs [32]. A systematic review investigating online learning for undergraduate nurse education also found that online learning was as effective as traditional learning [33]. Some studies reported benefits of web-based programs in comparison to print materials with respect to learning outcomes, learning efficiency, and learners’ perspectives. However, we cannot directly transfer these results to undergraduate radiology education, as the content of the learning material, learning goals, learner characteristics, and education levels substantially differ. Randomized controlled trials are therefore needed to compare the effect of e-learning and traditional learning in undergraduate radiology education. In addition, we found little evidence for behavioral change in clinical practice as a result of e-learning [32].

Summary

E-learning can improve radiological knowledge and image interpretation of undergraduate medical students, in addition to traditional learning. Image interaction possibilities largely varied among studies and were encouraged by students. The use of image interaction in radiology e-learning might be beneficial for medical students.

References

  1. Cheng B, Wang M, Morch A, Chen N, Kinshuk, Spector M: Research on e-learning in the workplace 2000–2012: a bibliometric analysis of the literature. Educ Res Rev 11:58–72, 2014

    Article  Google Scholar

  2. Scarsbrook AF, Graham RN, Perriss RW: Radiology education: a glimpse into the future. Clin Radiol 61(8):640–648, 2006

    CAS  Article  PubMed  Google Scholar

  3. Pinto A, Selvaggi S, Sicignano G, Vollono E, Iervolino L, Amato F, et al: E-learning tools for education: regulatory aspects, current applications in radiology and future prospects. Radiol Med 113(1):144–157, 2008

    CAS  Article  PubMed  Google Scholar

  4. Pinto A, Brunese L, Pinto F, Acampora C, Romano L: E-learning and education in radiology. Eur J Radiol 78(3):368–371, 2011

    Article  PubMed  Google Scholar

  5. Choules AP: The use of elearning in medical education: a review of the current situation. Postgrad Med J 83(978):212–216, 2007

    CAS  Article  PubMed  PubMed Central  Google Scholar

  6. Bowman D, Kruijff E, LaViola J, Poupyrev I Eds: 3D User Interfaces: Theory and Practice, 1st edition. Addison Wesley Longman Publishing Co., Redwood City, 2004

    Google Scholar

  7. Ravesloot CJ, van der Schaaf MF, van Schaik JP, Ten Cate OT, van der Gijp A, Mol CP, et al: Volumetric CT-images improve testing of radiological image interpretation skills. Eur J Radiol 84(5):856–861, 2015

  8. Grunewald M, Heckemann RA, Gebhard H, Lell M, Bautz WA: COMPARE radiology: creating an interactive Web-based training program for radiology with multimedia authoring software. Acad Radiol 10(5):543–553, 2003

    Article  PubMed  Google Scholar

  9. Reed DA, Cook DA, Beckman TJ, Levine RB, Kern DE, Wright SM: Association between funding and quality of published medical education research. JAMA 298(9):1002–1009, 2007

    CAS  Article  PubMed  Google Scholar

  10. Yardley S, Dornan T: Kirkpatrick’s levels and education ‘evidence’. Med Educ 46(1):97–106, 2012

    Article  PubMed  Google Scholar

  11. Smidt A, Balandin S, Sigafoos J, Reed VA: The Kirkpatrick model: a useful tool for evaluating training outcomes. J Intellect Dev Disabil 34(3):266–274, 2009

    Article  PubMed  Google Scholar

  12. Mahnken AH, Baumann M, Meister M, Schmitt V, Fischer MR: Blended learning in radiology: is self-determined learning really more effective? Eur J Radiol 78(3):384–387, 2011

    Article  PubMed  Google Scholar

  13. Maleck M, Fischer MR, Kammer B, Zeiler C, Mangel E, Schenk F, et al: Do computers teach better? A media comparison study for case-based teaching in radiology. Radiographics 21(4):1025–1032, 2001

    CAS  Article  PubMed  Google Scholar

  14. Arya R, Morrison T, Zumwalt A, Shaffer K: Making education effective and fun: stations-based approach to teaching radiology and anatomy to third-year medical students. Acad Radiol 20(10):1311–1318, 2013

    Article  PubMed  Google Scholar

  15. Ernst RD, Sarai P, Nishino T, Collins T, Oto A, Hernandez A, et al: Transition from film to electronic media in the first-year medical school gross anatomy lab. J Digit Imaging 16(4):337–340, 2003

    CAS  Article  PubMed  PubMed Central  Google Scholar

  16. Howlett D, Vincent T, Watson G, Owens E, Webb R, Gainsborough N, et al: Blending online techniques with traditional face to face teaching methods to deliver final year undergraduate radiology learning content. Eur J Radiol 78(3):334–341, 2011

    Article  PubMed  Google Scholar

  17. Jafri NF, Wu P, Stanfield L, Slanetz PJ: Use of radiologic imaging to enhance physical diagnosis instruction in the preclinical curriculum. Acad Radiol 15(7):942–947, 2008

    Article  PubMed  Google Scholar

  18. Petersson H, Sinkvist D, Wang C, Smedby O: Web-based interactive 3D visualization as a tool for improved anatomy learning. Anat Sci Educ 2(2):61–68, 2009

    Article  PubMed  Google Scholar

  19. Rengier F, Hafner MF, Unterhinninghofen R, Nawrotzki R, Kirsch J, Kauczor HU, et al: Integration of interactive three-dimensional image post-processing software into undergraduate radiology education effectively improves diagnostic skills and visual-spatial ability. Eur J Radiol 82(8):1366–1371, 2013

    Article  PubMed  Google Scholar

  20. Shaffer K, Small JE: Blended learning in medical education: use of an integrated approach with web-based small group modules and didactic instruction for teaching radiologic anatomy. Acad Radiol 11(9):1059–1070, 2004

    Article  PubMed  Google Scholar

  21. Turmezei TD, Tam MD, Loughna S: A survey of medical students on the impact of a new digital imaging library in the dissection room. Clin Anat 22(6):761–769, 2009

    CAS  Article  PubMed  Google Scholar

  22. Bohl M, Francois W, Gest T: Self-guided clinical cases for medical students based on postmortem CT scans of cadavers. Clin Anat 24(5):655–663, 2011

    Article  PubMed  Google Scholar

  23. Webb AL, Choi S: Interactive radiological anatomy eLearning solution for first year medical students: development, integration, and impact on learning. Anat Sci Educ 7(5):350–360, 2014

  24. Wagner M, Heckemann RA, Nomayr A, Greess H, Bautz WA, Grunewald M: COMPARE/Radiology, an interactive Web-based radiology teaching program evaluation of user response. Acad Radiol 12(6):752–760, 2005

    Article  PubMed  Google Scholar

  25. Davison BD, Tello R, Blickman JG: World Wide Web program for optimizing and assessing medical student performance during the radiology clerkship. Acad Radiol 7(4):260–263, 2000

    CAS  Article  PubMed  Google Scholar

  26. Tachakra S, Dutton D: Long-distance education in radiology via a clinical telemedicine system. Telemed J E Health 6(3):361–365, 2000

    CAS  Article  PubMed  Google Scholar

  27. Leong S, Mc Laughlin P, O'Connor OJ, O'Flynn S, Maher MM: An assessment of the feasibility and effectiveness of an e-learning module in delivering a curriculum in radiation protection to undergraduate medical students. J Am Coll Radiol 9(3):203–209, 2012

    Article  PubMed  Google Scholar

  28. Gotthardt M, Siegert MJ, Schlieck A, Schneider S, Kohnert A, Gross MW, et al: How to successfully implement E-learning for both students and teachers. Acad Radiol 13(3):379–390, 2006

    Article  PubMed  Google Scholar

  29. Chorney ET, Lewis PJ: Integrating a radiology curriculum into clinical clerkships using case oriented radiology education. J Am Coll Radiol 8(1):58–64.e1-4, 2011

    Article  PubMed  Google Scholar

  30. Dugas M, Trumm C, Stabler A, Pander E, Hundt W, Scheidler J, et al: Case-oriented computer-based-training in radiology: concept, implementation and evaluation. BMC Med Educ 1:5, 2001

    CAS  Article  PubMed  PubMed Central  Google Scholar

  31. van der Gijp A, Ravesloot CJ, van der Schaaf MF, van der Schaaf IC, Huige JCBM, Vincken KL, et al: Volumetric and two-dimensional image interpretation sohw different cognitive processes in learners. Academic Radiol In press, 2015

  32. Wutoh R, Boren SA, Balas EA: eLearning: a review of Internet-based continuing medical education. J Contin Educ Health Prof 24(1):20–30, 2004

    Article  PubMed  Google Scholar

  33. McCutcheon K, Lohan M, Traynor M, Martin D: A systematic review evaluating the impact of online or blended learning vs. face-to-face learning of clinical skills in undergraduate nurse education. J Adv Nurs 71(2):255–270, 2015
