Fig. 6

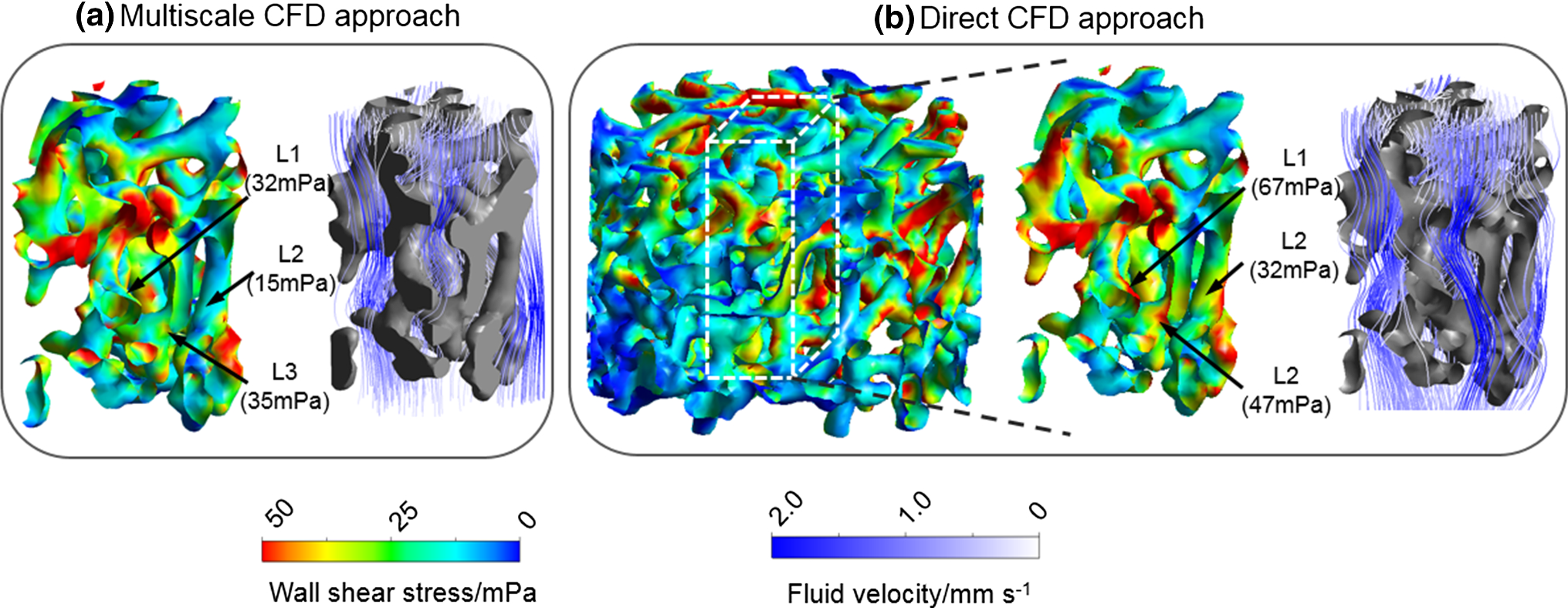

WSS and fluid velocity distribution within the RVE section, which are calculated from a multiscale CFD model and b direct CFD model of the full scaffold, respectively. L1, L2 and L3 are the locations, where the WSS has distinctly different values between multiscale CFD and direct CFD approaches
