Distribution analysis of hydrogel spacer and evaluation of rectal dose reduction in Japanese prostate cancer patients undergoing stereotactic body radiation therapy

International Journal of Clinical Oncology volume 26, pages 736–743 (2021)Cite this article

Abstract

Background

To report on our primary experience with the placement of a hydrogel spacer following stereotactic body radiation therapy (SBRT) in low- and intermediate-risk prostate cancer patients and assess its impact on dosimetry as well as acute toxicity.

Methods

A total of 70 patients treated with SBRT (total dose of 36.25 Gy) in 5 fractions were included. Hydrogel spacers were inserted in 53 patients along with gold fiducial markers. For dosimetry, we trisected the rectum on the sagittal image of magnetic resonance imaging and defined it as the upper rectum (UR), middle rectum (MR), and lower rectum (LR). We compared the dose to each part of the rectum with and without hydrogel spacer using dose volume histograms. Genitourinary (GU) and gastrointestinal (GI) toxicity assessments were conducted until 6 months of follow-up visits.

Results

The median volume of the hydrogel spacer was 12.3 mL. Overall, the hydrogel spacer could significantly reduce the rectal dose in the middle-to-high-dose region (V20–V35). The rectum doses at the UR and MR were significantly lower in the spacer group in the middle to high dose region (V20–V35); the dose at the LR was significantly lower in the spacer group in the high-dose region (V30–V35). There was no grade ≥ 3 toxicity observed, but grade 2 toxicity of GU and GI occurred in 17.1% and 1.4% of the patients, respectively.

Conclusion

Hydrogel spacers could contribute to rectal dose reduction, especially in high dose regions, by creating a prostate–rectum distance.

This is a preview of subscription content, access via your institution.

Access options

Buy single article

Instant access to the full article PDF.

43,34 €

Price includes VAT (Finland)
Tax calculation will be finalised during checkout.

Fig. 1
Fig. 2

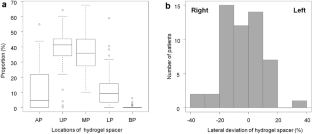

Fig. 3

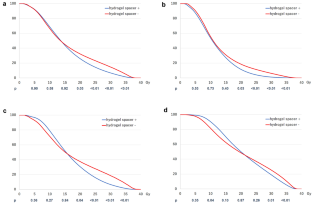

Fig. 4
