Abstract

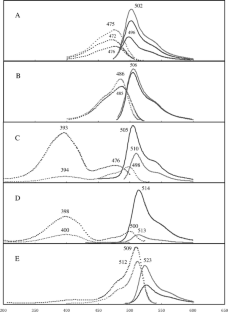

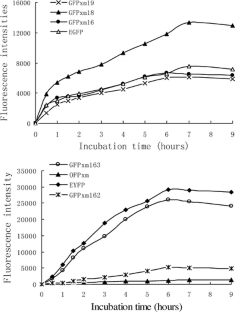

As research progresses, fluorescent proteins useful for optical marking will evolve toward brighter, monomeric forms that are more diverse in color. We previously reported a new fluorescent protein from Aequorea macrodactyla, GFPxm, that exhibited many characteristics similar to wild-type green fluorescent protein (GFP). However, the application of GFPxm was limited because GFPxm expressed and produced fluorescence only at low temperatures. To improve the fluorescent properties of GFPxm, 12 variants were produced by site-directed mutagenesis and DNA shuffling. Seven of these mutants could produce strong fluorescence when expressed at 37°C. The relative fluorescence intensities of mutants GFPxm16, GFPxm18, and GFPxm19 were higher than that of EGFP (enhanced GFP) when the expression temperature was between 25 and 37°C, and mutants GFPxm16 and GFPxm163 could maintain a high fluorescence intensity even when expressed at 42°C. Meanwhile, at least 4 mutants could be successfully expressed in mammalian cell lines. The fluorescence spectra of 6 of the 12 mutants had a progressive red shift. The longest excitation-emission maximum was at 514/525 nm. In addition, 3 of the 12 mutants had two excitation peaks including an UV-excitation peak, while another mutant had only one UV-excitation peak.
This is a preview of subscription content, log in via an institution to check access.
Similar content being viewed by others
Explore related subjects
Discover the latest articles and news from researchers in related subjects, suggested using machine learning.References
R Ando H Hama M Yamamoto-Hino H Mizuno A Miyawaki (2002) ArticleTitleAn optical marker based on the UV-induced green-to-red photoconversion of a fluorescent protein Proc Natl Acad Sci USA 99 12651–12656 Occurrence Handle10.1073/pnas.202320599
R Ando H Mizuno A Miyawaki (2004) ArticleTitleRegulated fast nucleocytoplasmic shuttling observed by reversible protein highlighting Science 306 1370–1373 Occurrence Handle10.1126/science.1102506
RE Campbell O Tour AE Palmer PA Steinbach GS Baird DA Zacharias RY Tsien (2002) ArticleTitleA monomeric red fluorescent protein Proc Natl Acad Sci USA 99 7877–7882 Occurrence Handle10.1073/pnas.082243699
DM Chudakov VV Belousov AG Zaraisky VV Novoselov DB Staroverov DB Zorov S Lukyanov KA Lukyanov (2003) ArticleTitleKindling fluorescent proteins for precise in vivo photolabeling Nat Biotechnol 21 191–194 Occurrence Handle10.1038/nbt778
DM Chudakov VV Verkhusha DB Staroverov EA Souslova S Lukyanov KA Lukyanov (2004) ArticleTitlePhotoswitchable cyan fluorescent protein for protein tracking Nat Biotechnol 22 1435–1439 Occurrence Handle10.1038/nbt1025
A Crameri EA Whitehorn E Tate WPC Stemmer (1996) ArticleTitleImproved green fluorescent protein by molecular evolution using DNA shuffling Nat Biotechnol 14 315–319 Occurrence Handle10.1038/nbt0396-315
AB Cubitt LA Woollenweber R Heim (1999) ArticleTitleUnderstanding structure-function relationships in the Aequorea victoria green fluorescent protein Methods Cell Biol 58 19–30 Occurrence Handle10.1016/S0091-679X(08)61946-9
NG Gurskaya AF Fradkov NI Pounkova DB Staroverov ME Bulina YG Yanushevich YA Labas S Lukyanov KA Lukyanov (2003) ArticleTitleA colourless green fluorescent protein homologue from the non-fluorescent hydromedusa Aequorea coerulescens and its fluorescent mutants Biochem J 373 IssueIDPt 2 403–408 Occurrence Handle10.1042/BJ20021966
Y Ito M Suzuki Y Husimi (1999) ArticleTitleA novel mutant of green florescent protein with enhanced sensitivity for microanalysis at 488 nm excitation Biochem Biophys Res Commun 264 556–560 Occurrence Handle10.1006/bbrc.1999.1541
S Karasawa T Araki M Yamamoto-Hino A Miyawaki (2003) ArticleTitleA green-emitting fluorescent protein from Galaxeidae coral and its monomeric version for use in fluorescent labeling J Biol Chem 278 34167–34171 Occurrence Handle10.1074/jbc.M304063200
YA Labas NG Gurskaya YG Yanushevich AF Fradkov KA Lukyanov SA Lukyanov MV Matz (2002) ArticleTitleDiversity and evolution of the green fluorescent protein family Proc Natl Acad Sci USA 99 4256–4261 Occurrence Handle10.1073/pnas.062552299
J Lippincott-Schwartz GH Patterson (2003) ArticleTitleDevelopment and use of fluorescent protein markers in living cells Science 300 87–91 Occurrence Handle10.1126/science.1082520
WX Luo J Zhang HJ Yang SW Li XY Xie SQ Pang SJ Li NS Xia (2000) ArticleTitleConstruction and application of an Escherichia coli high effective expression vector with an enhancer Sheng Wu Gong Cheng Xue Bao 16 578–581
M Ormo AB Cubitt K Kallio LA Gross RY Tsien SJ Remington (1996) ArticleTitleCrystal structure of the Aequorea victoria green fluorescent protein Science 273 1392–1395
GH Patterson J Lippincott-Schwartz (2002) ArticleTitleA photoactivatable GFP for selective photolabeling of proteins and cells Science 297 1873–1877 Occurrence Handle10.1126/science.1074952
NC Shaner RE Campbell PA Steinbach BN Giepmans AE Palmer RY Tsien (2004) ArticleTitleImproved monomeric red, orange and yellow fluorescent proteins derived from Discosoma sp. red fluorescent protein Nat Biotechnol 22 1567–1572 Occurrence Handle10.1038/nbt1037
RY Tsien (1998) ArticleTitleThe green fluorescent protein Annu Rev Biochem 67 509–544 Occurrence Handle10.1146/annurev.biochem.67.1.509
VV Verkhusha A Sorkin (2005) ArticleTitleConversion of the monomeric red fluorescent protein into a photoactivatable probe Chem Biol 12 279–285 Occurrence Handle10.1016/j.chembiol.2005.01.005
NS Xia WX Luo J Zhang XY Xie HJ Yang SW Li M Chen MH Ng (2002) ArticleTitleBioluminescence of Aequorea macrodactyla, a common jellyfish species found in the east China sea Mar Biotechnol 4 155–162 Occurrence Handle10.1007/s10126-001-0081-7
Author information
Authors and Affiliations
Corresponding author
Rights and permissions
About this article
Cite this article
Luo, WX., Cheng, T., Guan, BQ. et al. Variants of Green Fluorescent Protein GFPxm. Mar Biotechnol 8, 560–566 (2006). https://doi.org/10.1007/s10126-006-6006-8
Received:
Accepted:
Published:
Issue Date:
DOI: https://doi.org/10.1007/s10126-006-6006-8
